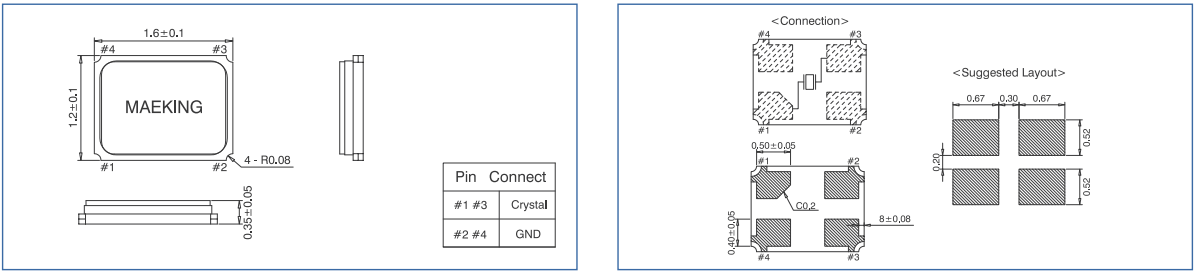

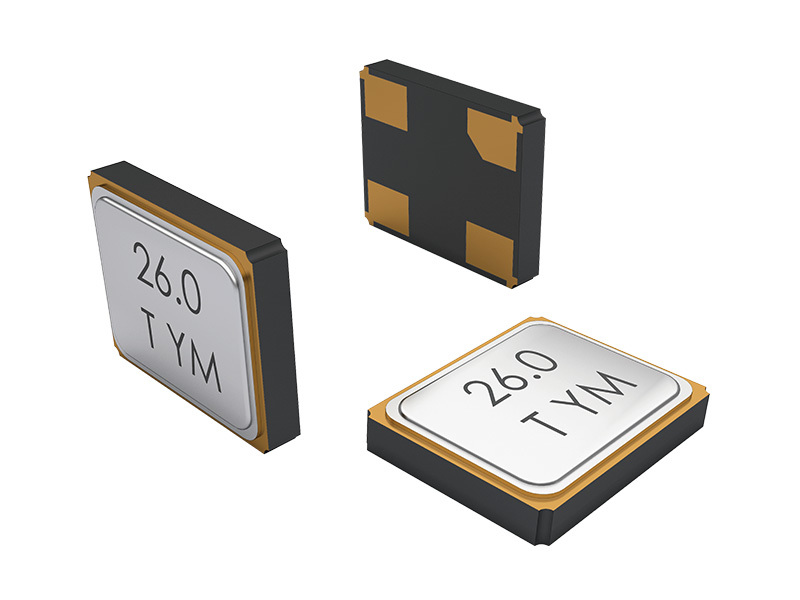

DetailsSMD AT Cut Crystal Unit M1612 Series
Ultra-small size:1.6*1.2*0.35mm
Ceramic seam welding package
High stability and low aging
Pb Free and RoHS compliant
• Small wireless device,Wireless module, loT,Wearable device,TWS
• Health care equipment, Small consumerequipment etc
Item/Type | M1612 |
Frequency Range | 24~96MHz |
Frequency Tolerance (at 25℃) | ±10 ppm,or specify |
| Frequency Stability Over Operating Temperature Range | ±10 ppm,±15 ppm,or specify |
| Operating Temperature Range | -40~+85℃ |
| Shunt Capacitance (C0) | 3.0pF Max. |
| Drive Level | 10μW (100μW Max.) |
| Load Capacitance | Series,8pF, 10pF,or specify |
| Aging (at 25℃) | ±3ppm/year Max. |
| Storage Temperature Range | -40~+125℃ |
| Frequency | Resistance |
| 24MHz≤F0≤32MHZ | 120Ω Max. |
| 32MHz≤F0≤52MHZ | 80Ω Max. |
| 52MHz≤F0≤96MHZ | 50Ω Max. |
| Temp.(℃) / ppm | ±5 | ±10 | ±15 |
| -10~+60 | ▲ | ⚪ | ⚪ |
| -20~+70 | ❌ | ▲ | ⚪ |
| -40~+85 | ❌ | ❌ | ▲ |
| Temp.(℃) / ppm | ±15 | ±20 | ±30 | ±50 |
| -40~+105 | ▲ | ⚪ | ⚪ | ⚪ |
| -40~+125 | ❌ | ❌ | ❌ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note: not all combination of options are available. Other specifications may be available upon request.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
M1612 Series | SMD M1612 MHz Crystal(SMD) | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Discover all the technical specifications by downloading the datasheet today.
