DetailsWorking temperature -20 ℃ ~+105 ℃
Current consumption < 100mA
Battery voltage 3.6V DC
Battery fault voltage 2.5V
Battery warning voltage 3.1V
Differential output
Single 5V Supply
Rise/Fall time around 100ns
Insulated resistance 50MΩ
Resolution 131072（17bit） 8388608（23bit） | Moment of inertia 0.21kg·mm2 | |
| 16 bits multi-turn resolution counter | ||
Absolute positioning accuracy <±50 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit | Rotor angular acceleration During power supply ≤80000rad/s2 When battery powered ≤4000rad/s2 | |
Repetition positioning accuracy <±3 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit | Mechanicalshock Impact acceleration 980m/s2 11ms.Impact 3 times in each direction, totally 18 times | |
| Battery voltage fault warning | Vibrate 10 to 55Hz, keeping the amplitude of 1.5mm Acceleration between 55 and 2000Hz is98ms2 XYZ 2 hours per axial direction,6 hours intotal | |
| Interface RS485 | ||
| Communication frequency ≤16K | ||
| Baud rate 2.5MHz | Working temperature -20 ℃ ~+105 ℃ | |
Enter allowable deviation of shaft Dip angle:0.1° Axial endplay:＜0.1mm Radial runout:＜0.01mm | Relative humidity ≤90% (40℃/21d, based on EN 60068-2 -78) without condensation. | |
| Operation speeds of up to 6000rpm | Degree of protection IP40 |
Pin Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Signal Definition | 5V | GND | 485+ | 485- | Battery + | Battery GND | NC | PE |
| Cable Color | Red | Black | Blue | Yellow | Brown | White | Shielded Mesh |
Note：8mm straight shaft and 9mm conical shaft are only available at RZ35A.

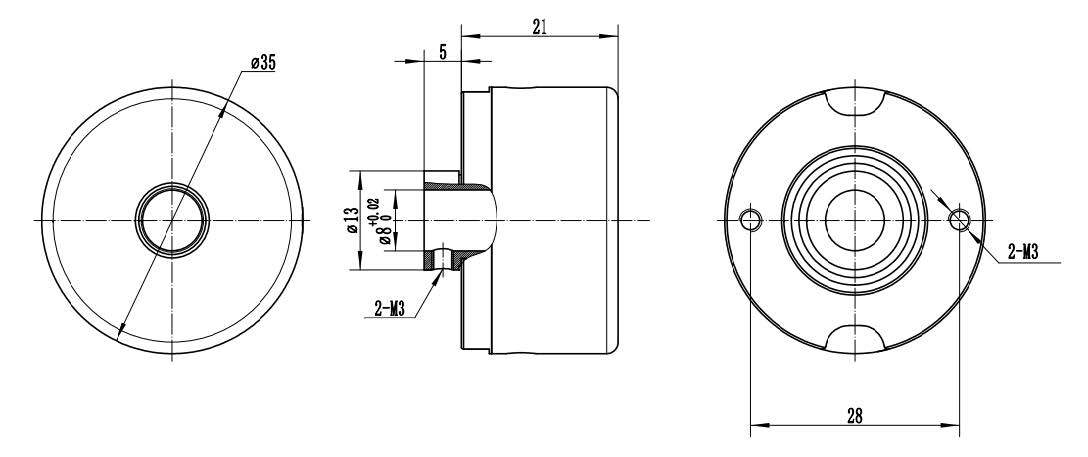

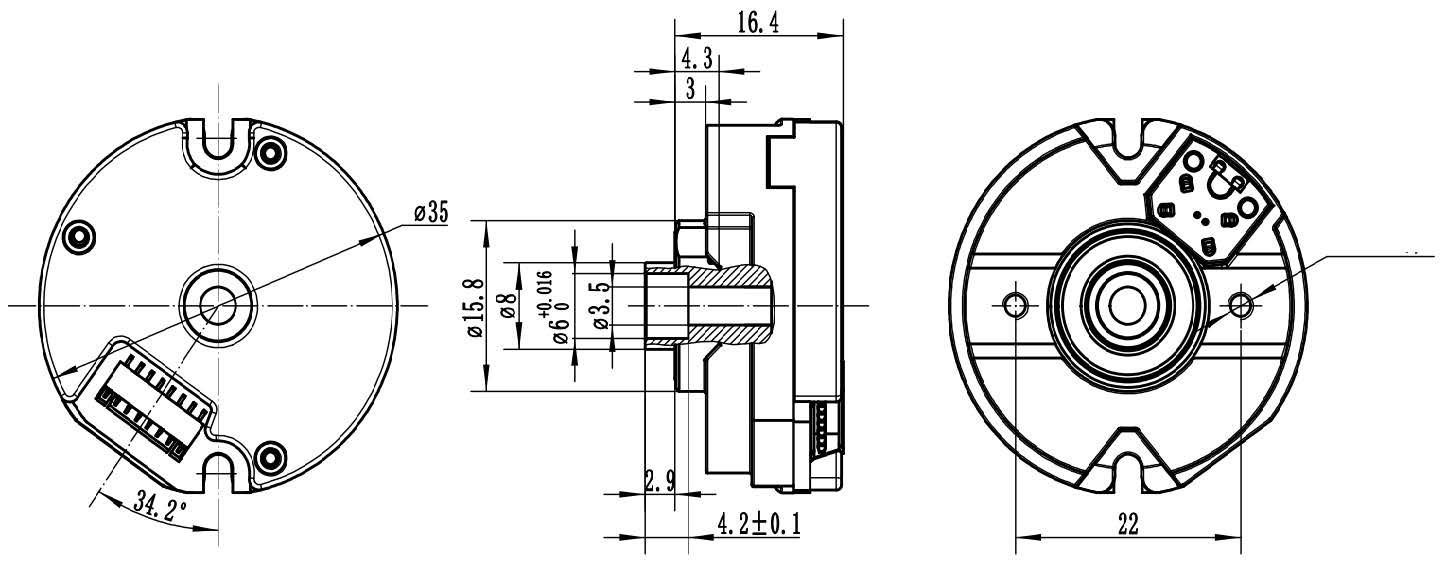

RZ35A08 Mechanical Dimension Drawing

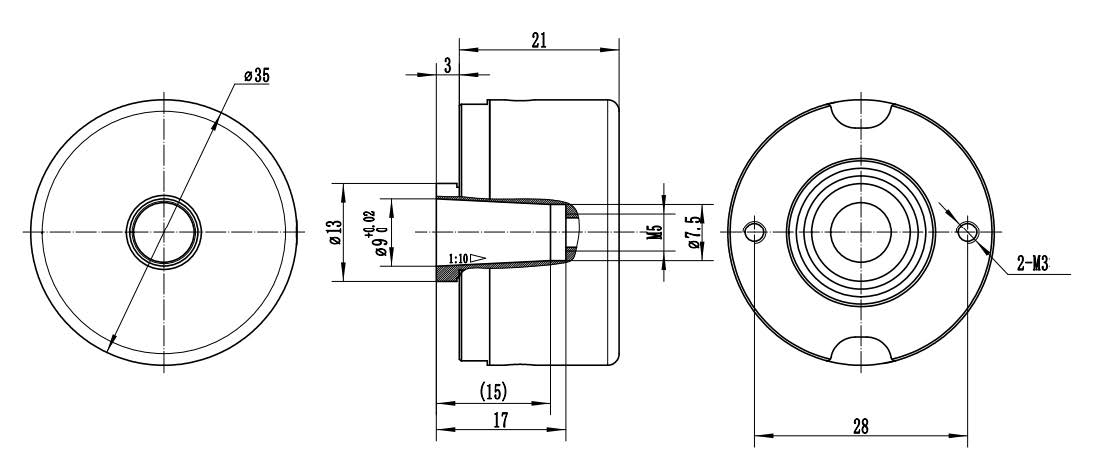

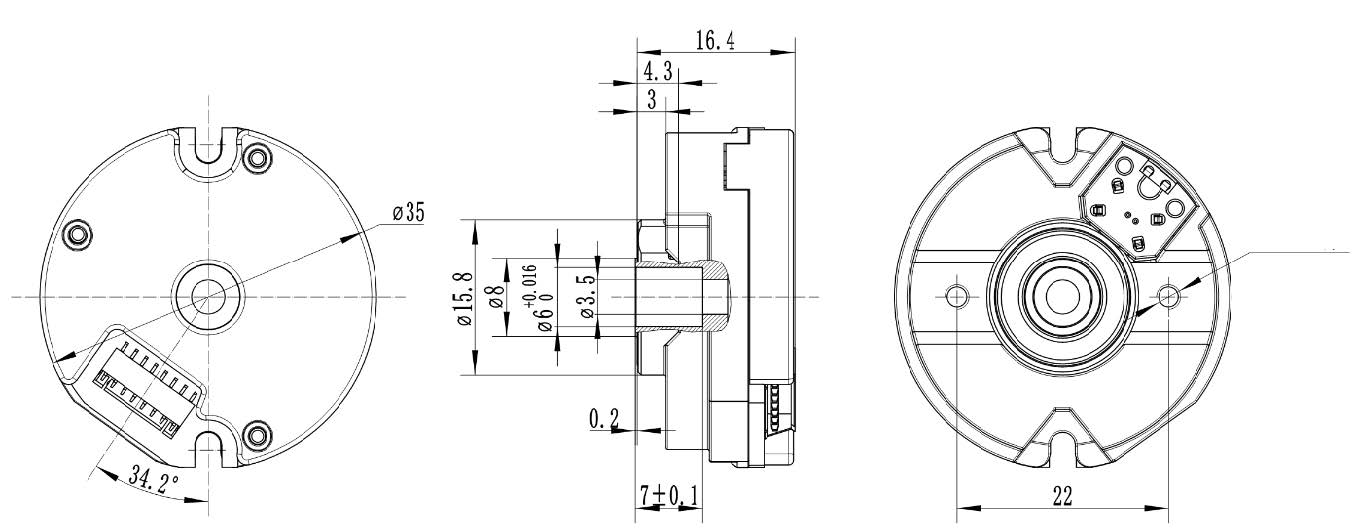

RZ35A09 Mechanical Dimension Drawing

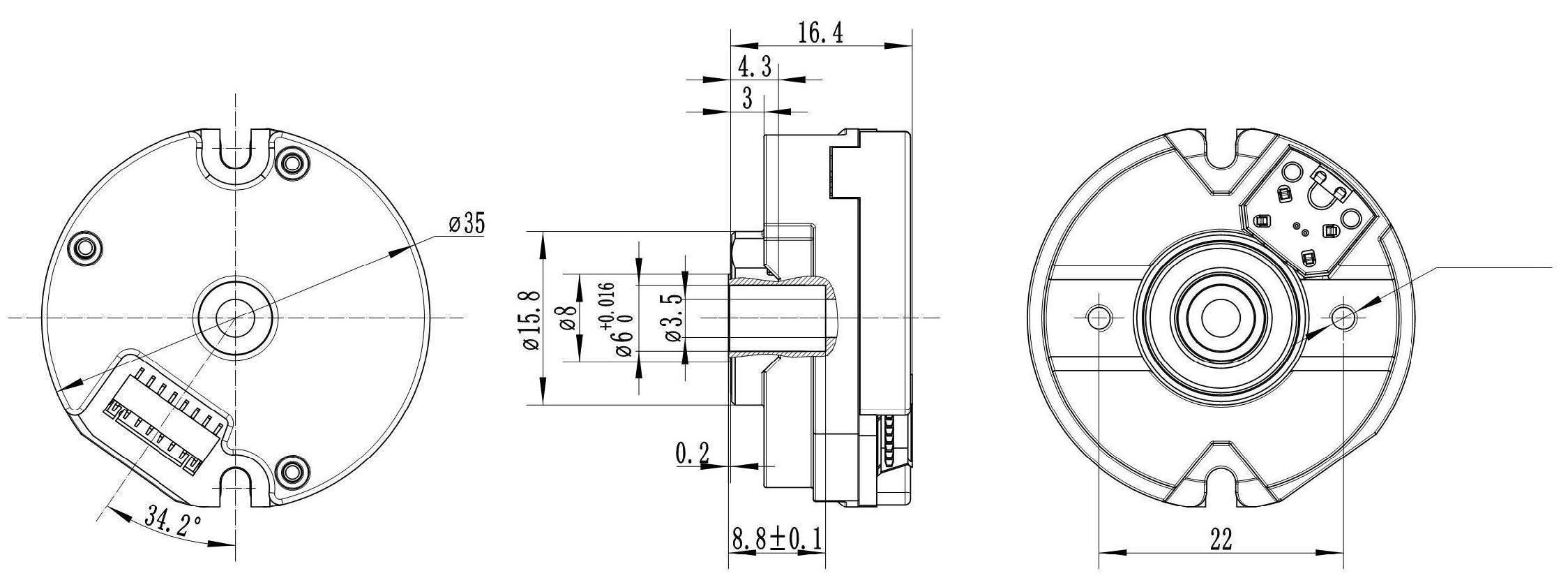

RZ35D06Q Mechanical Dimension Drawing
RZ35D06J Mechanical Dimension Drawing
RZ35D06S Mechanical Dimension Drawing
Note: Select leaf spring according to motor face dimensions.

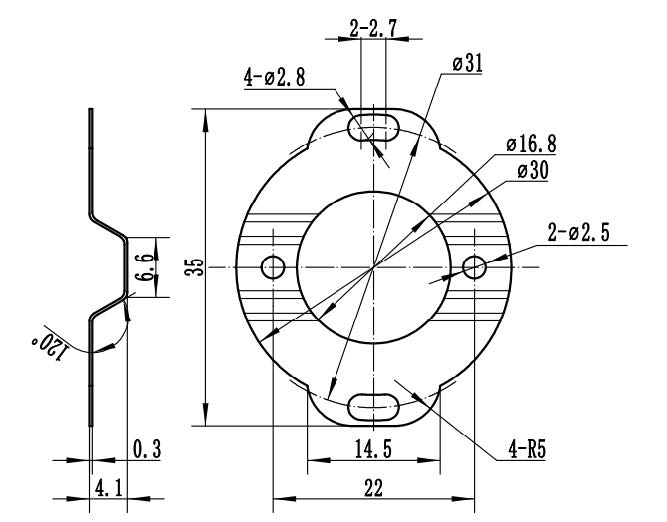

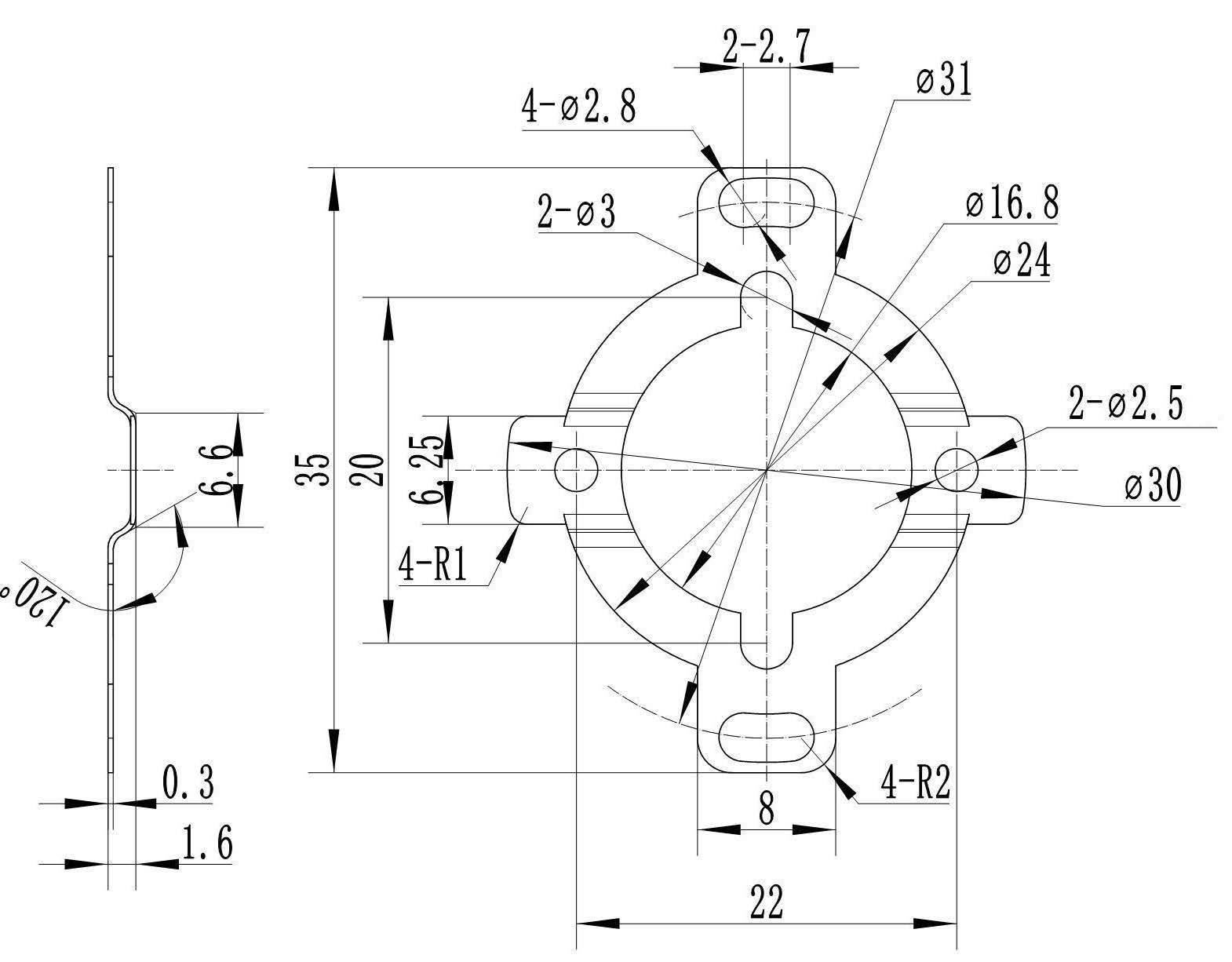

MP4131-704R (BM Type – Medium Profile with Ø31 Mounting Holes) Leaf Spring Mechanical Drawing

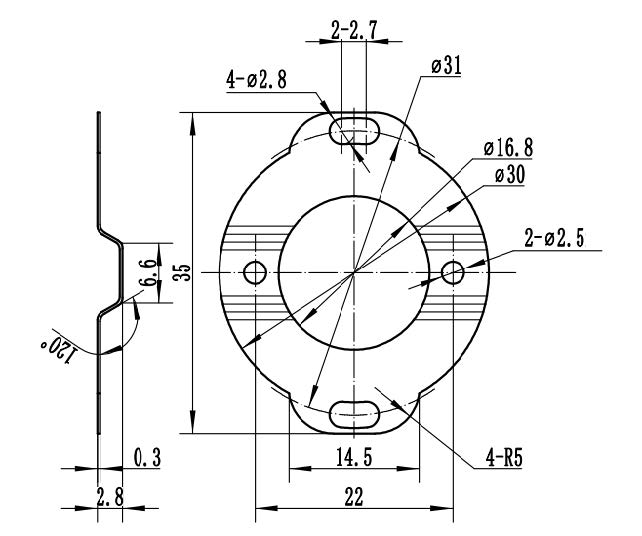

MP2831-704R (BL Type – Low Profile with Ø31 Mounting Holes) Leaf Spring Mechanical Drawing
MP1631-704R (BP Type – Flat Profile with Ø31 Mounting Holes) Leaf Spring Mechanical Drawing

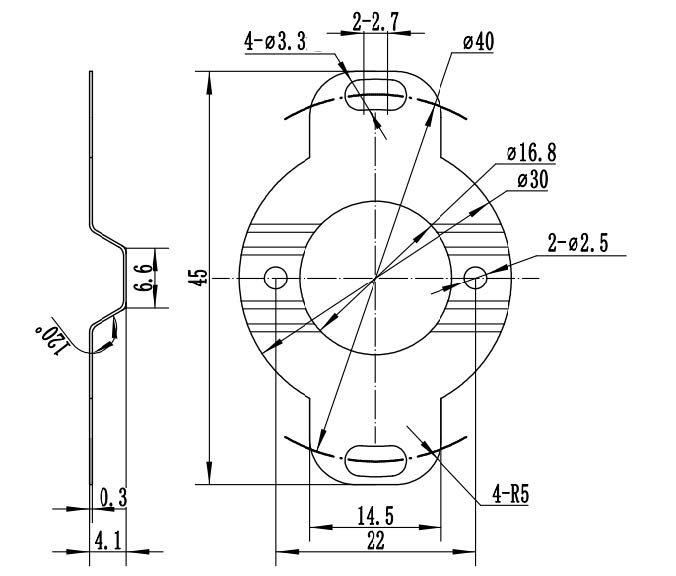

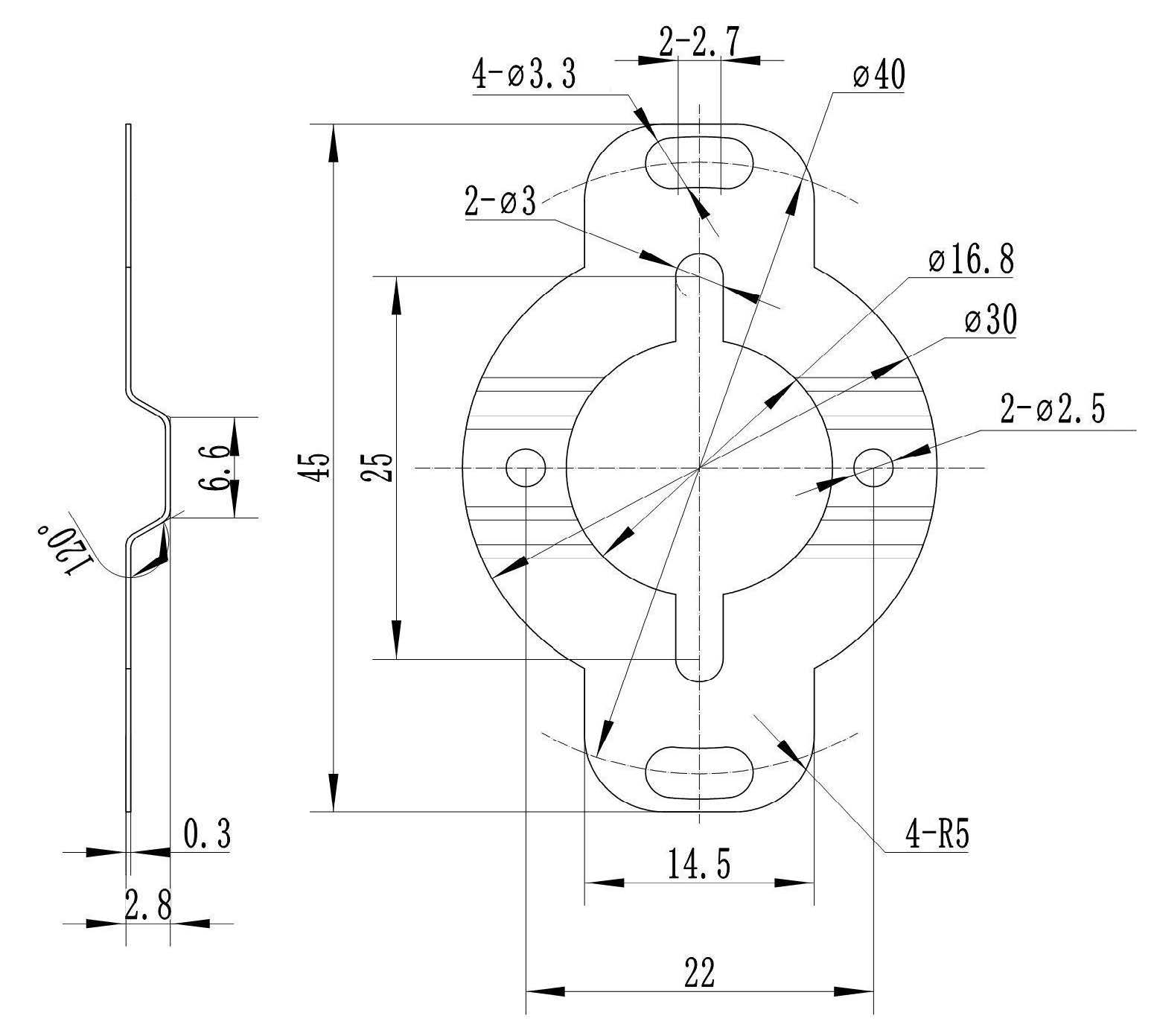

MP4140-704R (CM Type – Standard Profile with Ø40 Mounting Holes) Leaf Spring Mechanical Drawing
MP2840-704R (CL Type – Low Profile with Ø40 Mounting Holes) Leaf Spring Mechanical Drawing

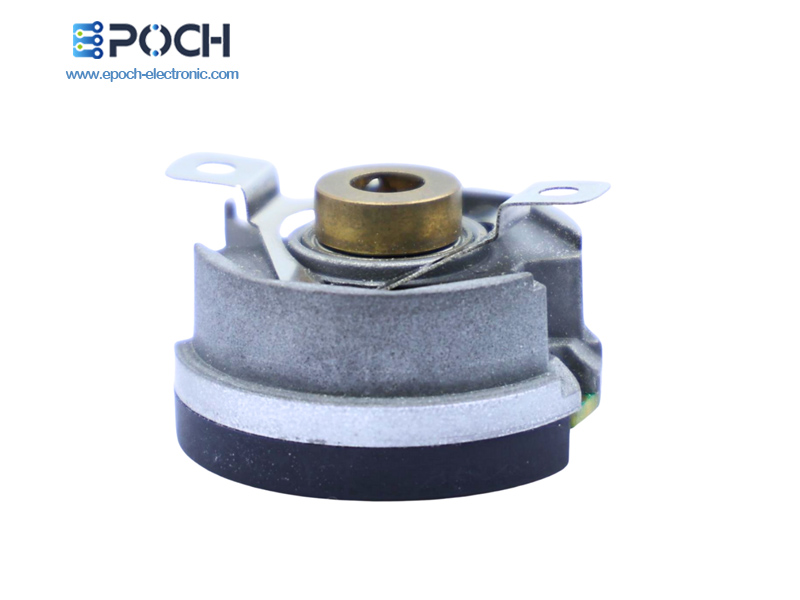

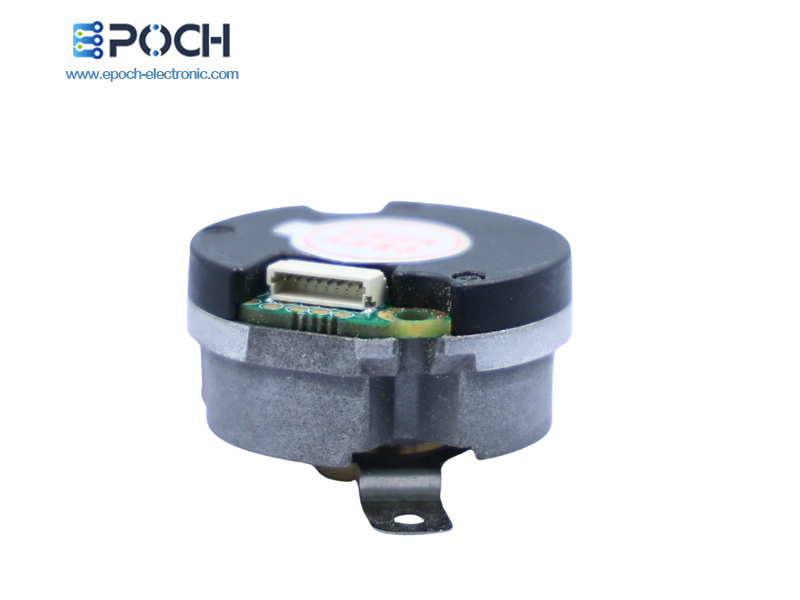

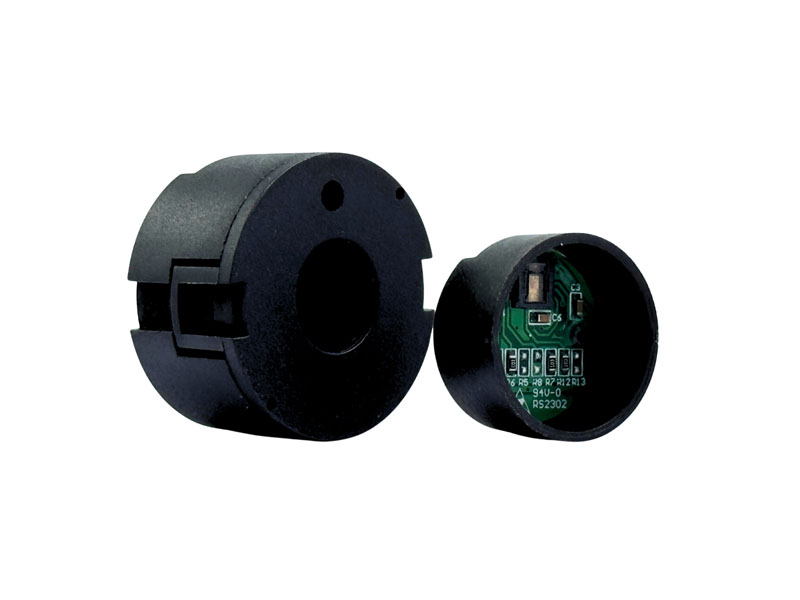

RZ35 Series Multi-Turn Bearing Absolute Encoder is mainly used for servo-driven control system.Provide feedback information and auxiliary signals required by accurate position and speed control units for the system.
High resolution up to 23 bits and 16-bit multi-turn counting ensure ultra-precise absolute positioning.
Compact 35mm bearing-mounted design allows easy integration with motors and rotary equipment.
Reliable RS485 communication offers high-speed data transmission with baud rates up to 2.5 MHz.
Wide operating temperature range of -20°C to +105°C and robust shock and vibration resistance deliver dependable industrial performance.
Battery-backed absolute positioning maintains data integrity during power loss while consuming less than 100mA for energy efficiency.
Note: 8mm straight shaft and 9mm conical shaft are only available for the RZ35A.
| Item | Description | QTY/Box | Boxes /Carton | G.W | N.W | QTY /Carton | Package Size |
| RZ35 | Absolute Encoder,Outer Diameter 35mm | 10pcs | 10boxes | 0.38kgs | 0.3kgs | 100pcs | 310*130*45mm |
