High-reliability, high-resolution absolute encoders available in 35mm outer diameter with 6mm, 8mm straight or 9mm conical shaft options. Single-turn (RZ35A) and multi-turn (RZ35D06) variants available. The RZ35D06 features a battery-backed 16-bit multi-turn counter for power-off position retention. All models feature RS485 serial communication at 2.5MHz baud rate with selectable 17-bit or 23-bit single-turn resolution. Designed as alternative solutions for applications using Tamagawa SA35 or similar form-factor absolute encoders.

RZ35 series single turn absolute encoder

Quick Select: RZ35A · RZ35D06 · Full Specs · Cross-Reference · FAQ

RZ35 Series Absolute Encoder Model Comparison — RZ35A vs RZ35D06

Parameter	RZ35A	RZ35D06
Outer Diameter	35 mm
Shaft Bore Options	8mm straight / 9mm conical	6mm
Type	Single-Turn absolute	Multi-Turn absolute + 16-bit
Resolution	17-bit / 23-bit selectable
Interface	RS485 2.5MHz
Supply Voltage	Single 5V DC
Ingress Protection	IP40
Max Speed	6,000 rpm
Power-Off Memory	—	✓ 16-bit battery-backed
Details	↓ View	↓ View

Note: 8mm straight shaft and 9mm conical shaft are only available on RZ35A.

[USES] Uses:

This product is mainly used for servo-driven control systems. It provides feedback information and auxiliary signals required by accurate position and speed control units for the system.

[FEATURES] RZ35 Series Absolute Encoder Features & Specifications

•

Working Temperature: -20 ℃ ~ +105 ℃

•

Current Consumption: < 100mA

•

Battery Voltage: 3.6V DC

•

Battery Warning Voltage: 3.1V

•

Battery Fault Voltage: 2.5V

•

Signal Output: Differential output

•

Power Supply: Single 5V Supply

•

Rise/Fall Time: Around 100ns

•

Insulation Resistance: 50MΩ

RZ35 Series Technical Specifications — 17-Bit 23-Bit RS485 IP40

Parameter	Specification
Resolution	131,072 (17-bit) / 8,388,608 (23-bit)
Multi-Turn (RZ35D06 only)	16-bit multi-turn counter (65,536 turns, battery-backed)
Absolute Positioning Accuracy	< ±50 arc-seconds (depends on motor & assembly fit)
Repeatability Accuracy	< ±3 arc-seconds (depends on motor & assembly fit)
Interface Protocol	RS485
Baud Rate	2.5 MHz \| Communication frequency ≤ 16K\| Communication frequency ≤ 16K
Allowable Shaft Deviation	Dip Angle: 0.1° / Axial Endplay: <0.1mm / Radial Runout: <0.01mm
Max Operating Speed	6,000 rpm
Moment of Inertia	0.21 kg·mm²
Rotor Angular Acceleration	Powered: ≤80,000 rad/s² / Battery: ≤4,000 rad/s²
Battery Voltage	3.6V DC (Warning: 3.1V / Fault: 2.5V)
Mechanical Shock	980 m/s² (100G), 11ms, 3 times per XYZ direction (18 total)
Vibration	10-55Hz 1.5mm / 55-2000Hz 98 m/s² / 2h per axis (6h total)
Operating Temperature	-20 °C to +105 °C
Relative Humidity	≤90% (40°C/21d, EN 60068-2-78, non-condensing)
Ingress Protection	IP40
Current Consumption	< 100mA
Rise/Fall Time	Around 100ns
Insulation Resistance	50 MΩ

RZ35 Series Mounting Accessories — Leaf Spring Brackets for Servo Motors

EPOCH supplies rigid leaf spring options to adapt to diverse servo motor shell geometries. Note: Select leaf spring according to motor face dimensions.

MP4131-704R (BM Type-Medium Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing

MP4131-704R (BM Type-Medium Profile with‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing

MP2831-704R (BL Type-Low Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing

MP1631-704R (BP Type-Flat Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing

MP4140-704R (CM Type-Standard Profile with ‌⌀40 Mounting Holes) Leaf Spring Mechanical Drawing

MP2840-704R (CL Type-Low Profile with ‌⌀40 Mounting Holes) Leaf Spring Mechanical Drawing

Bracket Reference	Type	Application
MP4131-704R	BM Type	Medium profile, Ø31 mounting holes
MP2831-704R	BL Type	Low profile, Ø31 mounting holes
MP1631-704R	BP Type	Flat profile, Ø31 mounting holes
MP4140-704R	CM Type	Standard profile, Ø40 mounting holes
MP2840-704R	CL Type	Low profile, Ø40 mounting holes

Single-Turn

RZ35A — 35mm Single-Turn Absolute Encoder

8mm straight / 9mm conical shaft · 17/23-bit · RS485 2.5MHz · single-turn absolute

Key Dimensions:

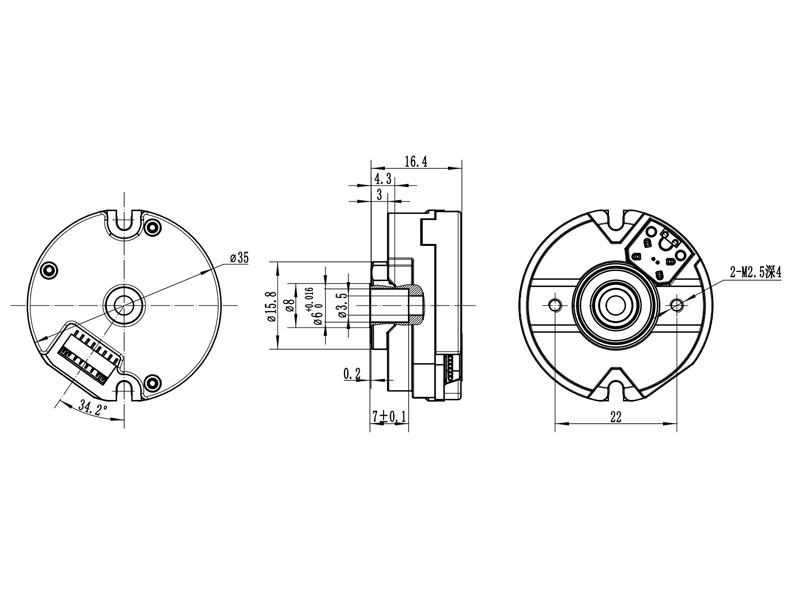

OD 35.0 mm | 6mm shaft bore| 8mm straight or 9mm conical shaft bore (selectable)| 8mm straight or 9mm conical shaft bore (selectable)

RZ35A08 — 8mm Straight Shaft Version

RZ35A09 — 9mm Conical Shaft Version

Multi-Turn

RZ35D06 — 35mm Multi-Turn Absolute Encoder with Power-Loss Memory

6mm shaft bore · 17/23-bit + 16-bit multi-turn · RS485 2.5MHz · battery-backed position retention

Key Dimensions:

OD 35.0 mm | 6mm shaft bore

[RZ35D06 dimension drawing — additional views awaiting upload]

Cross-Referencing & Sourcing Retrofit Guides — 35mm Absolute Encoder Replacement Reference

The EPOCH RZ35 Series absolute encoders are designed as physical and electrical alternatives for a range of industry-standard absolute encoder applications. The RZ35A single-turn variant shares a similar 35mm form factor with the Tamagawa SA35 series, while the RZ35D06 multi-turn variant provides a battery-backed absolute position alternative in the same compact footprint. Both models offer comparable 17-23bit resolution with RS485 2.5MHz communication. For applications originally using Heidenhain or SSI-based absolute encoders, please contact our team for protocol compatibility evaluation. Engineers should verify shaft bore dimensions, mounting bolt patterns, and single-turn vs. multi-turn requirements before specifying. Contact our engineering team for detailed fitment comparisons.

⚠️ Trademark & Interchangeability Safety Notice:

All OEM corporate marks, trademarks, and specific part model definitions referenced across these indices are physical properties of their respective corporate registration holders.
EPOCH is a fully independent absolute encoder manufacturer. We hold no licensing links or partnerships with any named trademark owners.
Engineers should verify shaft bore dimensions, RS485 communication protocols, single-turn vs. multi-turn requirements, and lead-out wire configurations before cross-referencing.

Sourcing Queries & Interchange Cross Indexes

Primary Index Classification: RZ35 Series absolute encoder ｜ RZ35A ｜ RZ35D06 ｜ 35mm absolute encoder ｜ 35mm single-turn absolute encoder ｜ 35mm multi-turn absolute encoder

Verified Sourcing Modifiers & Classifiers: single-turn absolute encoder ｜ multi-turn absolute encoder ｜ RS485 absolute encoder ｜ 17-bit encoder ｜ 23-bit encoder ｜ battery-backed absolute encoder ｜ servo motor feedback encoder ｜ compact 35mm absolute encoder

Interchange Cross-Reference Index: Tamagawa SA35 alternative ｜ SA35 compatible absolute encoder ｜ Heidenhain absolute encoder alternative ｜ 35mm servo encoder replacement ｜ RS485 absolute encoder alternative ｜ single-turn encoder replacement ｜ multi-turn absolute encoder replacement

Cable Definitions — 8-Pin Connection (RZ35 Series)

Pin	1	2	3	4	5	6	7	8
Signal	5V	GND	485+	485-	Battery +	Battery GND	NC	PE
Cable Color	Red	Black	Blue	Yellow	Brown	White	—	Shield

RZ35 Series Ordering Code — Part Number Configuration Guide

RZ35

Series

35mm Absolute

A·D

Model

A / D

06·08·09

Shaft Ø

06/08/09

17·23

Resolution

17/23-bit

T·S·B

Interface

T / S / B

Voltage

DC 5V

G·C

Output

G / C

Example Part Numbers

RZ35A08 17 T 5V G

RZ35A + 8mm straight shaft + 17-bit + RS485 + 5V + Cable output

RZ35D06 23 T 5V G

RZ35D06 + 23-bit + RS485 + 5V + Cable output

Model Variant

A — Single-Turn (RZ35A)

D — Multi-Turn (RZ35D06, 16-bit)

Shaft & Interface

06 — 6mm 08 — 8mm straight 09 — 9mm conical

* 08/09 available on RZ35A only

T — RS485 S — SSI* B — BISS*

Resolution & Output

17 — 17-bit (131,072 steps) 23 — 23-bit (8,388,608)

G — Cable output C — Connector

* Protocols marked with asterisk can be customized. Contact EPOCH sales for custom ordering configurations.
