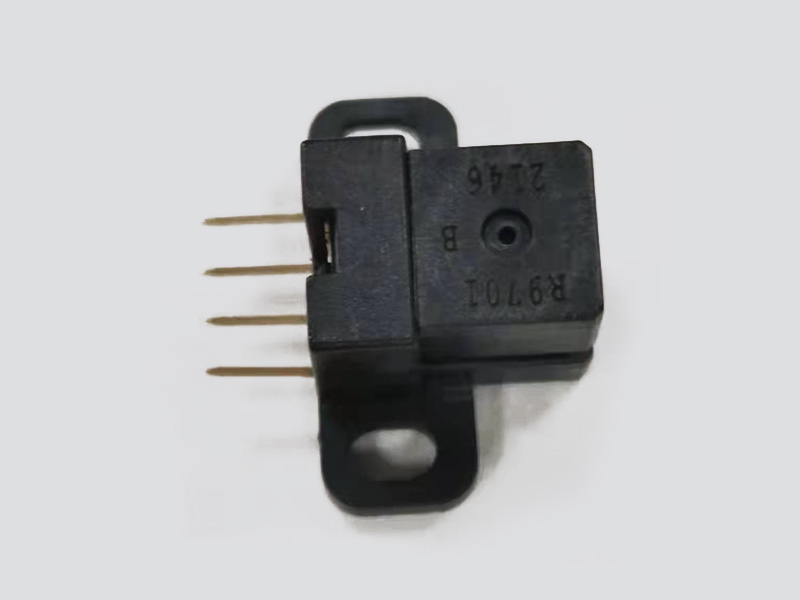

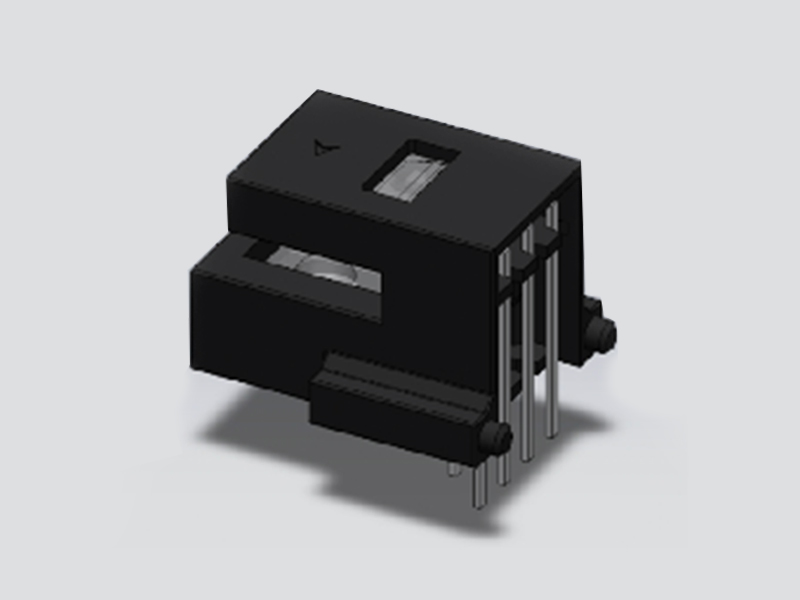

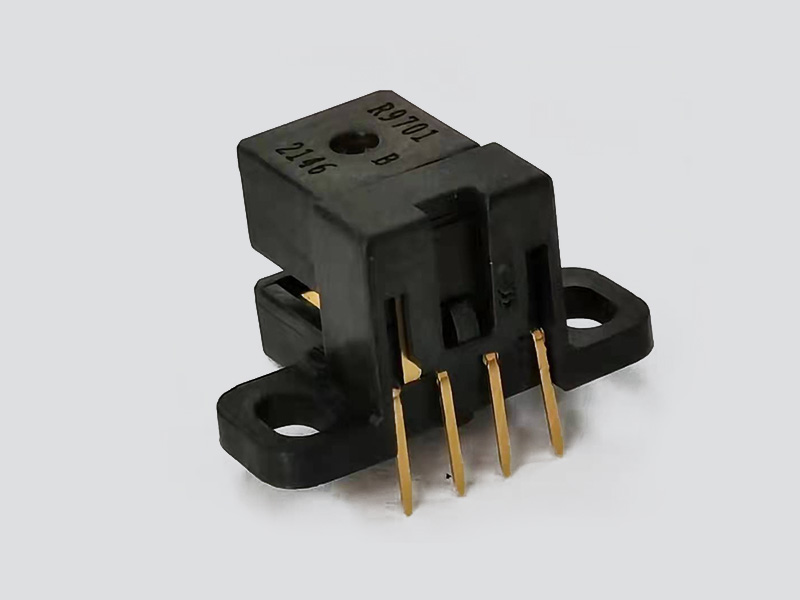

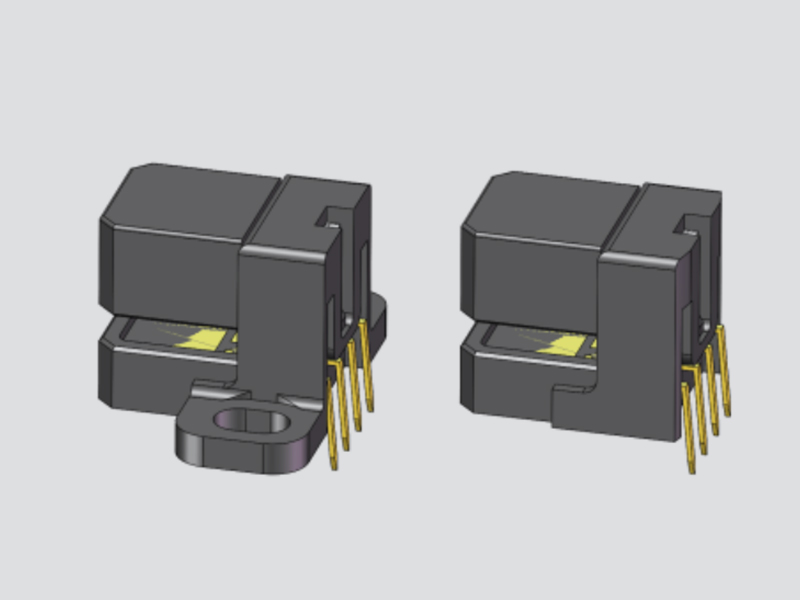

DetailsThe RS970 Series is a high-performance optical encoder module designed for precise motion control applications.
Photo-detector Array
-40°C to +85°C Operating Temperature
Multiple CPR options
C-Shape Structure, Easy to Mount
TTL Compatible
5V Supply
The RS970 series features a 2-channel incremental encoder module that combines an integrated precision encoder phase matrix receiver chip with a visible LED light source.
This module accurately detects rotational position and speed when used with a compatible code disk.
RS970 series has linear ( LPI ) options: 20, 45, 90, 150, 180, 300, 360.
Applications
Typical applications include printers, plotters, servo motors, factory automation etc.
Safety Notice: Not recommended for use in safety critical application. Eg.ABS braking system.
Parameter | Symbol | Range |
Storage Temperature | Ts | -40°C to +85°C |
Operating Temperature | TA | -40°C to +85°C |
Supply Voltage | Vcc | -0.5V to 7V |
Soldering Temperature | - | ≤260°C ( t ≤ 5s ) |
Response Frequency | f | 200 KHz |
Reverse Voltage | Vr | 5V |
Parameter | Symbol | Range |
Operating Temperature | T | -40°C to +85°C |
Power Supply | Vcc | 4.5V ~ 5.5V |
Electrical Characteristics Under Recommended Operating Range, Typical at 25 ⁰C
Parameter | Symbol | Min. | Typ. | Max. | Units | Condition |
| Light Source Forward Voltage | Vf | 1.9 | 2 | 2.3 | V | If=20mA |
Light Source Wavelength | λp | 650 | - | 660 | nm | - |
Receiver Chip Operating Current | ICC | - | 10 | 20 | mA | - |
Low Level Output Voltage | VOL | - | 0.2 | 0.4 | V | - |
High Level Output Voltage | VOH | 2.4 | 4.5 | - | V | - |
A/B Rising Edge Time | tr | - | 120 | - | ns | - |
A/B Falling Edge Time | tf | - | 20 | - | ns | - |
AB Duty Cycle | Dt | 40 | 50 | 60 | % | - |
| A/B Phase Difference | θ | 60 | 90 | 120 | ⁰e | - |

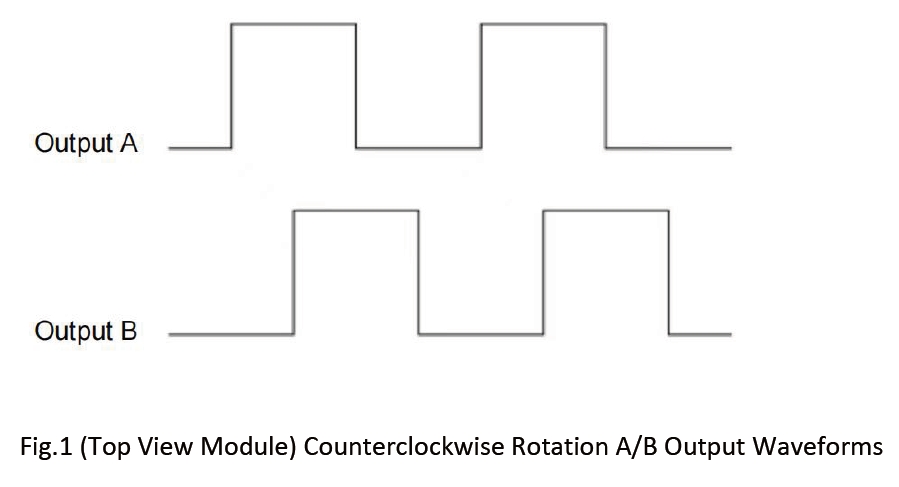

A/B Output Waveform Diagram
Pin Definition
Pin Name | Function | Input / Output |
Vcc | Power Supply + 5V | Power Supply |
CH A | A Channel output | Output |
CH B | B Channel output | Output |
Gnd | Ground | Ground |

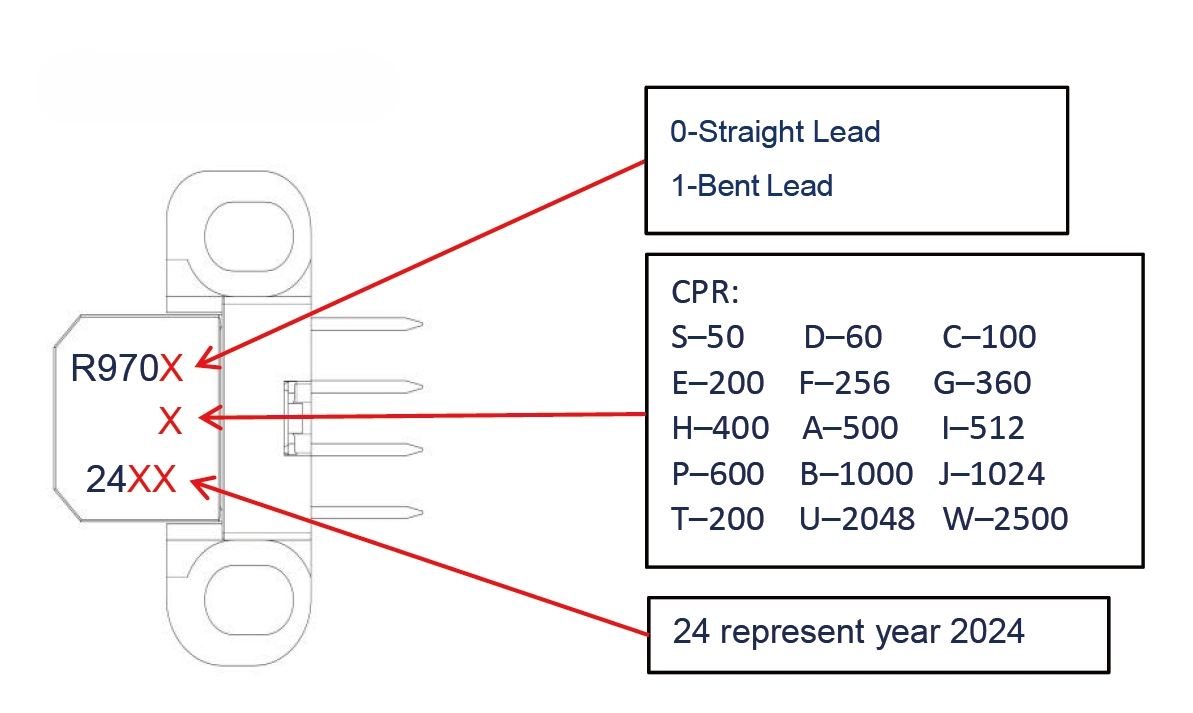

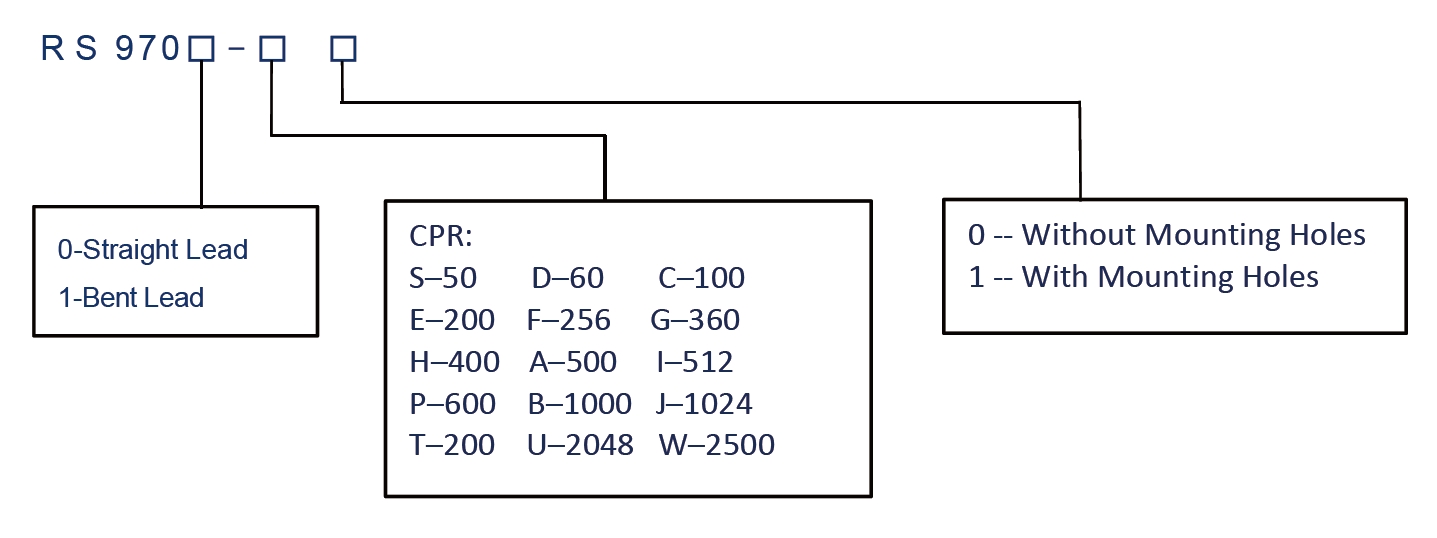

RS970 series is available in a variety of options, and the specific CPR selection is as follows, based on the optical radius (ROP) = 11mm.

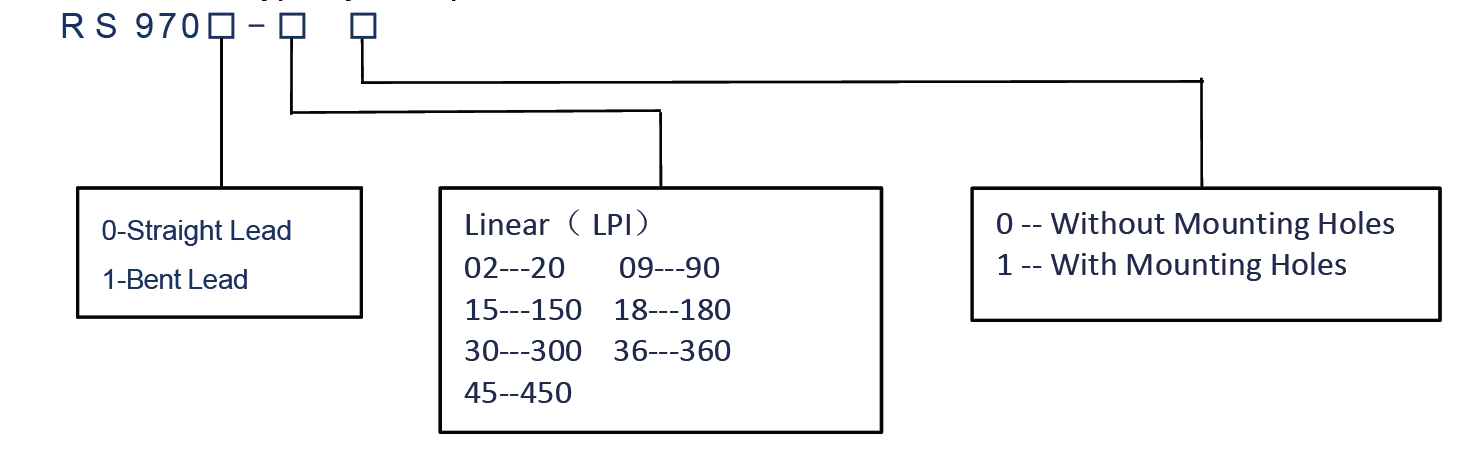

RS970 series linear type by LPI options are as follows.
| Item | Description | QTY/Tube | Tubes/Carton | G.W | N.W | QTY/Carton | Package Size |
| RS97 Series | RS97 Series Optical Encoder Modules （With Mounting Holes） | 25 pcs | 60 tubes | 5.78 kgs | 2.4 kgs | 1500 pcs | 620*310*225 (mm) |
| 10 tubes | 1.01 kgs | 0.4 kgs | 250 pcs | 600*48*70 (mm) | |||
RS97 Series Optical Encoder Modules （Without Mounting Holes） | 50 pcs | 60 tubes | 7.88 kgs | 4.5 kgs | 3000 pcs | 620*310*225 (mm) | |
| 10 tubes | 1.36 kgs | 0.75 kgs | 500 pcs | 600*48*70 (mm) |
Material Weight Schedule
| Material | Optical Encoder Module （With Mounting Holes） | Optical Encoder Module （Without Mounting Holes） | Tube | Carton |
| Weight | 1.6g/pc | 1.5g/pc | 45g/pc | 680g/160g |
| QTY/Carton | 1,500pcs /250pcs | 3,000pcs /500pcs | 60 tubes/10 tubes | 1pc |
| Weight/Carton | 2,400g/400g | 4,500g/750g | 2,700g/450g | 680g/160g |
5,780g/1500pcs 1,010g/250pcs | 7,880g/3,000pcs 1,360g/500pcs |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |

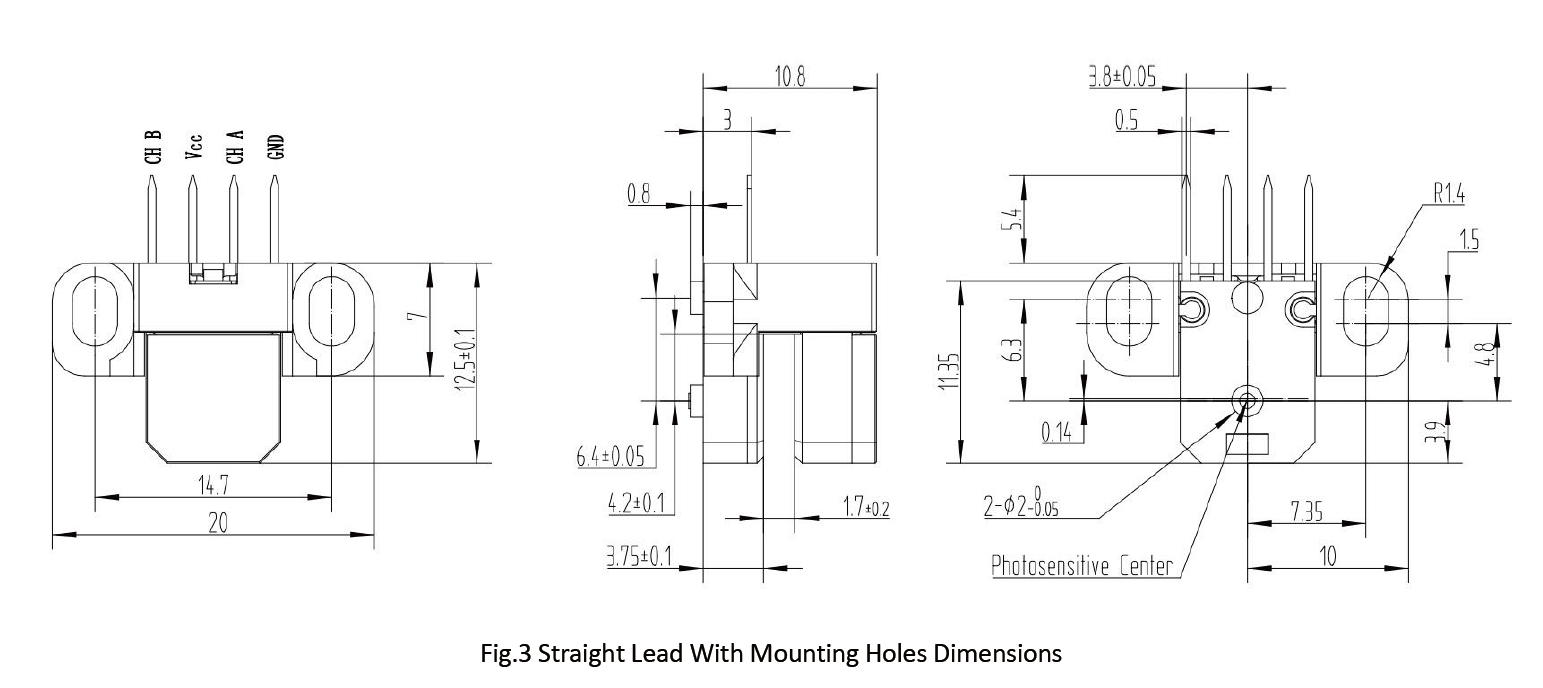

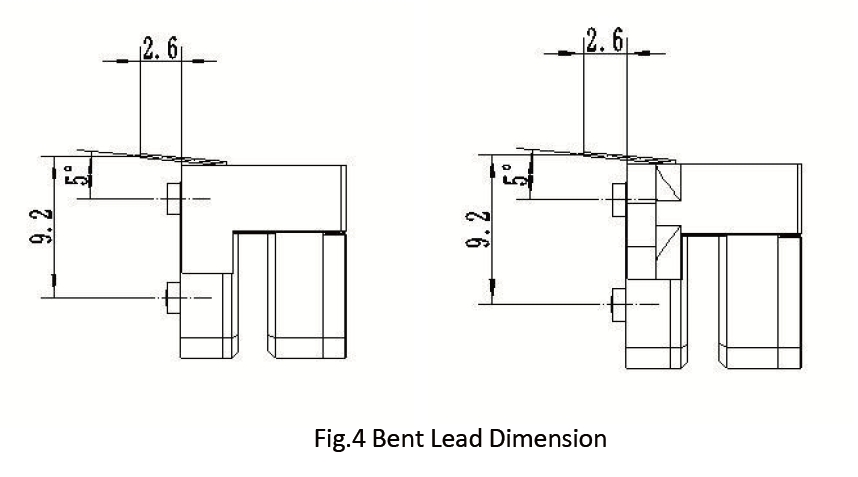

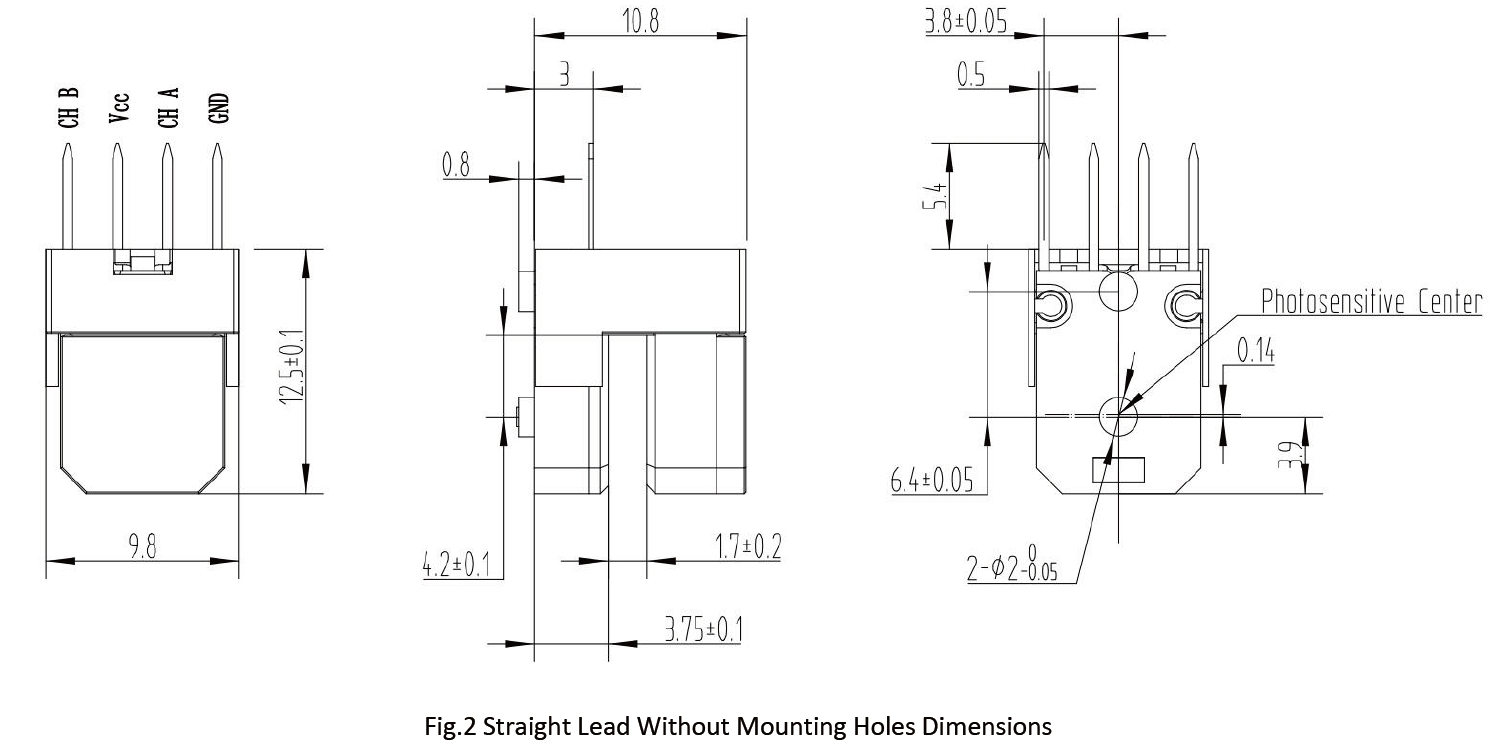

Dimensions
