DetailsWorking temperature -20 ℃ ~+105 ℃
Current consumption < 100mA
Battery voltage 3.6V DC
Battery fault voltage 2.5V
Battery warning voltage 3.1V
Differential output
Single 5V Supply
Rise/Fall time around 100ns
Insulated resistance 50MΩ
Resolution 131072（ 17bit ） 8388608（ 23bit ） | Moment of inertia 0.21kg·mm2 | |
| 16 bits multi-turn resolution counter | ||
Absolute positioning accuracy <±50 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit | Rotor angular acceleration During power supply ≤80000rad/s2 When battery powered ≤4000rad/s2 | |
Repetition positioning accuracy <±3 angular seconds
Note: The specific accuracy depends on the motor and mechanical assembly fit | Mechanicalshock Impact acceleration 980m/s2 11ms.Impact 3 times in each direction, totally 18 times | |
| Battery voltage fault warning | Vibrate 10 to 55Hz, keeping the amplitude of 1.5mm Acceleration between 55 and 2000Hz is98ms2 XYZ 2 hours per axial direction,6 hours intotal | |
| Interface RS485 | ||
| Communication frequency ≤16K | ||
| Baud rate 2.5MHz | Working temperature -20 ℃ ~+105 ℃ | |
Enter allowable deviation of shaft Dip angle:0.1° Axial endplay:＜0.1mm Radial runout:＜0.01mm | Relative humidity ≤90% (40℃/21d, based on EN 60068-2 -78) without condensation. | |
| Operation speeds of up to 6000rpm | Degree of protection IP40 |
Pin Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Signal Definition | 5V | GND | 485+ | 485- | Battery + | Battery GND | NC | PE |
| Cable Color | Red | Black | Blue | Yellow | Brown | White | Shielded Mesh |
| Name | Specification | Strength grade | Quantity | Application position |
Hex socket screw with threadlocker | M3*6 | Grade 9.8 | 1 pc | Shaft end |
Hex socket screw with threadlocker | M2.5*12 | Grade 9.8 | 2 pc | Encoder body |
RSG35R06A Mechanical Dimension Drawing
RSG35B06A Mechanical Dimension Drawing
Shaft End Locating - Motor Face Dimension Drawing
Shaft Shoulder Locating - Motor Face Dimension Drawing
RSG35B08A Mechanical Dimension Drawing

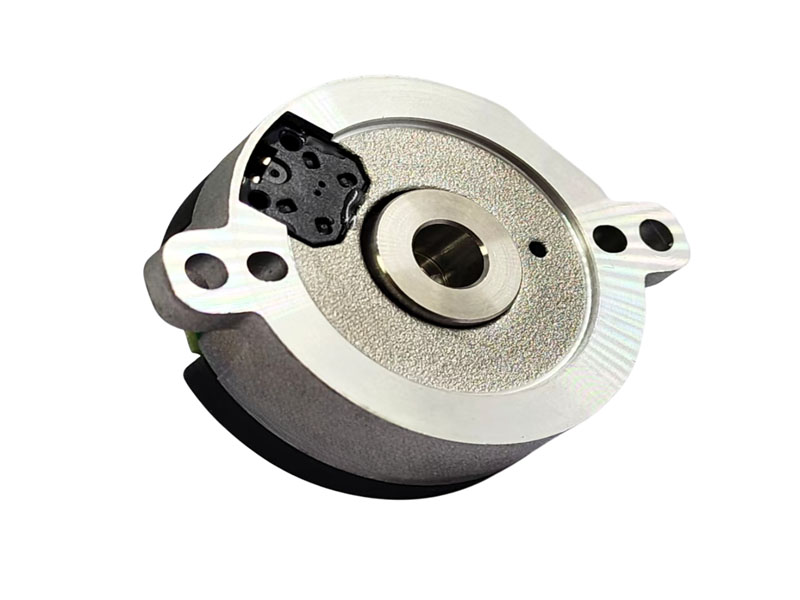

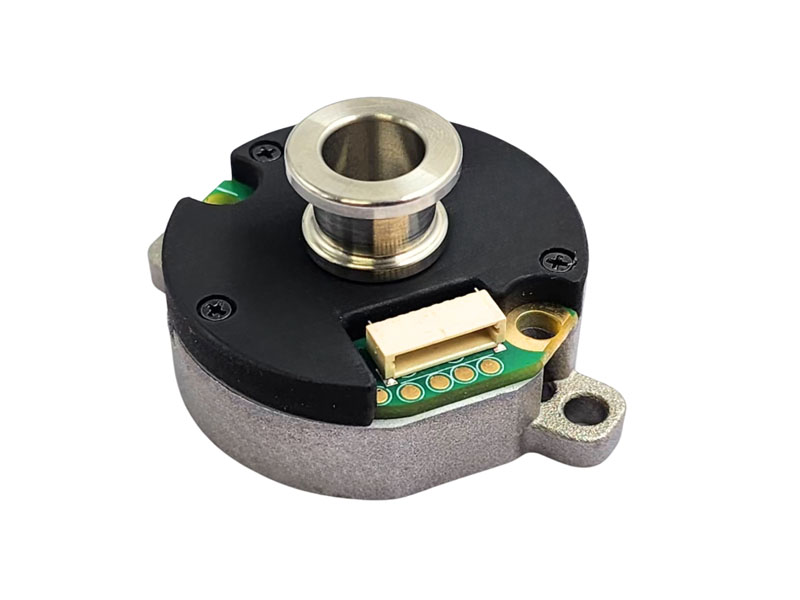

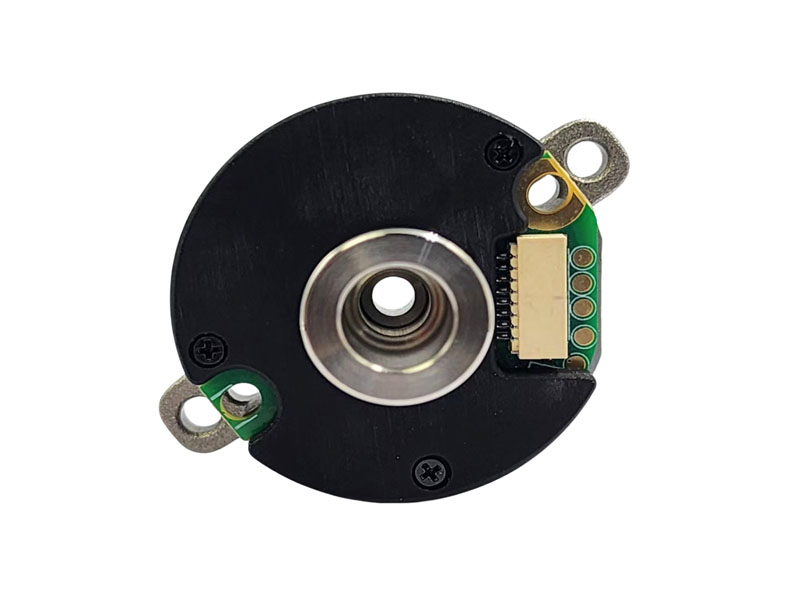

RSG35 Series Bearingless Absolute Magnetic Encoder is mainly used for servo-driven control system.Provide feedback information and auxiliary signals required by accurate position and speed control units for the system.
Offers high-resolution positioning with up to 23 bits single-turn and 16-bit multi-turn for precise motor control.
Compact bearingless cartridge design with 35mm outer diameter enables easy integration in tight spaces.
Reliable RS485 interface supports fast data transmission with baud rates up to 2.5 MHz.
Wide operating temperature range (-20°C to +105°C) with excellent vibration and shock resistance for industrial robustness.
Low current consumption (<100mA) and battery-backed operation ensure stable performance and minimal downtime.
| Item | Description | QTY/Box | Boxes /Carton | G.W | N.W | QTY /Carton | Package Size |
| RSG35 | RSG35 Series Bearingless Absolute Magnetic Encoder | 10pcs | 10boxes | /kgs | /kgs | 100pcs | 310*130*45mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |
Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|
| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
