DetailsWorking temperature -20 ℃ ~+105 ℃
Current consumption < 100mA
Battery voltage 3.6V DC
Battery fault voltage 2.5V
Battery warning voltage 3.1V
Differential output
Single 5V Supply
Rise/Fall time around 100ns
Insulated resistance 50MΩ
Resolution 131072（17bit） 8388608（23bit） | Moment of inertia 0.68kg·mm2 | |
| 16 bits multi-turn resolution counter | ||
Absolute positioning accuracy <±50 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit | Rotor angular acceleration During power supply ≤80000rad/s2 When battery powered ≤4000rad/s2 | |
Repetition positioning accuracy <±3 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit | Mechanicalshock Impact acceleration 980m/s2 11ms.Impact 3 times in each direction, totally 18 times | |
| Battery voltage fault warning | Vibrate 10 to 55Hz, keeping the amplitude of 1.5mm Acceleration between 55 and 2000Hz is98ms2 XYZ 2 hours per axial direction,6 hours intotal | |
| Interface RS485 | ||
| Communication frequency ≤16K | ||
| Baud rate 2.5MHz | Working temperature -20 ℃ ~+105 ℃ | |
Enter allowable deviation of shaft Dip angle:0.1° Axial endplay:＜0.1mm Radial runout:＜0.01mm | Relative humidity ≤90% (40℃/21d, based on EN 60068-2 -78) without condensation. | |
| Operation speeds of up to 6000rpm | Degree of protection IP40 | |
| Shaft diameter：Straight shaft Ø8 / Ø6 |
Pin Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Signal Definition | 5V | GND | 485+ | 485- | Battery + | Battery GND | NC | PE |
| Cable Color | Red | Black | Blue | Yellow | Brown | White | Shielded Mesh |

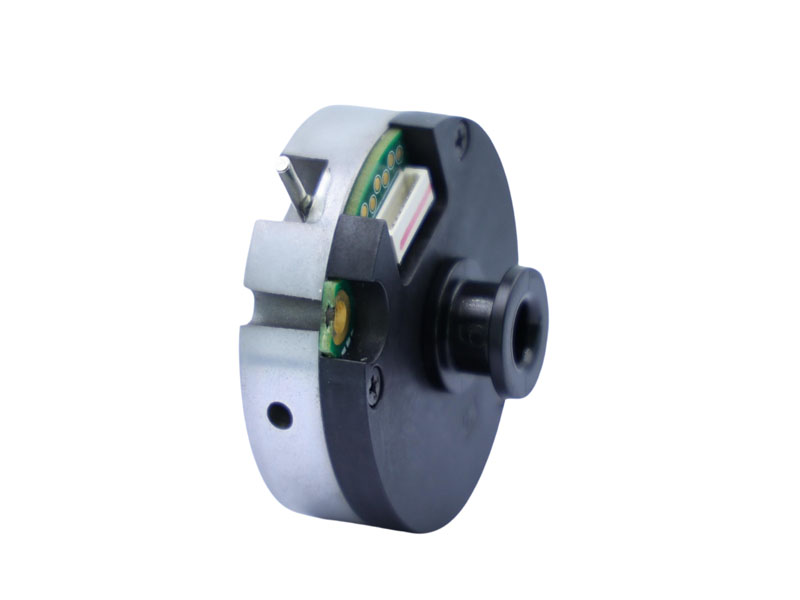

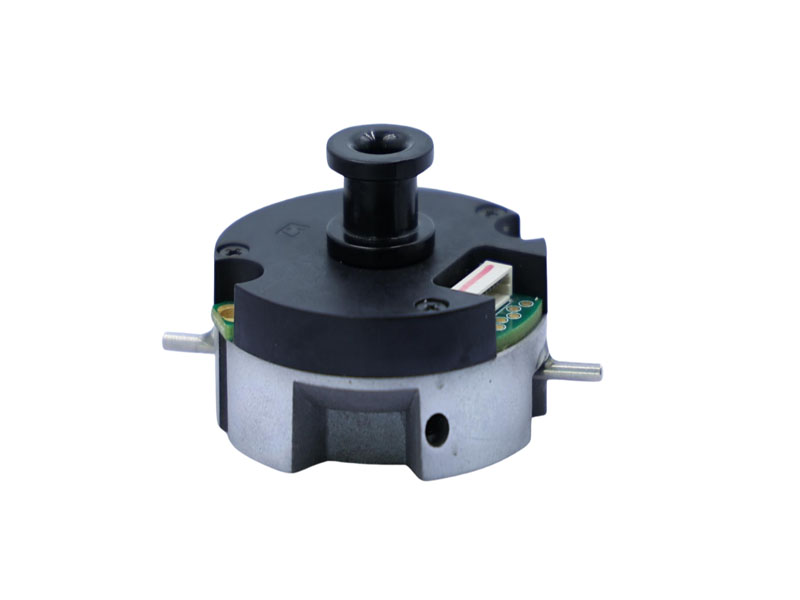

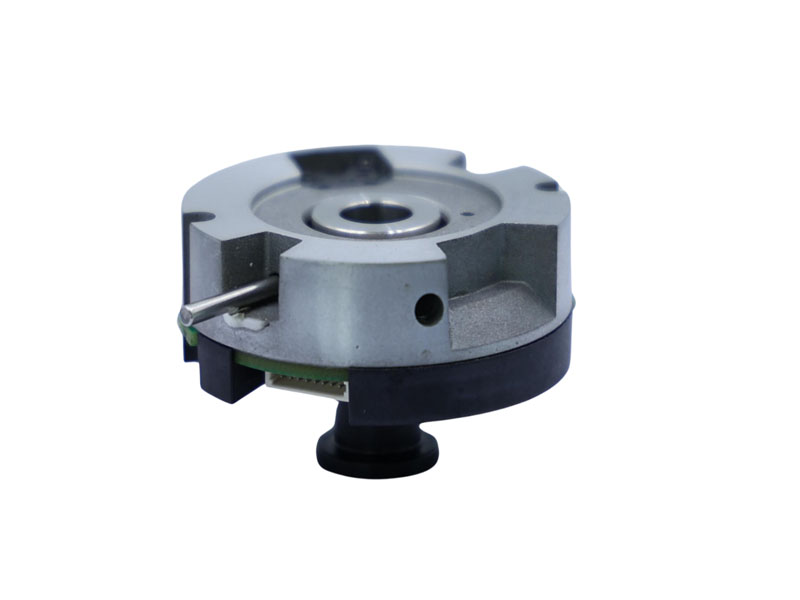

RS Series Bearingless Absolute Encoder is mainly used for servo-driven control system.Provide feedback information and auxiliary signals required by accurate position and speed control units for the system.
.
Delivers ultra-high absolute positioning accuracy with up to 23-bit single-turn and 16-bit multi-turn resolution for precise rotary and servo applications.
Bearingless, compact architecture allows seamless integration in servo-driven control systems and limited-space industrial assemblies.
RS485 differential interface provides reliable, fast communication up to 2.5 MHz baud rate for demanding automation environments.
Resilient performance across a wide temperature range (-20°C to +105°C), with low current consumption (<100mA) and vibration/shock resistance.
User-friendly design supports a variety of shaft diameters (6mm, 8mm), multi-protocol customization, and robust power-loss resilience via battery backup.
| Item | Description | QTY/Box | Boxes /Carton | G.W | N.W | QTY /Carton | Package Size |
| RS Series | RS Series Bearingless Absolute Encoder | 10pcs | 10boxes | 0.38kgs | 0.3kgs | 100pcs | 310*130*45mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |
Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|
| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
