Details| Norm | Parameter |
| Resolution (single turn) | 0～131071（17bits) |
| Number of laps (multiple laps) | 65535（16bits) |
| Accessibility | Fault warning Battery voltage warning |
| Connector | RS485 |
| Communications Frequency | ≤16K |
| Baud | 2.5MHz |
| Supply Voltage (Vo) | 4.75V≤Vo≤5.25V |
Differential Output Level High Level low level | 3.5Vmin. 1.7Vmax. |
| Along change time | ＜100ns |
Allowable Deviation of Input Shaft | Axial runout:＜0.1mm Radial: ±0.1m;radial runout:＜0.1mm Inclination angle:＜0.1° |
| Spindle Speed | ≤6000rpm |
| Moment of Inertia (Physics) | 0.72kg·m2 |
| Rotor Angular Acceleration | ≤80000rad/s2 |
| Vibratory | Between 10 and 55 Hz, the holding amplitude is 1.5 mm; between 55 and 2000 Hz, the acceleration is 98 m/s2; the XYZ 2 hours per axial direction, total 6 hours |
| Mechanical Impact | 980m/s2,11ms, three times in each direction, total 18 times |
| Operating Temperature | -10℃～105℃ |
| Insulation Resistance | 50MΩ |
| RS Weight | ≈0.05kg (without cable) |
| Protection Class | Motor back cover protection |
Signal Definition | 5V | GND | 485+ | 485- | Battery + | Battery GND | NC | P |
| Cable Color | Red | Black | Blue | Yellow | Brown | White | Shielded Mesh |
MS1600 Mechanical Dimension Drawing

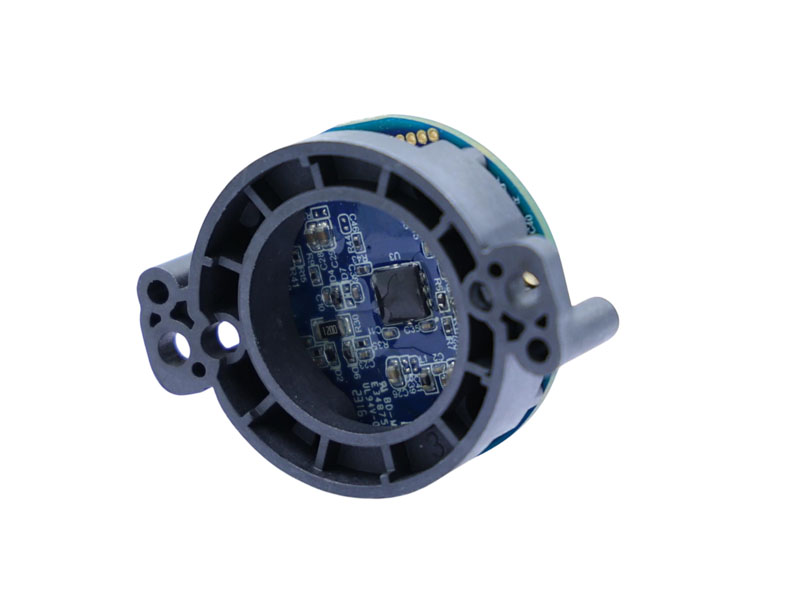

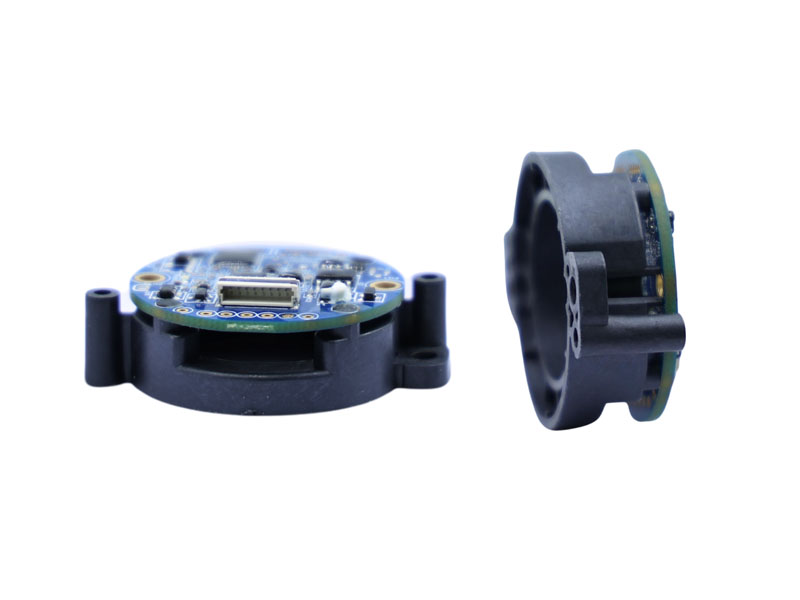

MS Series Absolute Magnetic Encoder is mainly used for servo-driven control system.Provide feedback information and auxiliary signals required by accurate position and speed control units for the system.
.
High-resolution absolute positioning with 17-bit single-turn and 16-bit multi-turn capabilities ensures precise feedback.
Durable magnetic encoder construction with low moment of inertia (0.72 kg·mm²) delivers fast response and accuracy.
RS485 communication supports reliable data exchange with baud rates up to 2.5 MHz and communication frequency up to 16K.
Wide operating temperature range from -10°C to 105°C for stable performance in various industrial environments.
Compact design with 40mm mounting hole and customizable shaft diameter options (6mm and 8mm) for versatile integration.
| Item | Description | QTY/Box | Boxes /Carton | G.W | N.W | QTY /Carton | Package Size |
| MS Series | MS Series Absolute Magnetic Encoder | 10pcs | 10boxes | 0.38kgs | 0.3kgs | 100pcs | 310*130*45mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |
Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|
| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
