DetailsWorking Temperature | -20°C to +105°C |
Current Consumption | < 100 mA |
Battery Voltage | 3.6 V DC |
Battery Fault Voltage | 2.5 V |
Battery Warning Voltage | 3.1 V |
Signal | Differential output |
Supply Voltage | Single 5V supply |
Rise/Fall Time | Around 100 ns |
Insulated Resistance | 50 MΩ |
Resolution Ranges | 131072 (17-bit) to 8388608 (23-bit) |
Multi-Turn Resolution Counter | 16 bits (65536 revolutions) |
Absolute Positioning Accuracy | < ±50 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit |
Repetition Positioning Accuracy | < ±3 angular seconds Note: The specific accuracy depends on the motor and mechanical assembly fit |
Battery Voltage Fault Warning | Yes |
Interface | RS485 |
Communication Frequency | ≤ 16 kHz |
Baud Rate | 2.5 MHz |
Allowable Shaft Deviations | Axial: ±0.5 mm, Radial: ±0.02 mm, Dip Angle: 0.1°, Axial Endplay: <0.1 mm, Radial Runout: <0.01 mm |
Operation Speeds | Up to 6000 rpm |
Shaft Diameter | axis of a cone taper 1:10 |
Moment of Inertia | 0.68 kg·mm² |
Rotor Angular Acceleration | During power supply: ≤80000 rad/s²; When battery-powered: ≤4000 rad/s² |
Mechanical Shock | Impact acceleration: 980 m/s² for 11 ms; Impact tested 3 times in each direction, totaling 18 impacts |
Vibration Resistance | Amplitude of up to 1.5 mm (10–55 Hz); Acceleration of up to 98 m/s² (55–2000 Hz); XYZ Tested for 2 hours per axis, totaling 6 hours |
Working Temperature Range | -20°C to +105°C |
Relative Humidity | ≤90% (40°C/21 days, based on EN60068-2-78), without condensation |
Degree of Protection | IP40 |
(Note: The spring tab should be selected according to the motor end size.)
MP4131-704R（BM-Medium type mounting hole d31）
MP2831-704R（BL-Low type mounting hole d31）
MP4140-704R（CM-Medium type mounting hole d40）
| Lead Color | Red | Black | Blue | Yellow | Brown | White | NC | Shield |
| Socket Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Signal | 5V | GND | 485+ | 485− | Battery+ | Battery GND | NC | Shield |
RZ35D06S Absolute Encoder is mainly used for servo-driven control systems. It provides feedback information and auxiliary signals required by accurate position and speed control units.
Note: 8mm straight shaft and 9mm conical shaft are only available for the RZ35A.
| Item | Description | QTY/Box | Boxes /Carton | G.W | N.W | QTY /Carton | Package Size |
| RZ35 | Absolute Encoder,Outer Diameter 35mm | 10pcs | 10boxes | 0.38kgs | 0.3kgs | 100pcs | 310*130*45mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |

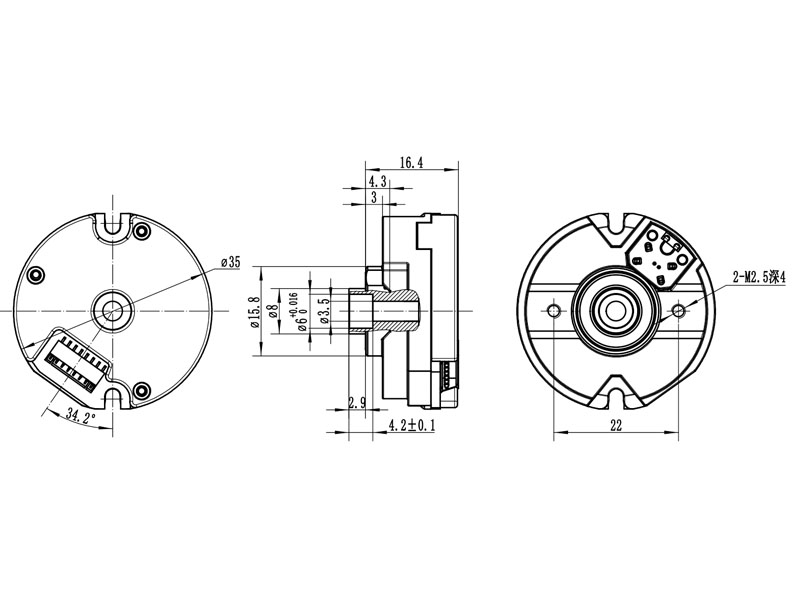

Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|
| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
