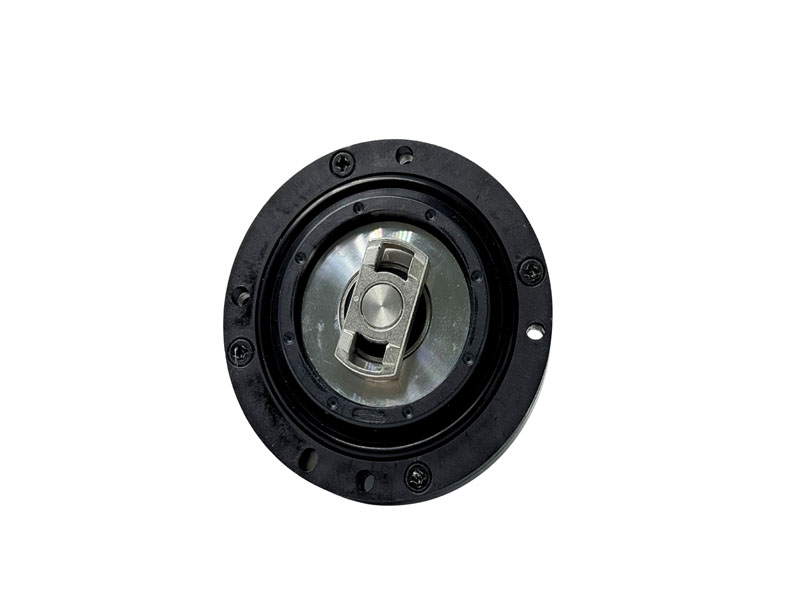

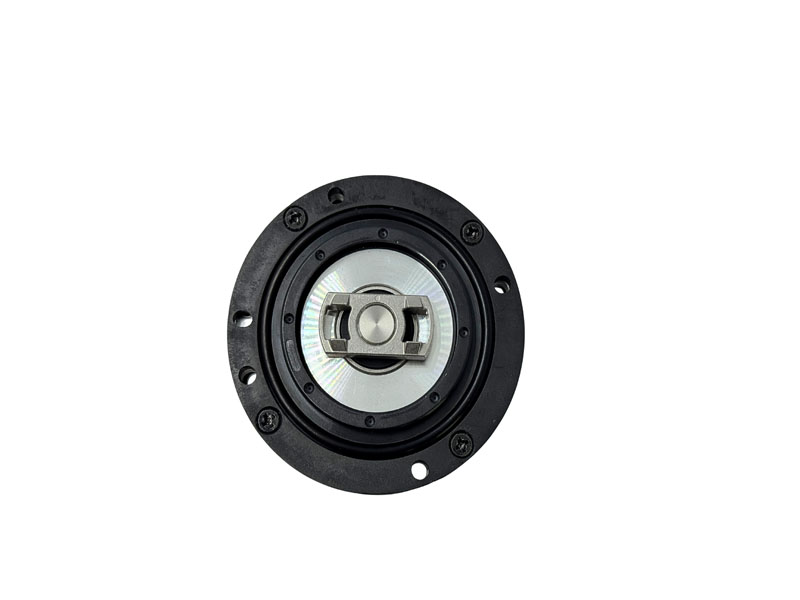

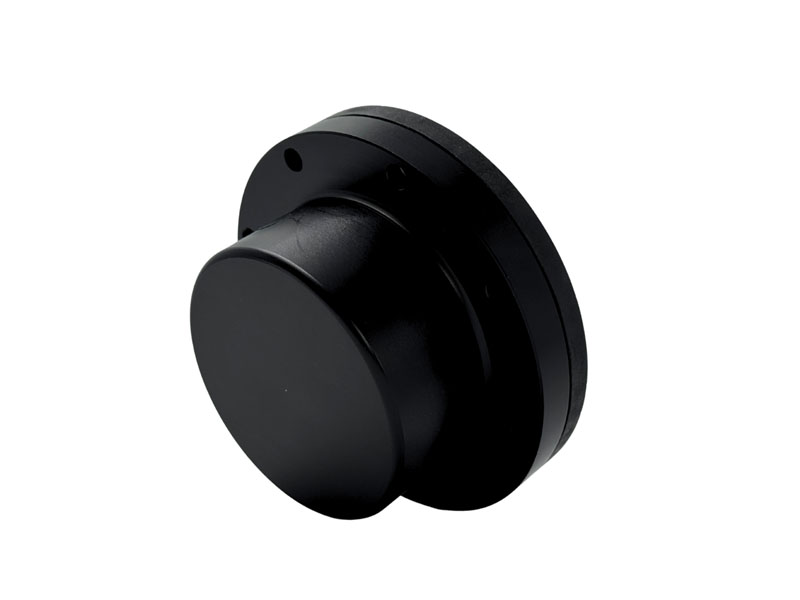

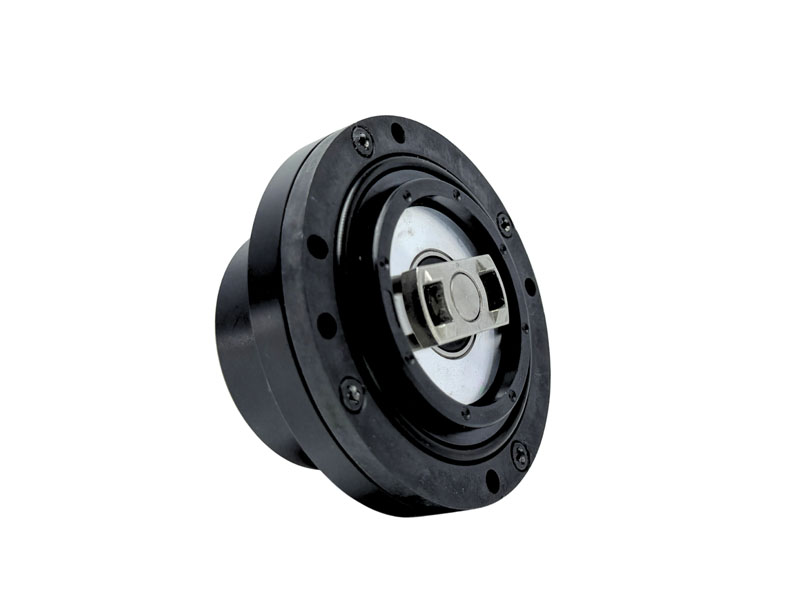

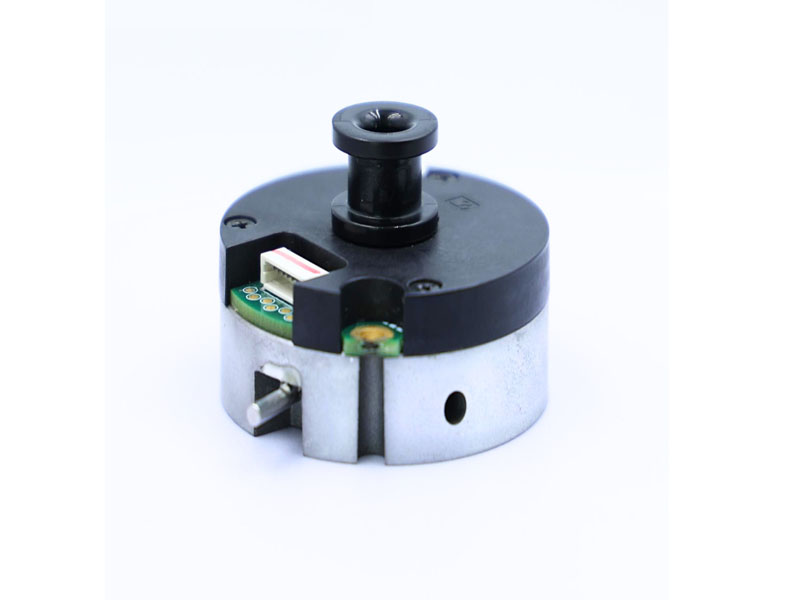

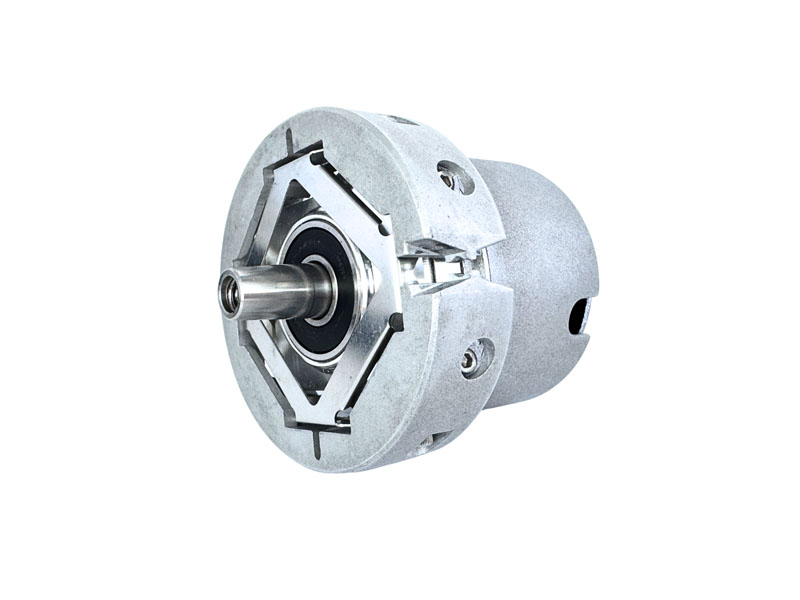

RZ7810 23-25Bit Absolute Encoder Multi-turn

  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn
  • RZ7810 23-25Bit Absolute Encoder Multi-turn

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Features

  • Working temperature -20 ℃ ~+105 ℃

  • Current consumption < 120mA

  • Battery voltage 3.6V DC

  • Battery fault voltage 2.5V

  • Battery warning voltage 3.1V

  • Differential output

  • Single 5V Supply

  • Rise/Fall time around 100ns

  • Insulated resistance 50MΩ



Technical Parameters



Resolution 8388608 ( 23bit ) ~ 33554432 ( 25bit )



Moment of inertia 0.68kg·mm2
16 bits multi-turn resolution counter

Absolute positioning accuracy <±50 angular seconds


Note: The specific accuracy depends on the motor and mechanical assembly fit

Rotor angular acceleration

During power supply ≤80000rad/s2

When battery powered ≤4000rad/s2

Repetition positioning accuracy <±3 angular seconds


Note: The specific accuracy depends on the motor and mechanical assembly fit

Mechanicalshock

Impact acceleration 980m/s2

11ms.Impact 3 times in each direction, totally 18 times


Battery voltage fault warning

Vibrate

10 to 55Hz, keeping the amplitude of 1.5mm

Acceleration between 55 and 2000Hz is98ms2

 XYZ 2 hours per axial direction,6 hours intotal

Interface RS485
Communication frequency ≤16K
Baud rate 2.5MHzWorking temperature -20 ℃ ~+105 ℃

Enter allowable deviation of shaft

Axial:±0.5mm Radial:±0.02mm Dip

angle:0.1°Axial endplay:＜0.1mm Radial

runout:＜0.01mm


Relative humidity ≤90% (40℃/21d,

based on EN 60068-2 -78) without condensation.

Operation speeds of up to 6000rpmDegree of protection IP40
Shaft diameter：axis of a cone Ø10  taper 1:10




Cable Definitions


Signal Definition

5VGND485+485-

Battery +

Battery GND

P
Cable ColorRedBlackBlueYellowBrownWhite

Shielded Mesh




Mechanical Dimension

RZ7810A Mechanical Dimension Drawing


         Through Hole


RZ7810A Mechanical Dimension Drawing

                                                                                                                      45° engagement angle




MD1510-701AMechanical Dimension Drawing

MD1510-701AMechanical Dimension Drawing




MN3010-701A Mechanical Dimension Drawing


MN3010-701A Mechanical Dimension Drawing

























Applications


RZ7810 23-25Bit Absolute Encoder Multi-turn is mainly used for servo-driven control system.Provide feedback information and auxiliary signals required by accurate position and speed control units for the system.

.

  1. High-resolution absolute positioning with 23-bit to 25-bit single-turn and 16-bit multi-turn counting ensures precise feedback.

  2. Compact bearing-mounted design with a rugged 78mm diameter housing for robust industrial mounting.

  3. Reliable RS485 communication interface supports high-speed data transfer at baud rates up to 2.5 MHz.

  4. Wide operating temperature range of -20°C to +105°C with excellent shock and vibration resistance enhances durability.

  5. Supports axial and radial shaft deviations with tight mechanical tolerances for smooth integration into servo systems.


Ordering Information

Ordering Information / Part Number


Ordering Information/Part Number


Packaging Information




ItemDescription

QTY/Box

Boxes

/Carton

G.WN.W

QTY

/Carton

Package Size
RZ7810RZ7810 23-25Bit Absolute Encoder Multi-turn10pcs10boxes/kgs/kgs100pcs310*130*45mm


Discover all the technical specifications by downloading the datasheet today.




All Rotary Encoder

Part Number Interface Dimensions
(mm) 		Resolution Ranges Resolution Counter Communication
Frequency 		Working Temperature Communication
Frequency 		Operation Speeds Protection
Structure 		Footprint 3D Datasheet Sample
RZ35A08 RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ35A09 RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ35D06Q RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ35D06S RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZL4408A RS485 Φ44mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZH4409A RS485 Φ44mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZL4409A RS485 Φ44mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ4809A RS485 Φ48mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
UZ3509 RS485 Φ35mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
UZ4408 RS485 Φ44mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
UZ4409 RS485 Φ44mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
UZ4809 RS485 Φ48mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
RS972 / / / / / -40°C to +85°C / / /
RS970 / / / / / -40°C to +85°C / / /
RK Series / / / / / -20°C to +85°C / / /
RZ1337A RS485 / 25 Bits Single/Multi-Turn ≤16K -20°C-+105°C 16K 12000rpm IP40
RZ7810 RS485 / 23~25 Bits Single/Multi-Turn ≤16K -20°C-+105°C 16K 6000rpm IP40
RS Series RS485 / 17~23 Bits Single/Multi-Turn ≤16K -20°C-+105°C 16K 6000rpm IP40
RZ35 Series RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ35 Series RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
