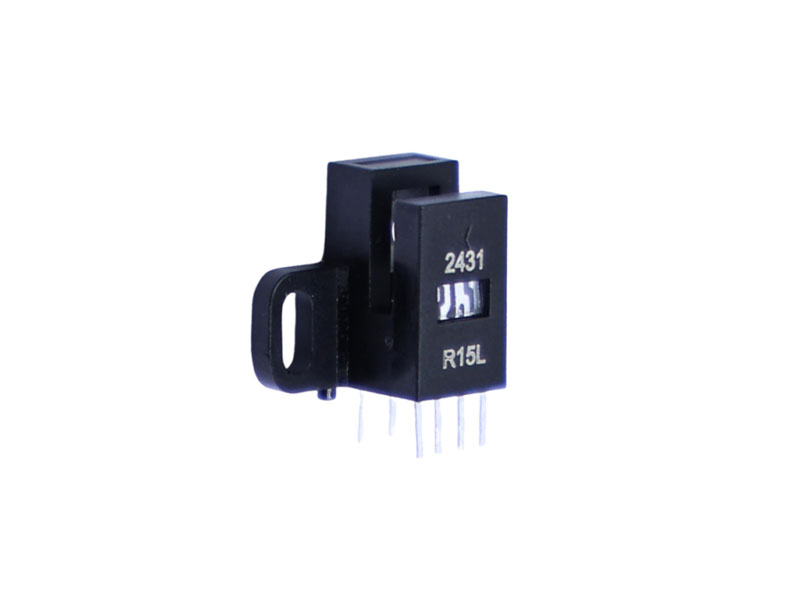

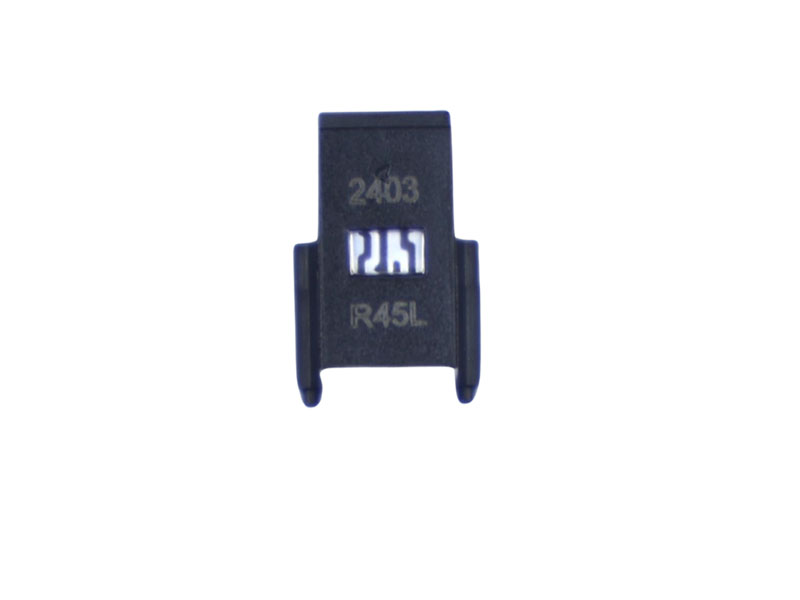

DetailsRK_L series is a high performance, low cost, optical 2-channel incremental encoder module for wide voltage range operation.
It consists of a highly collimated light source and a detector IC enclosed in a small C shaped plastic package, matched with a code-disc or code-strip, it provides information of rotary or linear position.
RK_L series has linear (LPI) options:20, 37, 45, 75,90,120,150,180, 254,300,360,450.
Photo-detector Array
-20°C to +85°C Operating Temperature
Multiple LPI options
C-Shape Structure, Easy to Mount
TTL Compatible
Single-end 3.3V to 5V Supply
Typical applications include: Printers, Plotters, Servo motors, DC motors, Office automation etc.
Safety Notice: Not recommended for use in safety critical application. Eg. ABS braking system.
Parameter | Symbol | Range |
Storage Temperature | Ts | -40°C to +85°C |
Supply Voltage | Vcc | -0.5V to 7V |
Soldering Temperature | - | ≤260°C ( t ≤ 5s ) |
Response Frequency | f | 60 KHz |
Reverse Voltage | Vr | 5V |
Forward Current (850nm Light Source ) | If | 60mA |
Electrical Characteristics Under Recommended Operating Range, Typical at 25 ⁰C
Parameter | Symbol | Min. | Typ. | Max. | Units | Condition |
Operating Temperature | T | -20 | - | +85 | ⁰C | - |
Operating Voltage | Vcc | 2.7 | 5 | 5.5 | V | Ripple voltage<100mV |
Light Source (850 nm) Forward Voltage | Vf | 1.4 | - | 1.9 | V | If=20mA |
Light Source(850 nm) Wavelength | λp | 840 | - | 860 | nm | - |
Low Level Output Voltage | VOL | - | 0.2 | 0.4 | V | - |
High Level Output Voltage | VOH | Vcc*0.8 | Vcc-0.5 | - | V | - |
AB Duty Ration | Dt | 40 | 50 | 60 | % | - |
A/B Phase Difference | θ | 60 | 90 | 120 | ⁰ e | - |
Response Frequency | f | - | - | 60 | KHz | - |
Pin Name | Function | Input / Output |
An | Positive pole of light source ( recommended If = 1 0 mA ) | - |
Ca | Negative pole of light source | - |
Vcc | Power Supply + | Power Supply |
Aout | A Channel output | Output |
Bout | B Channel output | Output |
Gnd | Ground | Ground |
RK_L series is available in a variety of options, as shown in the table below.
*When the 450LPI module is used, the code-wheel needs to be placed within the 1/3 area of the C port close to the receive chip.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
| RK Series | RK Series Optical Encoder Modules | 160 pcs | 10 trays | 1.96 kgs | 0.8 kgs | 1600 pcs | 375*314*165 (mm) |
| 160 pcs | 40 trays | 6.94 kgs | 3.2 kgs | 6400 PCS | 560*270*320 (mm) |
Material Weight Schedule
| Material | Optical Encoder Module | Tray | Carton/Small | Carton/Big |
| Weight | 0.5g/pc | 74g/pc | 420g/pc | 780g/pc |
| QTY/Carton | 1,600pcs / 6,400pcs | 10trays / 40 trays | 1pc | 1pc |
| Weight/Carton | 800g / 3,200g | 740g / 2,960g | 420g | 780g |
| 1,960g/1600pcs | 6,940g/6400pcs |
