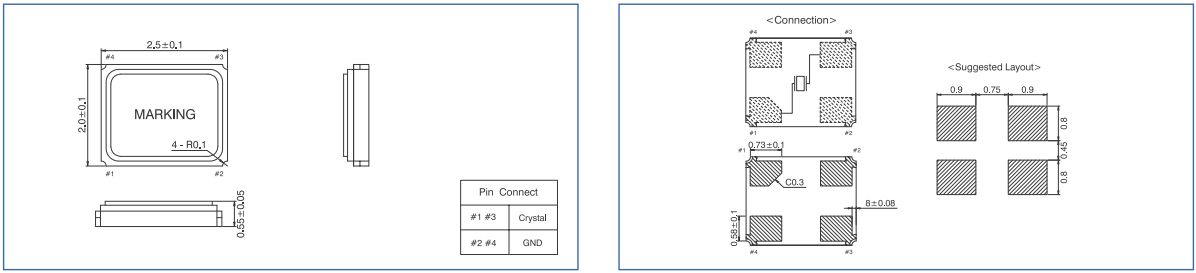

DetailsMetal Can Type Crystals M2520 Series
Reflow resistance type crystal units
Higher frequency pullability and lower equivalentseries resistance
Lower cost and highly mass production capability
RoHS Compliant/Pb Free
• The best choice of Notebook ComputerTV, STB, LCDM and Cable Modem
Item/Type | M2520 |
Frequency Range | 12~54MHz |
Frequency Tolerance (at 25℃) | ±10 ppm,or specify |
| Frequency Stability Over Operating Temperature Range | ±10 ppm,or specify |
| Operating Temperature Range | -10~+60°C,or specify |
| Shunt Capacitance (C0) | 3pF Max. |
| Drive Level | 10μW (100μW Max.) |
| Load Capacitance | Series, 6pF, 12pF, 16pF,or specify |
| Aging (at 25℃) | ±3ppm/year Max. |
| Storage Temperature Range | -40~+125℃ |
| Frequency | Resistance |
| 12MHz≤F0≤20MHZ | 150Ω Max. |
| 20MHz≤F0≤30MHZ | 80Ω Max. |
| 30MHz≤F0≤54MHZ | 60Ω Max. |
| Temp.(℃) / ppm | ±5 | ±10 | ±15 |
| -10~+60 | ▲ | ⚪ | ⚪ |
| -20~+70 | ❌ | ▲ | ⚪ |
| -40~+85 | ❌ | ❌ | ▲ |
| Temp.(℃) / ppm | ±15 | ±20 | ±30 | ±50 |
| -40~+105 | ▲ | ⚪ | ⚪ | ⚪ |
| -40~+125 | ❌ | ❌ | ❌ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note: not all combination of options are available. Other specifications may be available upon request.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
M2520 Series | SMD M2520 MHz Crystal(SMD) | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Discover all the technical specifications by downloading the datasheet today.
