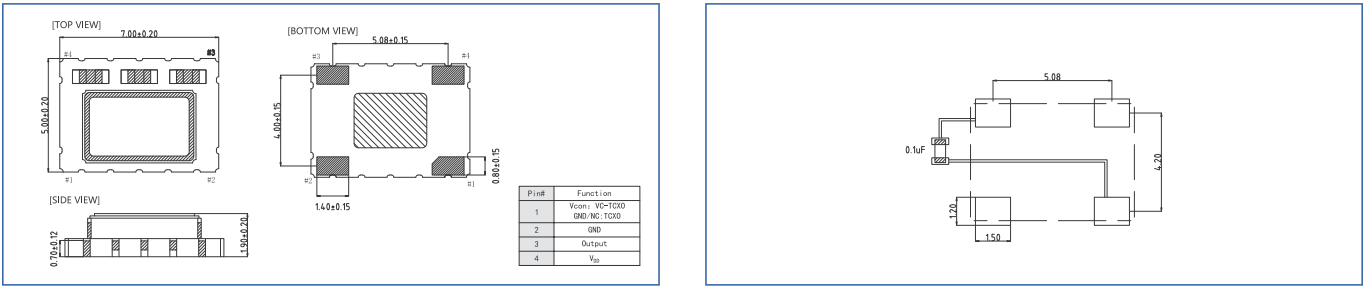

Explore Rotary EncoderSMD LVPECL/LVDS/HCSL Crystal Oscillator
• Typical 7.0*5.0*1.9mm ceramic SMD package
• High Precision for-40~+85°C,±0.28ppm
• 40~+105°C,±2ppm
• CMOS and Clipped Sine wave (without DC-cut capacitor) output optiona.
• Femtocell,Base Stations
• WLAN/WiMAX/WIFl,Wireless Communications
| Parameter | 5.0V | 3.3V | Unit | |||
| min. | max. | min. | max. | |||
| Supply Voltage Variation (VDD) | VDD-5% | VDD+5% | VDD-5% | VDD+5% | V | |
| Frequency Range | 5 | 52 | 5 | 52 | MHz | |
| Standard Frequency(for COMS) | 10, 12.8，16.384, 19.2, 19.44, 20，25，26 | |||||
| Frequency Tolerance(25°C) | - | ±2.0 | - | ±2.0 | ppm | |
| Frequency Stability | Vs Supply Voltage(±5%)change | - | ±0.1 | - | ±0.05 | ppm |
| Vs Load(±10%)change | - | ±0.05 | - | ±0.05 | ||
| Vs Aging(@1st year) | - | ±1.0 | - | ±1.0 | ||
| Supply Current(cMos output) | - | 6 | - | 6 | mA | |
| Output Level (Clipped sine wave) | - | 3.5 | - | 3.5 | ||
| Output Level | Output High | 90%Vdd | - | 90%Vdd | - | V |
| Output Low | - | 10%Vdd | - | 10%Vdd | V | |
| CMOS | Duty | 45 | 55 | 45 | 55 | % |
| Output Level(Clipped sine) | 0.8 | - | 0.8 | - | Vp-p | |
| Load(CMOS) | 15pF | 15pF | pF | |||
| Load(Clipped sine) | 10KΩ // 10pF | 10KΩ // 10pF | ||||
| Control Voltage Range(VCTCXO) | 0.5 | 2.5 | 0.5 | 2.5 | V | |
| Pulling Range(VCTCXO) | ±5.0 | - | ±5.0 | - | ppm | |
| Vc Inputlmpedance | 100 | - | 100 | - | KΩ | |
| Supply Current | 100Hz | -130 | -130 | dBc/Hz | ||
| 1 kHz | -145 | -145 | ||||
| 10 kHz | -154 | -154 | ||||
| Start time | - | 2 | - | 2 | mSec | |
| Storage Temp. Range | -55 | 125 | -55 | 125 | ℃ | |
Standard frequencies are frequencies which the crystalhas been designed and does not imply a stock position.
*Frequency at 25°C,1 hour after reflow.
| Temp.(℃) / ppm | ±0.05 | ±0.1 | ±0.14 | ±0.2 | ±0.28 | ±0.5 | ±2 |
| -10~+70 | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ |
| -20~+85 | ❌ | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ |
| -40~+85 | ❌ | ❌ | ❌ | ▲ | ⚪ | ⚪ | ⚪ |
| -40~+95 | ❌ | ❌ | ❌ | ❌ | ❌ | ▲ | ⚪ |
| -40~+105 | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note: not all combination of options are available. Other specifications may be available upon request.
Specifications subject to change without notice.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
TC70500 Series | TC7050 CMOS Crystal Oscillator SPXO | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Material Weight Schedule
| Material | Optical Encoder Module | Tray | Carton/Small | Carton/Big |
| Weight | 0.5g/pc | 74g/pc | 420g/pc | 780g/pc |
| QTY/Carton | 1,600pcs / 6,400pcs | 10trays / 40 trays | 1pc | 1pc |
| Weight/Carton | 800g / 3,200g | 740g / 2,960g | 420g | 780g |
| 1,960g/1600pcs | 6,940g/6400pcs |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |
Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|
| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
