DetailsSMD LVPECL/LVDS Crystal Oscillator

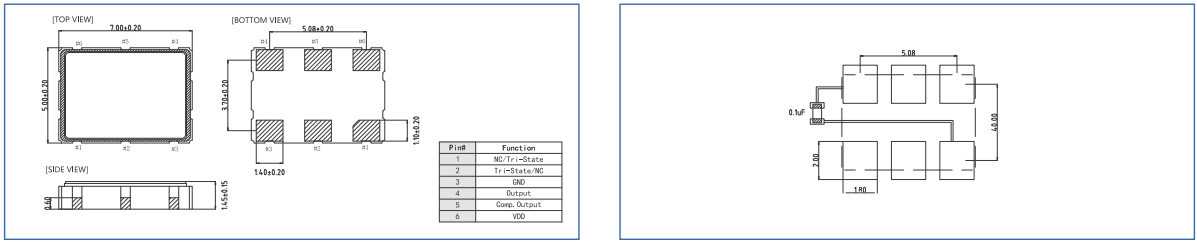

Typical 7.0*5.0*1.45mm hermetically sealed ceramic package
Very low phase jitter: <1 ps (0.6 pS,typ.) RMS
Any frequency between 10 MHz and 1500 MHZ
Tri-state enable/disable
Fast delivery
• High-Speed Gigabit Ethernet, Fiber Channel,Storage Area Network, SONET
• Enterprise Server, SAS/SATA
• Microprocessors/DSP/FPGA
• Broadband Access
• Smart Grid
| Parameter | LVPECL | LVDS | Unit | |||||||
| 3.3V | 2.5V | 3.3V | 2.5V | |||||||
| min. | max. | min. | max. | min. | max. | min. | max. | |||
| Operating Voltage(VDD) | VDD-5% | VDD+5% | VDD-5% | VDD+5% | VDD-5% | VDD+5% | VDD-5% | VDD+5% | V | |
| Frequency Range | 10 | 1500 | 10 | 1500 | 10 | 1500 | 10 | 1500 | MHz | |
| Standard Frequency | 106.25, 125, 133.33, 150, 155.52, 156.25, 187.5, 212.5, 312.5, 622.08 | MHz | ||||||||
| Supply Current | 10MHz≤Fo<1500MHz | - | 50 | - | 50 | - | 50 | - | 50 | mA |
| Output Level | Output High | 2.275 | - | 1.475 | - | 1.6 | - | 1.6 | V | |
| Output Low | - | 1.68 | - | 0.88 | 0.9 | - | 0.9 | - | V | |
| Transition Time: Rise/Fall Time+ | - | 1 | - | 1 | - | 1 | - | 1 | nSec | |
| Startup Time | - | 10 | - | 10 | - | 10 | - | 10 | mSec | |
| Tri-State (Input to Pin2 or Pin1) | Enable(High Voltage or Floating) | 2.31 | - | 1.75 | - | 2.31 | - | 1.75 | - | V |
| Disable(Low Voltage or GND) | - | 0.99 | - | 0.75 | - | 0.99 | - | 0.75 | V | |
| Aging (@25°C,1st Year) | - | ±3 | - | ±3 | - | ±3 | - | ±3 | ppm | |
| Storage Temp. Range | -55 | 125 | -55 | 125 | -55 | 125 | -55 | 125 | ℃ | |
| Phase Noise@156.25 MHz | 100Hz | -85 | -85 | -85 | -85 | -85 | -85 | -85 | -85 | dBc/Hz |
| 1 kHz | -105 | -105 | -105 | -105 | -105 | -105 | -105 | -105 | ||
| 10 kHz | -115 | -115 | -115 | -115 | ||||||
| RMS Phase Jitter(Intergrated 12 KHz~20MHz) | - | 1.5 | - | 1.5 | - | 1.5 | - | 1.5 | pSec | |
| Temp.(℃) / ppm | ±25 | ±50 |
| -10~+60 | ⚪ | ⚪ |
| -20~+70 | ⚪ | ⚪ |
| -40~+85 | ❌ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
*Inclusive of calibration @ 25℃,operating temperature range,input voltage varation,load variation, aging lst year,shock, and vibration.
Note: not all combination of options are available. Other specifications may be available upon request.
Specifications subject to change without notice.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
TLV7050 Series | TLV7050 CMOS Crystal Oscillator SPXO | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Material Weight Schedule
| Material | Optical Encoder Module | Tray | Carton/Small | Carton/Big |
| Weight | 0.5g/pc | 74g/pc | 420g/pc | 780g/pc |
| QTY/Carton | 1,600pcs / 6,400pcs | 10trays / 40 trays | 1pc | 1pc |
| Weight/Carton | 800g / 3,200g | 740g / 2,960g | 420g | 780g |
| 1,960g/1600pcs | 6,940g/6400pcs |
