Explore Rotary EncoderOven Controlled Crystal Oscillator

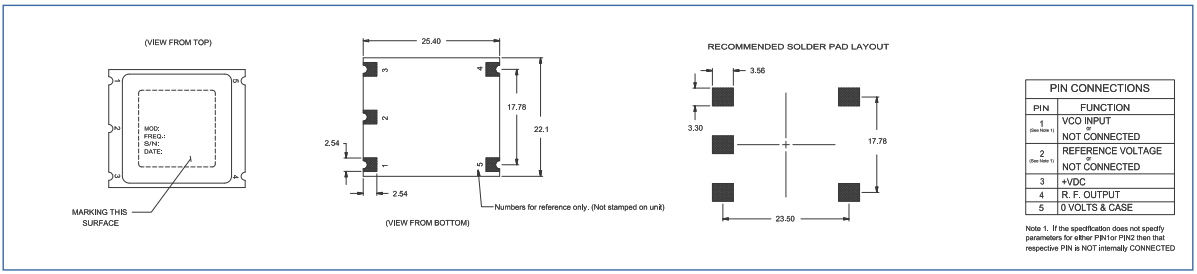

• Dimension 25.4*22.1*11.0mm typical
• SC Cut Crystal
• SDH/SONET,Telecommunication base station
• Test and measurement equipment
• Synthesizer,Digital switch,Reference TimingCircuit
| Parameter | min. | Typ. | Max. | Unit. | Test Condition | |
| Output Frequency | - | 10 | - | MHz | Available frequency range is from 5MHz to 40MHZ. Standard frequencies are 10,12.8,13,15.36,16.384,19.2,20 and 25MHz. | |
| Waveform | - | Rectangular | - | - | Sine wave output is available. Consult factory for more information. | |
| “1”Level | 2.4 | 3.3 | - | V | ||
| “0” Level | - | - | 0.4 | |||
| Load | - | 15 | - | pF | ||
| Duty Cycle | 45 | 50 | 55 | % | @+1.4V | |
| Spurious | - | - | -60 | dBc | ||
| Frequency Stability | Ambient | -10 | - | +10 | ppb | -30~+70°C,referenced to +25°C Refer to Freq.Stability Vs Temp. Range table. |
| Aging | -0.5 | - | +0.5 | ppb | ||
| Daily | -0.5 | - | +0.5 | ppb | after 30 days | |
| Yearly | -50 | - | +50 | ppb | ||
| 10 years | -0.4 | - | +0.4 | ppm | ||
| Voltage | -0.5 | - | +0.5 | ppb | +5% Change | |
| Warm-up | -10 | - | +10 | ppb | In 2 minutes @ +25°C, referenced to 1 hour. | |
| Phase Noise | - | - | -115 | dBc/Hz | @10 Hz | |
| - | - | -130 | @100 Hz | |||
| - | - | -140 | @1 kHz | |||
| - | - | -150 | @10 kHz | |||
Electrical Frequency Adjustment | Range | - | - | -0.5 | ppm | VCO@ 0V |
| 0.5 | - | - | VCO@2.8V | |||
| Control | 0 | 1.4 | 2.8 | V | ||
| Slope | - | Positive | - | |||
| Input impedance | 100 | - | - | kΩ | ||
| Input Power | Voltage | 3.135 | 3.3 | 3.465 | V | 5.0V input voltage is available. Consult factory for control voltage and output level. |
| Current | - | - | 1000 | mA | @ turn on | |
| Steady state | - | - | 1.2 | W | @ +25°C | |
| Reference Voltage | Voltage | 2.7 | 2.8 | 2.9 | V | |
| Load | 9 | - | - | kΩ | ||
| Temp.(℃) / ppm | ±5 | ±10 | ±20 |
| 0~+70 | ⚪ | ⚪ | ⚪ |
| -30~+70 | ▲ | ⚪ | ⚪ |
| -40~+85 | ▲ | ⚪ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note: not all combination of options are available. Other specifications may be available upon request.
Specifications subject to change without notice.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
TOC2522 Series | TOC2522 CMOS Crystal Oscillator SPXO | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Material Weight Schedule
| Material | Optical Encoder Module | Tray | Carton/Small | Carton/Big |
| Weight | 0.5g/pc | 74g/pc | 420g/pc | 780g/pc |
| QTY/Carton | 1,600pcs / 6,400pcs | 10trays / 40 trays | 1pc | 1pc |
| Weight/Carton | 800g / 3,200g | 740g / 2,960g | 420g | 780g |
| 1,960g/1600pcs | 6,940g/6400pcs |
