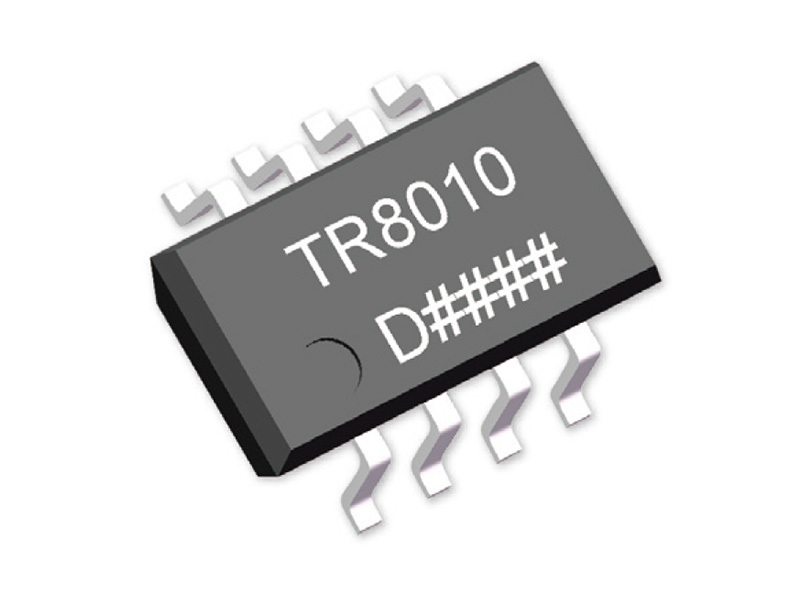

Explore Rotary EncoderRTC Modules
• Built-in 32.768kHz Crystal Unit
• Operating Voltage:1.8~5.5 V
• Low current consumption:2.2μA@3V(typical)

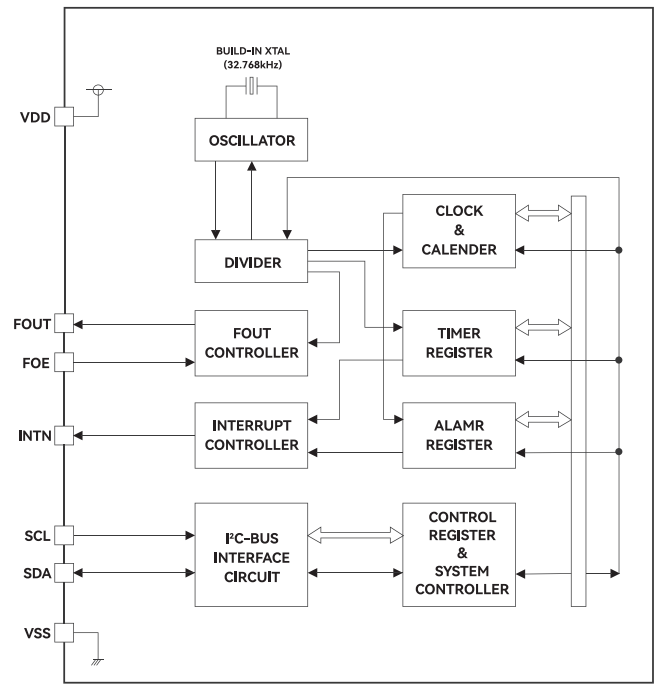

• Multiple functions such as calendar, alarms and time keeping

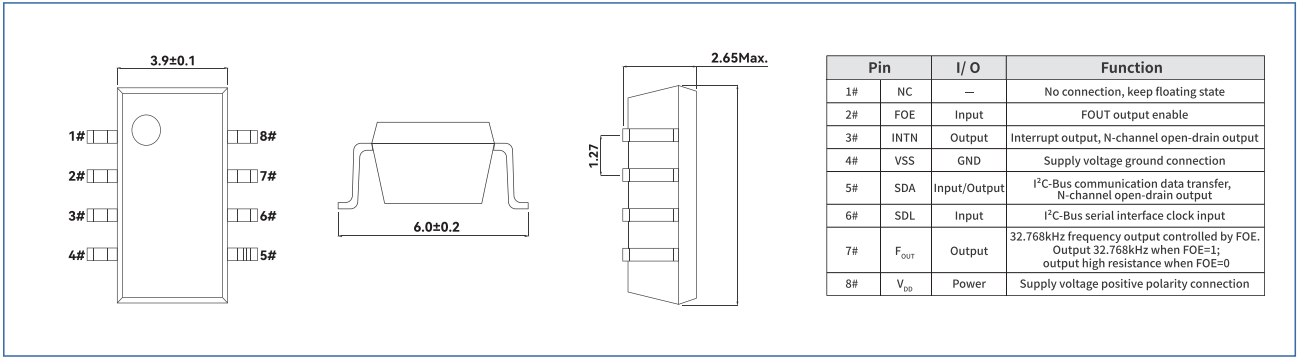

• In accordance with SOP8 standard
• Interface Type:I2C(400kHz)
• Clock Circuit Voltage:1.8~5.5 V
• Frequency Output Function:CMOS Output or Open Drain Output
• Automotive Leap Year Adjustment
• InterfaceType:High-speed IC2-bus standards(400kHz)
• Frequency Output Function: CMOS output andopen drain output available;output frequency:32.768kHz,1024Hz,1Hz available
• Timer: Setting range between 1/4096s to 65535hours;Timing period: 1 hour, 1 minute, 64Hzand 4096Hz
• Alarm: Week, day, hour, minute
| Item | Symbol | Conditions | Min. | Typ. | Max. | Unit. |
| Frequency Tolerance | ▲f/f | Ta=25℃ VDD=3.0V | 5±23※ | ppm | ||
| Start-up Time | tSTA | Ta=25℃ VDD=1.8V | 0.9 | S | ||
Ta=-40~85℃ VDD=1.8V~5.5V | 2.0 | S | ||||
※ Equals to a monthly tolerance of ±l minute per month
| Item | Symbol | Conditions | Minimum | Typical | Maximum | Unit. | |
Current Consumption | IDD1 | FOE=GND Fout=Hi-Z | VDD=5V | 2.6 | uA | ||
| IDD2 | VDD=3V | 2.5 | |||||
| IDD3 | FOE=VDD Fout=32.768kHz CL=0pF | VDD=5V | 3.6 | ||||
| IDD4 | VDD=3V | 3.0 | |||||
| IDD5 | FOE=VDD Fout=32.768kHz CL=30pF | VDD=5V | 7.5 | ||||
| IDD6 | VDD=3V | 6.2 |
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
TR8010 Series | TR8010 CMOS Crystal Oscillator SPXO | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Discover all the technical specifications by downloading the datasheet today.
