Explore Rotary EncoderSMD CMOS Crystal Oscillator

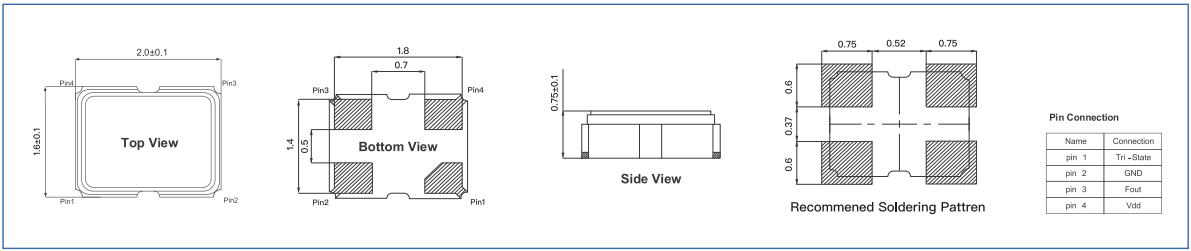

External Dimensions: 2.0*1.6*0.75mm
Small Size, High Reliability
Wide Supply Voltage:1.7-3.6V
Widely applied in industrial communication,navigation, radar, and other fields
AEC-Q100&AEC-Q200 compliant
| Parameter | 3.3V | 2.5V | 1.8V | Unit | ||||
| min. | max. | min. | max. | min. | max. | |||
| Operating Voltage(VDD) | VDD-5% | VDD+5% | VDD-5% | VDD+5% | VDD-5% | VDD+5% | V | |
| Output Frequency | 1 | 125 | 1 | 125 | 1 | 125 | MHz | |
| Supply Current | At 15pF Load | - | 25 | - | 25 | - | 20 | mA |
| When no load is provided,1MHz≤Fo<10MHz | - | 1.0 | - | 1.0 | - | 0.75 | mA | |
| When no load is provided,10MHz≤Fo<20MHz | - | 1.0 | - | 1.0 | - | 0.75 | mA | |
| When no load is provided,20MHz≤Fo<80MHz | - | 1.3 | - | 1.3 | - | 1.0 | mA | |
| When no load is provided,80MHz≤Fo<125MHz | - | 6 | - | 6 | - | 3 | mA | |
| Duty Cycle | 45 | 55 | 45 | 55 | 45 | 55 | % | |
| Output Level | VoH | 2.97 | - | 2.25 | - | 1.62 | - | V |
| VoL | - | 0.33 | - | 0.25 | - | 0.18 | V | |
Transition Time: Rise/Fall Time+ | 1.25MHz≤Fo<10MHz | - | 4 | - | 5 | - | 6 | nSec |
| 10MHz≤Fo<20MHz | - | 4 | - | 5 | - | 6 | nSec | |
| 20MHz≤Fo<80MHz | - | 4 | - | 5 | - | 6 | nSec | |
| Start-up time | - | 4 | - | 5 | - | 6 | mSec | |
| Tri-State (connect or Pin1) | On (High Level or Floating) | 0.7VDD | - | 0.7VDD | - | 0.7VDD | - | V |
| Off(Low Level or Ground) | - | 0.3VDD | - | 0.3VDD | - | 0.3VDD | V | |
| Output Load | 15 | 15 | 15 | 15 | 15 | 15 | pF | |
| Standby Current | - | 100 | - | 100 | - | 100 | uA | |
| Aging (@25°C,1st Year) | - | ±3 | - | ±3 | - | ±3 | ppm | |
| Storage Temp. Range | -55 | 125 | -55 | 125 | -55 | 125 | ||
| Jitter(Vp-p) | - | 40 | - | 40 | - | 40 | pSec | |
| Phase jitter Root-mean-square(12KHz~20MHZ | - | 40 | - | 40 | - | 40 | pSec | |
| Temp.(℃) / ppm | ±20 | ±25 | ±50 |
| -10~+60 | ⚪ | ⚪ | ⚪ |
| -20~+70 | ⚪ | ⚪ | ⚪ |
| -40~+85 | ▲ | ⚪ | ⚪ |
| -40~+125 | ❌ | ❌ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note:Not all components are available. We can supply other specifications on demand.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
XO2016 Series | XO2016 CMOS Crystal Oscillator SPXO | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Material Weight Schedule
| Material | Optical Encoder Module | Tray | Carton/Small | Carton/Big |
| Weight | 0.5g/pc | 74g/pc | 420g/pc | 780g/pc |
| QTY/Carton | 1,600pcs / 6,400pcs | 10trays / 40 trays | 1pc | 1pc |
| Weight/Carton | 800g / 3,200g | 740g / 2,960g | 420g | 780g |
| 1,960g/1600pcs | 6,940g/6400pcs |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |
Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|

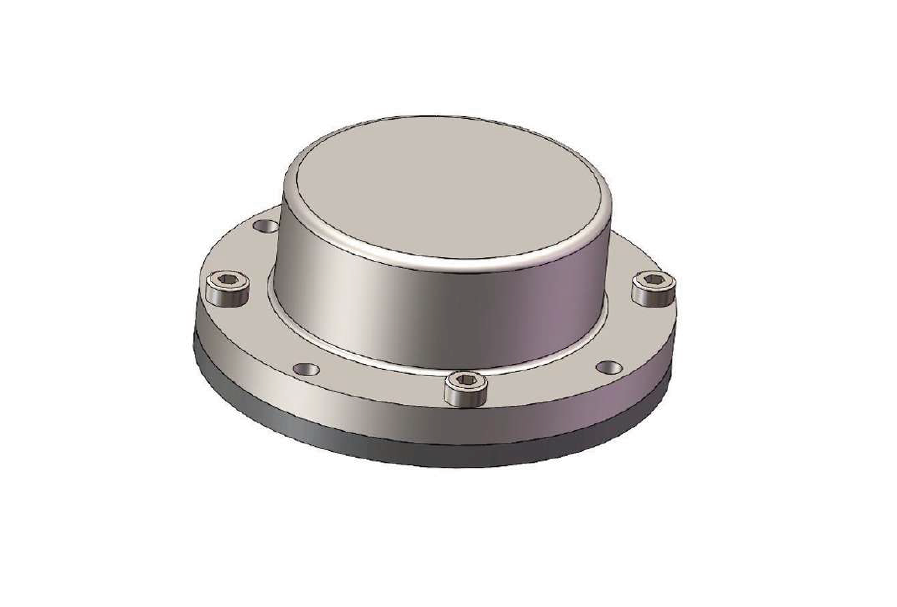

| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
