F5810-05 Series — 58mm Heavy-Duty Solid Shaft Incremental Encoder with Keyed Flange Output

Heavy-duty industrial solid-shaft incremental encoder with keyed shaft connection and round-hole flange for easy installation. ASIC phase array chip with ultra-parallel optical components, delivering A/B/Z three-channel differential output compatible with RS422 and TTL. EPOCH is a trusted industrial encoder supplier providing sourcing solutions for servo motor feedback applications.

Lead Time: 7-Day Dispatch | Price: Contact for Quote

IP54 Protection Waterproof, Oil-proof, Dustproof

Keyed Shaft Connection Round-hole flange for easy installation

ASIC Phase Array Chip Ultra-parallel optical components

Heavy-Duty Design Radial 85N / Axial 50N shaft load

High Reliability MTBF ≥50000h long service life

28 Pulse Options 50 to 3600 p/r customizable

6 Output Methods NPN, PNP, Voltage, Complementary, 26LS31, 7272

F5810-05 58mm Keyed Flange Encoder — Technical Specifications & Parameters

Supply Voltage (VCC)	DC 5V±0.25V or 5~30V
Output Voltage	High Level ≥3.4V, Low Level ≤0.4V
Current Consumption	≤160mA
Resolution (Pulses per Revolution)	50 ~ 3600 p/r
Response Frequency	0~80 kHz
Output Waveform	Square Wave, Duty Cycle 0.5T±0.1T
Starting Torque (+25°C)	2×10⁻² N·m
Moment of Inertia	1×10⁻⁵ kg·m²
Max Shaft Load	Radial: 85N, Axial: 50N
Max Mechanical Rotation Speed	6000 r/min
Vibration Resistance	49m/s², 10~200Hz, 2h per XYZ axis
Shock Resistance	980m/s², 6ms, 3 times per XYZ axis
Protection	Waterproof, Oil-proof, Dustproof (IP54)
Operating Temperature	0°C ~ +85°C
Storage Temperature	-30°C ~ +85°C
Operating Humidity	30~85% (No Condensation)
Operating Life	MTBF ≥50000h (+25°C, 2000rpm)
Weight (excluding cable)	Approx. 0.9 kg

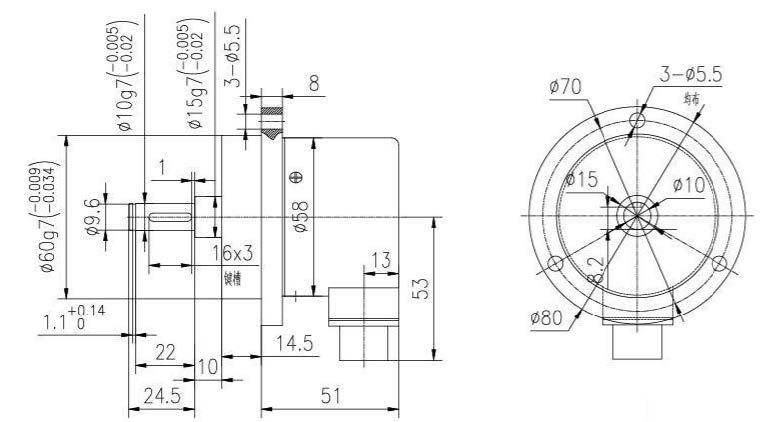

F5810-05 58mm Encoder — Mechanical Dimension Drawing & Installation Guide

Below is the dimensional drawing representing the physical boundaries of the EPOCH F5810-05 58mm Keyed Flange Encoder. Installation checks are highly recommended on the motor end shaft to confirm mechanical fit alignment.

F5810-05 58mm keyed flange incremental encoder mechanical dimension drawing

F5810-05 Incremental Encoder — Cable & Wiring Connection Definition

Signal	Wire Color	7-Pin	9-Pin (Driver)	15-Pin D-Sub (Driver)	15-Pin D-Sub (Open-collector)
+V	Red	1	1	6	7
0V	Black	4	4	5	5
A	Green	3	5	4	4
A/	Brown	-	7	3	-
B	White	5	3	2	2
B/	Gray	-	6	1	-
Z	Yellow	2	2	9	9
Z/	Orange	-	8	10	-
Shield	Shield	6	9	8	8

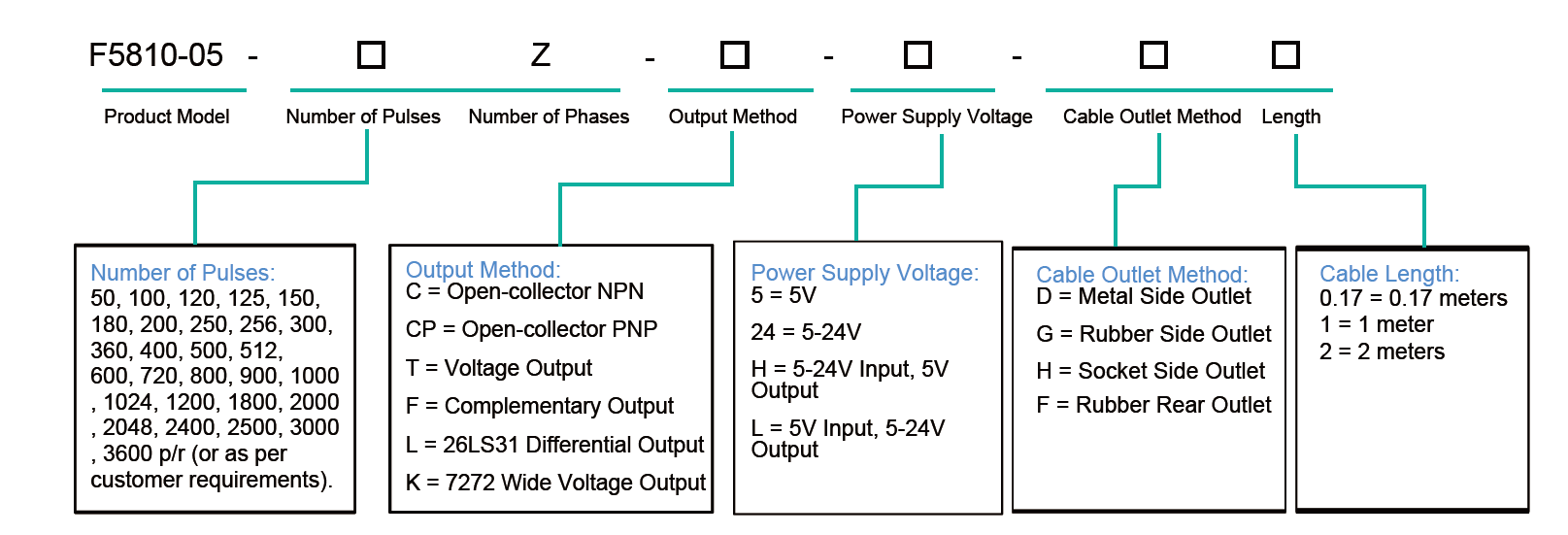

F5810-05 Model Code Definition & Ordering Information — Part Number Configuration

Use the following format to specify your precise encoder configuration:

F5810-05 — [Pulses] — Z — [Output Method] — [Voltage] — [Cable Outlet] — [Cable Length]

Example: F5810-05 — 1024 — Z — L — 5 — G — 1 specifies a F5810-05 encoder with 1024 P/R, 3-phase (A/B/Z), 26LS31 differential output, 5V supply, rubber side outlet, 1-meter cable.

F5810-05 Ordering Code Options

Field	Code	Description
Output Method	C, CP, T, F, L, K	C — Open-collector NPN
		CP — Open-collector PNP
		T — Voltage Output
		F — Complementary Output
		L — 26LS31 Differential Output
		K — 7272 Wide Voltage Output
Number of Pulses (CPR)	50–3600	50, 100, 120, 125, 150, 180, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000, 3600 P/R. Other resolutions available on request.
Number of Phases	Z	3-phase output: A, B, Z with complementary signals.
Power Supply Voltage	5, 24, H, L	5 — 5V DC
		24 — 5~24V DC
		H — 5~24V Input, 5V Output
		L — 5V Input, 5~24V Output
Cable Outlet Method	D, G, H, F	D — Metal Side Outlet
		G — Rubber Side Outlet
		H — Socket Side Outlet
		F — Rubber Rear Outlet
Cable Length	0.17, 1, 2	0.17 — 0.17 meters \| 1 — 1 meter \| 2 — 2 meters

F5810-05 Keyed Flange Encoder — Typical Applications & Use Cases

AC & DC servo motor feedback systems requiring 58mm encoder mounting
CNC machine tool spindle positioning with high-speed feedback
Robotic joint angle measurement with IP54 industrial protection
Automated production line motion control requiring wide voltage compatibility
Packaging and printing machinery needing reliable wide temperature operation
Textile equipment speed regulation with ASIC phase array signal processing

F5810-05 58mm Keyed Flange Encoder — Frequently Asked Questions

Q: What pulse per revolution options does the F5810-05 heavy-duty encoder offer?

The F5810-05 58mm incremental encoder offers 28 pulse count options from 50 to 3600 P/R, including standard resolutions such as 100, 120, 125, 150, 180, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000 and 3600 P/R. Custom CPR values can also be accommodated per customer request.

Q: What output interface options are available for the F5810-05 encoder?

The F5810-05 encoder supports 6 output methods: open-collector NPN (C), open-collector PNP (CP), voltage output (T), complementary output (F), 26LS31 differential line driver RS422 compatible (L), and 7272 wide voltage output (K). The differential line driver output is recommended for long-distance industrial applications.

Q: What is the maximum speed and temperature range of the F5810-05 IP54 encoder?

The F5810-05 encoder features a maximum mechanical rotation speed of 6000 r/min with a response frequency up to 80 kHz. It operates reliably from 0°C to +85°C with storage from -30°C to +85°C. With heavy-duty shaft load capacity of 85N radial and 50N axial, this encoder delivers exceptional durability.

Q: How do I select the correct F5810-05 encoder model?

F5810-05 model selection requires 7 parameters: product model (F5810-05), pulse count, number of phases (Z for A/B/Z), output method (C/CP/T/F/L/K), power supply voltage, cable outlet method (D/G/H/F), and cable length (0.17m, 1m or 2m standard). Contact us for configuration assistance.

Q: Where can I find the F5810-05 encoder datasheet and wiring diagram?

The F5810-05 mechanical dimension drawing and cable wiring definition are provided on this page. For complete technical documentation including the full F5810-05 heavy-duty encoder datasheet, please contact our team at liya@epoch-electronic.com.

Need help selecting the right F5810-05 keyed flange encoder for your application?

Send your requirements (pulse count, output interface, cable length) for a quotation within 24 hours.

Send RFQ Inquiry → Contact for Quote

All specifications are subject to change without notice. Contact EPOCH for the latest technical documentation and ordering information.
