Home→ Products→ Encoders→ Industrial Encoders→ Special Mount→ H10045 Series 100mm Hollow Shaft Incremental Encoder

H10045 Series — 100mm Hollow Through-Shaft Incremental Encoder with Locking Ring Mount

Precision 100mm hollow through-shaft incremental encoder featuring φ40 and φ35 optional bores for motor back-panel mounting. Two mounting configurations: H10045-01 with keyed connection for slip-resistant applications, H10045-02 with locking ring fixation for easy installation. ASIC phase array chip delivers reliable A/B/Z differential output with RS422 compatibility, IP54 protection, 500KHz response frequency, and up to 4000 r/min. EPOCH is a trusted industrial encoder supplier providing sourcing solutions for high-reliability position feedback in industrial automation applications.

Lead Time: 7-Day Dispatch | Sourcing Solutions for Industrial Encoder Applications | Price: Contact for Quote

100mm Hollow Through-Shaft φ40 / φ35 bore options, through-shaft design

Keyed & Locking Ring Mount H10045-01 keyed / H10045-02 locking ring

500KHz Response Frequency High-speed signal processing

IP54 Protection Waterproof, oil-proof, dustproof

Wide Voltage 5~26V DC 5V±0.25V or 5~26V flexible power input

A/B/Z RS422 Output 3-channel differential output, long-distance transmission

Up to 4000 r/min Maximum mechanical speed rating

MTBF ≥50000h Long service life, high reliability

H10045 100mm Hollow Shaft Encoder — Technical Specifications & Parameters

Supply Voltage (VCC)	DC 5V±0.25V or 5~26V
Output Type	RS422 (A, /A, B, /B, Z, /Z)
Response Frequency	0~500 KHz
Max Mechanical Speed	4000 r/min
Output Voltage — High Level	≥ 3.4V (at VCC=5V, RL>1kΩ)
Output Voltage — Low Level	≤ 0.4V
Current Consumption	≤ 160 mA (no load)
Output Waveform	Square Wave
Duty Cycle	0.5T ± 0.1T
Starting Torque	5×10⁻² N·m (+25°C)
Moment of Inertia	4×10⁻⁵ kg·m² (rotational inertia of the rotating shaft assembly)
Max Shaft Load — Radial	50N
Max Shaft Load — Axial	40N
Protection Rating	IP54
Operating Temperature	-30°C ~ +85°C
Storage Temperature	-40°C ~ +95°C
Operating Humidity	30~85% RH (no condensation)
Vibration Resistance	49 m/s², 10~200Hz, 2 hours per XYZ direction
Shock Resistance	980 m/s², 6ms, 3 times per XYZ direction
MTBF (Operating Life)	≥ 50000h (+25°C, 2000 rpm)
Weight	Approx. 0.7kg (excluding cable)

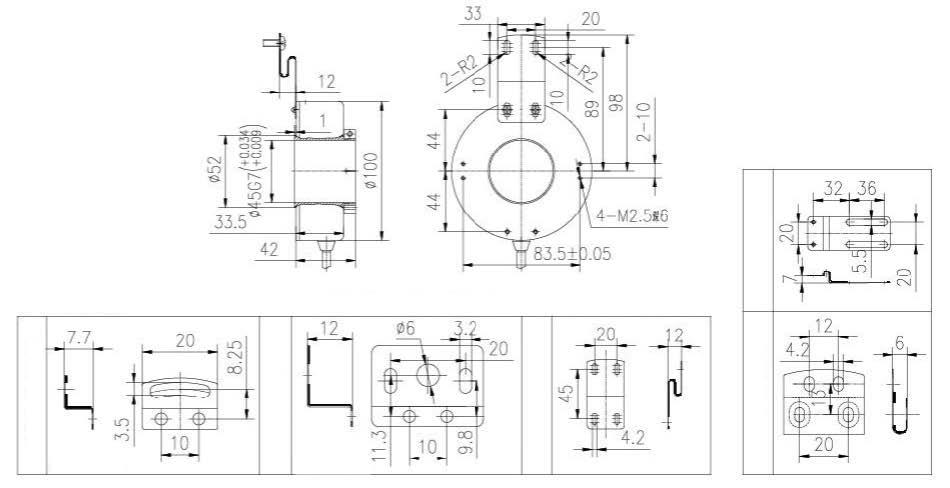

H10045 Mechanical Dimensions

EPOCH H10045 100mm Hollow Shaft Encoder

Mechanical Dimension Drawing — H10045 Series Hollow Shaft A0

H10045 Mechanical Dimensions

Note: All dimensions are in millimeters unless otherwise specified. Shaft bores φ40 and φ35 are optional. H10045-01 uses keyed connection; H10045-02 uses locking ring fixation.

H10045 Output Methods & Wiring

Output Method	Output Circuit	Description
C	NPN Transistor Output	Open collector, pull-up resistor required
CP	Open-collector PNP	PNP with complementary pairs, pull-up resistor required
F	Complementary Output	Push-pull output, direct signal, no pull-up needed
L	26LS31 Differential Output	5V TTL compatible, RS422 differential A/B/Z output
K	7272 Wide Voltage Output	Wide voltage differential output, 5-26V input compatible

H10045 Pin & Cable Definition

Pin / Wire Color	Signal	Description
Pin 1	VCC (5-26V)	Power supply input
Pin 2	GND	Ground
Pin 3	A	A channel output
Pin 4	/A	A channel complementary output
Pin 5	B	B channel output
Pin 6	/B	B channel complementary output
Pin 7	Z	Z channel output (index pulse)
Pin 8	/Z	Z channel complementary output
Shield	Shield / FG	Cable shield, connected to frame ground

H10045 Model Definition & Ordering Code

H10045 — □ — □ — Z — □ — □ — □

① Output Method → ② Pulse Count → ③ Phases → ④ Voltage → ⑤ Outlet → ⑥ Length

① OUTPUT METHOD

C = Open-collector NPN
CP = Open-collector PNP
F = Complementary Output
L = 26LS31 Differential Output
K = 7272 Wide Voltage Output

② PULSE COUNT (p/r)

50, 100, 120, 125, 150, 180, 200, 250, 256, 300,
360, 400, 500, 512, 600, 720, 800, 900, 1000,
1024, 1200, 1800, 2000, 2048, 2400, 2500,
3000, 3600 p/r
Custom pulse counts available on request

③ POWER SUPPLY

5 = DC 5V±0.25V
24 = DC 5~26V Wide Voltage
H = 5-24V Input / 5V Output
L = 5V Input / 5-24V Output

④ CABLE OUTLET METHOD

D = Metal Side Outlet
G = Rubber Side Outlet
H = Socket Side Outlet
F = Rubber Rear Outlet

⑤ CABLE LENGTH

0.17 = 0.17 meters
1 = 1 meter
2 = 2 meters
Custom lengths available on request

H10045 Cable Definition & Wiring Color Code

Signal & Wire Color Assignment

Signal	+V	0V	A	B	Z	A/	B/	Z/	NC	Shield
Wire Color	Red	Black	Green	White	Yellow	Brown	Gray	Orange	—	Shield

Socket Pin Assignment by Connector Type

Connector Type

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

Pin 9

Pin 10

Pin 11

Pin 12

Pin 13

Pin 14

Pin 15

7-Pin Socket
Open-collector / Voltage / Complementary

—

9-Pin Socket
RS422 Line Driver (K / L Type)

—

15-Pin D-Sub (Computer)
Open-collector / Voltage / Complementary

—

15-Pin D-Sub (Computer)
RS422 Line Driver (K / L Type)

—

Pinout Note: Different output types (Open-collector vs RS422 Line Driver) use different socket pin layouts. Always refer to the model-specific pinout above when wiring. NC = Not Connected (no signal). Shield wire connects to frame ground for EMI protection.

H10045 Ordering Information

Model Code	Mounting Type	Bore Size
H10045-01-φ40	Keyed Connection	φ40mm
H10045-01-φ35	Keyed Connection	φ35mm
H10045-02-φ40	Locking Ring Fixation	φ40mm
H10045-02-φ35	Locking Ring Fixation	φ35mm

H10045 Frequently Asked Questions

What is the difference between H10045-01 and H10045-02?

H10045-01 uses a keyed connection where the shaft engages with a keyway on the motor shaft, providing slip-resistant power transmission ideal for high-torque applications. H10045-02 uses a locking ring fixation that clamps onto the motor shaft without a keyway, simplifying installation and removal.

Can the H10045 be used with PLC systems?

Yes. The H10045 outputs A/B/Z differential RS422 signals, which are compatible with most PLCs and motion controllers. The K-type (RS422 line driver) output is recommended for long-distance transmission or noisy industrial environments.

What supply voltage does the H10045 require?

The H10045 supports two voltage ranges: DC 5V±0.25V (for L-type TTL output) and 5~26V wide voltage (for C/CP/F/K output types). Select the appropriate model based on your controller's voltage level.

What is the maximum cable length for the H10045?

With the K-type RS422 differential output, cable lengths up to 100 meters are achievable without signal degradation. For C/F/L-type outputs, cable length should be kept under 20 meters to maintain signal integrity.

Is the H10045 suitable for outdoor or wash-down environments?

The H10045 has an IP54 protection rating, making it suitable for environments with dust, oil splashes, and water spray. It is not recommended for submerged or high-pressure wash-down applications. For outdoor use, ensure proper cable entry sealing.
