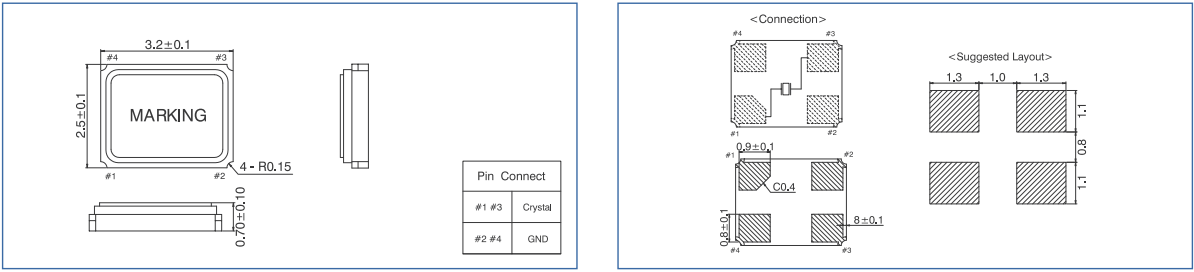

Explore Rotary EncoderMetal Can Type Crystals M3225 Series
Reflow resistance type crystal units
Higher frequency pullability and lower equivalentseries resistance
Lower cost and highly mass production capability
RoHS Compliant/Pb Free
• The best choice of Notebook ComputerTV, STB, LCDM and Cable Modem
Item/Type | M3225 |
Frequency Range | 8~54MHz |
Frequency Tolerance (at 25℃) | ±10 ppm,or specify |
| Frequency Stability Over Operating Temperature Range | ±10 ppm,or specify |
| Operating Temperature Range | -10~+60°C,or specify |
| Shunt Capacitance (C0) | 3pF Max. |
| Drive Level | 100μW(typical) |
| Load Capacitance | Series, 6pF, 10pF, 12pF, 16pF,or specify |
| Aging (at 25℃) | ±3ppm/year Max. |
| Storage Temperature Range | -40~+125℃ |
| Frequency | Resistance |
| 8MHz≤F0≤10MHZ | 300Ω Max. |
| 10MHz≤F0≤15MHZ | 150Ω Max. |
| 15MHz≤F0≤19.5MHZ | 80Ω Max. |
| 19.5MHz≤F0≤27MHZ | 60Ω Max. |
| 27MHz≤F0≤54MHZ | 50Ω Max. |
| Temp.(℃) / ppm | ±5 | ±10 | ±15 |
| -10~+60 | ▲ | ⚪ | ⚪ |
| -20~+70 | ❌ | ▲ | ⚪ |
| -40~+85 | ❌ | ❌ | ▲ |
| Temp.(℃) / ppm | ±20 | ±30 | ±50 |
| -40~+105 | ▲ | ⚪ | ⚪ |
| -40~+125 | ❌ | ❌ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note: not all combination of options are available. Other specifications may be available upon request.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
| M3225 Series | SMD M3225 MHz Crystal(SMD) | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Material Weight Schedule
| Material | Optical Encoder Module | Tray | Carton/Small | Carton/Big |
| Weight | 0.5g/pc | 74g/pc | 420g/pc | 780g/pc |
| QTY/Carton | 1,600pcs / 6,400pcs | 10trays / 40 trays | 1pc | 1pc |
| Weight/Carton | 800g / 3,200g | 740g / 2,960g | 420g | 780g |
| 1,960g/1600pcs | 6,940g/6400pcs |
Discover all the technical specifications by downloading the datasheet today.
