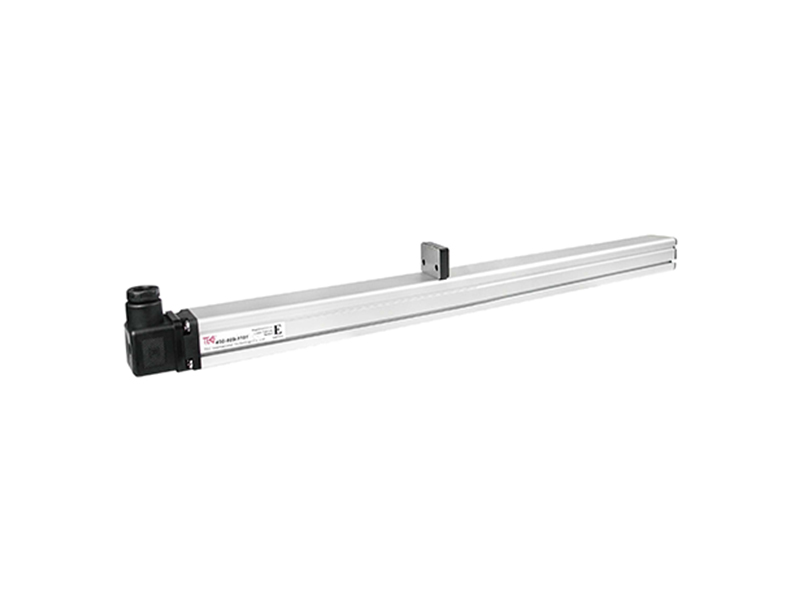

Features

High Precision & Real-Time Measurement: The sensor delivers accurate, real-time, and continuous linear displacement signals.

Non-Contact & Never-Wear: Uses a non-contact measuring method, ensuring long service life and minimal maintenance.

Ultra-Small Profile: Designed for compact installation, making it suitable for machinery with limited space.

Industrial Durability: Features robust construction and high protection ratings (IP65), ensuring performance in harsh environments.

Technical Characteristics

Product Name	ED Analog Output Displacement Sensor	Model	ED Seris
Measuring Range	50–3000 mm stroke length	Vibration Index	GB/T2423.10 20g/10~2000Hz
Interface	/	Input Voltage	+24Vdc±20%
Voltage	0–10V/10–0V, signal/ dual	Consumption	<80mA
Nonlinearity	<±0.05% of full scale	Polarity Protection	Maximum -30Vdc
Repeatability	<± 0.01% of full scale	Overpressure Protection	Max 36Vdc
Updated on	2MS	Insulation Resistance	>10MΩ
Magnetic Ring Velocity	Arbitrarily	Dielectric Strength	500V
Protection Grade	IP65	Electronic Warehouse	/
Operation Temperature	-40°C ~ +75°C	Side Bar	Aluminum Alloy
Humidity/Dew Point	90% relative humidity, non condensing	Outgoing Connection	DIN46530(A)
Impact Index	GB/T2423.5 50g(11ms)	External Pole With Stand Voltage	/

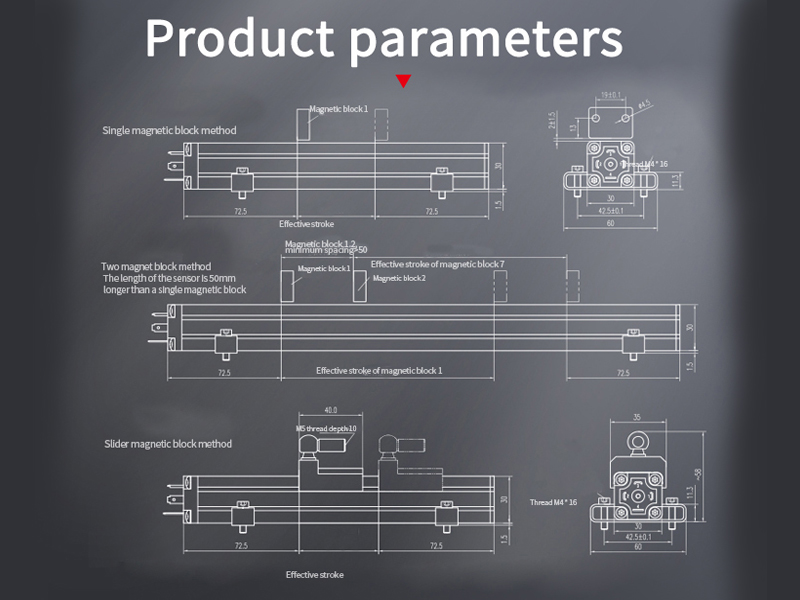

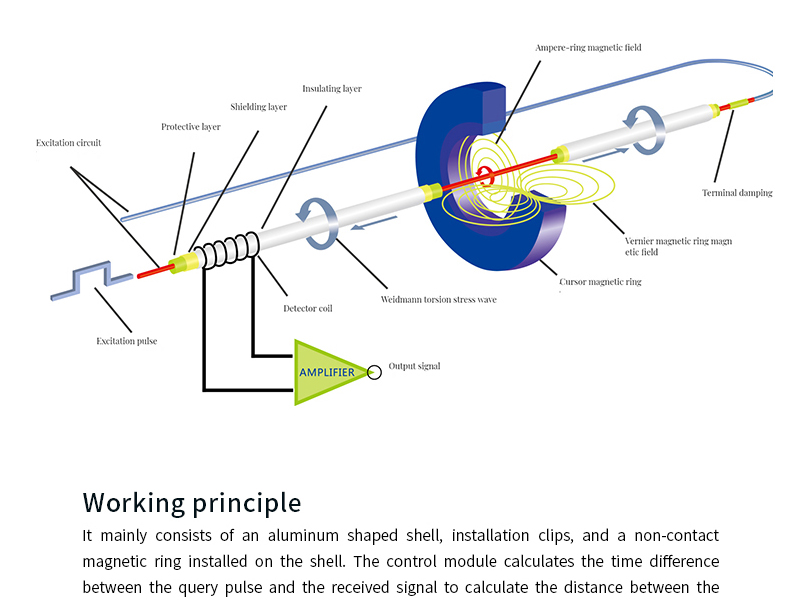

Structural Shape

ED Analog Output Displacement Sensor Structural Shape

Wiring and Pin Definition

ED Analog Output Displacement Sensor Wiring and Pin Definition

ED Analog Output Displacement -Product Parameters

Output
Measuring data		Position magnet ring
Stroke length		50~3000 mm,dual position output 50~3000
Voltage		0~10V/10~0V, single/dual
Resolution		0.025% of full scale (minimum 10um)
Nonlinearity		< ± 0.05% of full scale
Repetition accuracy		< ± 0.01% of full scale
Update time		2ms
Operating conditions
Magnet velocity		Arbitrary
Protection class		IP65
Operating temperature		40℃ ~ +75℃
Humidity/dew point		Humidity 90%, no condensation
Shock index		GB/T2423.5 50g（11ms）
Vibration index		GB/T2423.10 5g/10~2000Hz
EMC test		GB/T17626.2 Anti-interference Degree of Electrostatic Discharge, Grade 4, Class A GB/T17626.3 Radiation Anti-interference Degree of Radio Frequency Electromagnetic Field, Grade 3, Class B GB/T17626.4 Anti-interference Degree of Electrical Fast Transient Train, Grade 4, Class B GB/T17626.6 RF Field Induced Conducted Disturbance, Grade 2, Class B GB/T17626.8 Power Frequency Magnetic Field Anti-interference Degree, Grade 3, Class A CE certification

Electrical Connections		Construction and Materials
Input voltage	+24Vdc±20%
Power consumption	<80mA	Measuring rod	Aluminum alloy
Polarity protection	Maximum -30Vdc	Outgoing line connection	DIN46530(A)
Overvoltage protection	Maximum 36Vdc	Installation	Any direction, clamp installation
Insulation resistance	＞10MΩ	Position magnet	Suspension magnet
Insulation strength	500V

ED Analog Output Displacement Sensor-Common Options

ED Analog Output Displacement-Common Options

: Shown in metallurgy, wind power, construction machinery, rubber machinery, port machinery, and other automation fields.

: Multiple installation options and accessories (magnets, clamps) for flexible deployment.

The ED-Analog displacement sensor is presented as a high-precision, non-contact, ultra-compact, and robust solution for demanding industrial environments, offering flexible installation, reliable analog output, and proven quality trusted by engineers and industry leaders

Ordering Information

ED Analog Output Displacement Sensor -Selection Guide

Packaging Information

Item

Description

Reel/Tray

Pcs/Roll

G.W

N.W

QTY/Carton

Package Size

ED Analog Seris

ED Analog Output Displacement Sensor

50–3000 mm stroke length

0.025% of full scale resolution

Non-Contact

IP65

-kgs

-pcs

-mm

Discover all the technical specifications by downloading the datasheet today.

All Displacement Sensor

Model

Effective Stroke

Interface

Voltage

Nonlinearity

Repeatability

Updated on

Protection Grade

Operation
Temperature (℃)

Material

Shock| Pressure

Datasheet

Sample

RS Waterproof Seris

50mm~5500mm

Analog、SSI、CANopen、Start/Stop

+24Vdc±20%

< ± 0.01% of full scale, Min. ±50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP68

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

RF Flexible Seris

500~7620mm，Up to 23 meters

Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP65 / IP67

-40℃ ~ +85℃

Aluminum alloy

GB/T2423.5 100g(6ms)

RD Split Seris

25~5500 mm

Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP68

-40℃ ~ +125℃

304 stainless steel

GB/T2423.5 100g(6ms)

RB Flat Seris

50~5500 mm

Analog、SSI、CANopen

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

FBGB Explosion-Proof Seris

25~5500 mm

Analog、SSI、CANopen

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) Start-Stop Output Seris

25~5500 mm

+24Vdc±20%

< 0.01% full-scale taxi, minimum 50μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) SSI Output Seris

25~5500 mm

SSI Synchronous Serial Interface

+24Vdc±20%

<±0.01% of full scale, minimum ±50μm

<±0.001% of full scale, minimum ±1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) Profinet Output Seris

25~5500 mm

Profinet IO RT

+24Vdc±20%

< ±0.01% of full scale, minimum ±50μm

< 0.001% for full-scale taxis, minimum ±1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) Profibus-DP Seris

25~5500 mm

Profibus-DP System，ISO74498

+24Vdc±20%

<±0.01% of full scale, minimum ±50μm

<±0.001% of full scale, minimum ±1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH-P EtherCAT Seris

25~5500 mm

EhterCAT Ethernet Control Automation Technology

+24Vdc±20%

<±0.01% of full scale, minimum 50μm

<±0.001% of full scale, minimum ±1μm

≥0.25ms，depending on the measuring stroke

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH/RP CANBus Seris

25~5500 mm

CANBus System Protocol, IS0DIS11898

+24Vdc±20%

< 0 .01% full-scale taxi, minimum 50μm

<±0.001% of full scale, minimum ±1μm

1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH/RP Analog Seris

25~5500 mm

0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K）

<±0.01% of full scale, min±50um

<±0.001% of full scale, min ±1um

1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable

IP67

-40℃ ~ +85℃

304L stainless steel

GB/T2423.5 100g(6ms)

MT Analog Seris

50~2500 mm

CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1

8~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MI CANopen Seris

50~2500 mm

CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1

8~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MI Analog Seris

50~2500 mm

4 ~ 20mA（load resistance≤250Ω）

0.5 ~ 4.5Vdc or 0.25~4.75Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MHA CANopen Seris

50~2500 mm

CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MHA Analog Seris

50~2500 mm

4 ~ 20mA（load resistance≤250Ω）

0.5 ~ 4.5Vdc or 0.25~4.75Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MH CANopen Seris

50~2500 mm

CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1

9~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L

GB/T2423.5 100g（11ms）

MH Analog Seris

50~2500 mm

9~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L

GB/T2423.5 100g（11ms）

ES Modbus Seris

25–3500 mm

Modbus RTU protocol

9~ 30Vdc

Minimum ± 50um or <0.01%.F.S

Minimum ± 10um or <0.001%.F.S

Default 20ms

IP67

-40°C ~ +75°C

304L/316L

GB/T2423.5 50g(6ms)

ES Analog Seris

25–5500 mm

4-20mA or 0-20mA

0~10Vdc or 0~5Vdc

0.05% F.S

Same resolution

lms (four wire system)/ 100 ms (two wire system)

IP67

-40°C ~ +75°C

304L / 316L stainless steel

GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak

HP Analog Seris

25–2500 mm

4-20mA or 20-4mA

0~10Vdc or 0~5Vdc

<0.02% of full scale

<0.005% of full scale

lms ( range < lm )

IP65

-40°C ~ +85°C

PFA

GB/T2423.5 50g(6ms)

ESC Analog Seris

50–3000 mm

4-20mA or 20-4mA

0~10Vdc or 0~5Vdc

士0.1mm(25~400mm)

<±0.l mm

lms (four wire system)/ 100 ms (two wire system)

IP67

-40°C ~ +75°C

PFA

GB/T2423.5 50g(6ms)

EP Analog Seris

25-5500 mm

0-20mA or 4-20mA

0~10Vdc or 0~5Vdc

0.05% F.S

< 0.03% of full scale

< 0.005% of full scale

IP65

-40°C ~ +85°C

Aluminum formed shell

GB/T2423.5 50g(6ms)

ED Analog Seris

50–3000 mm

0–10V/10–0V, signal/ dual

<±0.05% of full scale

<± 0.01% of full scale

2MS

IP65

-40°C ~ +75°C

Aluminum Alloy

GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10

EJ SSI Output Seris

25-5500 mm

SSI Synchronous Serial Interface

+24Vdc±20%

<±0.01% of full scale, minimum±50μm

< ± 0.001% of full scale, minimum ± 5μm

Cable outlet mode IP68; socket way IP67

-40℃ ~ +85℃

304L

GB/T2423.5 100g(6ms)

EJ Modbus Seris

25-5500 mm

Modbus RTU protocol

0-10Vdc or 0-5Vdc

Minimum ±50um(or <±0.01%F.S.)

Minimum ±10um(or <±0.001%F.S.)

10ms

IP67

-40°C - +75°C

304L/316L stainless steel

GB/T2423.5 50g ( 6ms )

EJ Analog Seris

25-5500 mm

4-20mA or 0-20mA

0-10Vdc or 0-5Vdc

<+0.02% of full scale

<± 0.001% offull scale

lms

Outgoing line lP68, Socket LP67

-40°C - +75°C

304L/316L stainless steel

GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)

Less Space,More Possibilities

Easy Integration Of Encoders

ED Analog Output Displacement Sensor

Request Your Quote Today

Related Products

Features

Technical Characteristics

Ordering Information

Ordering Information

Packaging Information

All Displacement Sensor

Application

Recommended News

Comparative analysis of incremental encoder and absolute encoder

Reliability verification and testing of absolute encoders in the aerospace field

Application practice of absolute encoder in precision measurement and positioning system
