DetailsSMD Voltage Controlled Temperature Compensated Crystal Oscillator

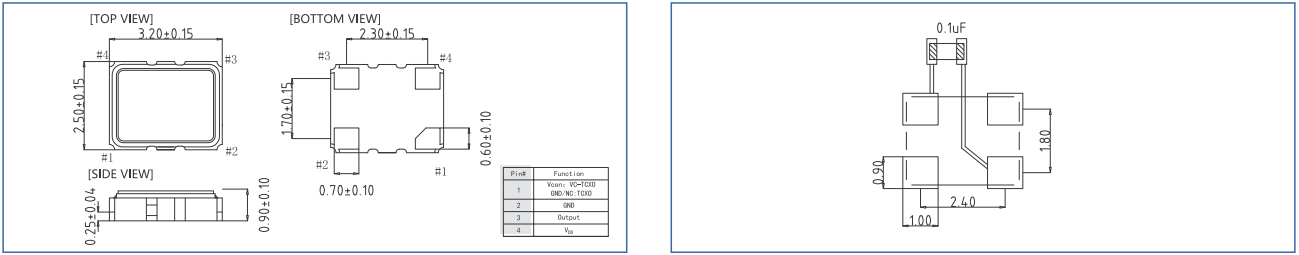

• Typical 3.2*2.5 *0.9mm SMD
• Compactness and lightweight
• VCTCXO available
• For automatic assembly
• Low power consumption
• Low thickness
• GPS/GNSS
• WiMAX,WLAN
• Mobile Phone
| Parameter | 3.3/3.0/2.8V | 2.5V | 1.8V | Unit | ||||
| min. | max. | min. | max. | Min. | max. | |||
| Supply Voltage Variation (VDD) | 2.66 | 3.465 | 2.375 | 2.625 | 1.71 | 1.89 | V | |
| Frequency Range | 10 | 52 | 10 | 52 | 10 | 52 | MHz | |
| Frequency Accuracy(25°C) | 19.2 , 26.0 , 32.0 , 38.4 | |||||||
| Frequency Accuracy(25°C) | - | ±1.5 | - | ±1.5 | - | ±1.5 | ppm | |
| Frequency Stability | Vs Supply Voltage(±5%)change | ±0.1 | ±0.2 | ±0.1 | ±0.2 | ±0.1 | ±0.2 | ppm |
| Vs Load(±10%)change | ±0.1 | ±0.2 | ±0.1 | ±0.2 | ±0.1 | ±0.2 | ||
| Vs Aging(@1st year) | - | ±1.0 | - | ±1.0 | - | ±1.0 | ||
| Supply Current | 10 MHz < FO≤ 26 MHZ | - | 1.5 | - | 1.5 | - | 1.5 | mA |
| 26 MHz < FO≤ 52 MHZ | - | 2.0 | - | 2.0 | - | 2.0 | ||
| Output Level (Clipped sine wave） | 0.8 | - | 0.8 | - | 0.8 | - | Vp-p | |
| Load | 10KΩ // 10pF | 10KΩ // 10pF | 10KΩ // 10pF | |||||
| Voltage Control Range(VCTCXO) | 0.5 | 2.5 | 0.4 | 2.4 | 0.3 | 1.5 | V | |
| Pull Range(VCTCXO) | ±5.0 | ±15.0 | ±5.0 | ±15.0 | ±5.0 | ±15.0 | ppm | |
| Vc Input lmpedance (VCTCXO) | 500 | - | 500 | - | 500 | - | KΩ | |
| Phase Noise@19.2 MHz | 100Hz | -115 | -115 | -115 | dBc/Hz | |||
| 1 kHz | -135 | -135 | -135 | |||||
| 10 kHz | -148 | -148 | -148 | |||||
| Start-up time | - | 2 | - | 2 | - | 2 | pSec | |
| Storage temperature range | -55 | 125 | -55 | 125 | -55 | 125 | ℃ | |
Standard frequencies are frequencies which the crystalhas been designed and does not imply a stock position.
*Frequency at 25°C,1 hour after reflow.
| Temp.(℃) / ppm | ±0.5 | ±1.0 | ±1.5 | ±2.0 | ±2.5 |
| -20~+70 | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ |
| -30~+85 | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ |
| -40~+85 | ⚪ | ⚪ | ⚪ | ⚪ | ⚪ |
⚪:Available ▲:Condition ❌:Not available
Note: not all combination of options are available. Other specifications may be available upon request.
Specifications subject to change without notice.
| Item | Description | QTY/Tray | Trays/Carton | G.W | N.W | QTY/Carton | Package Size |
TC3225 Series | TC3225 CMOS Crystal Oscillator SPXO | /pcs | /trays | / kgs | / kgs | / pcs | (mm) |
| / pcs | / trays | /kgs | / kgs | / PCS | (mm) |
Discover all the technical specifications by downloading the datasheet today.
