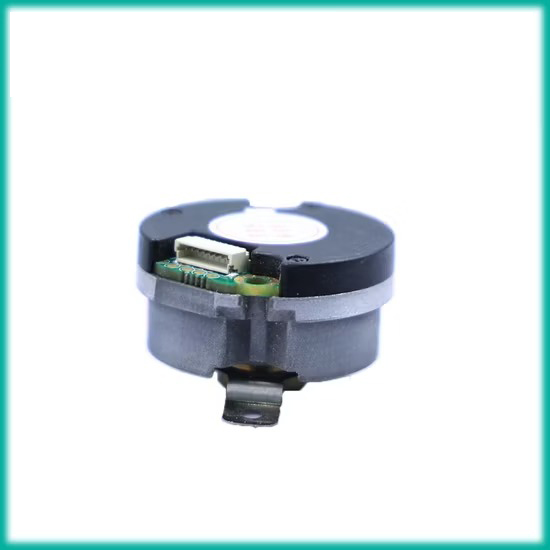

RZ35D06 — Compact Multi Turn Encoder with Power Loss Position Memory

High-reliability, high-resolution multi-turn absolute encoder with 6mm shaft bore. Created specifically as an high-compatibility drop-in, low-vibration cross-reference alternative for the legacy Tamagawa SA35 Series series. Integrates precise physical boundaries with compliant high-speed 2.5MHz RS485 communication protocols.

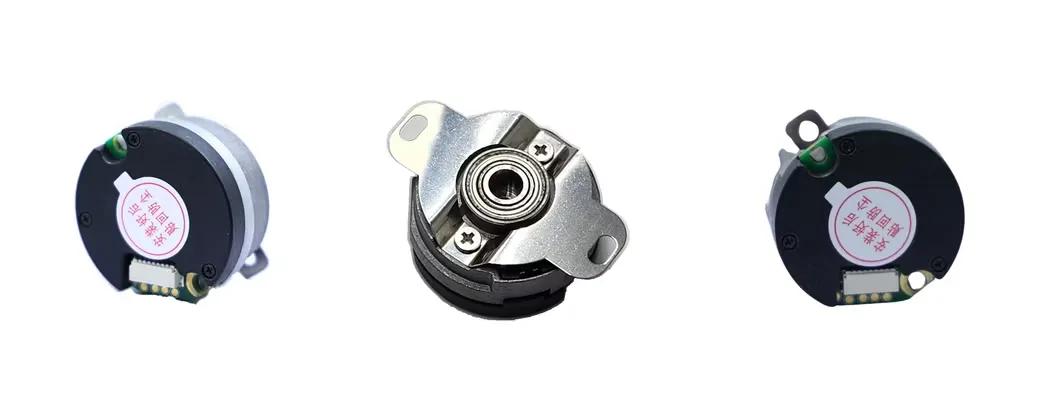

RZ35 series single turn absolute encoder


[OVERVIEW] RZ35D06 Product Introduction & Absolute Applications

Features a robust multi-turn absolute feedback design with an integrated battery-backed 16-bit multi-turn counter. Custom-tailored for compact size 40 and size 60 micro servo motors, it delivers precise absolute position tracking through standard high-speed RS485 serial communications at 2.5MHz baud rates.

[USES] Uses:

This product is mainly used for servo-driven control system.Provide feedback information and auxiliary signals required by accurate position and speed control units for the system.

[FEATURES] Features:

•
Working Temperature: -20 ℃ ~ +105 ℃
•
Current Consumption: < 100mA
•
Battery Voltage: 3.6V DC
•
Battery Warning Voltage: 3.1V
•
Battery Fault Voltage: 2.5V
•
Signal Output: Differential output
•
Power Supply: Single 5V Supply
•
Rise/Fall Time: Around 100ns
•
Insulation Resistance: 50MΩ
[CORE] CORE ABSOLUTE PLATFORM DEFINITIONS
CHASSIS ENVELOPE
dia. 35.0 mm
Radial Clearance Fits
AXIAL HOUSING DEPTH
21 mm
Thinned Profile Profile
SERIAL INTERFACE
RS485 Serial
Baud Rate 2.5 MHz

[FEATURE] ENVIRONMENTAL STRETCH & RELIABILITY:

  • Power-Off Memory: Multi-turn absolute counts retained by external 3.6V backup battery lines, requiring zero mechanical homing.

  • Dual Channel Warning: Integrated alert registries warn of battery exhaustion (Low at 3.1V, fault at 2.5V).

  • Heavy-Duty IP40 Shielding: IP40 optical sealing helps protect glass grating scale from particulate ingress.

[COMMUNICATION] REAL-TIME SERIAL ATTRIBUTES:

  • Single-Turn Precision: True selectable 17-bit (131072 steps) or 23-bit (8388608 steps) high accuracy optical readings.

  • Multi-Turn Capacity: 16-bit tracker tracks up to 65,536 turns continuously.

  • Low Power Drain: High-efficiency receiver consumes less than 100mA under work.

  • Vibration Protection: Vibration rated to 98 m/s² (10G); Mechanical shock rated to 980 m/s² (100G), 11ms.

  • Nominal Voltage: Operates strictly on a +5V DC ± 5% power line.

[BLUEPRINT] RZ35D06 Mechanical Integration & Shaft Clearances

Refer to the absolute physical layout of the EPOCH RZ35D06 below. Confirm 6mm shaft bore dimensions to ensure a smooth, concentric absolute fitment:

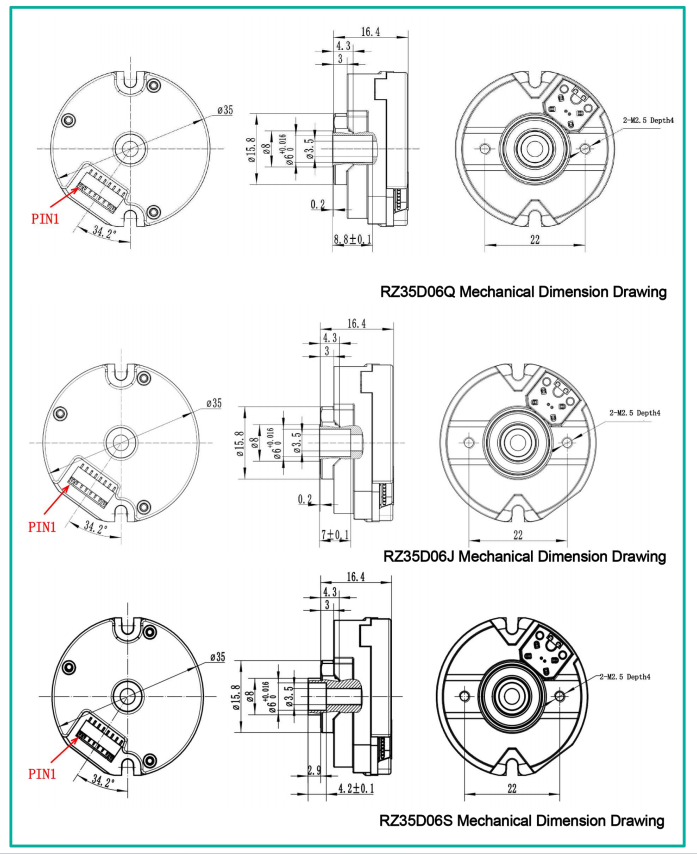

       [BLUEPRINT] [RZ35D06 Outline Dimension Sheet — Drawing 1]

RZ35D06 Mechanical Dimension


              To ensure zero publishing conflicts, complex SVG CAD tags are gracefully omitted.
       Sizing Specifications: Encoder OD dia. 35.0 mm ｜ Axial Envelope Thickness 21 mm ｜ Mating Connection: 6mm Shaft Bore.

[PROPERTIES] RZ35D06 Absolute Technical Specifications

Electrical & Physical ParametersTechnical Standards (Sourcing Alignment)
Model LineageEPOCH RZ35 Series (Absolute Multi-turn Line)
Single-turn Resolution Options131,072 Single-turn steps (17-Bit) / 8,388,608 Single-turn steps (23-Bit)
Multi-turn Counter Capacity16-Bit multi-turn counter (Tracks up to 65,536 turns continuously; retains during battery standby)
Absolute Positioning Accuracy< ±50" (Angular Seconds) (Note: Specific accuracy depends on motor and mechanical assembly fit)
Repetition Positioning Accuracy< ±3" (Angular Seconds) (Note: Specific accuracy depends on motor and mechanical assembly fit)
Interface ProtocolRS485 Half-duplex Serial Protocol (Tamagawa-compatible command sequence)
Baud Rate & Frequency2.5 MHz serial transmission bandwidth ｜ Communication frequency ≤ 16K
Allowable Shaft Deviations
• Dip Angle (Tilt): ≤ 0.1°
• Axial Endplay (Play): < 0.1 mm
• Radial Runout (Eccentricity): < 0.01 mm
Maximum Operating SpeedsUp to 6000 rpm (Max continuous rotation speed)
Rotor Moment of Inertia0.21 kg·mm² (0.21 x 10-6 kg·m²)
Rotor Angular Acceleration
• During Power Supply: ≤ 80,000 rad/s²
• When Battery Powered: ≤ 4,000 rad/s²
Supply Line Voltage (Vcc)+5.0 V DC ± 5% input (Current drain < 100mA)
Power Backup & Battery Line+3.0V to +3.6V DC input (Standard: 3.6V memory backup cells)              • Automatic Protections: Built-in battery voltage fault warning system
Mechanical Shock limits980 m/s² (100G) Impact Acceleration, 11ms duration. Impacted 3 times in each XYZ direction (totally 18 times)
Vibration Resistance tolerance• 10 to 55Hz: Constant amplitude of 1.5mm
• 55 to 2000Hz: Acceleration of 98 m/s² (10G)
• Test duration: XYZ axes 2 hours each axis (totally 6 hours)
Working Temperature Range-20 °C to +105 °C temperature limits (Standard operating ranges)
Relative Humidity tolerance≤ 90% RH (At 40 °C/21 days, based on EN 60068-2-78 standards), strictly without condensation
Degree of Protection (IP Rating)IP40 Class rated ingress barrier

[MOUNTING] RZ35 SERIES Mounting Accessories & Leaf Springs Brackets

EPOCH supplies rigid leaf springs options to adapt to diverse servo motor shell geometries:

       [MOUNTING] [Mating Bracket Blueprint Omitted for Compatibility]



MP4131-704R (BM Type-Medium Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing


MP4131-704R (BM Type-Medium Profile with‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing



MP2831-704R (BL Type-Low Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing


MP2831-704R (BL Type-Low Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing



MP1631-704R (BP Type-Flat Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing


MP1631-704R (BP Type-Flat Profile with ‌⌀31 Mounting Holes) Leaf Spring Mechanical Drawing



MP4140-704R (CM Type-Standard Profile with ‌⌀40 Mounting Holes) Leaf Spring Mechanical Drawing



MP2840-704R (CL Type-Low Profile with ‌⌀40 Mounting Holes) Leaf Spring Mechanical Drawing

       Standard leaf-spring mounting brackets options:
       Type d31/d40 Plate Spring: Suits micro-servo mount configurations.
       Type d55 Plate Spring: Standard fitment for large frame spindles.
Bracket Accessory ReferenceMounting PCD Pitch LimitsMain Mechanical Layout Attributes
MP35-001A-31Pitch d31 ｜ Low profileCompatible with miniature 35mm absolute frames (RZ35), fitting small-shaft size 40 motor caps.
MP4409-002A-40Type C ｜ Pitch d40Standard 2-point alignment spring for 44mm outer box absolute frames (RZH4409A).
MP4409-001A-55Type D ｜ Pitch d55High-tension 4-point bracket suited for standard 48mm absolute encoders (RZH4809A).

[DECODING] Decoded Ordering Codes & Wire Terminal Schemes

Refer to our 11-step decoded catalog guide below to specify absolute model serials corresponding to your shaft and resolution configurations:

R        Z        35        A        09        Q        17        P        T        BL        5V        W
1. Serial number          R — Absolute
2. Structural Form          Z — With Bearing
3. Outer Diameter          35 — 35mm
4. Master Unit Code          A — Identification Number
D — Identification Number          Current selection: A (other bores)
5. Diameter of hole          06 — 6mm
08 — 8mm
9mm conical shaft                Note: 8mm straight shaft and 9mm conical shaft are only available at RZ35A.
6. Shaft Designation           Q — Identification Number
S — Identification Number
J — Identification Number
Z — Identification Number
7. Bits           17 — 17bit
21 — 21bit
23 — 23bit
8. Single / Multi-turn           P — Single-turn
M — Multiturn 16 bit
S — Single Turn
9. Interface/Protocol           T — 485 interface
S — SSI interface*
B — BiSS interface*                   * Protocols can be customized
10. Leaf Spring           BM — Medium profile with Ø31 PCD
BL — Low profile with Ø31 PCD
BP — Flat profile with Ø31 PCD
CM — Medium profile with Ø40 PCD
CL — Low profile with Ø40 PCD
11. Voltage          5V — Input Supply Volt
12. Connector          W — Horizontal mount

[WIRING] Cable Definitions & absolute Multi-turn wire connections

Please strictly align wire schemas using the verified Pin-to-Color matching below to prevent polarity reversal or sensor data losses during high-duty servo runs:

       [CABLE] Quick Reference: Pin Configuration & Cable Colors (RZ35 & Absolute Series)
Pin Number12345678
Signal5VGND485+485-Battery +Battery GNDNCPE
Cable ColorRedBlackBlueYellowBrownWhite&mdash;Shielded Mesh
Terminal SignalRequired Cable colorsFunctional absolute Description
Vcc (+5V)Red / 红Power Supply Line (+5V DC &plusmn; 5%, current drain < 100mA)
GND (0V)Black / 黑Main Ground Reference Loop
SD+ (Data+)Blue / 蓝High-speed RS485 non-inverted differential data line (485+)
SD- (Data-)Yellow / 黄High-speed RS485 inverted differential data line (485-)
VB (Battery +)Brown / 棕External Multi-turn memory retention battery (+3.0V ~ +3.6VDC) (Battery +)
GND_BAT (Bat GND)White / 白Floating Battery ground reference line (Battery GND)
NCN/ANo connection (Internal standard safe state)
SHIELD (FG / PE)Shielded Mesh / 屏蔽网Intertwined outer metal shield for high-voltage active protective ground (PE)

[RETROFIT] Cross-Referencing & Sourcing Retrofit Guides

Review mechanical tolerances and serial packet bandwidth alignments below to verify a reliable electrical retrofit compatible alternative:

Technical CriterionEPOCH RZ35 SeriesTamagawa SA35 Series
Chassis Outer DiameterOD 35.0 mmOD 35.0 mm
Axial Envelope Thickness21 mm Thickness21 mm Thickness
Baud Rate & Clock speed2.5 MHz Serial Baud Rate2.5 MHz Clock Rate
Position Resolution RegistersTrue Selectable 17-Bit / 23-Bit Absolute single-turnStandard 17-Bit / 23-Bit absolute
Battery-Backed multi-turns16-Bit multi-turn counter (retains up to 65,536 turns)Common 16-Bit multi-turn absolute
[DISCLAIMER] Trademark & Interchangeability Safety Notice:

  1. All raw OEM corporate marks, trademarks, and specific part model definitions (including "TAMAGAWA", "SA35", "SA48", and "TS5700") referenced across these comparison indices and parameters grids are physical properties of their respective corporate registration holders. Their inclusion here is intended strictly to declare mechanical dimensions matching and electrical protocol compatibility.

  2. EPOCH is a fully independent absolute encoder and feedback device manufacturer. We hold no licensing links, representation agencies, standard distribution franchises, or joint partnerships with any of the named trademark owners.

  3. Supervisors and engineers are advised to verify taper shaft size boundaries, RS485 communication protocols, single-turn resolution bits, battery voltage parameters, and lead-out wire configurations to ensure safe, durable cross-references on heavy CNC or robotic axes.

[SEO CLASSIFICATION] Sourcing Queries & Interchange Cross Indexes

Primary Absolute Index Classification:        RZ35-AS ｜ RZ35 absolute encoder ｜ 35mm absolute encoder
Verified Sourcing Modifiers & Classifiers:        absolute multi-turn encoder ｜ size 40 servo absolute feedback ｜ SA35 alternative
OEM Part Serials Cross-Referenced:        Tamagawa SA35 cross-reference ｜ TS5667 compatible alternative ｜ TS5668 compatible alternative

[FAQ] Technical Absolute FAQs Sourcing Guide

Explore standard queries regarding the EPOCH RZ35 absolute absolute Multi-turn Encoder series to secure proper cross-references:

[Q:] How does the EPOCH RZ35 function as a compatible cross-reference for a Tamagawa SA35 absolute encoder?
The EPOCH RZ35 absolute encoder is designed to serve as a mechanically and electrically compatible alternative for the Tamagawa SA35 (TS5667/TS5668 series). It matches the 35mm outer diameter and offers customized mounting pitches (PCD d31 or d40) alongside hollow shaft (6mm/8mm) or 9mm conical shaft alignments, running the same 2.5MHz RS485 serial data format.
[Q:] What battery voltage specification is required for the RZ35 multi-turn memory retention?
The RZ35 multi-turn memory is backed up by an external battery supply line. The backup range is standard 3.0V to 3.6V (typically 3.6V DC). The encoder features intelligent battery health indicators: it triggers a low battery warning at 3.1V and reports a position tracking fault if the backup drops below 2.5V.
[Q:] What serial communications interfaces are supported by the RZ35 series?
Our RZ35 series absolute encoders standardly support high-speed RS485 serial communication with a 2.5MHz baud rate (Tamagawa protocol compatible). It can also be manufactured with alternative industry interfaces such as SSI or BiSS protocols to drive dynamic closed-loops on diverse CNC systems.
B2B Global Absolute RFQ Sourcing

Request an absolute quote shortly

Need custom absolute bits configurations (17-bit / 21-bit / 23-bit), specialized connector harnesses, or bulk contract evaluations? Send coordinates to our direct sales dispatch channels.

Sales Office: liya@epoch-electronic.com. Include desired resolution bits (17/23), shaft sleeve size, application speed and annual volumes.
Legal Disclaimer & Trademark Attribution: Tamagawa® and OIH48 are registered trademarks of Tamagawa Seiki Co., Ltd. (多摩川精工株式会社) or their respective manufacturers. All manufacturer names, symbols, series, and descriptions used in this document are for nominal cross-compatibility indexation, cross-referencing, and market application identification purposes only. There is no implied affiliation, authorization, sponsorship, or factory endorsement between EPOCH and any original equipment manufacturers (OEM). All aftermarket products supplied by EPOCH are manufactured under independent specifications to serve as high-quality physical and electrical compatible alternatives.

Ordering Information

Ordering Information / Part Number


RZ35 Series Ordering Information


Note: 8mm straight shaft and 9mm conical shaft are only available for the RZ35A.



absolute encoder shaft


Packaging Information




ItemDescription

QTY/Box

Boxes

/Carton

G.WN.W

QTY

/Carton

Package Size
RZ35Absolute Encoder,Outer Diameter 35mm10pcs10boxes0.38kgs0.3kgs100pcs310*130*45mm


Discover all the technical specifications by downloading the datasheet today.




All Rotary Encoder

Part Number Interface Dimensions
(mm) 		Resolution Ranges Resolution Counter Communication
Frequency 		Working Temperature Communication
Frequency 		Operation Speeds Protection
Structure 		Footprint 3D Datasheet Sample
RZ35A08 RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ35D06S RS485 Φ35mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZL4408A RS485 Φ44mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZH4409A RS485 Φ44mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZL4409A RS485 Φ44mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
RZ4809A RS485 Φ48mm 17~23 Bits Single/Multi-Turn Differential output -20°C-+105°C 16K 6000rpm IP40
UZ3509 RS485 Φ35mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
UZ4408 RS485 Φ44mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
UZ4409 RS485 Φ44mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
UZ4809 RS485 Φ48mm 1000-5000CPR Single/Multi-Turn Differential output -20°C-+105°C 500khz / IP40
RS972 / / / / / -40°C to +85°C / / /
RS970 / / / / / -40°C to +85°C / / /
RK Series / / / / / -20°C to +85°C / / /
RK Series / / / / / -20°C to +85°C / / /
RK Series / / / / / -20°C to +85°C / / /
RF28 / / / Single/Multi-Turn / -40 °C ~+85 °C / / /
RT28 / / / Single/Multi-Turn / -40 °C ~+85 °C / / /
RF20 / / / Single/Multi-Turn / -40 °C ~+85 °C / / /
RR28 / / / Single/Multi-Turn / -40 °C ~+85 °C / / /
RS5 / / / Single/Multi-Turn / / / / /
RSG35 RS485 / 17-23 Bits Single/Multi-Turn ≤16K -20 ℃ ~+105 ℃ 16K 6000rpm IP40
RSU3506 RS485 / 17-24 Bits Single/Multi-Turn ≤16K -20 ℃ ~+105 ℃ 16K 6000rpm IP40
MS Series / / 17 Bits Single/Multi-Turn ≤16K -10℃～105℃ 16K ≤6000rpm /
RZ44 & RZ48 RS485 / 17-23 Bits Single/Multi-Turn ≤16K -20 ℃ ~+105 ℃ 16K 6000rpm IP40
RZ1337A RS485 / 25 Bits Single/Multi-Turn ≤16K -20°C-+105°C 16K 12000rpm IP40
RZ7810 RS485 / 23~25 Bits Single/Multi-Turn ≤16K -20°C-+105°C 16K 6000rpm IP40
RS Series RS485 / 17~23 Bits Single/Multi-Turn ≤16K -20°C-+105°C 16K 6000rpm IP40

Application

Recommended News

We are committed to delivering high-quality, innovative electronic components that empower industries to achieve greater efficiency.

Copyright © 2024 Epoch Electronic Technology Co., LTD. All Rights Reserved.
