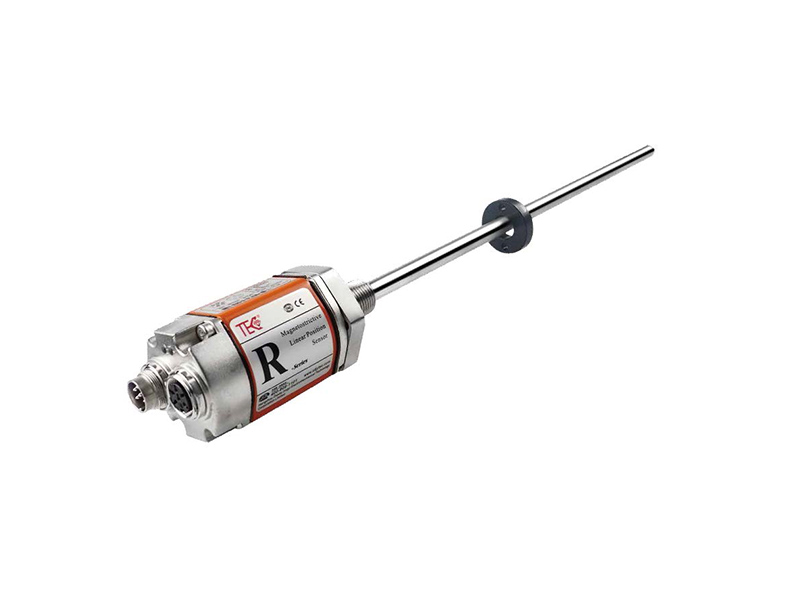

Customized DC-DC Converters Explore DC-DC ConvertersNon-contact, absolute linear measurement ensures long service life and maintenance-free operation.
Direct Profibus-DP output supports high-speed, reliable digital communication with up to 20 simultaneous magnet position measurements.
Exceptional precision with resolution down to 1 µm, nonlinearity less than ±0.01%, and repeatability within ±0.001% full scale.
Rugged IP67-rated stainless steel construction withstands harsh industrial environments and high-pressure hydraulic systems.
Integrated LED diagnostics provide real-time sensor status and troubleshooting for easy maintenance and monitoring.
| ||||
| Measurement data | Position magnet ring | |||
| Stroke length | 25~5500 mm，customized according to customer needs | |||
| Number of measurements | 1~9 | |||
|
| ||
| Interface | Profibus-DP System，ISO74498 | Magnet velocity | Arbitrary |
| Data format | Profibus-DP（EN-50170) | Protection level | IP67RH Stainless Stell Rod/IP65RP Aluminum profile |
Transmission speed | Maximum 12Mbit/s | Operating temperature | -40℃ ~ +85℃ |
| Resolution | 1 / 5 / 10 / 20 / 50 / 100 μm | Humidity/dew point | Humidity 90%, no condensation |
| Nonlinearity | <±0.01% of full scale, minimum ±50μm | Shock index | GB/T2423.5 100g(6ms) |
Repetition accuracy | <±0.001% of full scale, minimum ±1μm | Vibration index | GB/T2423.10 20g/10~2000Hz |
| Update time | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | EMC Test | GB/T17626.2/3/4/6/8，Grade 4/3/4/3/3， Class A，CE Certification |
| Hysteresis | <10μm | ||
Temperature coefficient | <15ppm/℃ | ||
|
| |||
| Failure indication | Electronic bin cover with LEDs display | |||
RH Series | Input voltage | +24Vdc±20% | ||
Electronic bin | Aluminum alloy | operating current | ＜80mA（varying with range） | |
Measuring rod | 304 stainless steel | Polarity protection | Max.-30Vdc | |
Outer tube pressure | 35MPa (continuous )/70MPa (peak) or 350bar (continuous)/700bar (peak) | Overvoltage protection | Max.36Vdc | |
Position magnet | Standard magnet ring and various ring magnets | Insulation resistance | ＞10MΩ | |
RP Series | Electronic bin | Aluminum alloy | Insulation strength | 500V |
Measuring rod | Aluminum alloy | |||
Position magnet | Slider magnet, square magnet, sector magnet | |||
Mounting thread form | M18×1.5, M20×1.5, 3/4"-16UNF-3A （customizable） | |||
Installation direction | Any direction | |||
| Outgoing mode | Cable outlet or Connector | |||

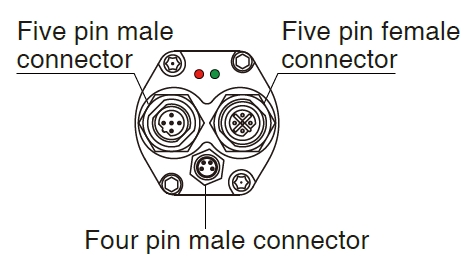

The integrated LEDs (red or green) provide the basic status feedback and troubleshooting function of the sensor.
| Green light | ON | ON | Flash | Flash |
|
| Red light | OFF | ON | OFF | ON | |
| Function | Normal work | Magnets not detected or incorrect number | Waiting for host parameters | Programming state |
Programming
The TEC sensor can be programmed in the field using a USB converter. No need to open the electronic bin, USB port power supply,
standard cable connection, fully meets the needs of customers. The following parameters of the sensor can be modified by the configuration
software of PC: setting the slave station address; Graphical display of magnet ring position value; Diagnose the sensor online
by error code.

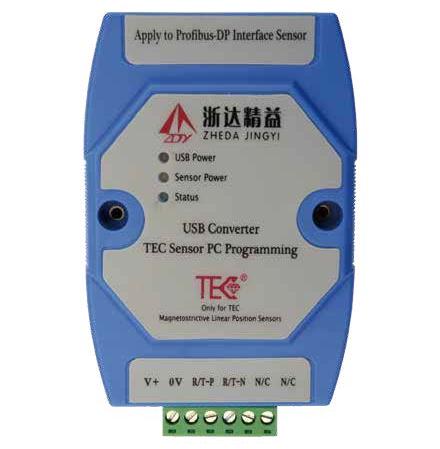

USB Converter （Order No.TEC612814） |
Sensor Programming Window |
Installation and Use Instructions - Profibus- RH(P) Profibus-DP Output Magnetostrictive Displacement Sensor
The DP output magnetostrictive sensor meets the Profibus-DP (EN 50 170) protocol. The sensor transmits the absolute position data of the magnet ring to the controller in the form of RS-485 standard serial asynchronous, and the maximum transmit rate can reach 12Mbps.
The Profibus-DP interface provides powerful diagnostic and setting functions in the form of GSD data sheets.

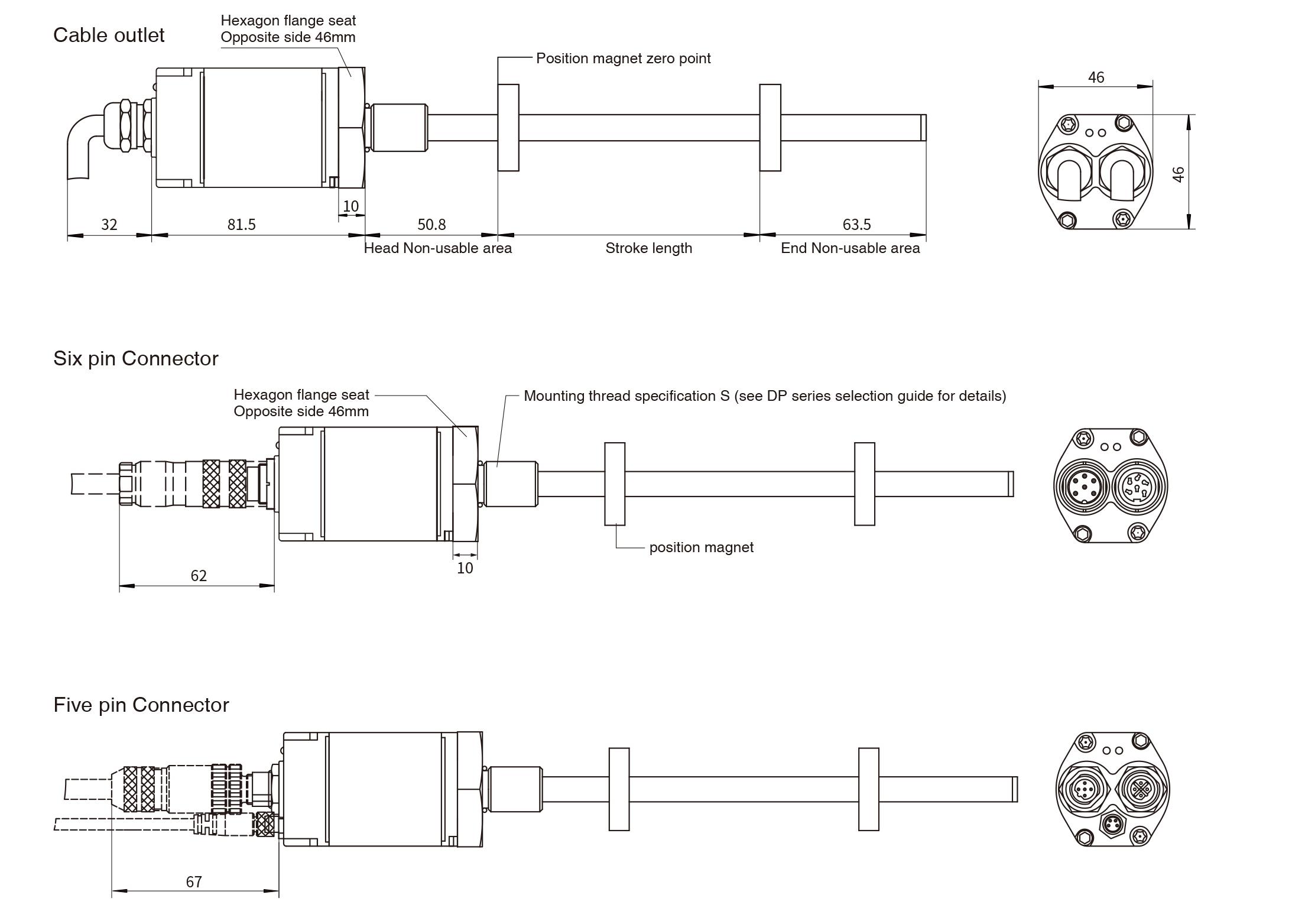

Dimensions and installation guidance of RH pressure-resistant rod sensor
RH series pressure-resistant rodshell, built-in installation design for hydraulic system, pressure-resistant 35MPa continuous, flexible and simple installation mode, mounting thread form M18×1.5 or M20×1.5 or 3/4"-16UNF-3A.
Note: The measurement Non-usable area shown in the figure indicates that the output value of the sensor in this area is zero or unreliable.
The default values of the first and last measurement Non-usable areas of this product are 50.8mm and 63.5mm respectively. The value
of the measurement Non-usable area can be appropriately modified according to the needs of customers, please pointed out when ordering.
Installation Instructions-Profibus-Profibus- RH(P) Profibus-DP Output Magnetostrictive Displacement Sensor

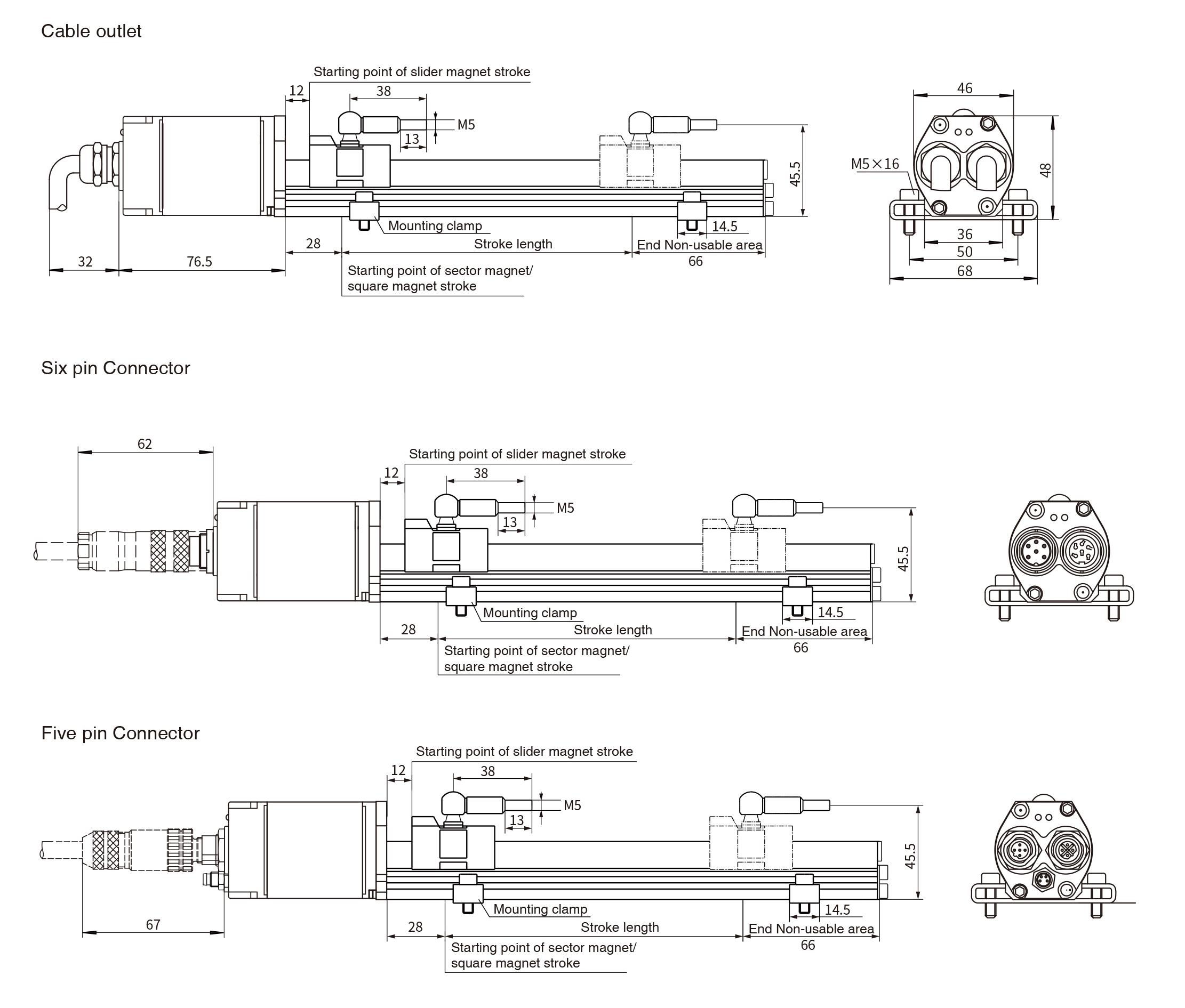

Dimensions and installation guidance of RP aluminum profile sensor
RP Series aluminum profile provides flexible and simple external installation mode, which is suitable for stroke or position detection of linear motion mechanism, and can also be used for external position detection of hydraulic cylinder.
Note: The measurement Non-usable area shown in the figure indicates that the output value of the sensor in this area is zero or unreliable.
The default value of the measurement Non-usable area at the head and end is 28mm and 66mm respectively. The value of the measurement
Non-usable area can be modified appropriately according to the customer's needs, please pointed out when ordering.

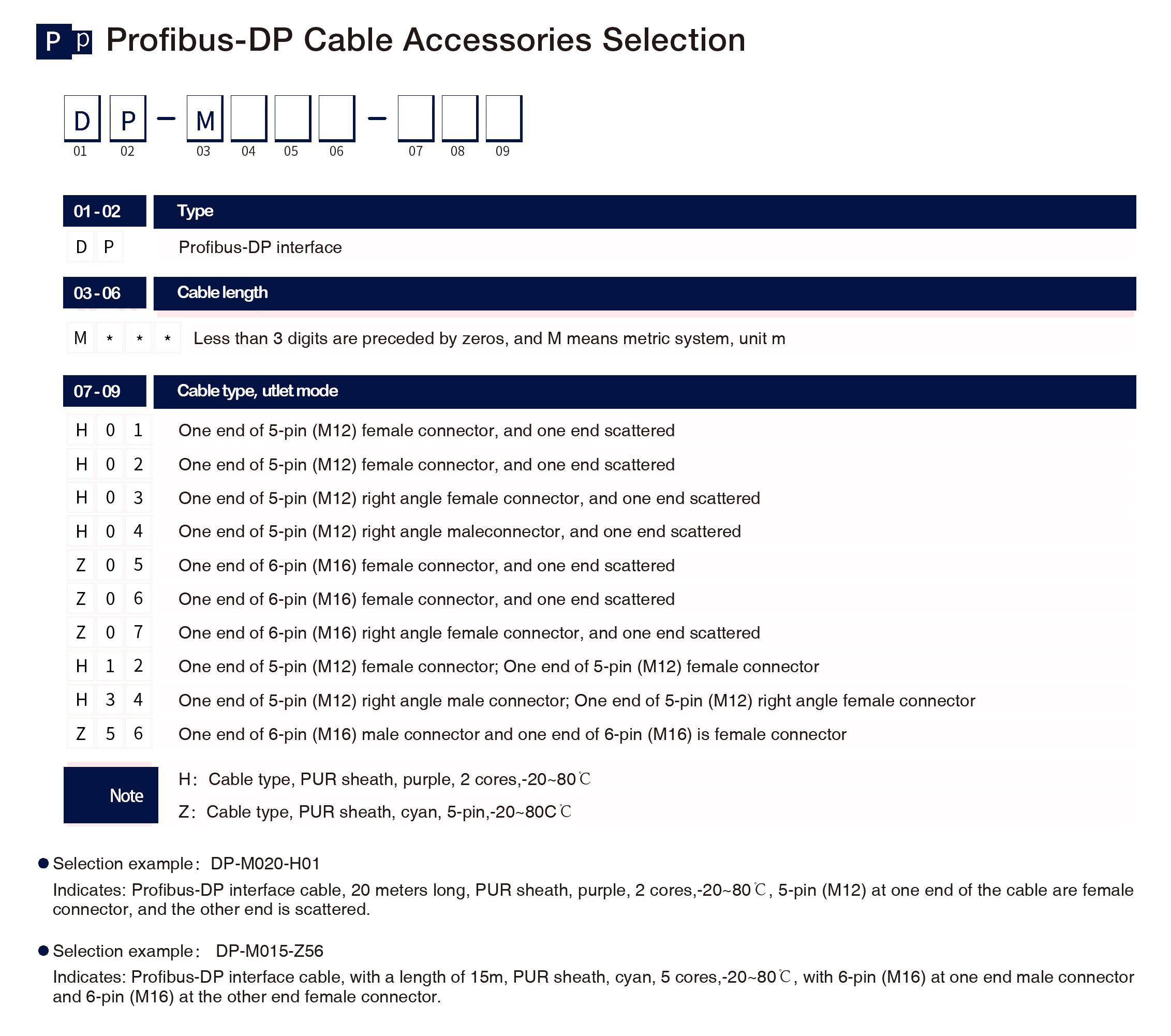

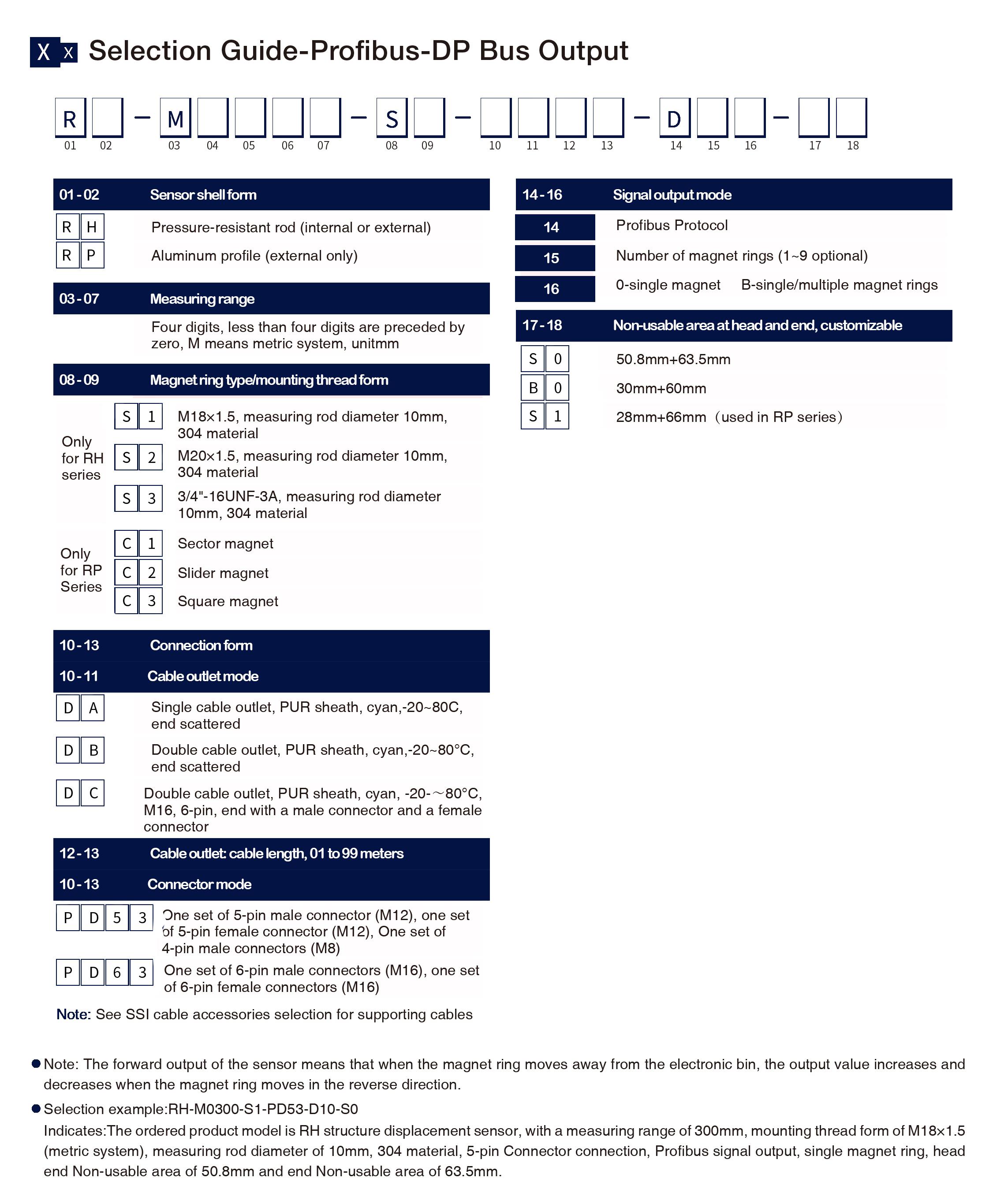

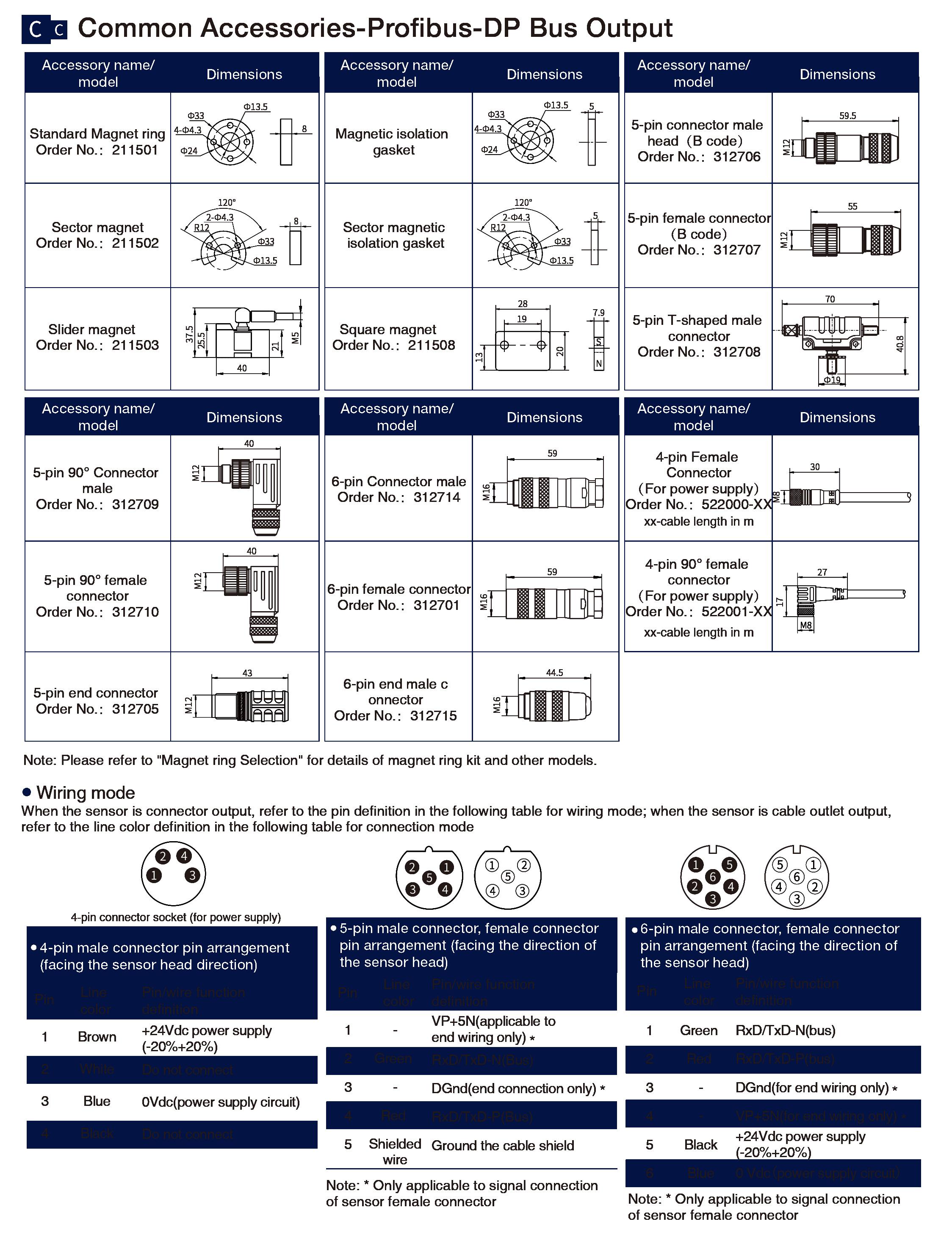

Common Accessories-Profibus-RH(P) Profibus-DP Output Magnetostrictive Displacement Sensor
| Item | Description | Reel/Tray | Pcs/Roll | G.W | N.W | QTY/Carton | Package Size |
| RH(P) Profibus-DP Seris | RH(P) Profibus-DP Output Magnetostrictive Displacement Sensor 25~5500 mm stroke 1 / 5 / 10 / 20 / 50 / 100 μm Resolution -40℃ ~ +85℃ Operating temperature IP67 / IP65 | -kgs | -kgs | -pcs | -mm |
Discover all the technical specifications by downloading the datasheet today.
| Model | Effective Stroke | Interface | Voltage | Nonlinearity | Repeatability | Updated on | Protection Grade |
Operation Temperature (℃) |
Material | Shock| Pressure | Datasheet | Sample |
| FBGB Explosion-Proof Seris | 25~5500 mm | Analog、SSI、CANopen | +24Vdc±20% | < ± 0.01% of full scale, Min. ± 50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) |  |
|
| RH(P) Start-Stop Output Seris | 25~5500 mm | / | +24Vdc±20% | < 0.01% full-scale taxi, minimum 50μm | / | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) SSI Output Seris | 25~5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum ±50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Profinet Output Seris | 25~5500 mm | Profinet IO RT | +24Vdc±20% | < ±0.01% of full scale, minimum ±50μm | < 0.001% for full-scale taxis, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Profibus-DP Seris | 25~5500 mm | Profibus-DP System，ISO74498 | +24Vdc±20% | <±0.01% of full scale, minimum ±50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH-P EtherCAT Seris | 25~5500 mm | EhterCAT Ethernet Control Automation Technology | +24Vdc±20% | <±0.01% of full scale, minimum 50μm | <±0.001% of full scale, minimum ±1μm | ≥0.25ms，depending on the measuring stroke | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH/RP CANBus Seris | 25~5500 mm | CANBus System Protocol, IS0DIS11898 | +24Vdc±20% | < 0 .01% full-scale taxi, minimum 50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH/RP Analog Seris | 25~5500 mm | / | 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） | <±0.01% of full scale, min±50um | <±0.001% of full scale, min ±1um | 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable | IP67 | -40℃ ~ +85℃ | 304L stainless steel | GB/T2423.5 100g(6ms) | |
|
| MT Analog Seris | 50~2500 mm | CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | 8~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MI CANopen Seris | 50~2500 mm | CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | 8~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MI Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA CANopen Seris | 50~2500 mm | CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | / | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MH CANopen Seris | 50~2500 mm | CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| MH Analog Seris | 50~2500 mm | / | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| ES Modbus Seris | 25–3500 mm | Modbus RTU protocol | 9~ 30Vdc | Minimum ± 50um or <0.01%.F.S | Minimum ± 10um or <0.001%.F.S | Default 20ms | IP67 | -40°C ~ +75°C | 304L/316L | GB/T2423.5 50g(6ms) | |
|
| ES Analog Seris | 25–5500 mm | 4-20mA or 0-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | Same resolution | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | 304L / 316L stainless steel | GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak | |
|
| HP Analog Seris | 25–2500 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | <0.02% of full scale | <0.005% of full scale | lms ( range < lm ) | IP65 | -40°C ~ +85°C | PFA | GB/T2423.5 50g(6ms) | |
|
| ESC Analog Seris | 50–3000 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | 士0.1mm(25~400mm) | <±0.l mm | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | PFA | GB/T2423.5 50g(6ms) | |
|
| EP Analog Seris | 25-5500 mm | 0-20mA or 4-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | < 0.03% of full scale | < 0.005% of full scale | IP65 | -40°C ~ +85°C | Aluminum formed shell | GB/T2423.5 50g(6ms) | |
|
| ED Analog Seris | 50–3000 mm | / | 0–10V/10–0V, signal/ dual | <±0.05% of full scale | <± 0.01% of full scale | 2MS | IP65 | -40°C ~ +75°C | Aluminum Alloy | GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10 | |
|
|
||||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
| EJ SSI Output Seris | 25-5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum±50μm | < ± 0.001% of full scale, minimum ± 5μm | / | Cable outlet mode IP68; socket way IP67 | -40℃ ~ +85℃ | 304L | GB/T2423.5 100g(6ms) | |
|
| EJ Modbus Seris | 25-5500 mm | Modbus RTU protocol | 0-10Vdc or 0-5Vdc | Minimum ±50um(or <±0.01%F.S.) | Minimum ±10um(or <±0.001%F.S.) | 10ms | IP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g ( 6ms ) | |
|
| EJ Analog Seris | 25-5500 mm | 4-20mA or 0-20mA | 0-10Vdc or 0-5Vdc | <+0.02% of full scale | <± 0.001% offull scale | lms | Outgoing line lP68, Socket LP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g(6ms), 35MPA/70MPA(peak) | |
