MHA Analog Magnetostrictive Displacement Sensor

  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor
  • MHA Analog Magnetostrictive Displacement Sensor

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Features

Non-contact, absolute linear measurement ensures long service life and maintenance-free operation.

Specially engineered for construction machinery and hydraulic cylinders, with high vibration (25g) and shock (100g) resistance.

IP67 protection and 304L stainless steel construction allow reliable performance in harsh and high-pressure environments (up to 45 MPa).

Multiple analog output options (current and voltage) and flexible assembly with various cable and connector configurations.

Wide 50–2500 mm stroke range, fast 2 ms update time, and high accuracy (±0.1 mm) deliver precise, real-time position feedback.

Technical Characteristics

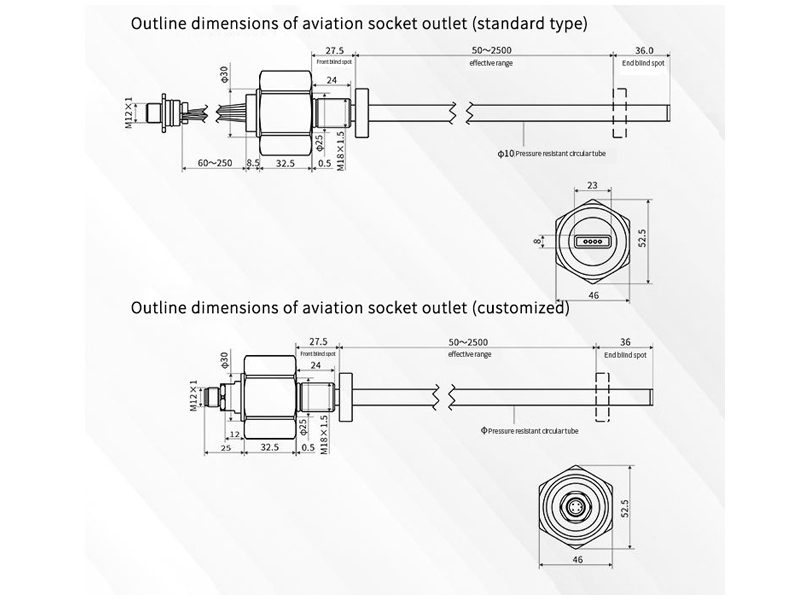

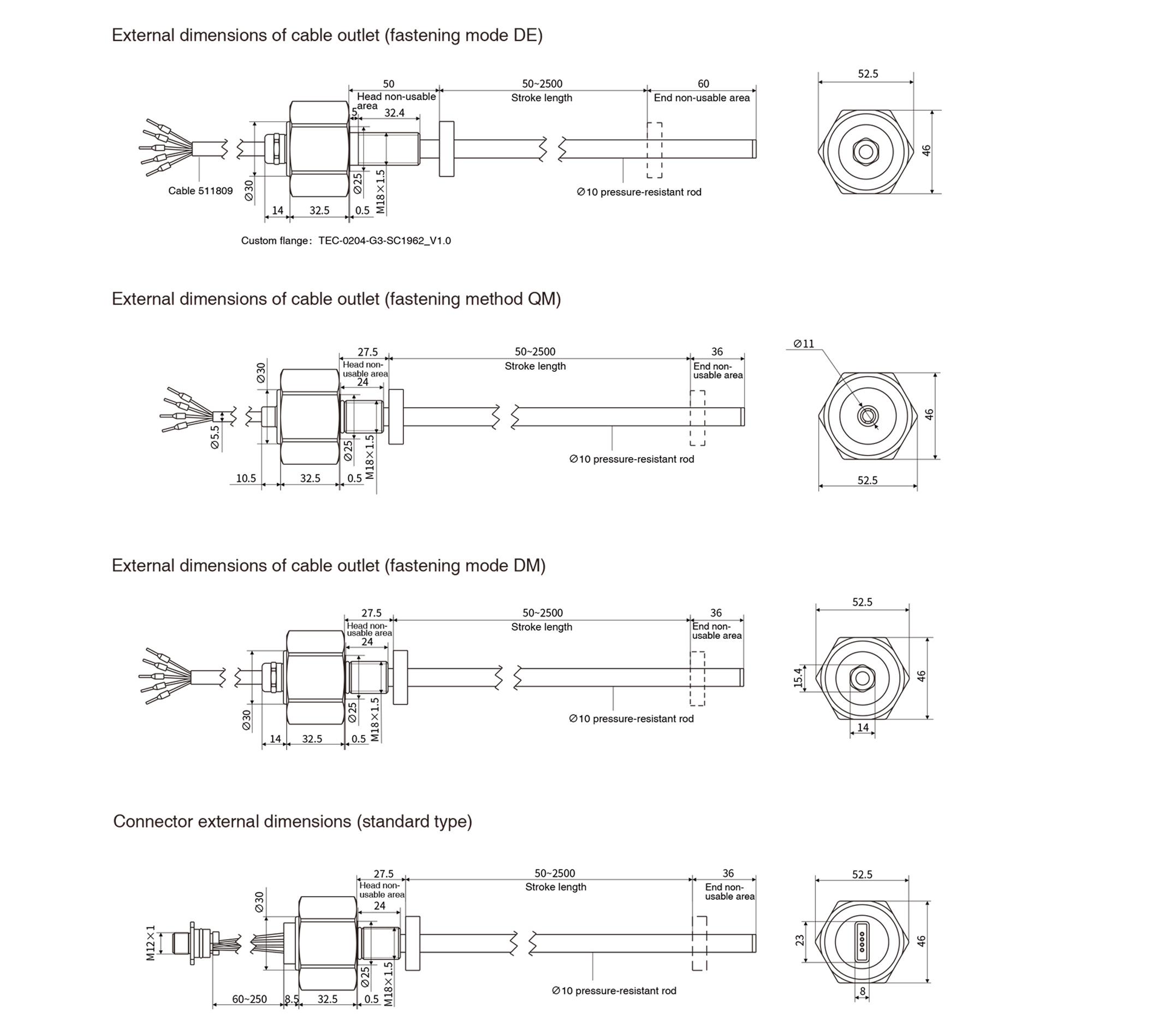

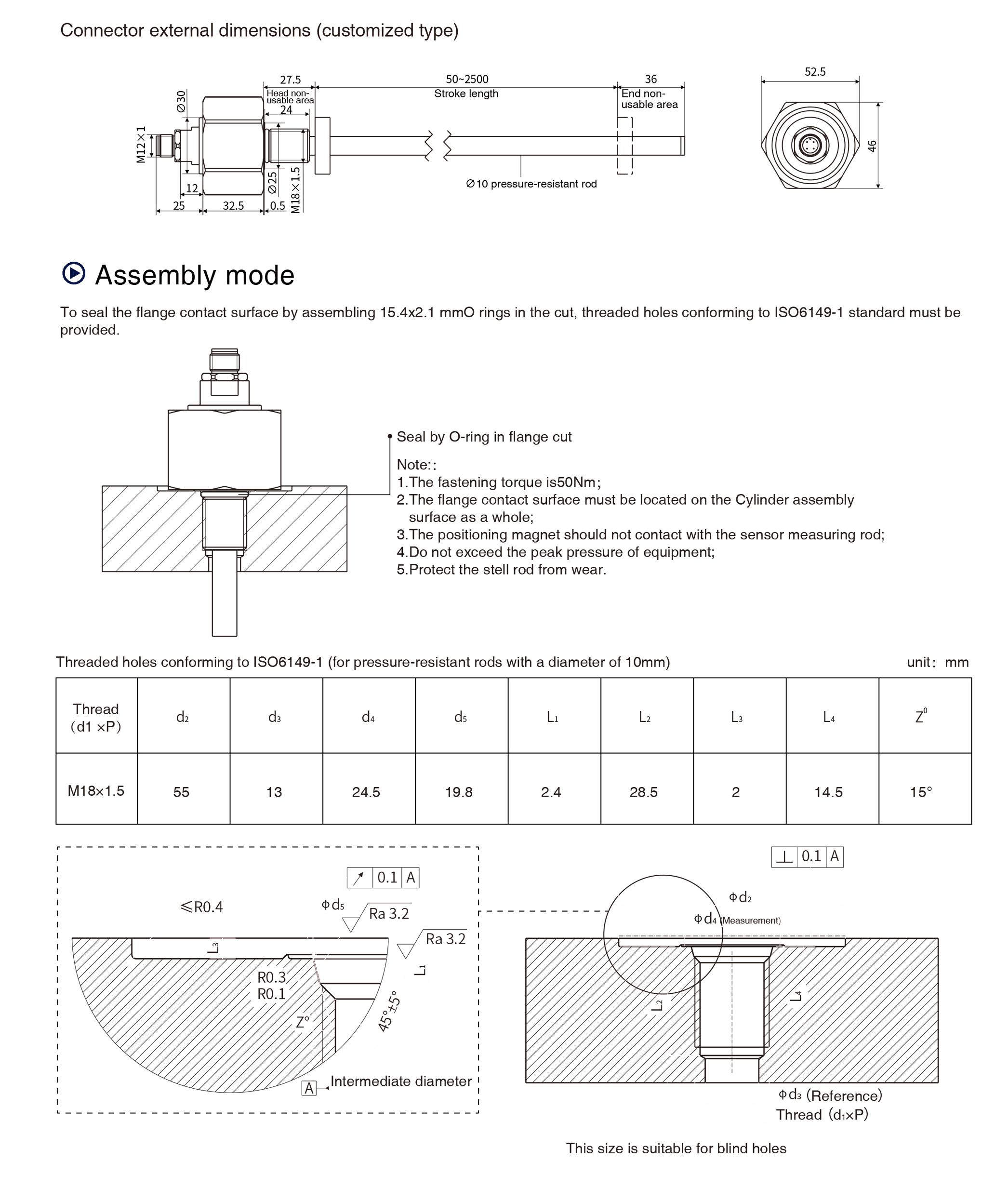

Structural Shape


MHA Analog displacement sensor Structural Shape


MHA Analog displacement sensor Structural Shape

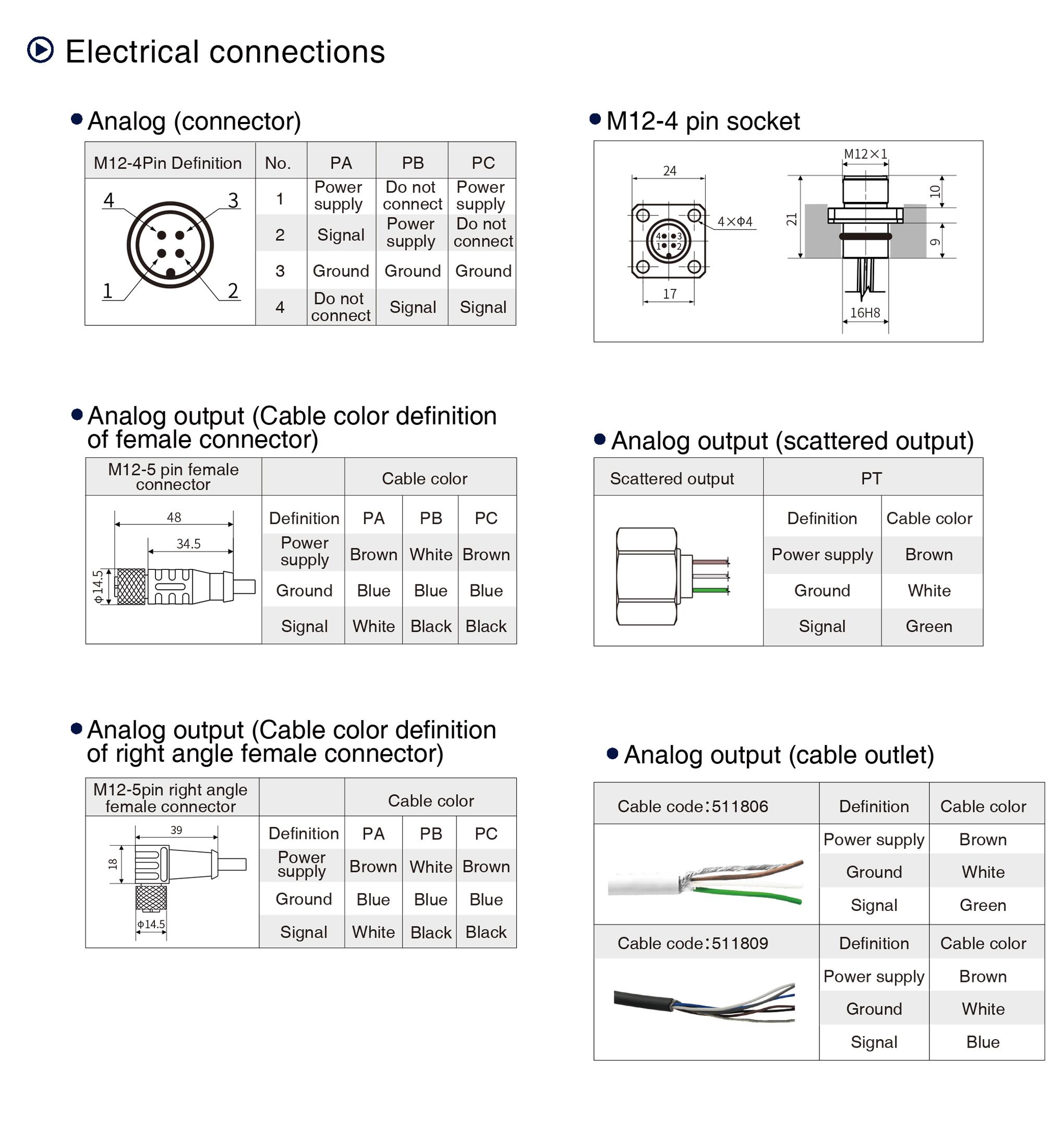

Electrical connections


MHA magnetostrictive displacement sensor Electrical connections

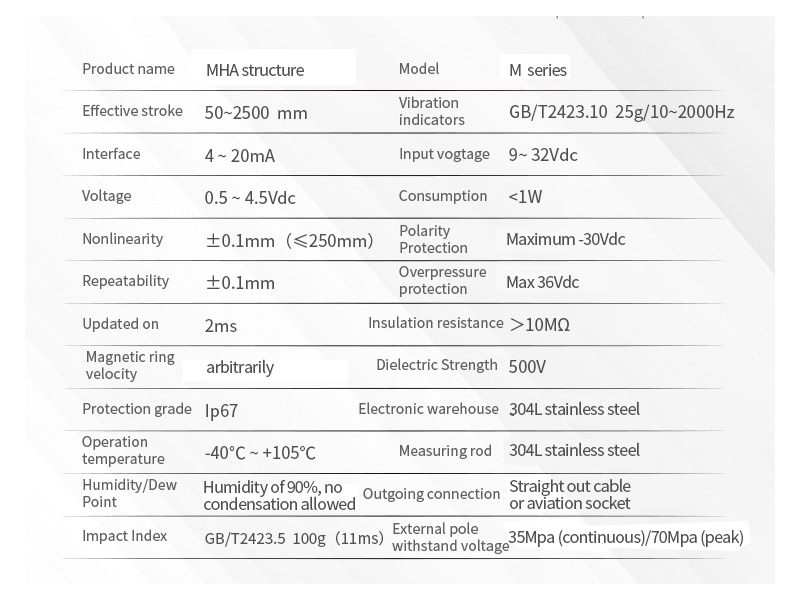

MHA Analog Magnetostrictive Displacement Sensor -Product Parameters



  • Input

Measuring dataPosition (Vernier magnet)
Stroke length50~2500 mm

  • Output

Current4 ~ 20mA（load resistance≤250Ω）
Voltage0.5 ~ 4.5Vdc or 0.25~4.75Vdc（load resistance≥10KΩ）
Resolution


±0.1mm（range＜500mm）

range÷4096（range＞500mm）


Nonlinearity±0.1mm（≤250mm）or 0.04%F.S（＞250mm）
Repetition accuracy±0.1mm
Update time

2ms

  • Operating conditions

Magnet velocityArbitrary
Protection classIP67
Operating temperature-40℃ ~ +105℃
Humidity/dew pointHumidity 90%, no condensation
Temperature drift coefficient<30ppm/℃

Shock indexGB/T2423.5 100g（11ms）
Vibration indexGB/T2423.10 25g/10~2000Hz
EMC test

GB/T17626.2 Electrostatic Discharge Anti-interference, Grade 3, Class A

GB/T17626.3 Radio Frequency Electromagnetic Field Radiation Anti-interference, Grade 3, Class A

GB/T17626.4 Electric Fast Transient Pulse Group Anti-interference, Grade 3, Class B

GB/T17626.5 Surge (Impact) Anti-interference, Grade 3, Class B

GB/T17626.6 Radio Frequency Field Induced Conducted Disturbance Anti-interference, Grade 3, Class A

GB/T17626.8 Power Frequency Magnetic Field Anti-interference, Grade 4, Class A





  • Electrical Connections


  • Construction and Materials

Input voltage

9~ 32Vdc

Electronic compartment

304Lstainless steel
Power consumption<1WMeasuring rod304L stainless steel
Polarity protectionMaximum -30Vdc

Operating

pressure grade

Rated pressure Pn: 35MPa maximum pressure

Pmax: 45MPa for stell rod with diameter of 10mm

Overvoltage protectionMaximum 36VdcAssemblyAny direction
Insulation resistance＞10MΩPosition magnetVarious ring magnets
Insulation strength500V

Outgoing modeCable outlet or connector




Ordering Information

Ordering Information

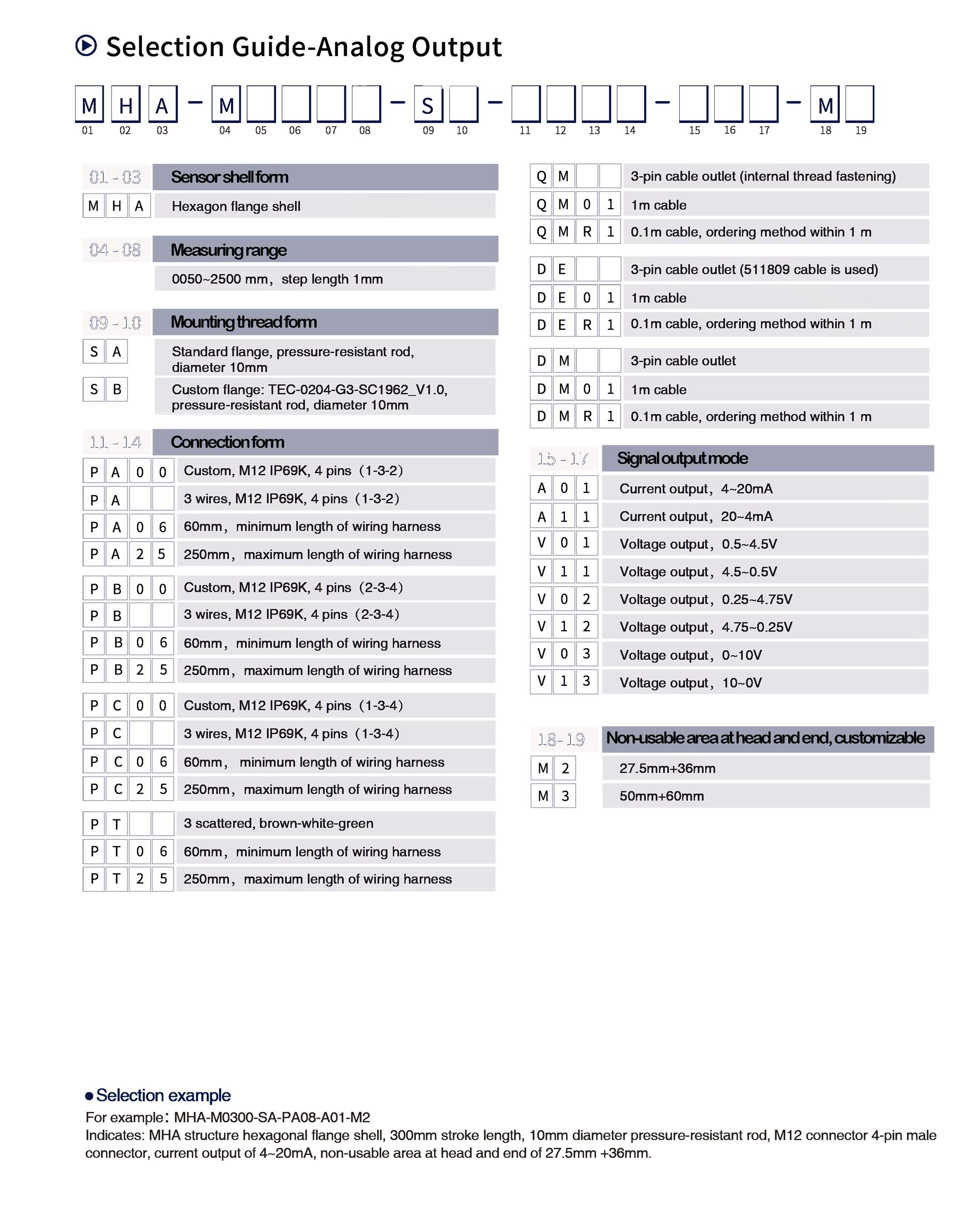

Selection Guide-Analog Output







Packaging Information


ItemDescriptionReel/Tray

Pcs/Roll

G.WN.W

QTY/Carton

Package Size
MHA Analog Seris

MHA Analog Series Magnetostrictive Displacement Sensor


50~2500 mm stroke

±0.1mm Resolution

-40℃ ~ +105℃ Operating temperature

IP67







-kgs-kgs-pcs-mm



Discover all the technical specifications by downloading the datasheet today.




All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
