A premium thinned-down 48mm hollow shaft optical rotary encoder with integrated 6-channel feedback (A/B/Z and U/V/W commutation tracks). Engineered for direct 1:1 Tamagawa OIH48 compatibility, saving critical axial depth (32.8mm thickness) while delivering excellent electromagnetic immunity.
Well Protected: Advanced rugged sealing protects components from ambient dust, condensation, and dynamic temperature variations.
High Frequency Response: Fast optical sensing loops prevent any positioning lag at maximum frequencies.
High Reliability Components: Rigorous manufacturing design checks ensure zero performance decay during long industrial lifetimes in intense gantry or CNC fields.
Resolution range: Customizable pulse counts from 1000 up to 5000 CPR limit (Standard: 1024 CPR).
Differential outputs: Complete RS-422 standard Line Driver signals (AM26LS31 chip technology).
Count Frequency: High frequency response threshold up to 500 kHz limit tracking.
Working Temperature: Fully rated and qualified from -20 °C to +105 °C operating limits.
Voltage Input: Single 5V DC Supply (±5% tolerance).

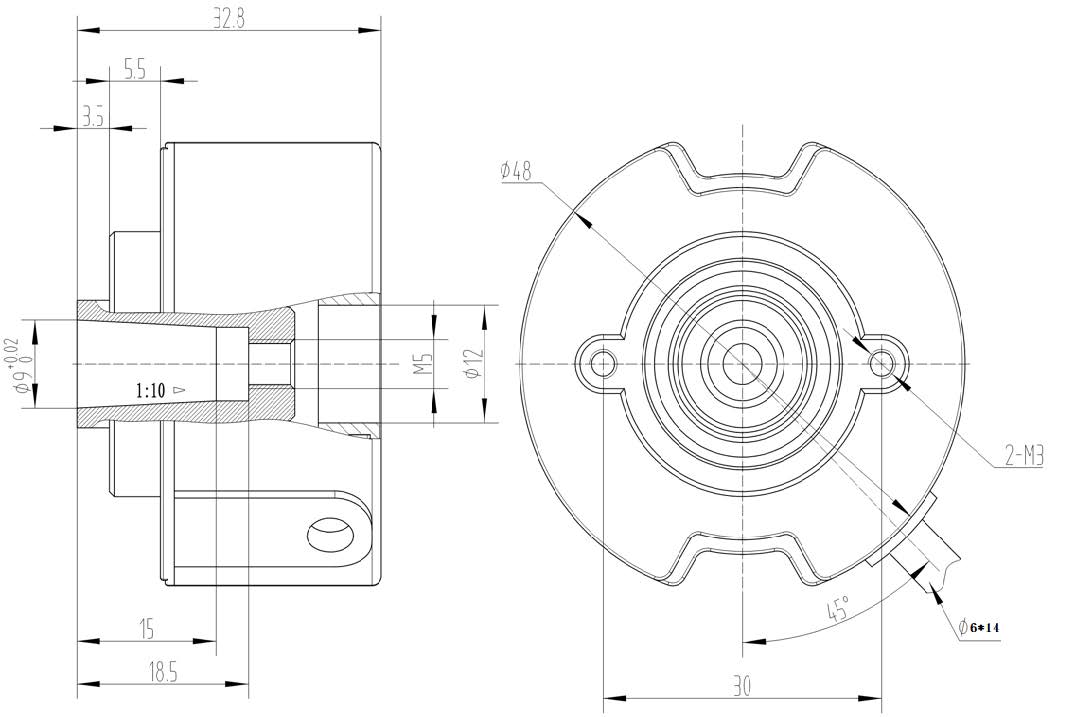

Below is the dynamic high-fidelity dimensional drawing representing the physical boundaries of the EPOCH UZ4809 Compact Hollow Shaft Encoder series. Installation checks are highly recommended on the motor end axis to confirm direct replacement alignment:
[BLUEPRINT] [Product CAD Blueprint Omitted for Safe Compatibility]
Shaft Sleeve precision: Bore sizes fit exactly to dia. 9mm with high precision ground H7 tolerances.
Leaf Spring mounting clearance: Highly compatible with standard 2-point d40 mounting patterns (Type C/CL spring clips) and 4-point d55 patterns (Type D spring clips).
Allowable Radial Runout: Limit ≤ 0.05 mm | Allowable Axial Overhang Play: Limit ≤ 0.2 mm (strict boundary to secure dynamic clearance between rotating discs).
Premium Pre-Lubrication: Built-in deep groove ball bearings are sealed at factory with professional high-temp, low-volatility grease.
| Specification Attribute | Guaranteed Technical Standards (TS5212N/OIH48 Sourcing Alignment) |
|---|---|
| Model Family Code | EPOCH UZ4809 Series |
| Sleeve Hub Bore Tolerances | dia. 9mm (Grounded H7 precise clearance standards) |
| Line Resolutions (Custom programmable) | 1024 CPR (Accepts customized pulses: 1000, 1024, 2000, 2048, 2500, up to 5000 CPR limits) |
| Bias Supply DC Input | Single +5V Input DC ± 5% Voltage standard (Specialized L5 Low consumption index) |
| Output Waveform Signaling | RS-422 Differential Complementary Channels (Incremental A, B, Z + Commutation U, V, W with inverse complementary signals) |
| Integrated Output Driver Chipset | Advanced AM26LS31 IC (industry-standard line driver with superior EMI protection) |
| High-Sensing Frequency Threshold | Up to 500 kHz Limit response rate |
| Operating Envelope Outside Diameter | dia. 48.0 mm Chassis (Saves vital clearance over generic 48mm units) |
| Ambient Working Boundaries | -20 °C to +105 °C operating temperature range |
Review our standard mechanical phase timing waveform and alignment equations mapped below. These represent the stable digital signal outputs required for seamless servo driver control feedback:
[WAVEFORMS] [Waveform Phase Diagram Omitted for Compatibility]
Default Timing Phase Sequence: Standard digital quadrature wave outputs. Phase A leads Phase B during CW rotation of the sleeve (viewed from sleeve attachment end). Active duty cycle ratio limits: 50% ± 10%. Signal Phase Z zero-index benchmark is aligned at active center (1T signal width period). Rotational Direction Phase: Signal Phase A leads Phase B when rotating counter-clockwise (CCW) as viewed from the encoder shaft sleeve mounting end.
Quadrature Cycle Width Tolerances: Square wave timing pulse widths X1, X2 = 0.25T ± 0.1T, where cycle period T = 360 degrees ÷ N (with N as the target line pulse count).
Index Pulse Width: High-precision Reference Phase Z has a standard width of 1T ± 0.5T, perfectly aligned and centered over active state transitions.
We supply premium elastomeric plate spring brackets to ensure zero mechanical backlash and adapt to diverse motor enclosure boundaries. Choose the mounting bracket variant matching your specific sizing clearances:
Mechanical Dimension Drawing of Leaf Spring MP4409-002A-40 (Type C – Mounting Hole d40)
Mechanical Dimension Drawing of Leaf Spring MP4409-001A-55 (Type D – Mounting Hole d55)
Mechanical Dimension Drawing of Leaf Spring MP4409-003A-40 (Type CL–Mounting Hole d40)
| Accessory Model Reference | Mounting Hole Pitch | Primary Application / Clearance Limits |
|---|---|---|
| MP4409-001A-55 | Type D — Pitch d55 | Excellent choice for spacing margins on larger servo feedback caps. Matches large standard footprints. |
| MP4409-002A-40 | Type C — Pitch d40 | Best mechanical alignment compliance for tight, compact diameter 44mm motor brackets. |
| MP4409-003A-40 | Type CL — Pitch d40 | Low-overhang custom thin spring clip designed for extreme spatial limits in micro motors. |
* Mounting Note: Handle leaf springs with care during installation. Package components inside protective anti-static wraps when not mounted on motor shafts.
Use the specialized 11-step decoding matrix from the official catalog below to specify custom model parts matching your electrical wiring and shaft tolerances:
| Code column | Options / Values | Details & Specifications Breakdown |
|---|---|---|
| 1. Serial Name | U | Incremental series encoder classification (Standard Incremental Encoder Type) |
| 2. Product Form | Z / ZL | Z: Standard thick profile including integrated high-temp bearings ZL: Compressed thin/low profile type containing compact bearing assemblies |
| 3. Outer Diameter | 48, 44, 35 | Outer housing dynamic profile limit (48mm / 44mm / 35mm options) |
| 4. Sleeve Hole Dia | 09, 08, 06 | Sleeve bore dimensions code (09: 9mm, 08: 8mm space, 06: 6mm space based on specifications) |
| 5. Sensing Disk Type | Mylar, Glass | Mylar: High durability elastic plastic; Glass: Highly rigid quartz substrate for high temperature/high line count stability |
| 6. Circuit State | M / S | M: Conventional layout (Conventional Circuit Line) S: Omitting line layout (Bus Integrated High Efficiency Circuit) |
| 7. Resolution Pulse | 1000 - 5000 | Standard configurations: 1000, 1024, 2000, 2048, 2500, 5000 pulses per revolution |
| 8. Commutation Poles | P2, P3, P4, P5 | Motor pole matching (P2: 2 poles / P3: 3 poles / P4: 4 poles / P5: 5 pole pairs) |
| 9. Leaf Spring Bracket | C, D, CL | C: Mounting hole pitch d40 (Type C Pitch) D: Mounting hole pitch d55 (Type D Pitch) CL: Low overhang compact customization design (Type CL Pitch) |
| 10. Supply Voltage | L5 | Input voltage rating (+5V standard operating limits, L5 low draw) |
| 11. Cable Output Sizing | G / G0.15m | G: Flat output cable; G0.15m: Standard factory 0.15-meter length flat shielded alignment cable |
Our encoders support two standard wiring terminal layout protocols. Standardize your wire schematics based on the color matrices below:
| Terminal Type | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Signal Line | A | B | Z | -A (A-Bar) | -B (B-Bar) | -Z (Z-Bar) | U |
| Cable Color | Green | White | Yellow | Grn/Blk | Wht/Blk | Yel/Blk | Brown |
| Signal Line | V | W | -U (U-Bar) | -V (V-Bar) | -W (W-Bar) | Vcc | GND |
| Cable Color | Gray | Orange | Brn/Blk | Gry/Blk | Org/Blk | Red | Black |
| Terminal Type | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Signal Line | A | B | Z | -A (A-Bar) | -B (B-Bar) | -Z (Z-Bar) | Vcc | GND |
| Cable Color | Blue | Green | Yellow | Blu/Blk | Grn/Blk | Yel/Blk | Red | Black |
Compare primary mechanical tolerances and electrical attributes directly below to verify seamless interchange, drop-in equivalent fit:
| Technical Criterion | EPOCH UZ4809 Compact Servo Series | Tamagawa OIH48 Legacy standard | Replacement Compatibility Fit |
|---|---|---|---|
| Chassis Outside Diameter | dia. 48.0 mm Casing Size | dia. 48.0 mm | Matches standard OIH48 outer bracket dimensions (Ø 48mm) for direct 1:1 mounting. |
| Axial Envelope Depth | 32.8 mm Thickness | 40 mm | Saves 7.2mm axial depth (32.8mm vs 40mm), optimizing ventilation envelope space. |
| Maximum Tracking Frequency | Up to 500 kHz Limit response rate | 300 kHz | Faster 500 kHz electrical bandwidth limits for high-speed servo drives. |
| Wiring Signals Integration | Fully Integrated Complementary Channels | Common 6-Channel Standard | Seamless electrical connector integration with superior RS-422 differential noise immunity. |
All original manufacturer trademarks, corporate brands, trade names, and proprietary product design codes (such as "TAMAGAWA", "OIH48", "TS5212", and "TS5212N") referenced throughout this cross-reference matrix, technical datasheet, and comparison tables are the exclusive properties of their respective trademark registration holders. Their inclusion in these materials is strictly for dimensional fit, mechanical mounting comparison, and equivalent electrical interoperability reference purposes.
EPOCH is an entirely independent, premium industrial feedback sensor and rotary encoder manufacturer. EPOCH maintains absolutely zero asset affiliation, licensed partnership, authorized distribution agency, corporate representation, or mutual endorsement arrangements with any of the original brand owners named herein.
Before deploying any EPOCH alternative equivalents for equipment repair, motor rebuilding, or control retrofitting, technical supervisors and integration specialists are strongly advised to independently verify the exact housing installation depth, shaft sleeve inside bore dimension tolerances, programmed pulse-per-revolution (CPR) resolution, phased electrical wave patterns, and supply voltage ranges to guarantee safe, perfect operational compatibility in severe industrial environments.
Explore frequent questions about the EPOCH UZ4809 Compact Hollow Shaft Encoder series to understand replacement alignments:
Need specialized pulse resolutions, non-standard sleeve bore sizes (ground to H7 limits), or bulk order contract quotes? Contact our sales office directly for rapid dispatch details.
| Item | Description | QTY/Box | Boxes/Carton | G.W | N.W | QTY/Carton | Package Size |
| UZ44 | Incremental Encoder, Outer Diameter 44mm | 10pcs | 10boxes | 0.8kgs | 0.7kgs | 100pcs | 340*180*47mm |
Discover all the technical specifications by downloading the datasheet today.
| Part Number | Interface |
Dimensions
(mm) |
Resolution Ranges | Resolution Counter |
Communication Frequency |
Working Temperature |
Communication Frequency |
Operation Speeds |
Protection Structure |
Footprint 3D | Datasheet | Sample |
| RZ35A08 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 |  |
 |
|
| RZ35A09 | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06Q | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35D06S | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4408A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZH4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZL4409A | RS485 | Φ44mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ4809A | RS485 | Φ48mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| UZ3509 | RS485 | Φ35mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4408 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4409 | RS485 | Φ44mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| UZ4809 | RS485 | Φ48mm | 1000-5000CPR | Single/Multi-Turn | Differential output | -20°C-+105°C | 500khz | / | IP40 | |
|
|
| RS972 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RS970 | / | / | / | / | / | -40°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RK Series | / | / | / | / | / | -20°C to +85°C | / | / | / | |
|
|
| RF28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RT28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RF20 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RR28 | / | / | / | Single/Multi-Turn | / | -40 °C ~+85 °C | / | / | / | |
|
|
| RS5 | / | / | / | Single/Multi-Turn | / | / | / | / | / | |
|
|
| RSG35 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RSU3506 | RS485 | / | 17-24 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| MS Series | / | / | 17 Bits | Single/Multi-Turn | ≤16K | -10℃～105℃ | 16K | ≤6000rpm | / | |
|
|
| RZ44 & RZ48 | RS485 | / | 17-23 Bits | Single/Multi-Turn | ≤16K | -20 ℃ ~+105 ℃ | 16K | 6000rpm | IP40 | |
|
|
| RZ1337A | RS485 | / | 25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 12000rpm | IP40 | |
|
|
| RZ7810 | RS485 | / | 23~25 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RS Series | RS485 | / | 17~23 Bits | Single/Multi-Turn | ≤16K | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
|
| RZ35 Series | RS485 | Φ35mm | 17~23 Bits | Single/Multi-Turn | Differential output | -20°C-+105°C | 16K | 6000rpm | IP40 | |
|
