Features

Wide 50–3000 mm stroke range accommodates diverse industrial measurement needs.

High protection grade (IP67) and robust PFA construction ensure reliable operation in harsh environments.

Fast 1 ms update time (four-wire system) delivers real-time, precise feedback.

Excellent precision with ±0.1 mm nonlinearity and repeatability for accurate position sensing.

Versatile analog output options (4–20 mA, 0–10 V, 0–5 V) and aviation socket (M12) for easy integration.

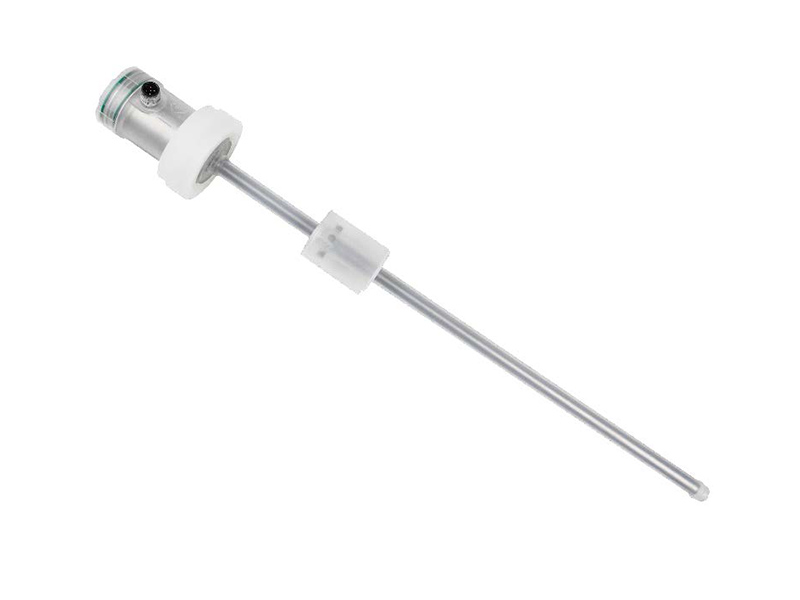

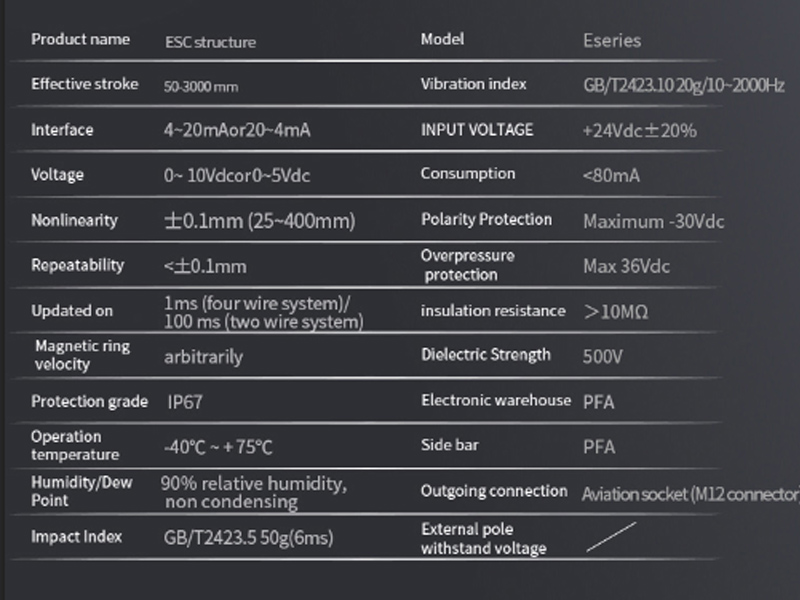

Technical Characteristics

Product Name	ESC Analog Output Displacement Sensor	Model	ESC Seris
Measuring Range	50–3000 mm	Vibration Index	GB/T2423.10 20g/10~2000Hz
Interface	4-20mA or 20-4mA	Input Voltage	+24Vdc±20%
Voltage	0~10Vdc or 0~5Vdc	Consumption	<80mA
Nonlinearity	士0.1mm(25~400mm)	Polarity Protection	Maximum -30Vdc
Repeatability	<±0.l mm	Overpressure Protection	Max 36Vdc
Updated on	lms (four wire system)/ 100 ms (two wire system)	Insulation Resistance	>10MΩ
Magnetic Ring Velocity	Arbitrarily	Dielectric Strength	500V
Protection Grade	IP67	Electronic Warehouse	PFA
Operation Temperature	-40°C ~ +75°C	Side Bar	PFA
Humidity/Dew Point	90% relative humidity, non condensing	Outgoing Connection	Aviation socket ( M12 connector )
Impact Index	GB/T2423.5 50g(6ms)	External Pole With Stand Voltage	/

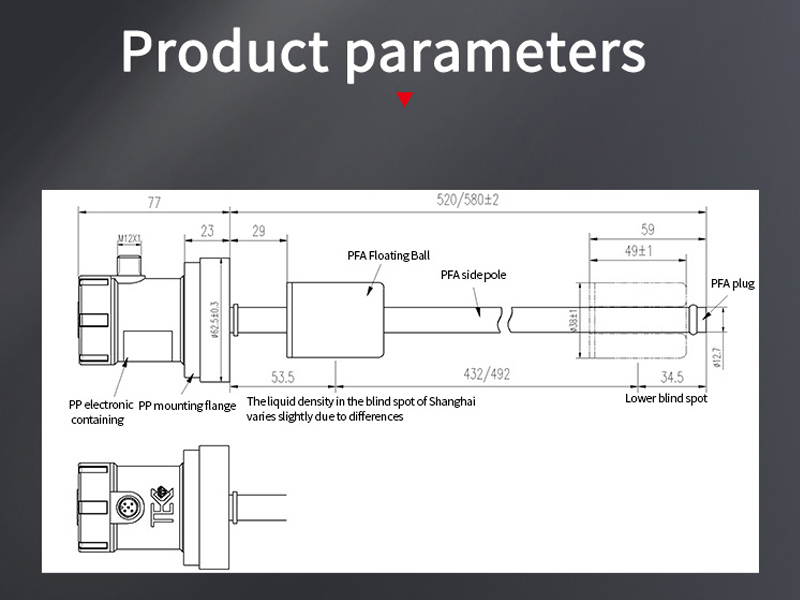

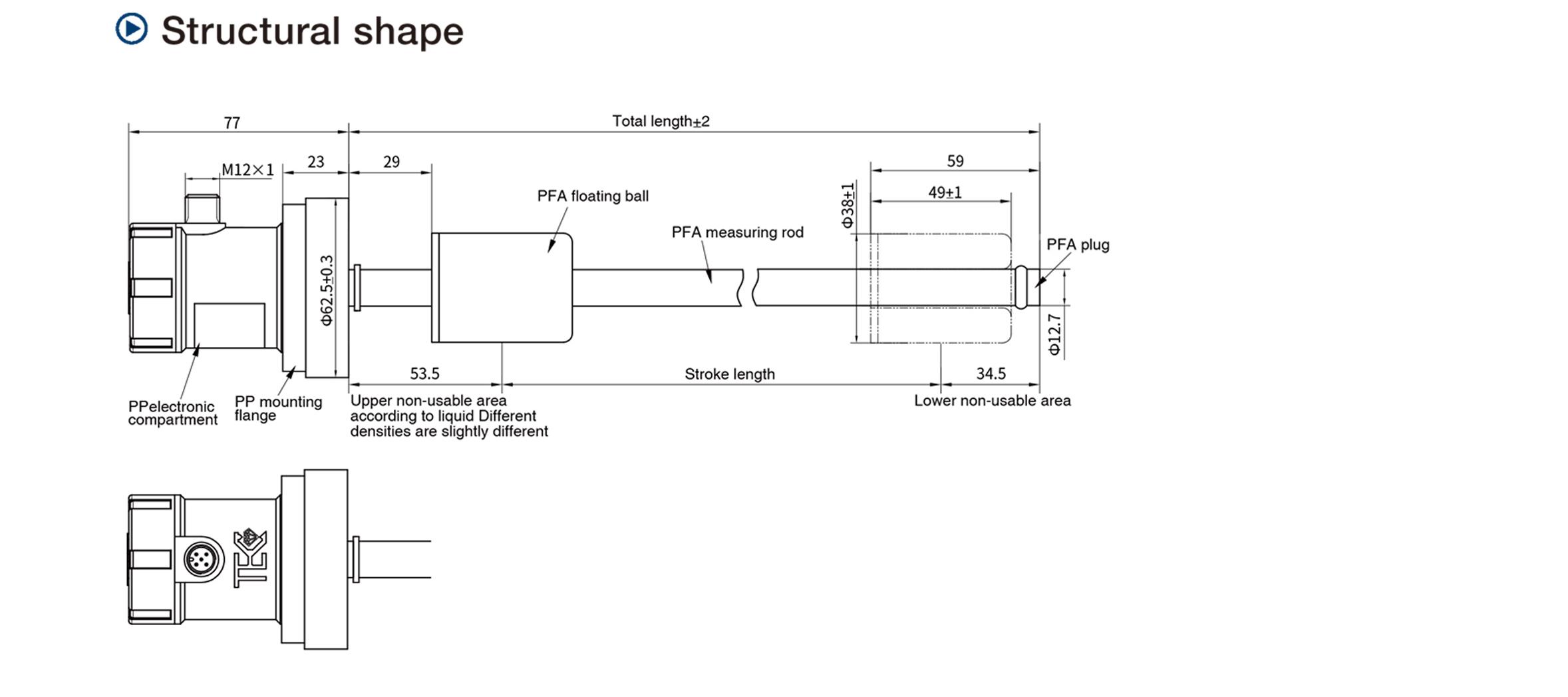

Structural Shape

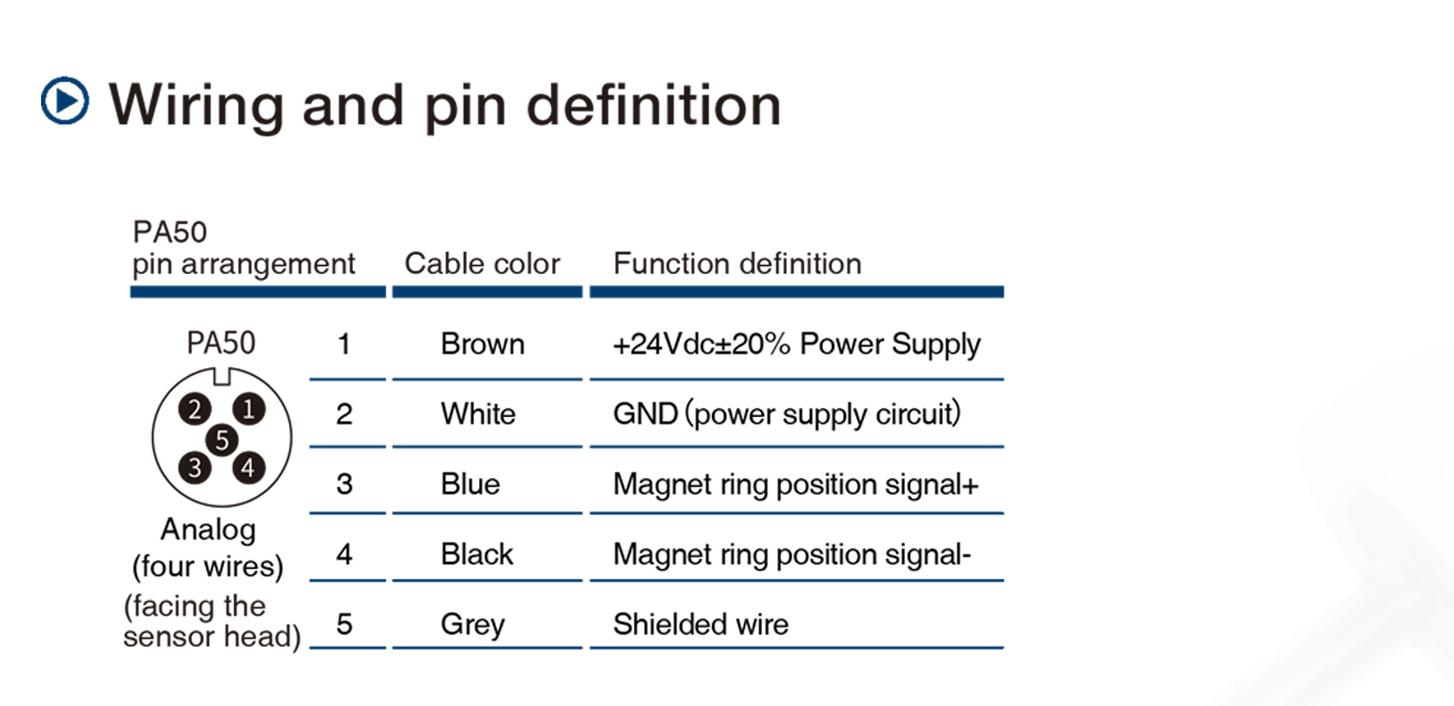

Wiring and Pin Definition

ESC Analog Output Displacement Sensor Wiring and pin definition

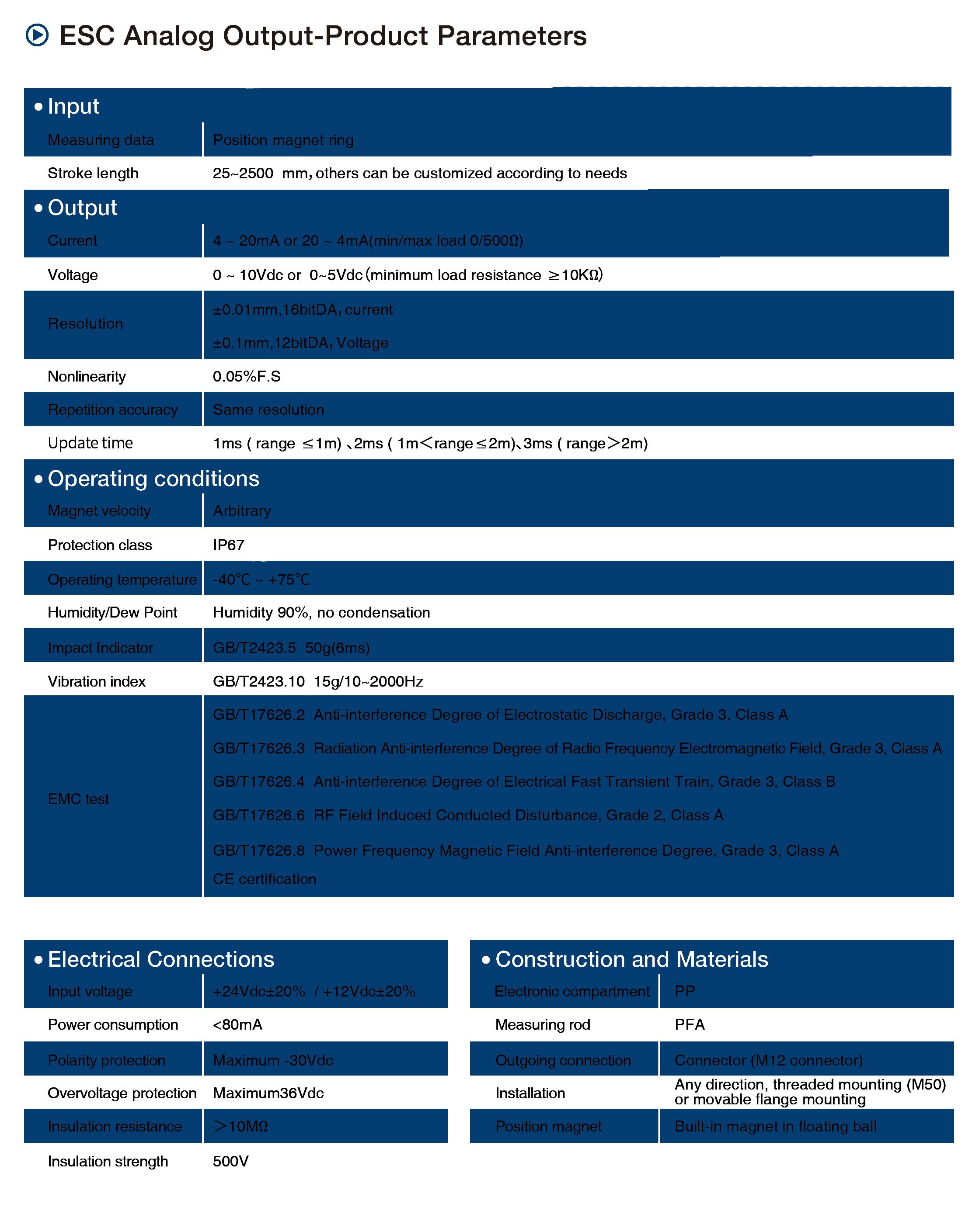

ESC Analog Output Displacement Sensor -Product Parameters

Input
Measuring data		Position magnet ring
Stroke length		25~5500 mm，others can be customized according to needs
Output
Current		4 ~ 20mA or 20 ~ 4mA(min/max load 0/500Ω)
Voltage		0 ~ 10Vdc or 0~5Vdc（minimum load resistance ≥10KΩ）
Resolution		±0.01mm,16bitDA，current ±0.1mm,12bitDA，Voltage
Nonlinearity		0.05%F.S
Repeatability		Same resolution
Update time		1ms ( range ≤1m) 、2ms ( 1m＜range≤2m)、3ms ( range＞2m)
Operating conditions
Magnet velocity		Arbitrary
Protection class		IP67
Operating temperature		40℃ ~ +75℃
Humidity/dew point		Humidity 90%, no condensation
Impact Indicator		GB/T2423.5 50g(6ms)
Vibration index		GB/T2423.10 15g/10~2000Hz
EMC test		GB/T17626.2 Anti-interference Degree of Electrostatic Discharge, Grade 3, Class A GB/T17626.3 Radiation Anti-interference Degree of Radio Frequency Electromagnetic Field, Grade 3, Class A GB/T17626.4 Anti-interference Degree of Electrical Fast Transient Train, Grade 3, Class B GB/T17626.6 RF Field Induced Conducted Disturbance, Grade 2, Class A GB/T17626.8 Power Frequency Magnetic Field Anti-interference Degree, Grade 3, Class A CE certification

Electrical Connections		Construction and Materials
Input voltage	+24Vdc±20% / +12Vdc±20%	Electronic compartment	PP
Power consumption	<80mA	Measuring rod	PFA
Polarity protection	Maximum -30Vdc	Outgoing connection	Connector (M12 connector)
Overvoltage protection	Maximum 36Vdc	Installation	Any direction, threaded mounting (M50) or movable flange mounting
Insulation resistance	＞10MΩ	Position magnet	Built-in magnet in floating ball
Insulation strength	500V

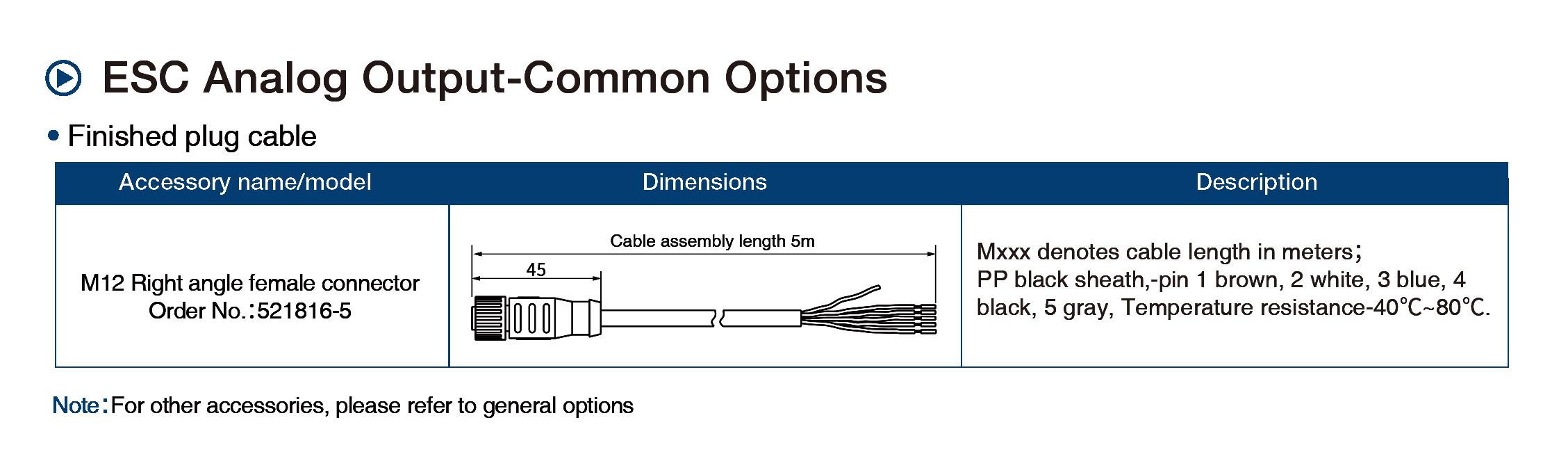

ESC Analog Output Displacement Sensor-Common Options

Ordering Information

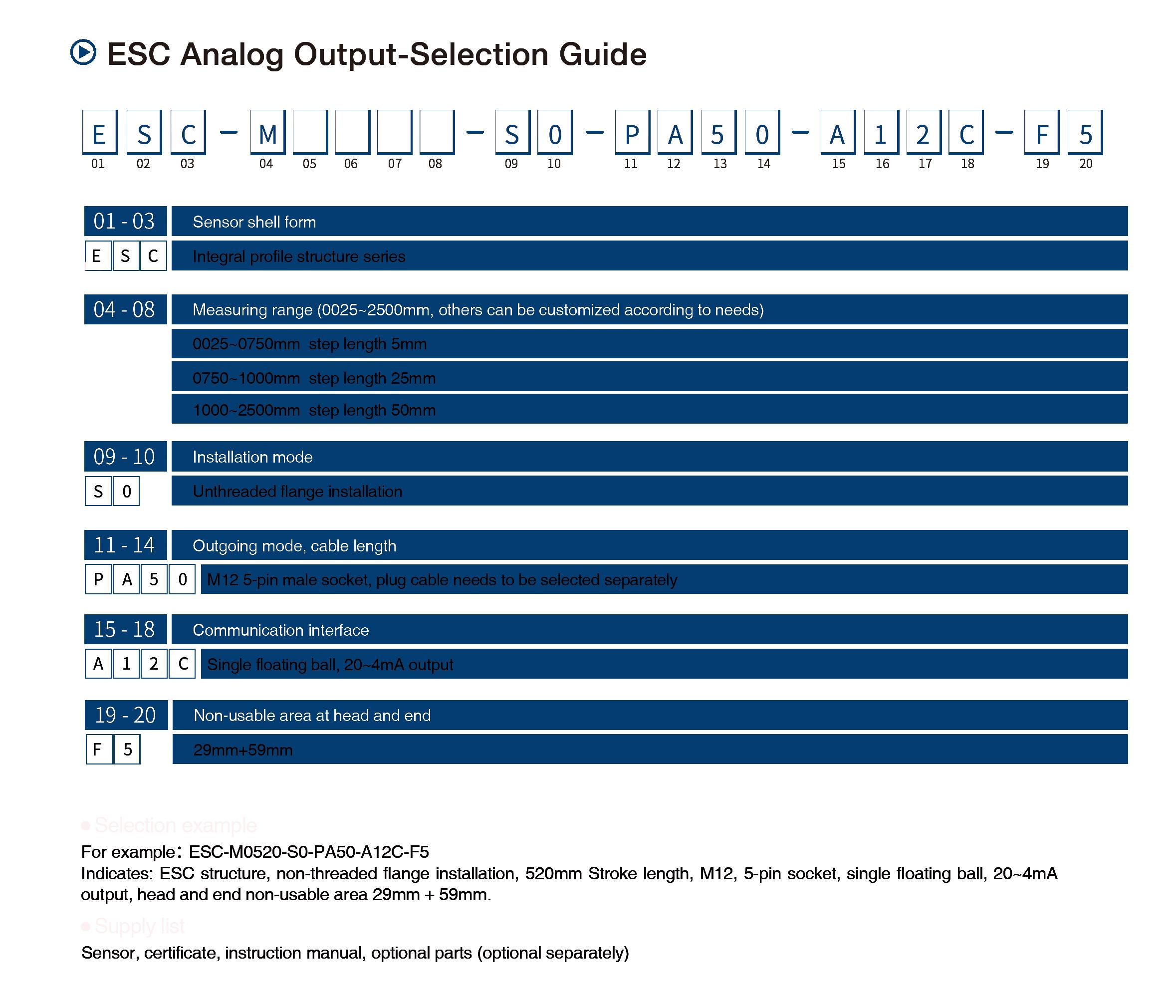

ESC Analog Output-Selection Guide

Packaging Information

Item

Description

Reel/Tray

Pcs/Roll

G.W

N.W

QTY/Carton

Package Size

ESC Analog Seris

EP Analog Magnetostrictive Displacement Sensor

50–3000 mm Measuring Range

1 ms (four-wire), 100 ms (two-wire)

Non-Contact

IP67

-kgs

-pcs

-mm

Discover all the technical specifications by downloading the datasheet today.
