EJ Seris Analog Output Displacement Sensor

  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor
  • EJ Seris Analog Output Displacement Sensor

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Features

 Rugged and fully enclosed design

Non-wear, non-contact measuring method

Low power consumption design effectively reduces system heating

Adapt to harsh environment, IP68 protection class

Absolute position output, not affected by power failure

Multiple interfaces are available: Analog, SSI, Modbus, etc

Non-contact design


· The magnetic ring and measuring rod operate without physical contact, ensuring wear-free and

noise-free measurement, reducing product loss, and significantly extending the sensor’s service life.

Modularized circuit

· The internal electronics use a modular design, which enhances reliability and simplifies

 maintenance or upgrades.

Stainless steel measuring rod

· Made from 304 stainless steel, the measuring rod offers excellent compatibility,

precision welding, pressure resistance, dust prevention,

and stain resistance, making it suitable for a wide range of industrial environments.

Strong adaptability

· The sensor is designed to function reliably in harsh conditions, including extreme temperatures,

high humidity, vibration, impact, corrosion, and dust.

Dedicated configuration software

· Engineers can use a USB converter for on-site programming and parameter

adjustment without opening the electronic compartment. Products are pre-configured

and can be easily customized as needed.

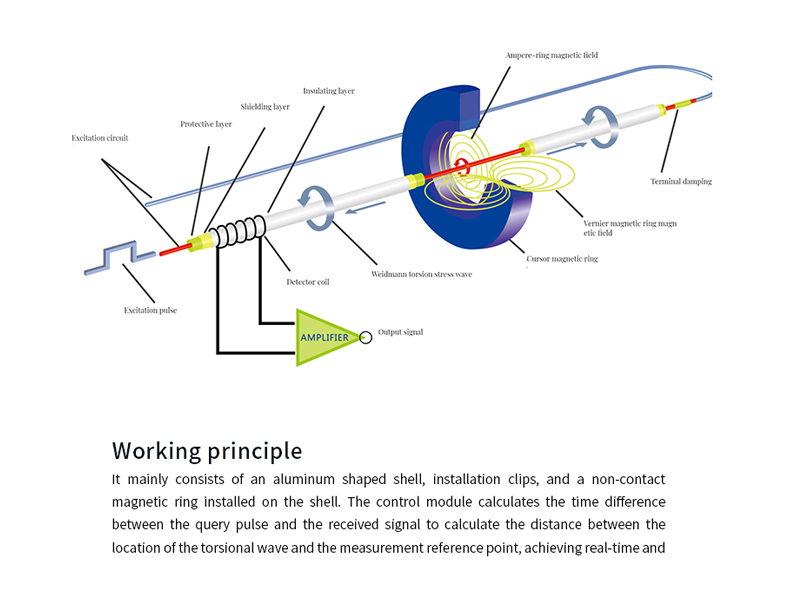

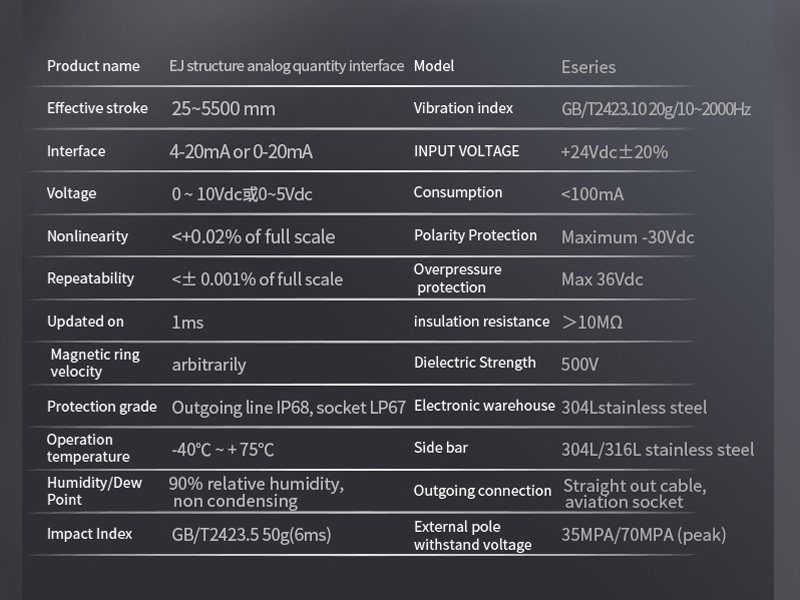

Technical Characteristics


Product Name

EJ  Analog Output Displacement Sensor

Model

EJ Seris

Effective Stroke

25~5500 mm

Vibration Index

GB/T2423.10 20g/10~2000Hz

Interface

4-20mA or 0-20mA

Input Voltage

+24Vdc±20%

Voltage

0 ~ 10Vdc or 0~5Vdc

Consumption

<100mA

Nonlinearity

<±0.02% of full scale

Polarity Protection

Maximum -30Vdc

Repeatability

<± 0.001% of full scale

Overpressure Protection

Max 36Vdc

Updated on

1ms

Insulation Resistance

>10MΩ

Magnetic Ring VelocityArbitrarily

Dielectric Strength

500V

Protection Grade

Outgoing Line IP68,

Socket LP67

Electronic Warehouse

304L stainless steel

Operation Temperature

-40°C ~ +75°C

Side Bar

304L/316L stainless steel

Humidity/Dew Point

90% relative humidity, non condensing

Outgoing Connection

Straight out cable, aviation socket

Impact Index

GB/T2423.5 50g(6ms)

External Pole With Stand Voltage

35MPA/70MPA (peak)

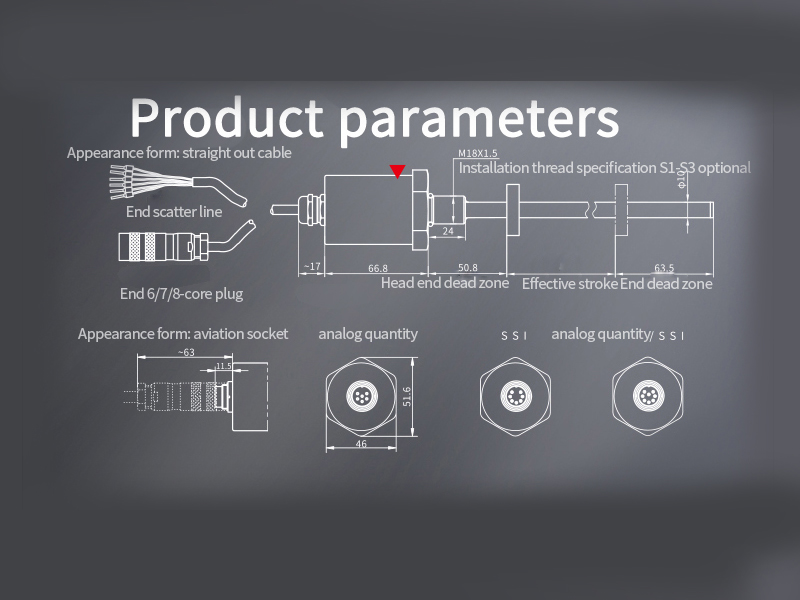

Structural Shape


EJ Analog Output Displacement Sensor Dimensions of cable outlet


EJ Analog Output Displacement Sensor Dimensions of connector outlet


 Wiring and pin definition

Wiring and pin definition


EJ Analog Output-Product  Parameters




  • Input

Measuring dataPosition magnet ring
Stroke length25~5500 mm（customized according to customer's needs）

  • Output

Current4 ~ 20mA or 0~20mA(min/max load 0/500Ω)
Voltage-5 ~ 5Vdc or -10~10Vdc（minimum load resistance ≥10KΩ）
Resolution16-bit D/A ，minimum 5 μm
Nonlinearity<±0.02% of full scale, Minimum±50 μm
Repeatability<±0.001% of full scale or the same as the resolution
Update time1ms(range≤1m)、2ms(1m<range≤2m)、3ms(2m<range≤3m)

  • Operating conditions

Magnet ring speedArbitrary
Protection classCable outlet mode IP68; socket mode IP67
Operating temperature40℃ ~ +75℃
Humidity/dew pointHumidity 90%, no condensation
Impact IndicatorGB/T2423.5 50g(6ms)
Vibration indexGB/T2423.10 15g/10~2000Hz
EMC test

GB/T17626.2 Anti-interference Degree of Electrostatic Discharge, Grade 3, Class A

GB/T17626.3 Radiation Immunity of Radio Frequency Electromagnetic Fields, Grade 3, Class A

GB/T17626.4 Electrical Fast Transient Immunity, Grade 3, Class B

GB/T17626.6 Radio Frequency Field Induced Conducted Disturbance Immunity, Grade 2, Class A

GB/T17626.8 Power Frequency Magnetic Field Immunity, Grade 3, Class A

CE certification




  • Electrical Connections


  • Construction and Materials

Input voltage+24Vdc±20% / +12Vdc±20%

Electronic compartment

304Lstainless steel
Power consumption<100mAMeasuring rod304L / 316Lstainless steel
Polarity protectionMaximum -30Vdc

Outer tube pressure

35Mpa (continuous)/70Mpa ( peak )
measuring rod diameter φ 10
Overvoltage protectionMaximum 36VdcInstallation

Any direction, mounting thread form

(line specification is optional)

Insulation resistance＞10MΩPosition magnetVarious ring magnets
Insulation strength500VOutgoing mode

Cable outlet or connector (M16 connector)






EJ Analog Output-Common Options


EJ Analog Output-Common Options



Ordering Information

Ordering Information




EJ Analog Output-Selection Guide






Packaging Information


ItemDescriptionReel/Tray

Pcs/Roll

G.WN.W

QTY/Carton

Package Size
EJ Seris

EJ Analog Output Displacement Sensor


25-5500mm Range

16-bit Resolution

Non-Contact Absolute Position

IP68








-kgs-kgs-pcs-mm



Discover all the technical specifications by downloading the datasheet today.




All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
