Customized DC-DC Converters Explore DC-DC ConvertersFully sealed IP68 waterproof design and robust stainless steel housing ensure reliable performance in the harshest environments.
Non-contact, wear-free magnetostrictive technology provides absolute linear measurement and Maintenance-free operation.
Pressure-resistant structure withstands up to 35 MPa continuous or 70 MPa peak, making it ideal for hydraulic cylinders and high-pressure tanks.
Ultra-high precision with 16-bit D/A conversion (min. 1 µm resolution) and excellent repeatability (<±1 µm), offering real-time high-accuracy feedback.
Flexible output options—including analog, SSI, CANopen, and Start/Stop protocols—enable easy integration into diverse industrial control systems.
| ||||
| Measurement data | Position magnet ring | |||
| Stroke length | 50mm~5500mm，customized according to customer's needs | |||
| 1 | ||||
|
| ||
| Interface | Analog、SSI、CANopen、Start/Stop | Magnet ring velocity | Arbitrary |
| Resolution | Analog: 16-bit D/A or 0.0015% of full scale (min. 1μm) Bital quantity:0.5 / 1 / 2 / 5 / 10 / 20 / 40 / 50 / 100 μm | Protection level | IP68 |
| Nonlinearity | < ± 0.01% of full scale, Min. ±50μm | Operating temperature | -40℃ ~ +105℃ |
| Hysteresis | ＜10μm | Humidity/dew point | Humidity100%，relative humidity |
Repetition accuracy | < ± 0.001% of full scale, Min. ± 1μm | Shock index | GB/T2423.5 100g(6ms) |
Update time | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | Vibration index | GB/T2423.10 20g/10~2000Hz |
Temperature coefficient | ＜30ppm/℃ | EMC Test | GB/T17626.2/3/4/6/8，Grade 4/3/4/3/3， Class A，CE Certification |
|
| ||
Electronic bin | 304 stainless steel, or 316L according to customer requirements | Input voltage | Normal:+24Vdc±20% Wide voltage: 9Vdc~28.8Vdc |
Measuring rod | 304 stainless steel, or 316L according to customer requirements | operating current | ＜90mA（ varying with range） |
Outer tube pressure | 35MPa (continuous )/70MPa (peak) or 350bar (continuous)/700bar (peak) | Polarity protection | Max.-30Vdc |
Position magnet | Standard magnet ring and various ring magnets | Overvoltage protection | Max.36Vdc |
Mounting thread form | M18×1.5、 M20×1.5、3/4"-16UNF-3A （customizable） | Insulation resistance | ＞10MΩ |
Installation direction | Any direction | Insulation strength | 500V |
| Cable outlet mode | Cable outlet | ||
Installation and Use Instructions

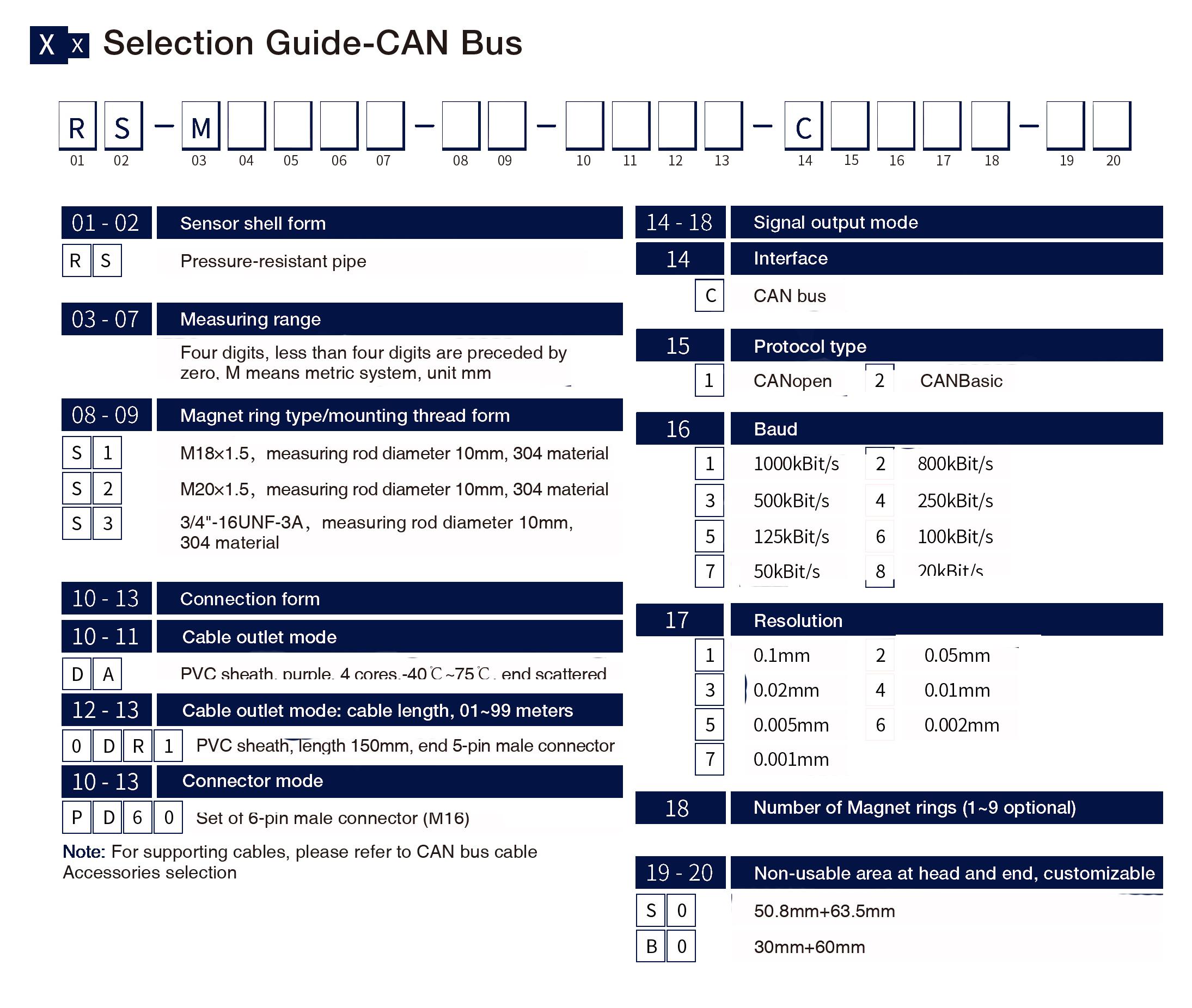

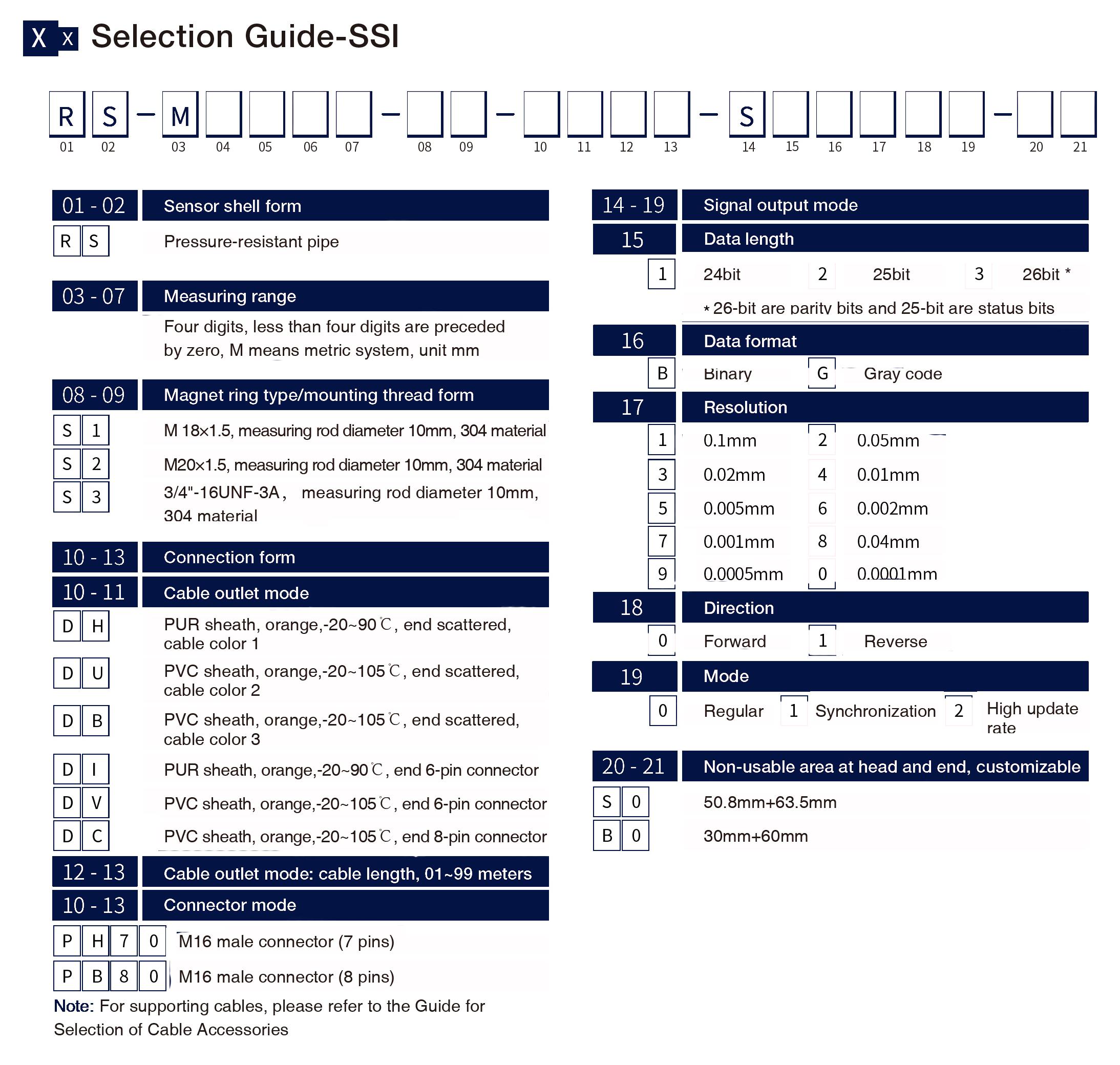

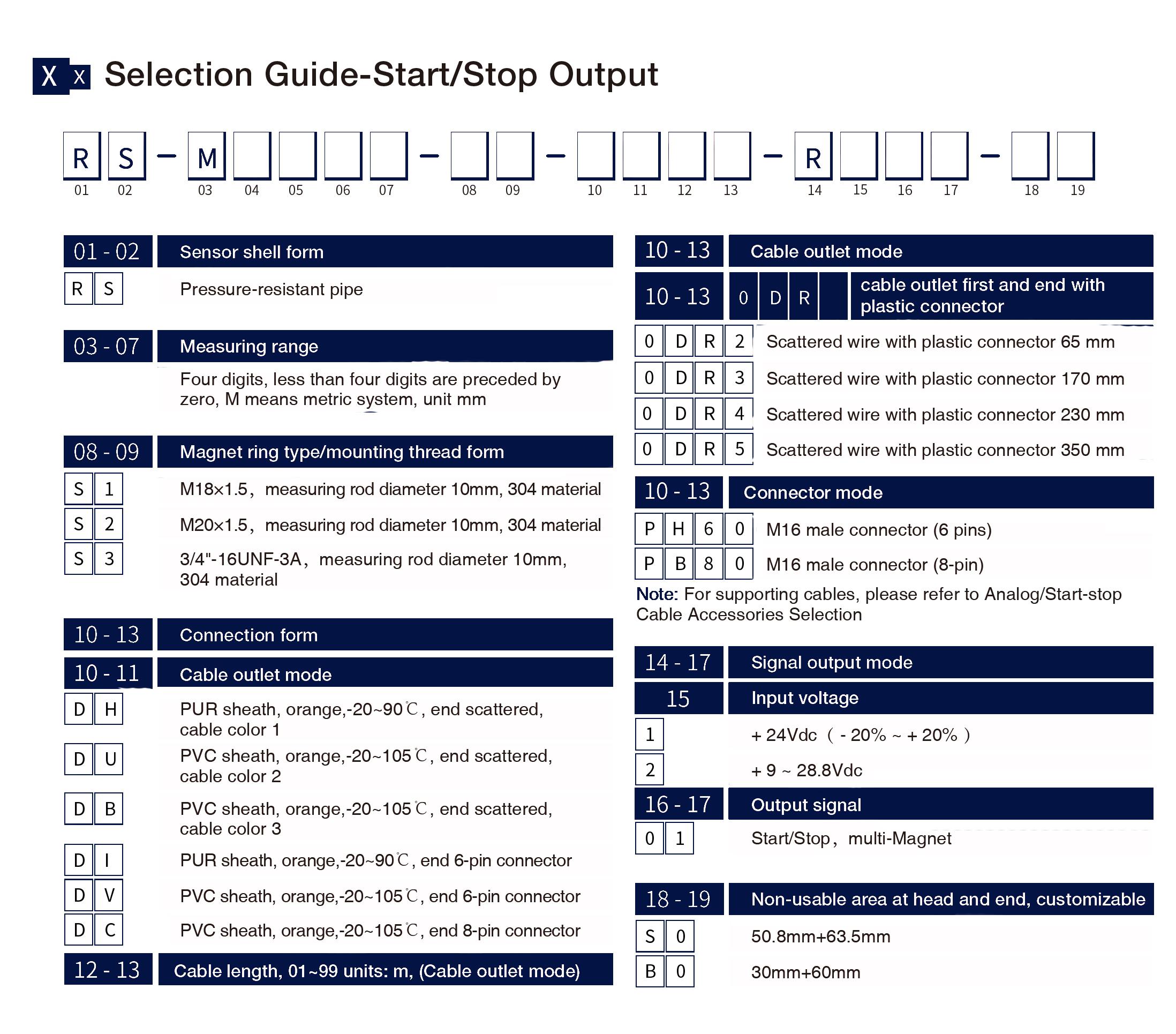

Output characteristic
RS series sensors have strong protective shell, which is durable and can provide users with continuous, reliable and real-time displacement signals in harsh environment. The sensor is completely sealed with stainless steel shell, which fully meets the protection level IP68.
Note: The electronic compartment is not detachable.

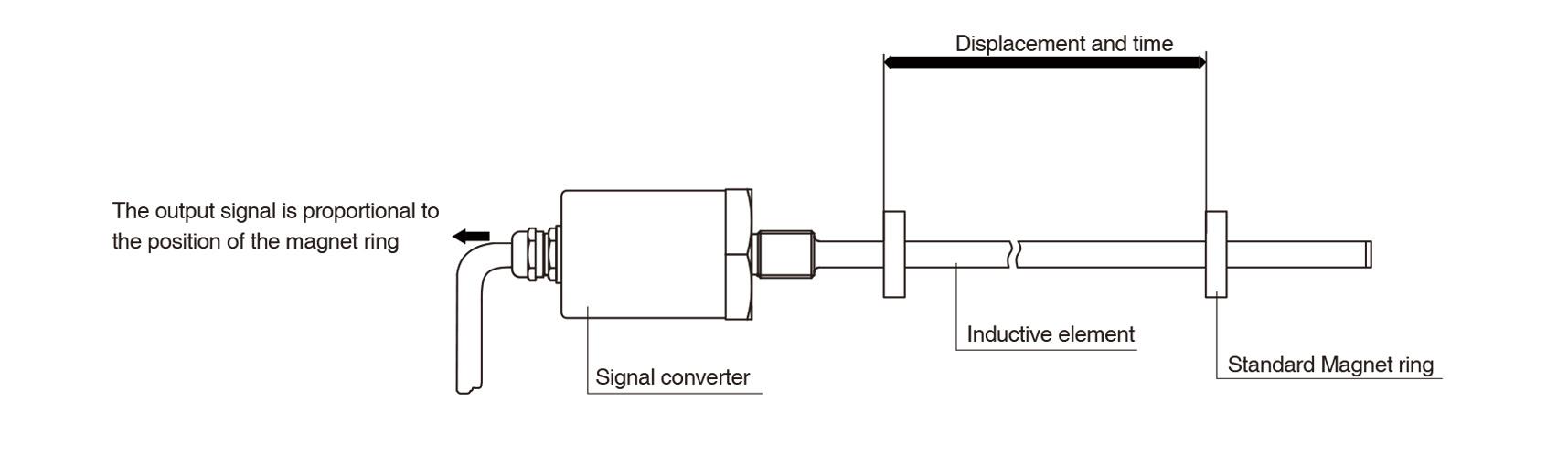

Because of the non-contact measurement technology, the sensor can be integrated in an isolated and sealed shell. The position magnet moves along the measuring rod, and the position can be measured without mechanical contact. For liquid level measurement, an alternative float can be used.
The sensor with high protection level shell is easy to install and use, so as to better meet the application requirements.
The measurement accuracy and all technical parameters depend on the output characteristics of the selected sensor, and the interface form can be selected: analog or SSI.

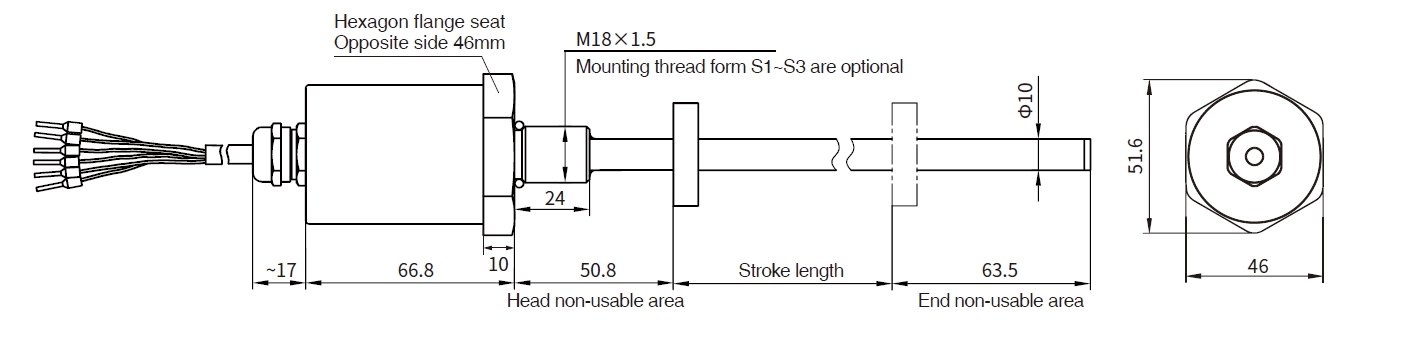

Installation dimensions of RS waterproof sensor
RS Series super protective Sensor, designed for cylinder built-in installation in harsh environment, withstands pressure of 35MPa for continuous, flexible and simple installation mode, and mounting thread form M18×1.5 or M20×1.5 or 3/4”-16UNF-3A.

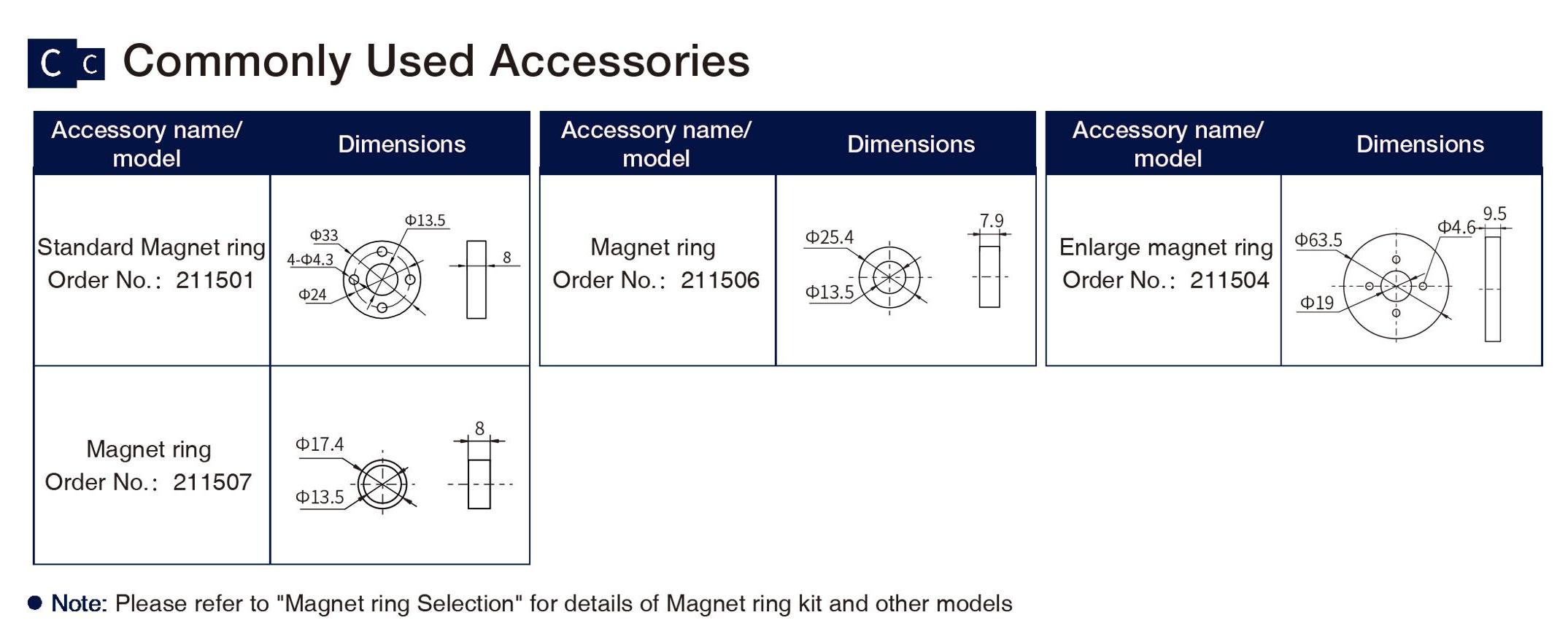

Commonly Used Accessories
Note: Please refer to "Magnet ring Selection" for details of Magnet ring kit and other models

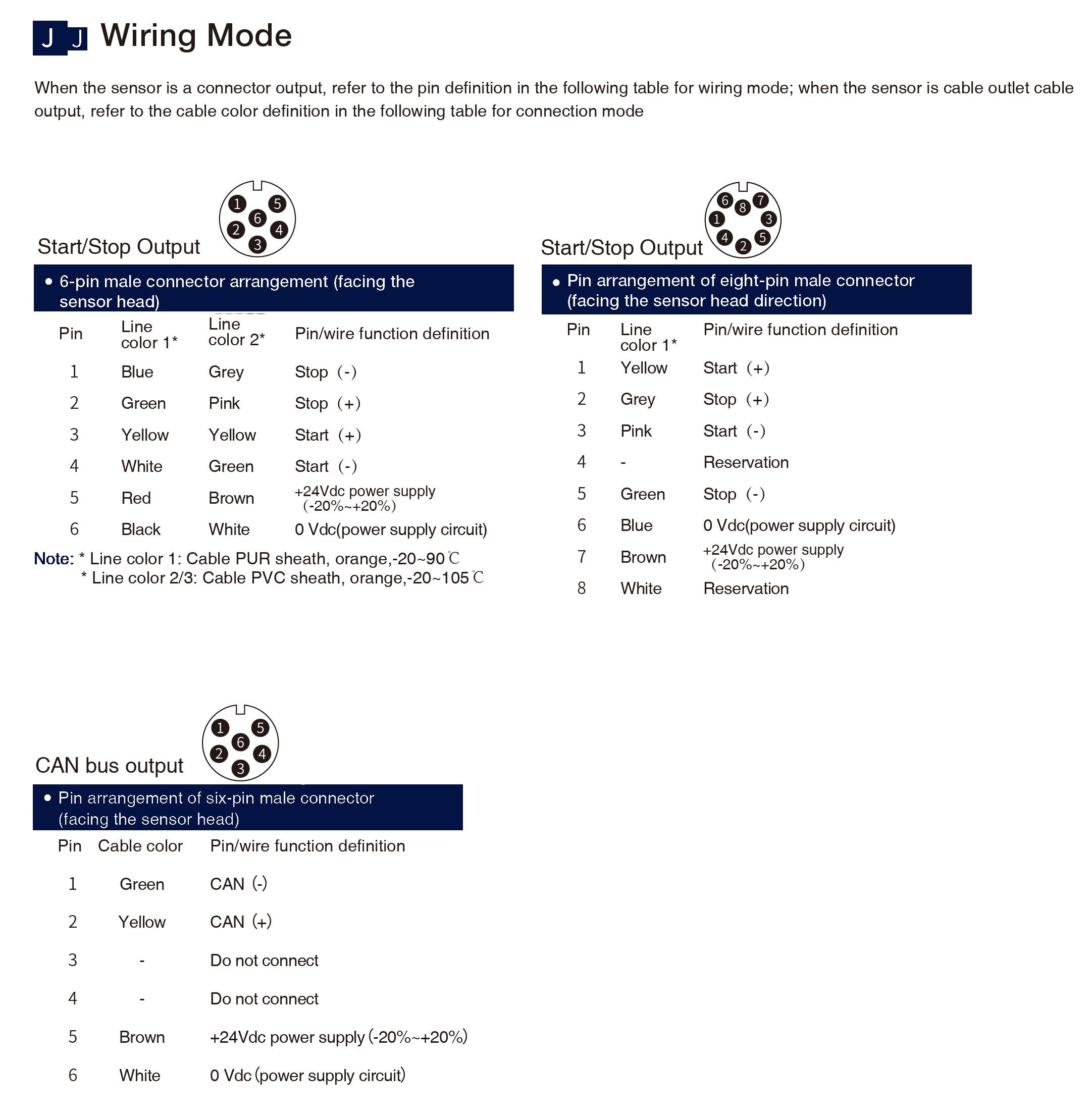

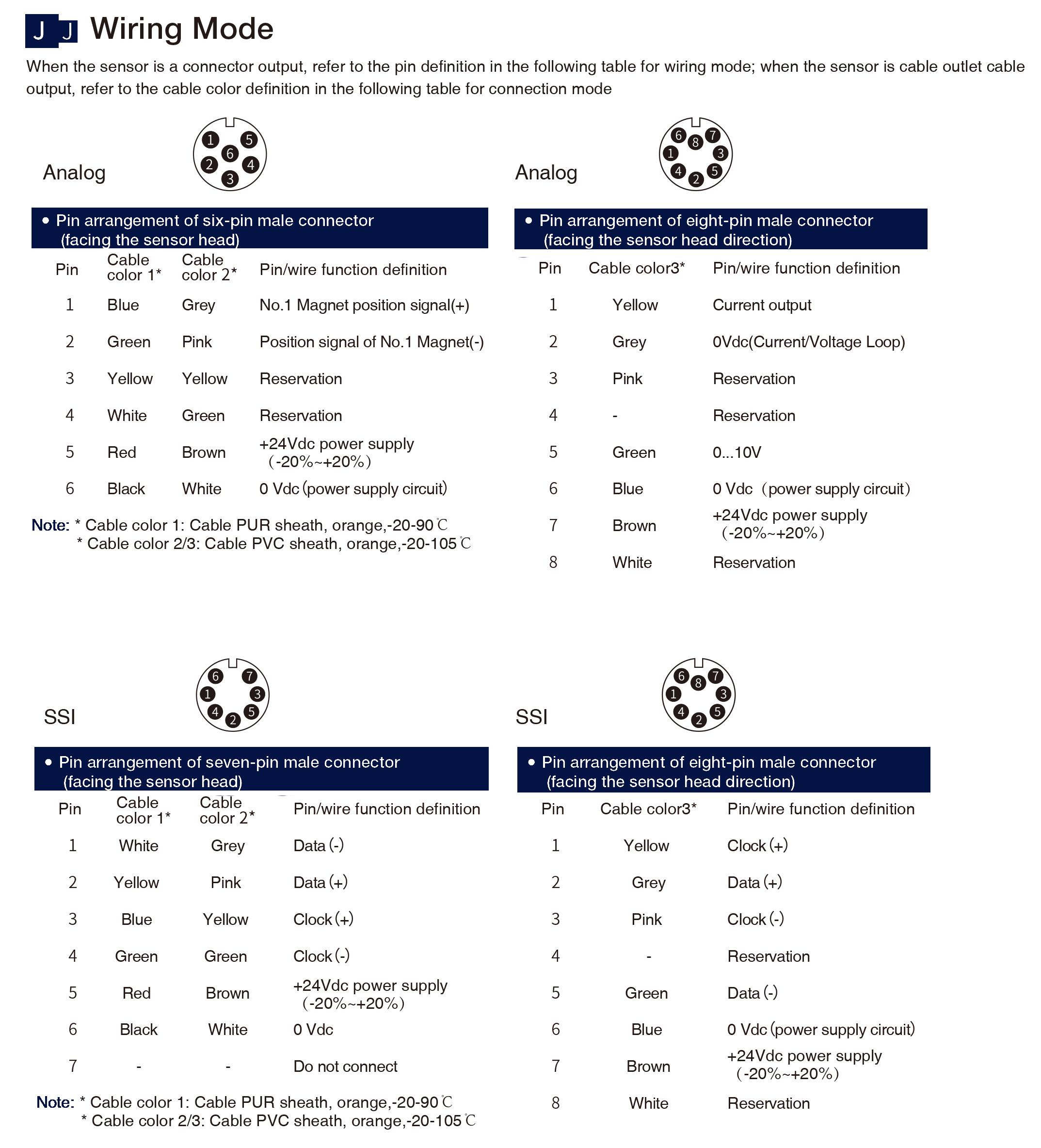

Wiring Mode
When the sensor is a connector output, refer to the pin definition in the following table for wiring mode; when the sensor is cable outlet cable output, refer to the cable color definition in the following table for connection mode
When the sensor is a connector output, refer to the pin definition in the following table for wiring mode; when the sensor is cable outlet cable output, refer to the cable color definition in the following table for connection mode
| Item | Description | Reel/Tray | Pcs/Roll | G.W | N.W | QTY/Carton | Package Size |
| RS Waterproof Seris | RS Waterproof Magnetostrictive Displacement Sensor 50mm~5500mm，Up to 23 meters stroke Analog、SSI、CANopen、Start/Stop Interface -40℃ ~ +105℃ Operating temperature IP68 | -kgs | -kgs | -pcs | -mm |
Discover all the technical specifications by downloading the datasheet today.
| Model | Effective Stroke | Interface | Voltage | Nonlinearity | Repeatability | Updated on | Protection Grade |
Operation Temperature (℃) |
Material | Shock| Pressure | Datasheet | Sample |
 |
||||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
| RS Waterproof Seris | 50mm~5500mm | Analog、SSI、CANopen、Start/Stop | +24Vdc±20% | < ± 0.01% of full scale, Min. ±50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP68 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RF Flexible Seris | 500~7620mm，Up to 23 meters | Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT | +24Vdc±20% | < ± 0.01% of full scale, Min. ± 50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP65 / IP67 | -40℃ ~ +85℃ | Aluminum alloy | GB/T2423.5 100g(6ms) | |
|
| RD Split Seris | 25~5500 mm | Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT | +24Vdc±20% | < ± 0.01% of full scale, Min. ± 50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP68 | -40℃ ~ +125℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RB Flat Seris | 50~5500 mm | Analog、SSI、CANopen | +24Vdc±20% | < ± 0.01% of full scale, Min. ± 50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| FBGB Explosion-Proof Seris | 25~5500 mm | Analog、SSI、CANopen | +24Vdc±20% | < ± 0.01% of full scale, Min. ± 50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Start-Stop Output Seris | 25~5500 mm | / | +24Vdc±20% | < 0.01% full-scale taxi, minimum 50μm | / | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) SSI Output Seris | 25~5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum ±50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Profinet Output Seris | 25~5500 mm | Profinet IO RT | +24Vdc±20% | < ±0.01% of full scale, minimum ±50μm | < 0.001% for full-scale taxis, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Profibus-DP Seris | 25~5500 mm | Profibus-DP System，ISO74498 | +24Vdc±20% | <±0.01% of full scale, minimum ±50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH-P EtherCAT Seris | 25~5500 mm | EhterCAT Ethernet Control Automation Technology | +24Vdc±20% | <±0.01% of full scale, minimum 50μm | <±0.001% of full scale, minimum ±1μm | ≥0.25ms，depending on the measuring stroke | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH/RP CANBus Seris | 25~5500 mm | CANBus System Protocol, IS0DIS11898 | +24Vdc±20% | < 0 .01% full-scale taxi, minimum 50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH/RP Analog Seris | 25~5500 mm | / | 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） | <±0.01% of full scale, min±50um | <±0.001% of full scale, min ±1um | 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable | IP67 | -40℃ ~ +85℃ | 304L stainless steel | GB/T2423.5 100g(6ms) | |
|
| MT Analog Seris | 50~2500 mm | CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | 8~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MI CANopen Seris | 50~2500 mm | CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | 8~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MI Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA CANopen Seris | 50~2500 mm | CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | / | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MH CANopen Seris | 50~2500 mm | CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| MH Analog Seris | 50~2500 mm | / | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| ES Modbus Seris | 25–3500 mm | Modbus RTU protocol | 9~ 30Vdc | Minimum ± 50um or <0.01%.F.S | Minimum ± 10um or <0.001%.F.S | Default 20ms | IP67 | -40°C ~ +75°C | 304L/316L | GB/T2423.5 50g(6ms) | |
|
| ES Analog Seris | 25–5500 mm | 4-20mA or 0-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | Same resolution | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | 304L / 316L stainless steel | GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak | |
|
| HP Analog Seris | 25–2500 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | <0.02% of full scale | <0.005% of full scale | lms ( range < lm ) | IP65 | -40°C ~ +85°C | PFA | GB/T2423.5 50g(6ms) | |
|
| ESC Analog Seris | 50–3000 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | 士0.1mm(25~400mm) | <±0.l mm | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | PFA | GB/T2423.5 50g(6ms) | |
|
| EP Analog Seris | 25-5500 mm | 0-20mA or 4-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | < 0.03% of full scale | < 0.005% of full scale | IP65 | -40°C ~ +85°C | Aluminum formed shell | GB/T2423.5 50g(6ms) | |
|
| ED Analog Seris | 50–3000 mm | / | 0–10V/10–0V, signal/ dual | <±0.05% of full scale | <± 0.01% of full scale | 2MS | IP65 | -40°C ~ +75°C | Aluminum Alloy | GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10 | |
|
|
||||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
| EJ SSI Output Seris | 25-5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum±50μm | < ± 0.001% of full scale, minimum ± 5μm | / | Cable outlet mode IP68; socket way IP67 | -40℃ ~ +85℃ | 304L | GB/T2423.5 100g(6ms) | |
|
| EJ Modbus Seris | 25-5500 mm | Modbus RTU protocol | 0-10Vdc or 0-5Vdc | Minimum ±50um(or <±0.01%F.S.) | Minimum ±10um(or <±0.001%F.S.) | 10ms | IP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g ( 6ms ) | |
|
| EJ Analog Seris | 25-5500 mm | 4-20mA or 0-20mA | 0-10Vdc or 0-5Vdc | <+0.02% of full scale | <± 0.001% offull scale | lms | Outgoing line lP68, Socket LP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g(6ms), 35MPA/70MPA(peak) | |
