MH CANopen Displacement Sensor

  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor
  • MH CANopen Displacement Sensor

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Features

CANopen digital output enables seamless integration with industrial automation networks for real-time, high-speed data transmission.

High precision and repeatability with ±0.1 mm resolution and nonlinearity, ensuring reliable position feedback in demanding applications.

Robust 304L stainless steel construction and IP67 protection provide excellent durability in harsh environments, including hydraulic cylinders and construction machinery.

Exceptional resistance to shock (100g) and vibration (25g) ensures stable operation in high-impact, high-vibration settings.

Wide operating temperature range (–40°C to +105°C) and flexible installation options support diverse industrial and mobile equipment needs.

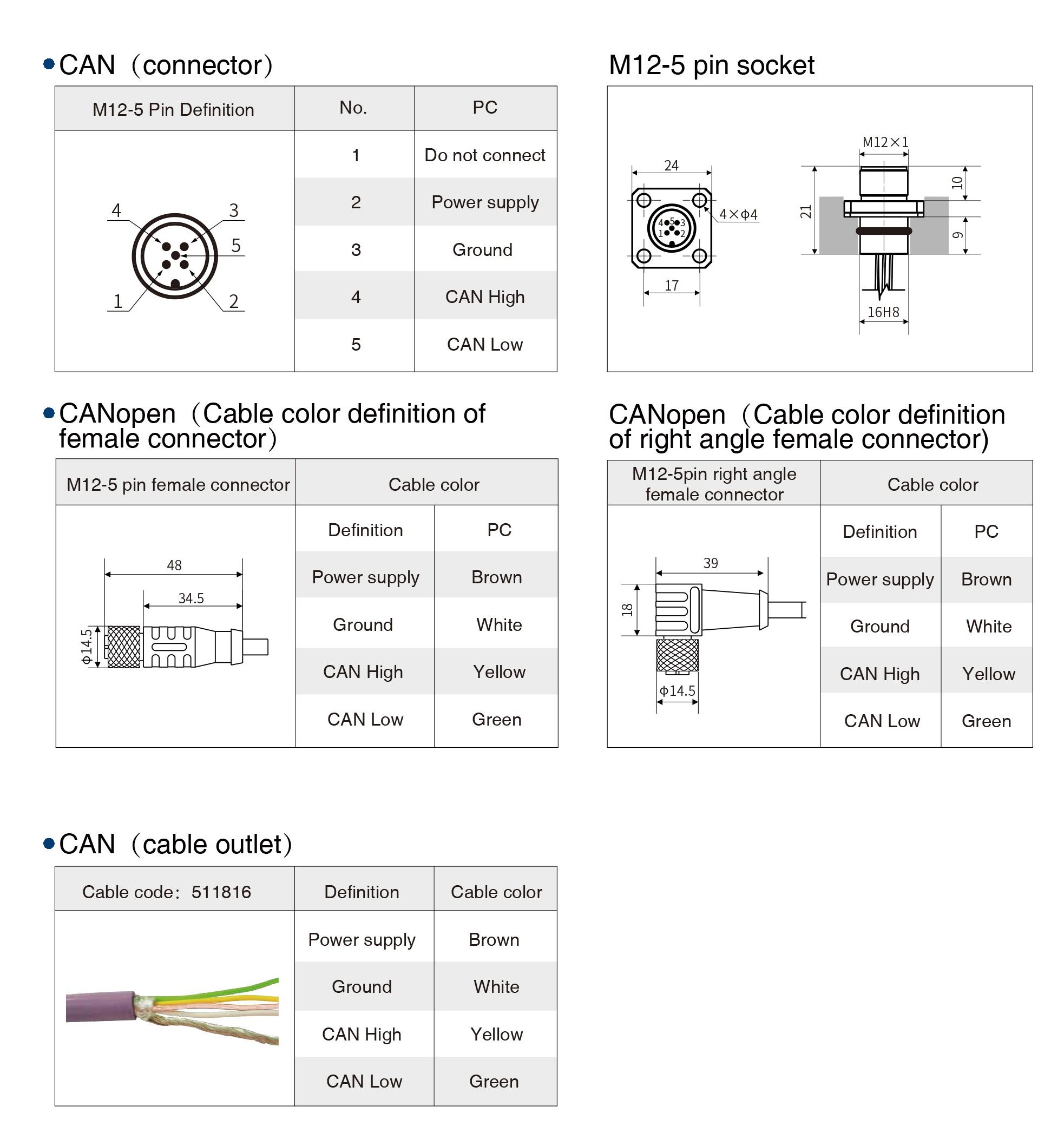

Electrical connections

MH CANopen Displacement Sensor Electrical connections


MH CANopen Displacement Sensor-Product Parameters


  • Input

Measuring dataPosition (vernier magnet)
Stroke length50~2500 mm

  • Output

InterfaceCAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1
Transmission speedmaximum 1Mbit/s
Resolution

±0.1mm

Nonlinearity±0.1mm（≤250mm）or 0.04%F.S（＞250mm）
Repetition accuracy±0.1mm
Update time2ms

  • Operating conditions

Magnet velocityArbitrary
Protection levelIP67
Operating temperature-40℃ ~ +105℃
Humidity/dew pointHumidity 90%, no condensation

Temperature drift

coefficient

<30ppm/℃
Shock indexGB/T2423.5 100g（11ms）
Vibration indexGB/T2423.10 25g/10~2000Hz
EMC test

GB/T17626.2 Electrostatic Discharge Anti-interference, Grade 3, Class A

GB/T17626.3 Radio Frequency Electromagnetic Field Radiation Anti-interference, Grade 3, Class A

GB/T17626.4 Electric Fast Transient Group Anti-interference, Grade 3, Class B

GB/T17626.6 Radio Frequency Field Induced Conducted Disturbance Anti-interference, Grade 3, Class A

GB/T17626.8 Power Frequency Magnetic Field Anti-interference, Grade 4, Class A





  • Electrical Connections


  • Construction and Materials

Input voltage9~ 32Vdc

Electronic compartment

304Lstainless steel
Power consumption<1WMeasuring rod304L stainless steel
Polarity protectionMaximum -30Vdc

Operating

pressure grade

Rated pressure Pn: 35MPa maximum pressure

Pmax: 45MPa for stell rod with diameter of 10mm

Overvoltage protectionMaximum 36VdcAssembly

Any direction

Insulation resistance＞10MΩPosition magnetVarious ring magnets
Insulation strength500V

Outgoing modeCable outlet or connector



Ordering Information

Ordering Information

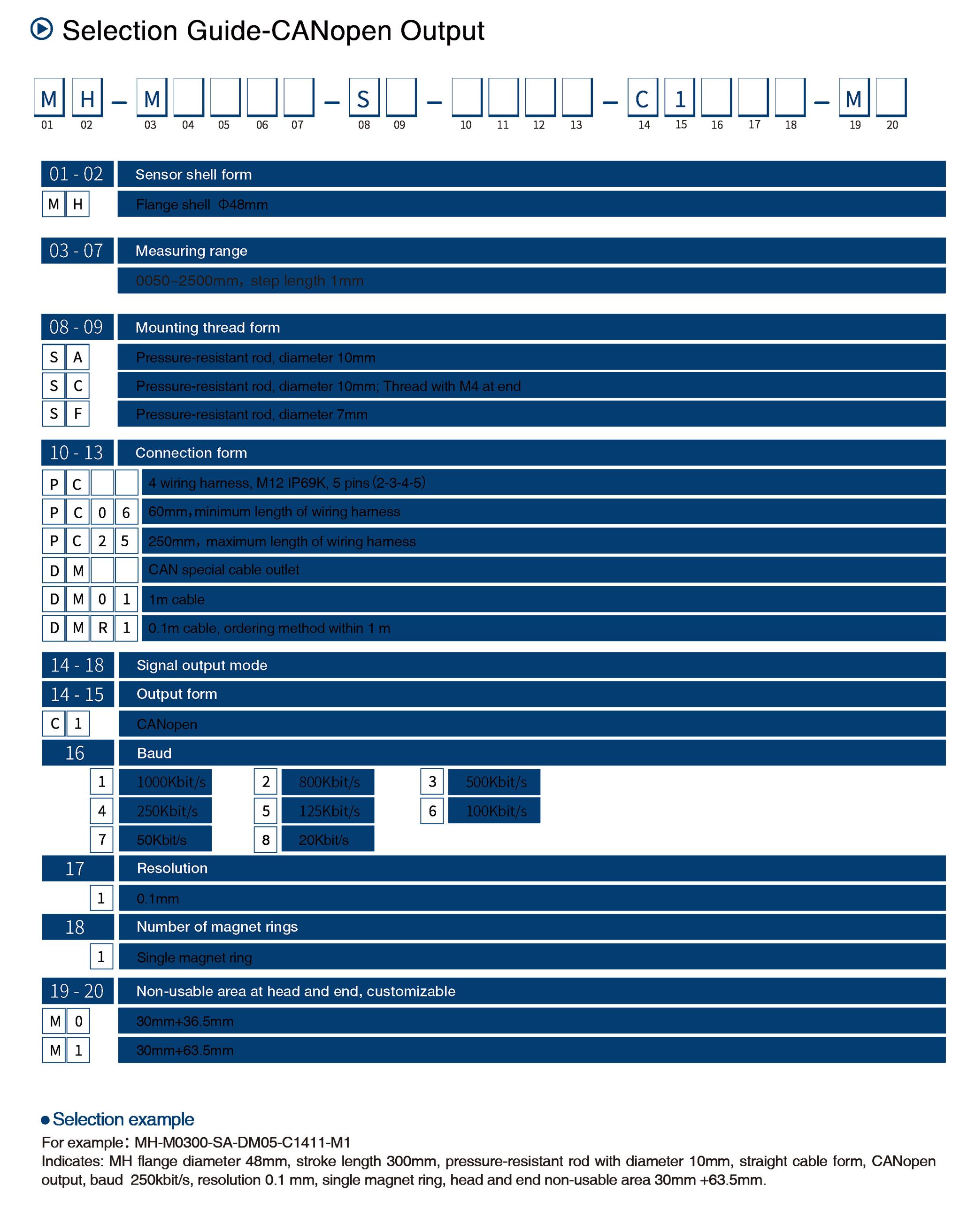

Selection Guide-CANopen Output







Packaging Information


ItemDescriptionReel/Tray

Pcs/Roll

G.WN.W

QTY/Carton

Package Size
MH Analog  Seris

MH Analog  Seris Displacement Sensor


25–2500 mm stroke

Operating temperature -40℃ ~ +105℃

Repetition ±0.1mm（range＜500mm）

IP67







-kgs-kgs-pcs-mm



Discover all the technical specifications by downloading the datasheet today.




All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
