Customized DC-DC Converters Explore DC-DC ConvertersSpecially engineered for construction machinery, offering high vibration and impact resistance for rugged environments.

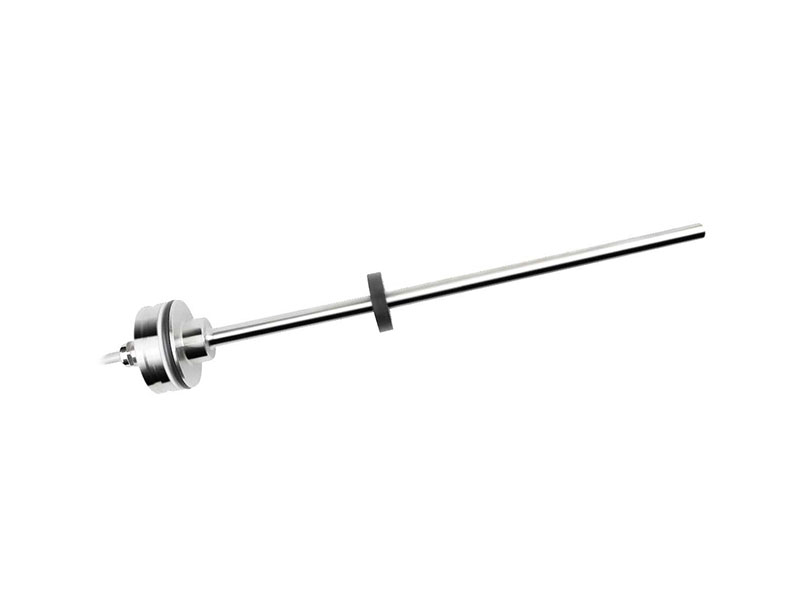

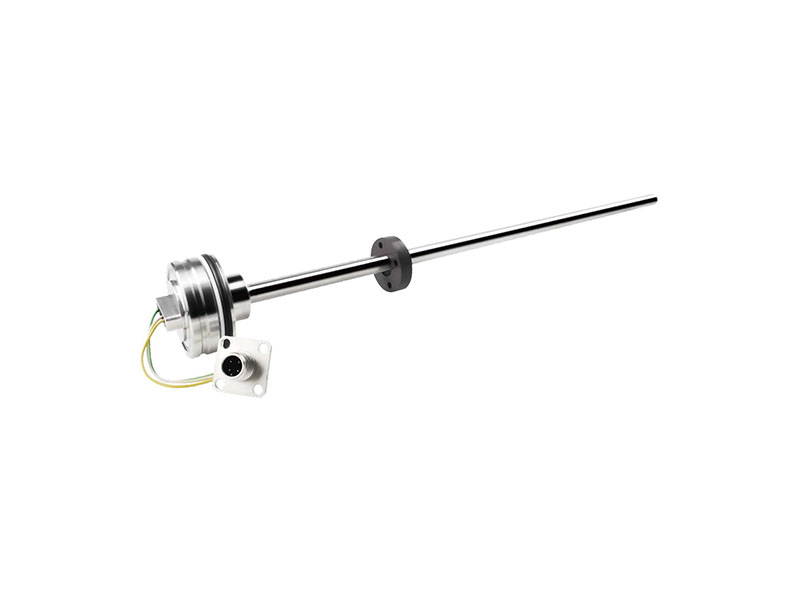

Non-contact, absolute linear measurement with IP67 protection ensures long service life and reliable performance in harsh conditions.
Multiple outgoing modes and flexible assembly options make it suitable for various hydraulic cylinder sizes and mounting configurations.
Low power consumption and robust 304L stainless steel construction reduce system heating and enhance durability.
Precise analog output (current/voltage) with fast 2 ms update time and high accuracy for real-time, reliable position feedback.

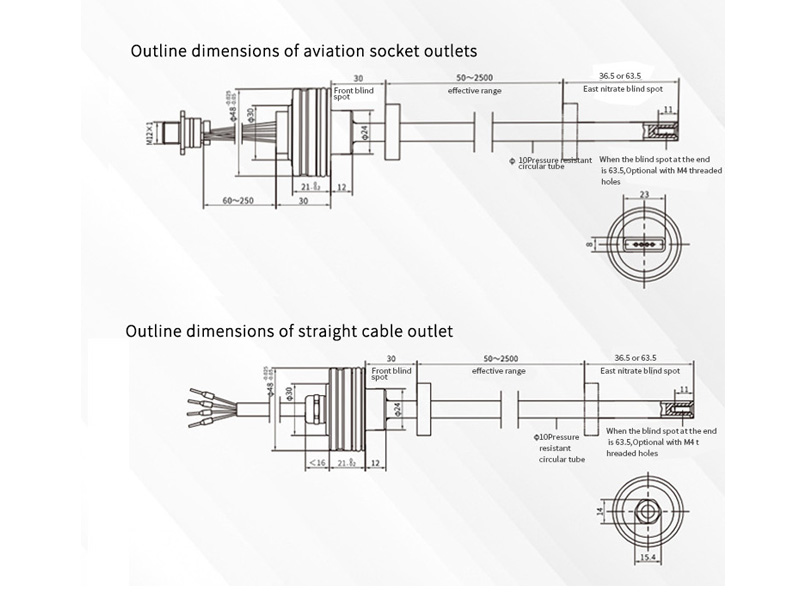

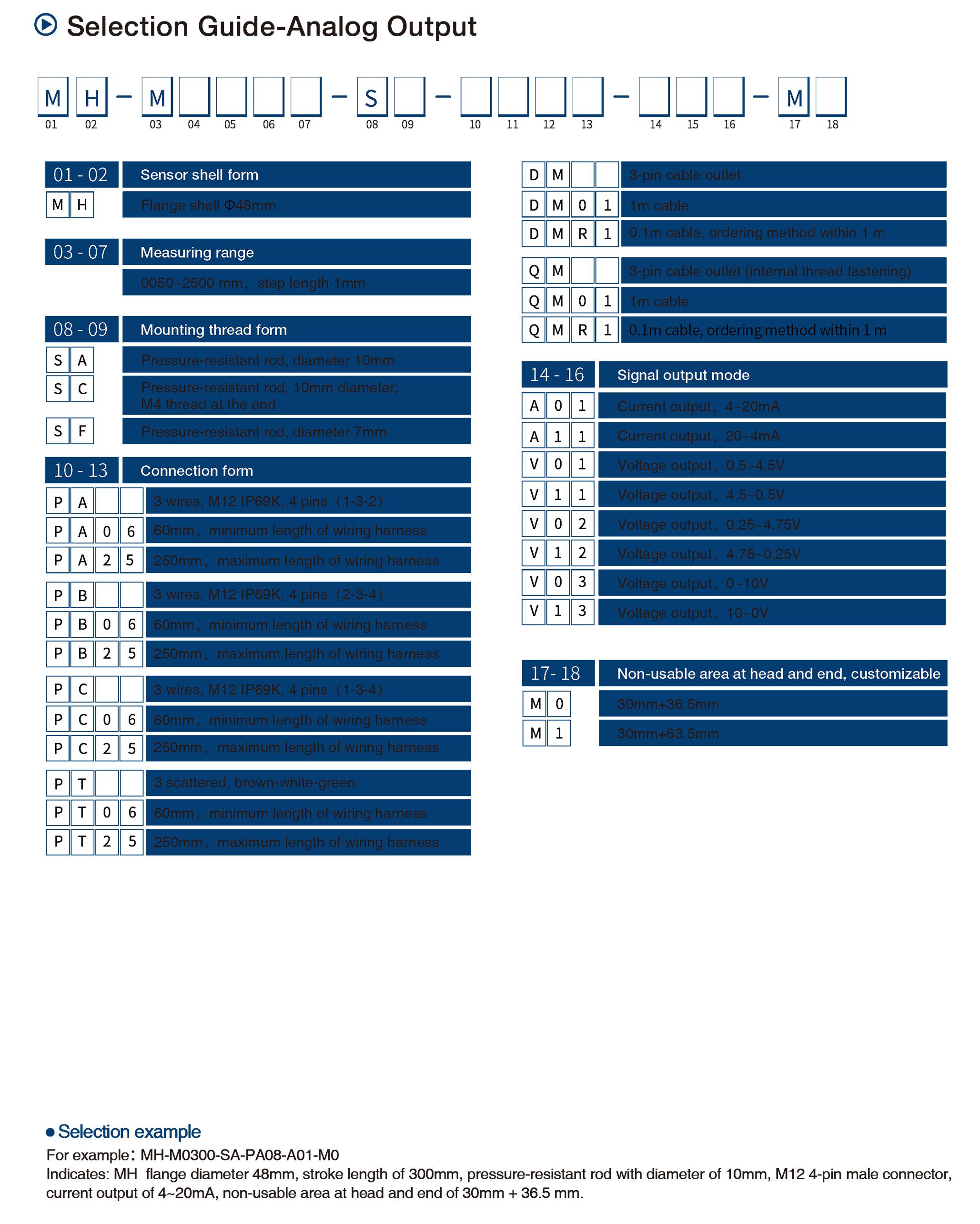

Structural Shape

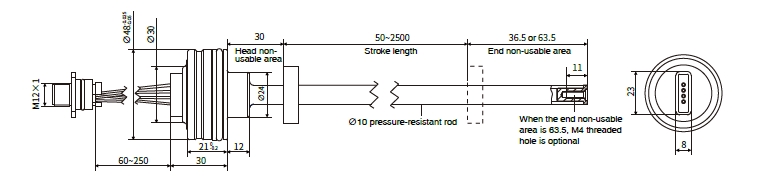

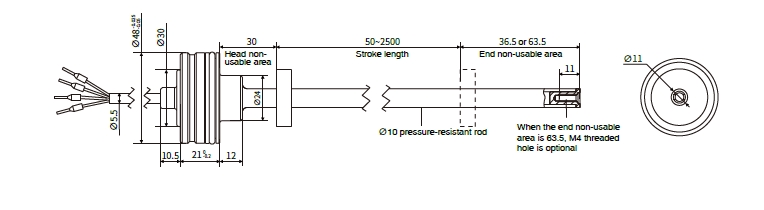

External dimensions of cable outlet (fastening mode DM)

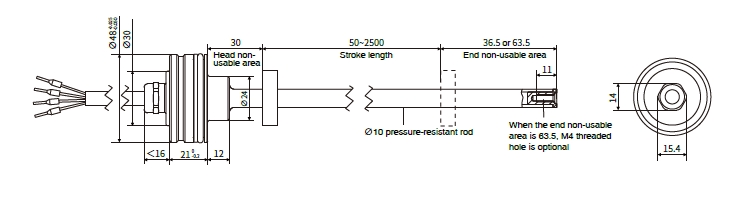

External dimensions of cable outlet (fastening method QM)
Head non-usable area

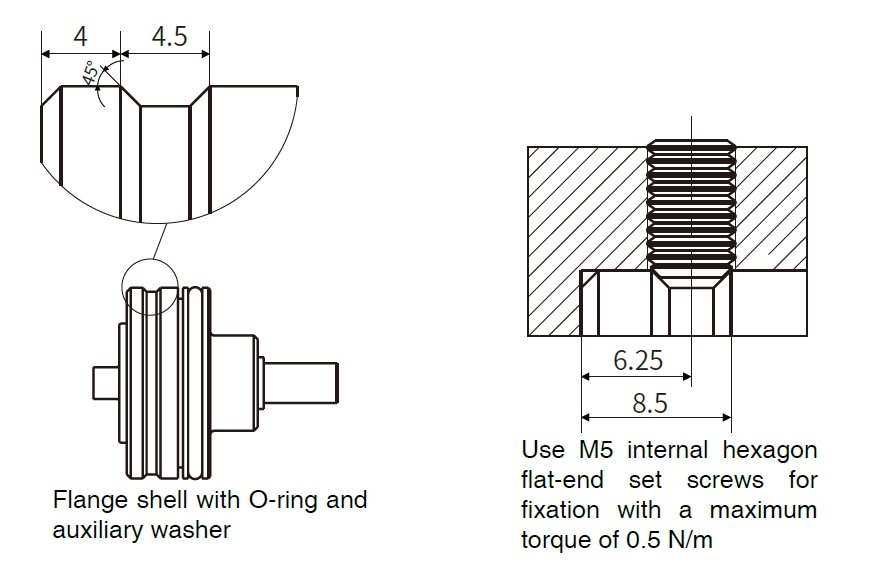

Assembly mode

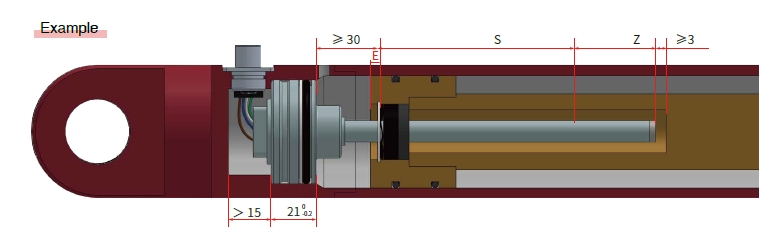

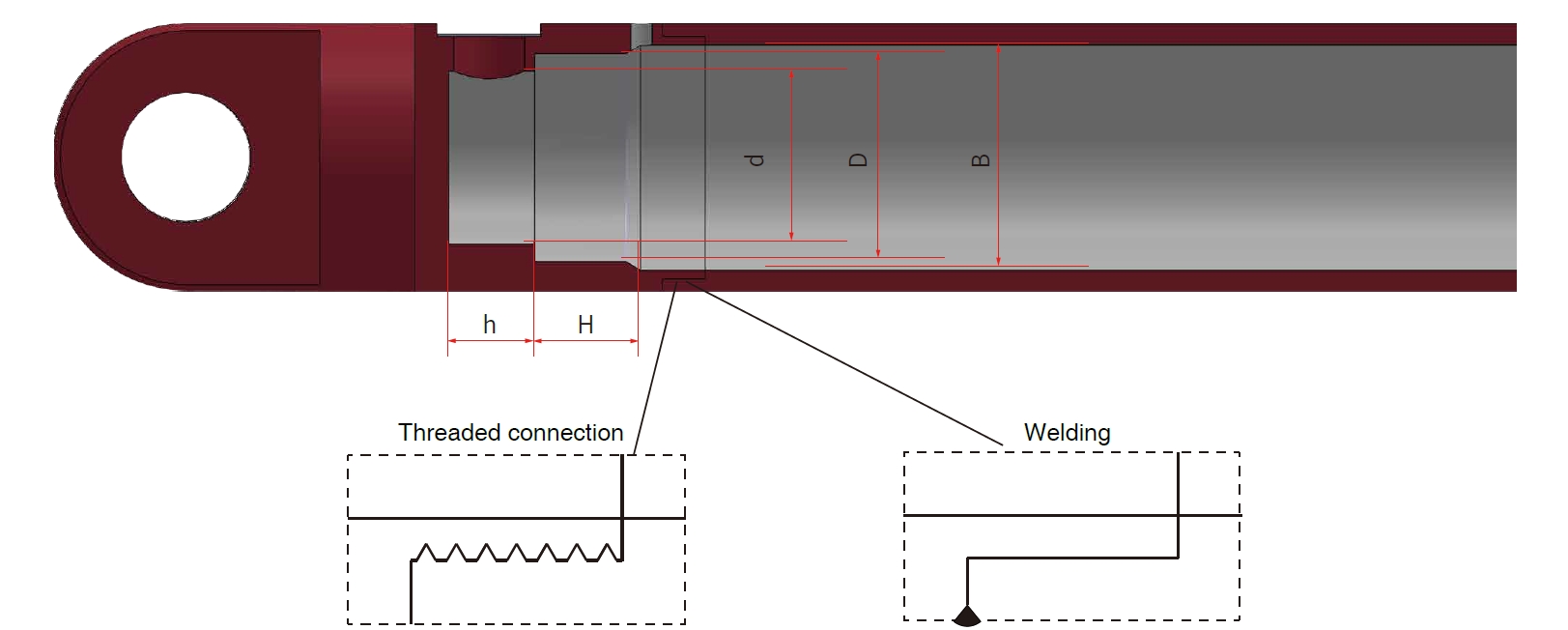

The assembly method depends on the design of the hydraulic cylinder. The commonly used assembly method is to assembly from the rod end
of the hydraulic cylinder, or to assembly from the cylinder head end of the hydraulic cylinder. In both assembly methods, O-ring and auxiliary
gasket are used for air sealing.
Note:
1.The position magnet should not contact the stell rod; 2.Drilling depth of piston rod≥E+Z+3mm； 3.Piston rod hole diameter Pressure-resistant rod ： ∅10 Aperture size ： ≥∅13 4.Do not exceed the operating pressure during use. |
|
| Model | B Minimum diameter of hydraulic cylinder | D Minimum diameter | H Depth | d Minimum diameter | h Depth |
| MH | 52 | 48H8（thread） 48G7（welding） | +0.2 21 | ＞ 32.5 ＜ 40 | ＞15 |

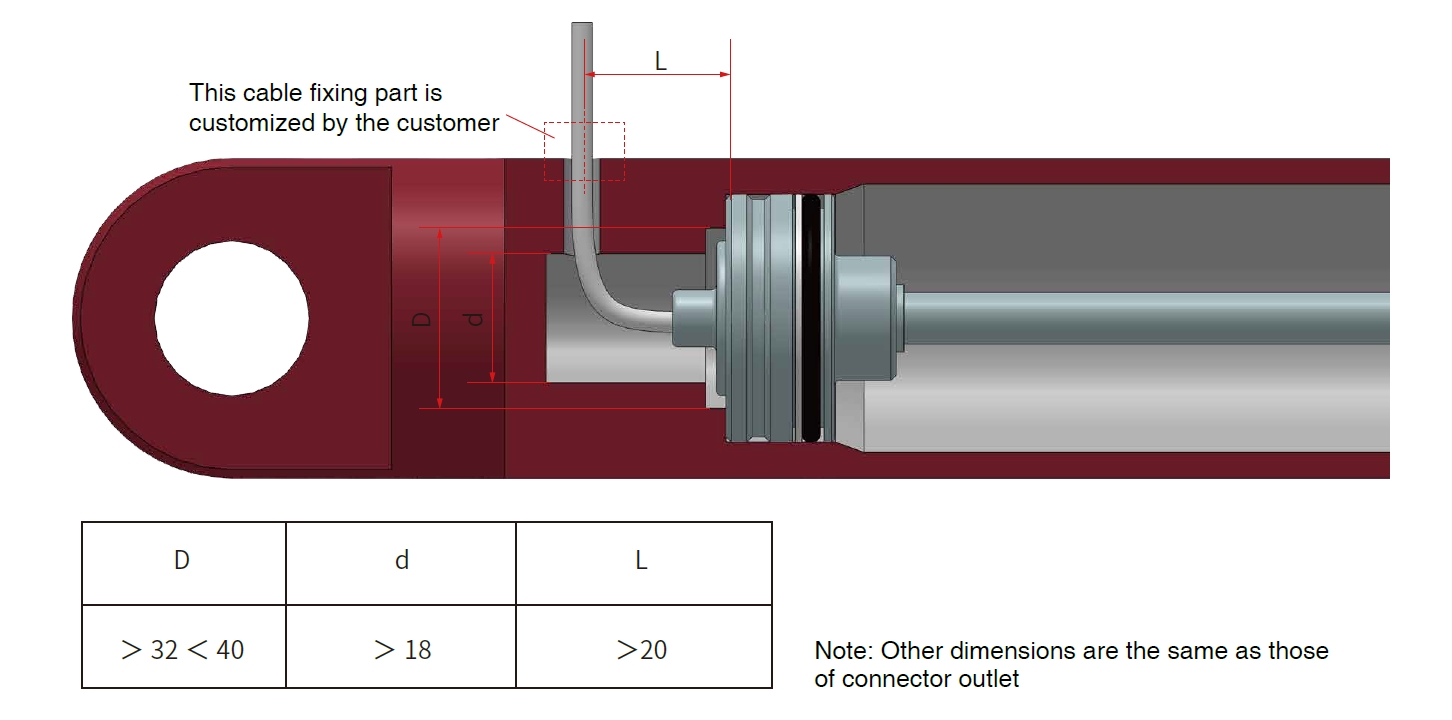

Assembly dimensions of outgoing mode-cable outlet (DM)

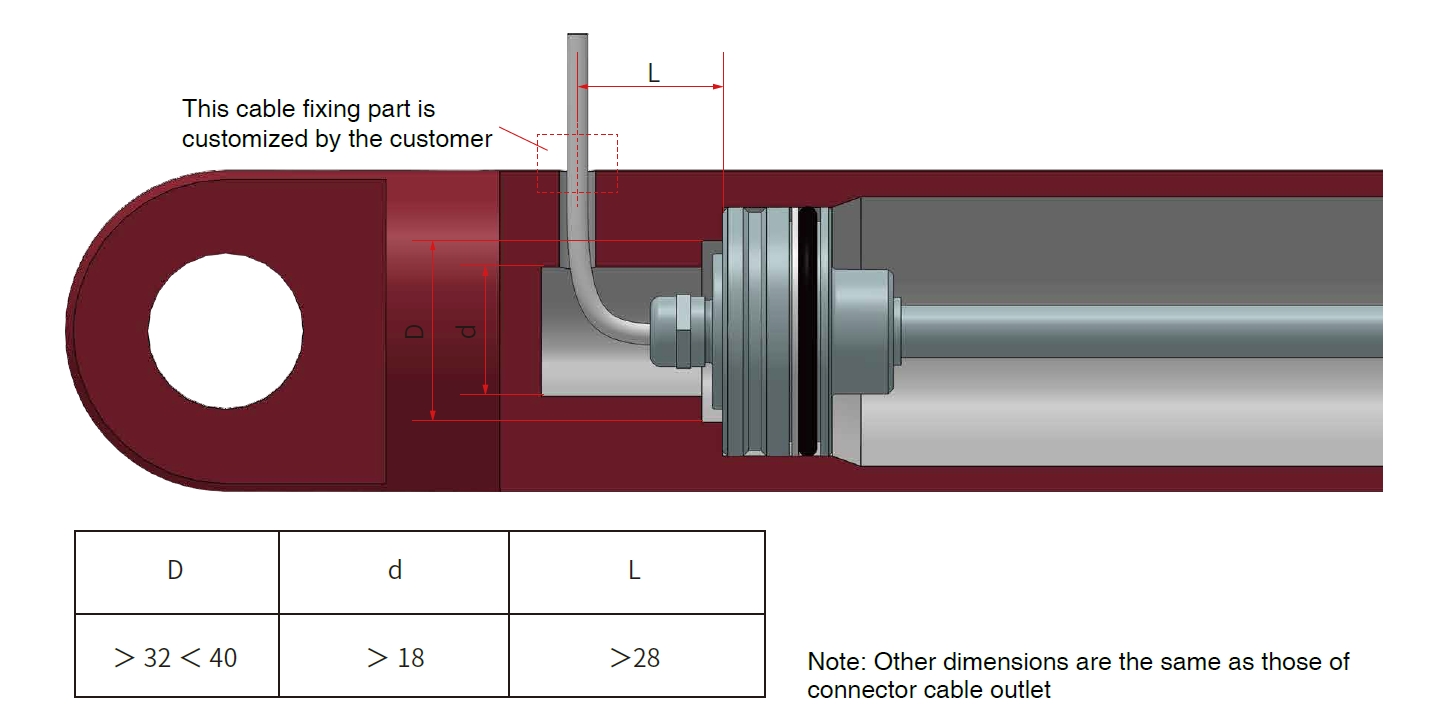

Assembly dimensions of outgoing mode-cable outlet (QM)

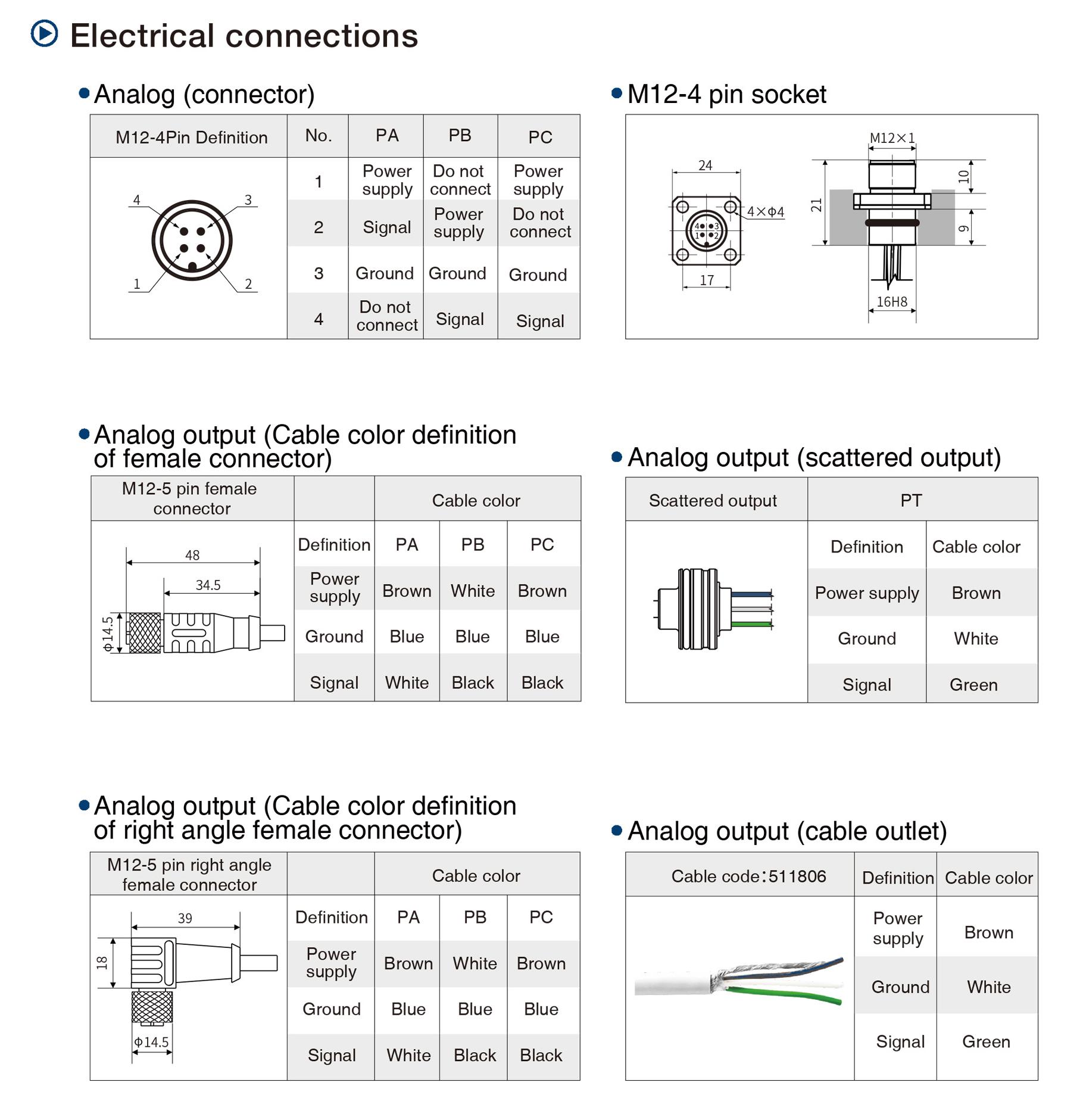

Electrical connections

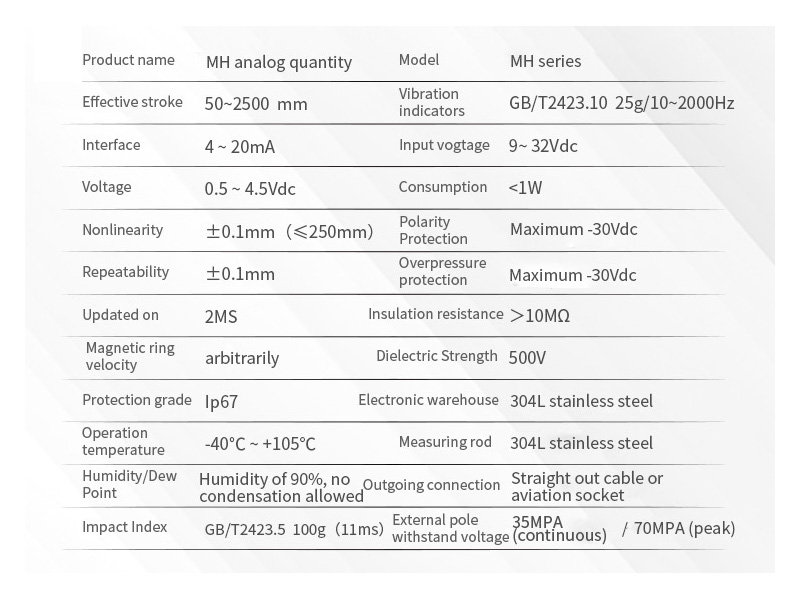

MH Analog Magnetostrictive Displacement Sensor-Product Parameters
| ||||
| Measuring data | Position (vernier magnet) | |||
| Stroke length | 50~2500 mm | |||
| ||||
| Current | 4 ~ 20mA（load resistance≤250Ω） | |||
| Interface | Modbus RTU protocol | |||
| Voltage | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc（load resistance≥10KΩ） | |||
| Resolution | ±0.1mm（range＜500mm） range÷4096（range＞500mm） | |||
| Nonlinearity | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | |||
| Repetition accuracy | ±0.1mm | |||
| Update time | 2ms | |||
| ||||
| Magnet velocity | Arbitrary | |||
| Protection level | IP67 | |||
| Operating temperature | -40℃ ~ +105℃ | |||
| Humidity/dew point | Humidity 90%, no condensation | |||
Temperature drift coefficient | <30ppm/℃ | |||
| Shock index | GB/T2423.5 100g（11ms） | |||
| Vibration index | GB/T2423.10 25g/10~2000Hz | |||
| EMC test | GB/T17626.2 Electrostatic Discharge Anti-interference, Grade 3, Class A GB/T17626.3 Radio Frequency Electromagnetic Field Radiation Anti-interference, Grade 3, Class A GB/T17626.4 Electric Fast Transient Pulse Group Anti-interference, Grade 3, Class B GB/T17626.5 Surge (Impact) Anti-interference, Grade 3, Class B GB/T17626.6 Radio Frequency Field Induced Conducted Disturbance Anti-interference, Grade 3, Class A GB/T17626.8 Power Frequency Magnetic Field Anti-interference, Grade 4, Class A | |||
|
| |||
| Input voltage | 9~ 32Vdc | Electronic compartment | 304Lstainless steel | |
| Power consumption | <1W | Measuring rod | 304L stainless steel | |
| Polarity protection | Maximum -30Vdc | Operating pressure grade | Rated pressure Pn: 35MPa maximum pressure Pmax: 45MPa for stell rod with diameter of 10mm | |
| Overvoltage protection | Maximum 36Vdc | Assembly | Any direction | |
| Insulation resistance | ＞10MΩ | Position magnet | Various ring magnets | |
| Insulation strength | 500V | |||
| Outgoing mode | Cable outlet or connector | |||
| Item | Description | Reel/Tray | Pcs/Roll | G.W | N.W | QTY/Carton | Package Size |
| MH Analog Seris | MH Analog Seris Displacement Sensor 25–2500 mm stroke Operating temperature -40℃ ~ +105℃ Repetition ±0.1mm（range＜500mm） IP67 | -kgs | -kgs | -pcs | -mm |
Discover all the technical specifications by downloading the datasheet today.
| Model | Effective Stroke | Interface | Voltage | Nonlinearity | Repeatability | Updated on | Protection Grade |
Operation Temperature (℃) |
Material | Shock| Pressure | Datasheet | Sample |
| MI Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） |  |
|
| MHA CANopen Seris | 50~2500 mm | CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | / | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MH CANopen Seris | 50~2500 mm | CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| MH Analog Seris | 50~2500 mm | / | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| ES Modbus Seris | 25–3500 mm | Modbus RTU protocol | 9~ 30Vdc | Minimum ± 50um or <0.01%.F.S | Minimum ± 10um or <0.001%.F.S | Default 20ms | IP67 | -40°C ~ +75°C | 304L/316L | GB/T2423.5 50g(6ms) | |
|
| ES Analog Seris | 25–5500 mm | 4-20mA or 0-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | Same resolution | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | 304L / 316L stainless steel | GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak | |
|
| HP Analog Seris | 25–2500 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | <0.02% of full scale | <0.005% of full scale | lms ( range < lm ) | IP65 | -40°C ~ +85°C | PFA | GB/T2423.5 50g(6ms) | |
|
| ESC Analog Seris | 50–3000 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | 士0.1mm(25~400mm) | <±0.l mm | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | PFA | GB/T2423.5 50g(6ms) | |
|
| EP Analog Seris | 25-5500 mm | 0-20mA or 4-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | < 0.03% of full scale | < 0.005% of full scale | IP65 | -40°C ~ +85°C | Aluminum formed shell | GB/T2423.5 50g(6ms) | |
|
| ED Analog Seris | 50–3000 mm | / | 0–10V/10–0V, signal/ dual | <±0.05% of full scale | <± 0.01% of full scale | 2MS | IP65 | -40°C ~ +75°C | Aluminum Alloy | GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10 | |
|
|
||||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
| EJ SSI Output Seris | 25-5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum±50μm | < ± 0.001% of full scale, minimum ± 5μm | / | Cable outlet mode IP68; socket way IP67 | -40℃ ~ +85℃ | 304L | GB/T2423.5 100g(6ms) | |
|
| EJ Modbus Seris | 25-5500 mm | Modbus RTU protocol | 0-10Vdc or 0-5Vdc | Minimum ±50um(or <±0.01%F.S.) | Minimum ±10um(or <±0.001%F.S.) | 10ms | IP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g ( 6ms ) | |
|
| EJ Analog Seris | 25-5500 mm | 4-20mA or 0-20mA | 0-10Vdc or 0-5Vdc | <+0.02% of full scale | <± 0.001% offull scale | lms | Outgoing line lP68, Socket LP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g(6ms), 35MPA/70MPA(peak) | |
