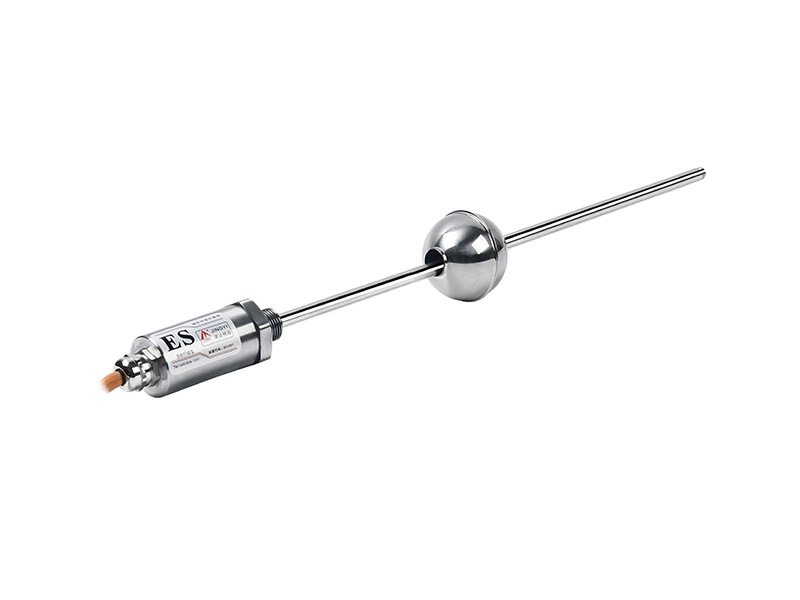

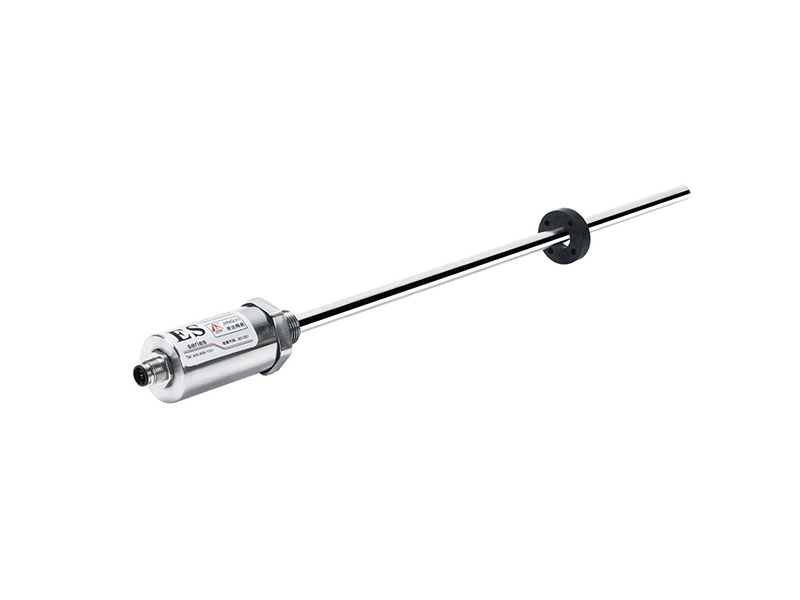

ES Series Magnetostrictive Displacement Sensor

  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor
  • ES Series Magnetostrictive Displacement Sensor

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Frequency Control Products

Related Products

Features

Wide 25–5500 mm stroke range with customizable lengths meets diverse industrial measurement needs.

High precision with 0.05% full-scale nonlinearity and repeatability matching the sensor’s resolution ensures accurate, reliable results.

Fast update time: 1 ms (four-wire system) or 100 ms (two-wire system) delivers real-time position feedback.

Rugged IP67 protection, –40°C to +75°C operating temperature, and 304L/316L stainless steel construction guarantee durability in harsh environments.

Non-contact, wear-free linear measurement with flexible analog output (4–20mA, 0–20mA, 0–10V, 0–5V) and multiple connection options, including straight cable and aviation socket.

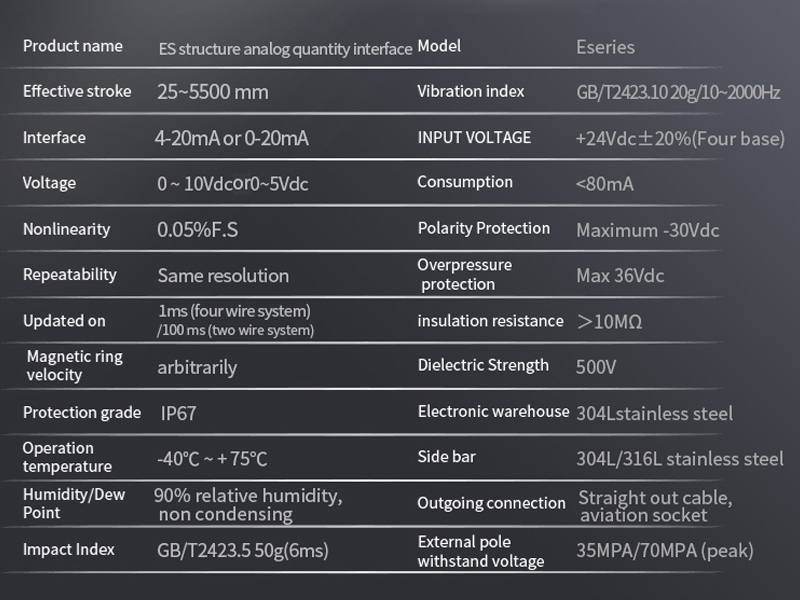

Technical Characteristics


Product Name

ES Series Magnetostrictive Displacement Sensor

Model

ES Seris

Measuring Range

25–5500 mm

Vibration Index

GB/T2423.10 20g/10~2000Hz

Interface

4-20mA or 0-20mA

Input Voltage

+24Vdc±20%(Four base)

Voltage

0~10Vdc or 0~5Vdc

Consumption

<80mA

Nonlinearity

0.05% F.S

Polarity Protection

Maximum -30Vdc

Repeatability

Same resolution

Overpressure Protection

Max 36Vdc

Updated on

lms (four wire system)

/100 ms (two wire system)

Insulation Resistance

>10MΩ

Magnetic Ring VelocityArbitrarily

Dielectric Strength

500V

Protection Grade


IP67


Electronic Warehouse

304Lstainless steel

Operation Temperature

-40°C ~ +75°C

Side Bar

304L / 316L stainless steel

Humidity/Dew Point

90% relative humidity, non condensing

Outgoing Connection

Straight out cable, aviation socket

Impact Index

GB/T2423.5 50g(6ms)

External Pole With Stand Voltage

35MPA / 70MPA ( peak )

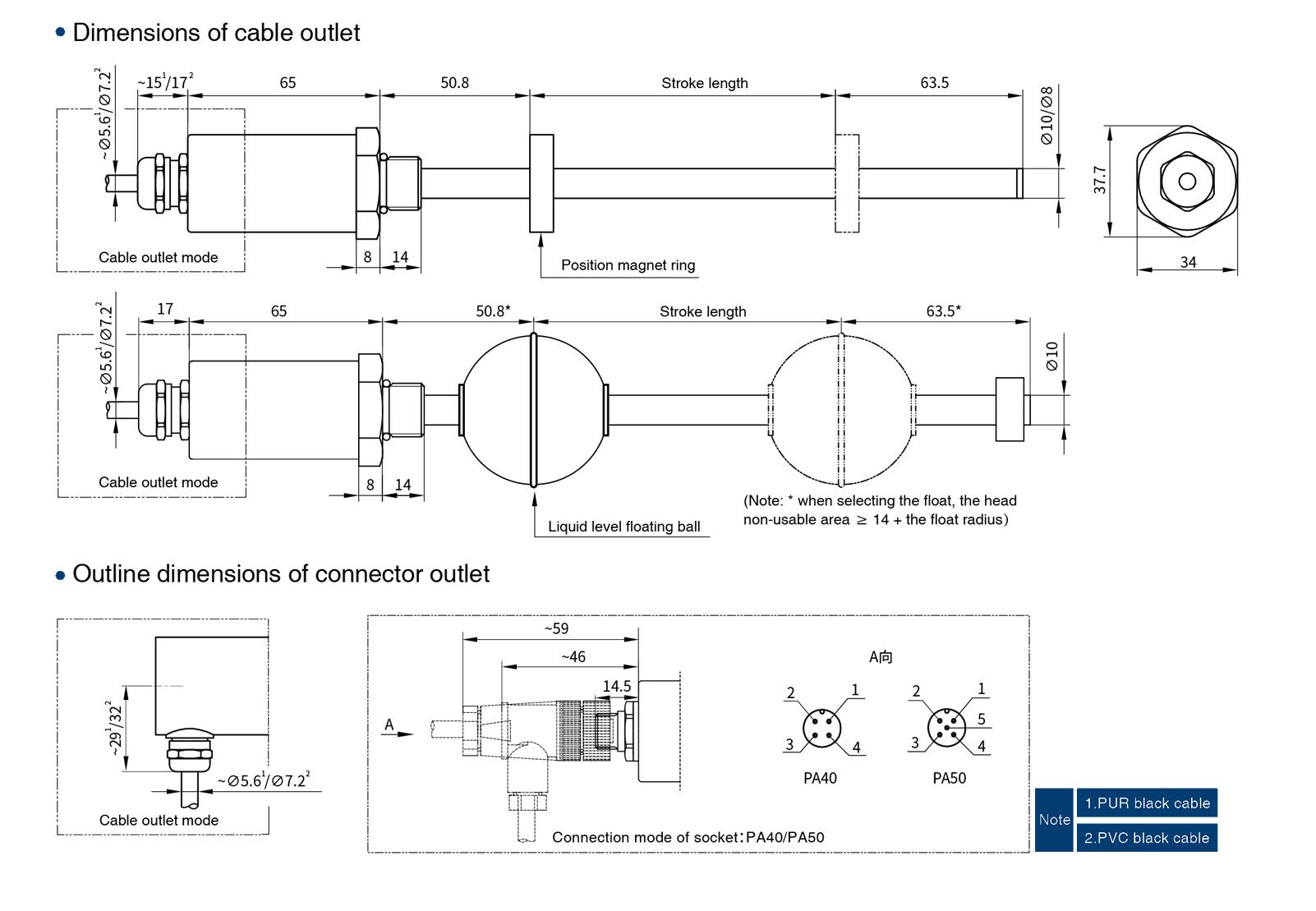

Structural Shape


ES Series Magnetostrictive Displacement Sensor Structural Shape

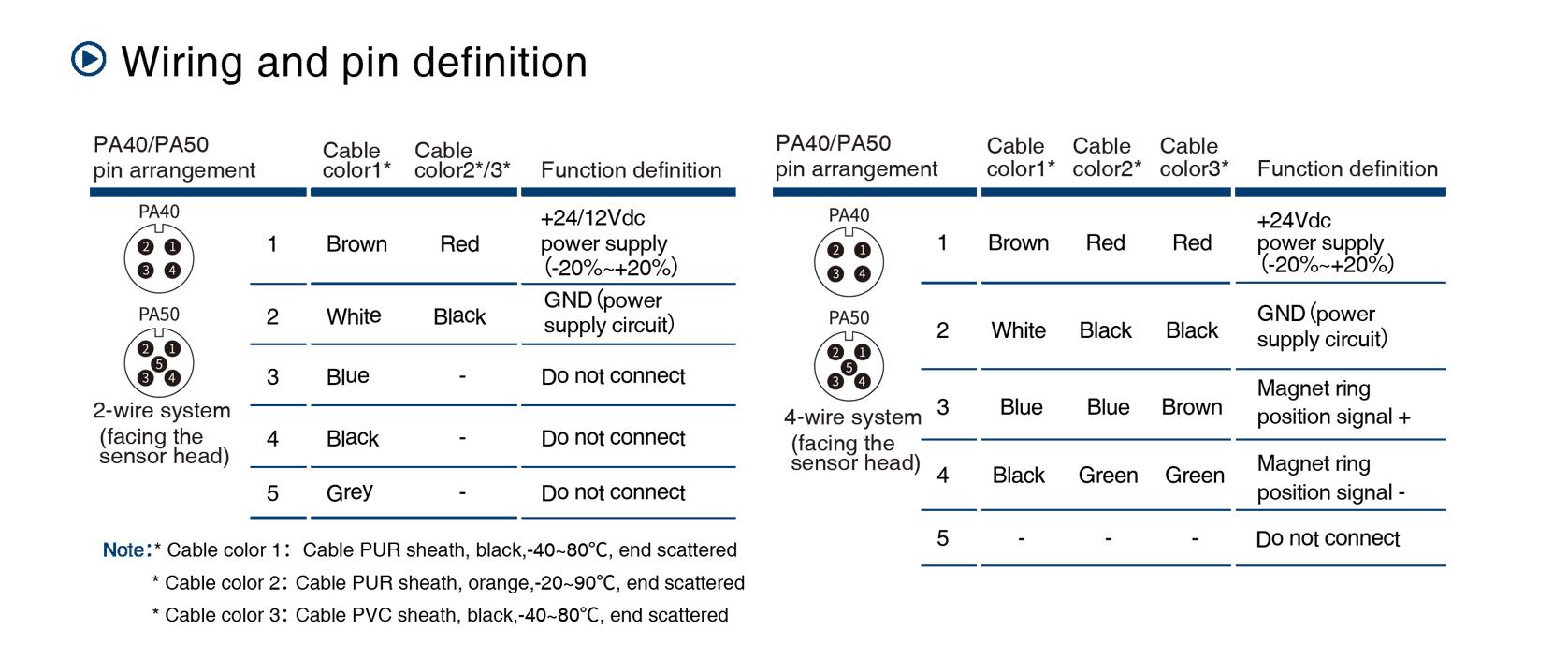

Wiring and Pin Definition


ES Series Magnetostrictive Displacement Sensor Wiring and Pin Definition

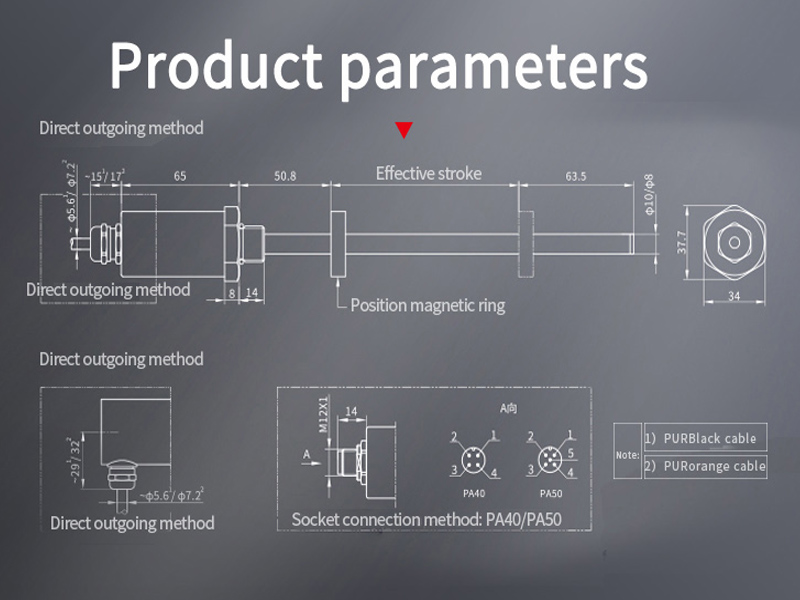

ES Series Magnetostrictive Displacement Sensor -Product Parameters



  • Input

Measuring dataPosition magnet ring
Stroke length25~3500 mm，others can be customized according to needs

  • Output

Current4 ~ 20mA or 0 ~ 20mA（min/max load 0/500Ω）
Voltage0 ~ 10Vdc or 0~5Vdc（minimum load resistanc ≥10KΩ）
Resolution

±0.01mm，16bit DA，4-wire system current

±0.1mm，16bit DA，4-wire system voltage

±0.1mm，12bit DA，2-wire system current

Nonlinearity0.05% F.S
RepeatabilitySame resolution
Update time

2-wire system 100 ms

4-wire system 1ms（range≤1m） 、 2ms（1m＜range≤2m） 、 3ms（range＞2m）

Temperature coefficient＜50ppm/℃

  • Operating conditions

Magnet velocityArbitrary
Protection classIP67
Operating temperature40℃ ~ +75℃
Humidity/dew pointHumidity 90%, no condensation
Shock indexGB/T2423.5 50g(6ms)
Vibration indexGB/T2423.10 15g/10~2000Hz
EMC test

GB/T17626.2 Anti-interference Degree of Electrostatic Discharge, Grade 3, class A

GB/T17626.3 Radiation Anti-interference Degree of Radio Frequency Electromagnetic Field, Grade 3, Class A

GB/T17626.4 Anti-interference Degree of Electrical Fast Transient Train, Grade 3, Class B

GB/T17626.6 Conducted Disturbance Degree Induced by Radio Frequency Field, Grade 2, Class A

GB/T17626.8 Power Frequency Magnetic Field Immunity, Grade 3, Class A

CE certification




  • Electrical Connections


  • Construction and Materials

Input voltage

+24Vdc power supply

(-20%~+20%): 4-wire system

+24/12Vdc power supply

(-20%~+20%): 2-wire system

Electronic compartment

304Lstainless steel
Power consumption<80mAMeasuring rod304L / 316Lstainless steel
Polarity protectionMaximum -30Vdc

Outer tube pressure

35Mpa (continuous)/70Mpa ( peak )
measuring rod diameter φ 10
Overvoltage protectionMaximum 36VdcInstallation

Any direction, threaded installation

 (thread specification is optional)

Insulation resistance＞10MΩPosition magnetVarious ring magnets
Insulation strength500VOutgoing mode

Cable outlet or connector (M12 connector)

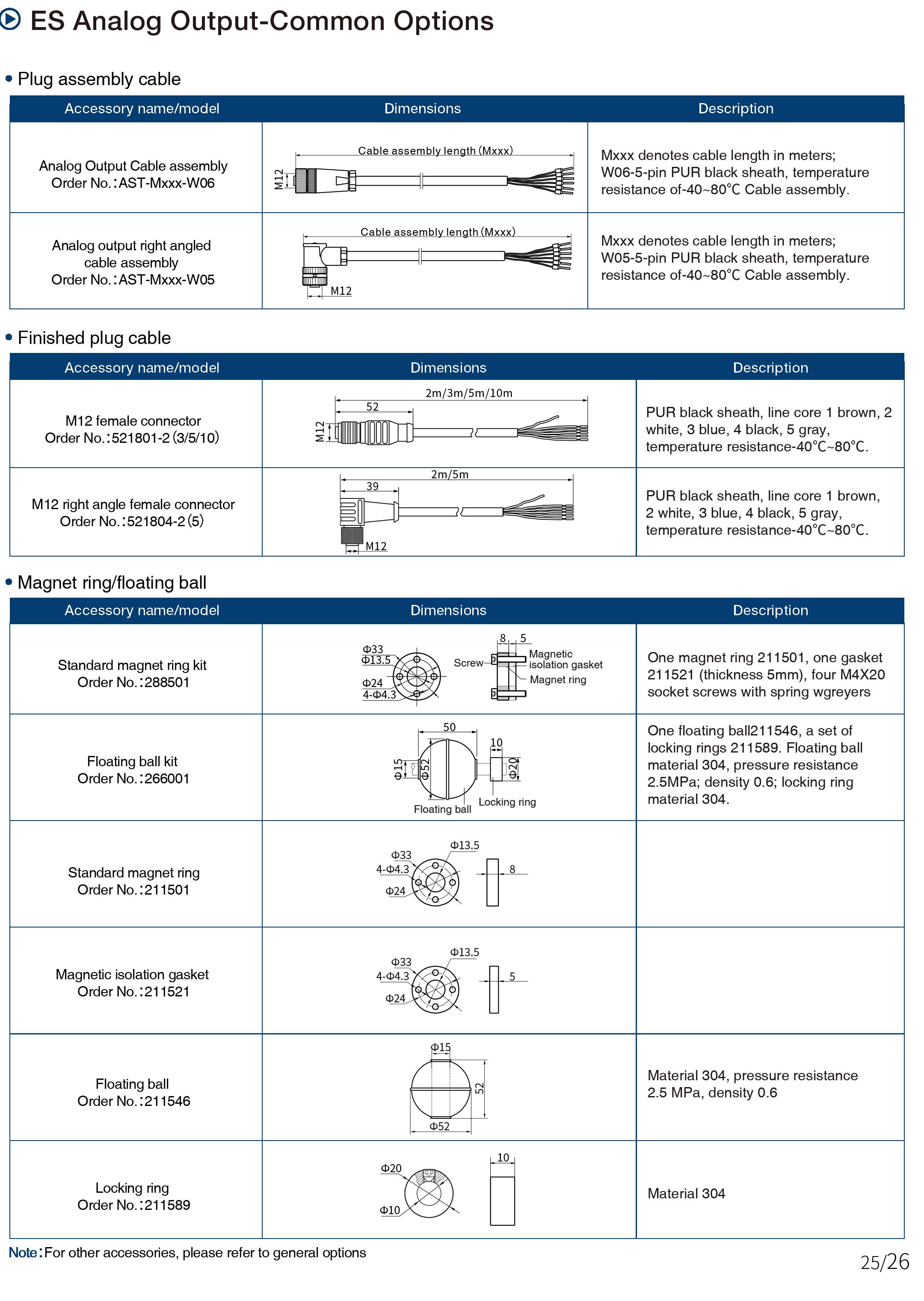

ES Series Magnetostrictive Displacement Sensor-Common Options

ES Series Magnetostrictive Displacement Sensor-Common Options


Ordering Information

Ordering Information

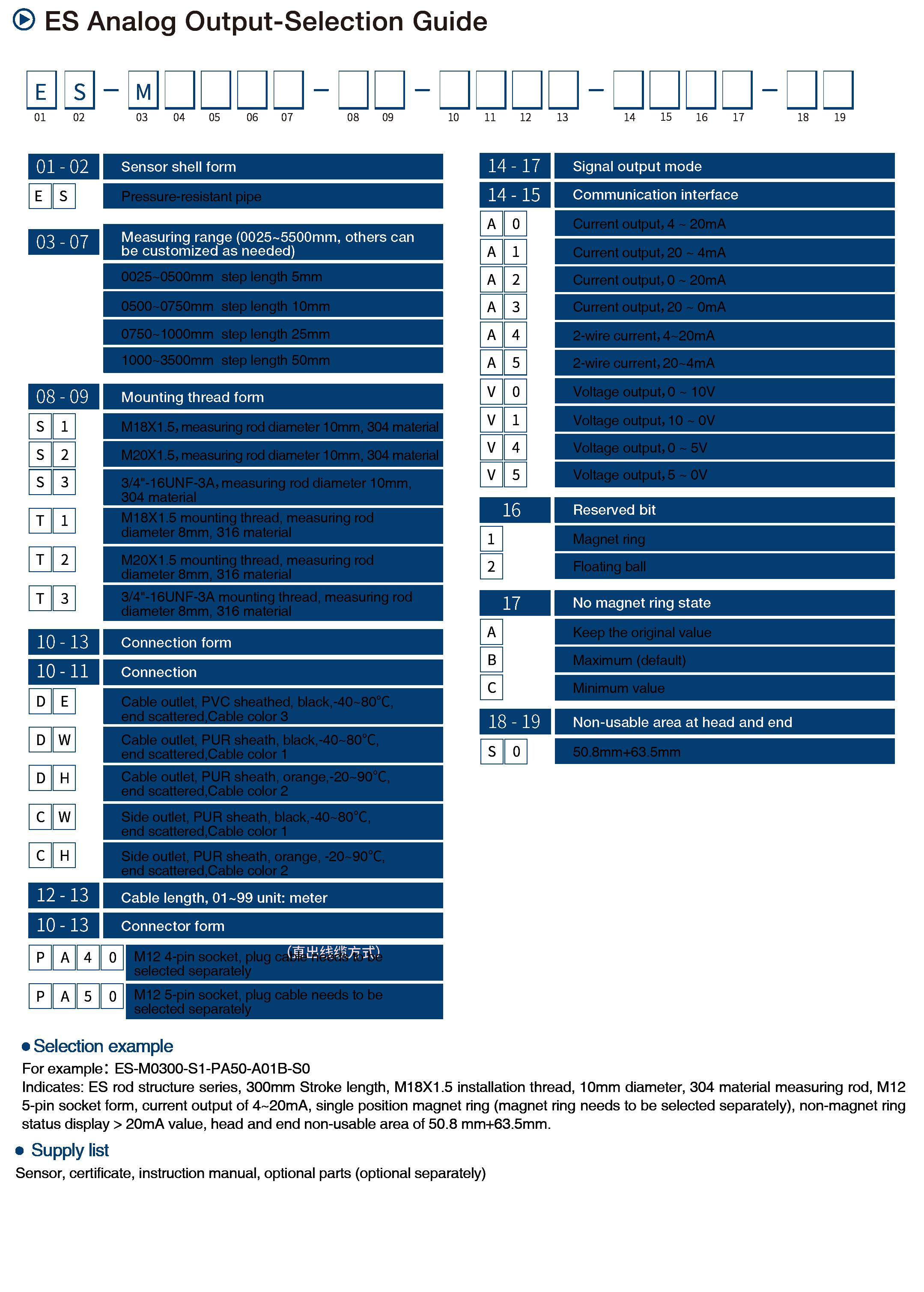

ES Analog Output-Selection Guide







Packaging Information


ItemDescriptionReel/Tray

Pcs/Roll

G.WN.W

QTY/Carton

Package Size
ES Analog Seris

ES Series Magnetostrictive Displacement Sensor


25–5500 mm stroke

0.05% FS nonlinearity

Non-Contact

IP67







-kgs-kgs-pcs-mm



Discover all the technical specifications by downloading the datasheet today.




All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
