Home / Products / Sensor Products / Sensor Accessories / Magnet Rings and Floating Balls

Magnet Rings and Floating Balls Selection2

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Parts Selection

Magnet ring Selection








Accessory name/modelDimensionsApplication

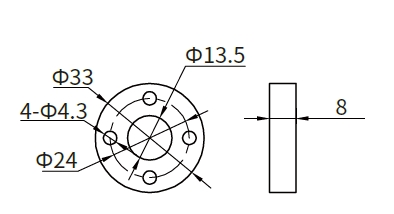

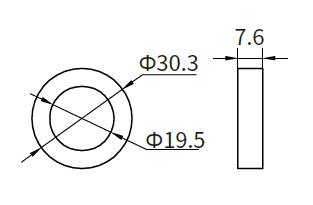

211501

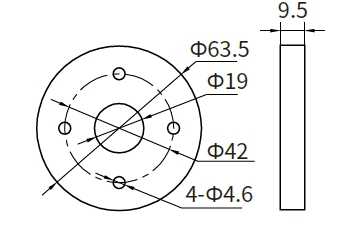

Standard magnet ring

Order No.：211501


211501 SIZE

Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

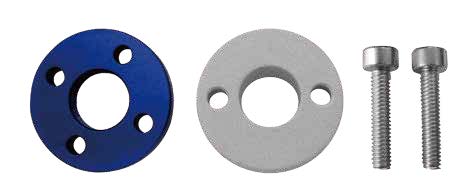

288501

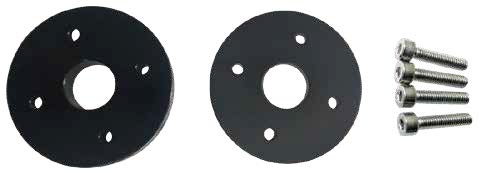

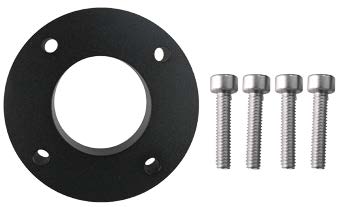

Standard magnet ring kit

Order No.：288501


288501


Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw: GB/T70.1, M4X18, Material 304

Spring gasket： GB/T 93，Ф 4， Material304

Includes: 1 Magnet, 1 gasket, 4 screws with

spring washer

Application：RH/RF/FBGB/RS/RD/RB

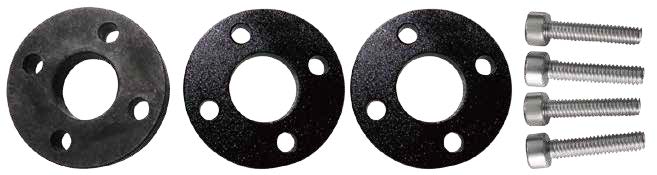

288501-2


288501-2

Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw: GB/T70.1, M4X18, Material 304 Spring

gasket： GB/T 93， Ф 4， Material 304

Includes: 1 Magnet, 2 gaskets, 4 screws with

spring washer

Application：RH/RF/FBGB/RS/RD/RB

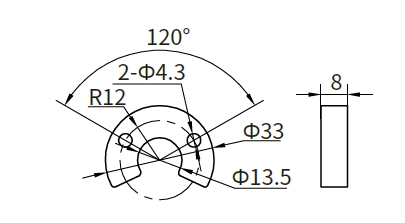

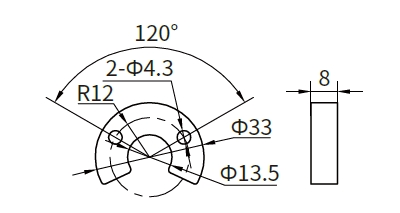

211502

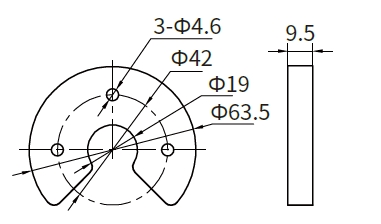

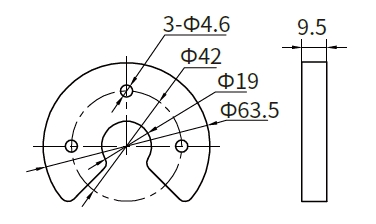

Sector magnet

Order No.：211502


211502

Includes: 1 Magnet

Application：RP

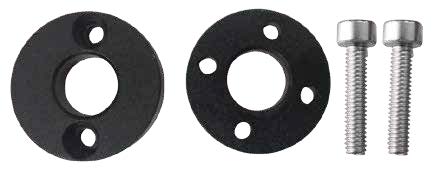

288502

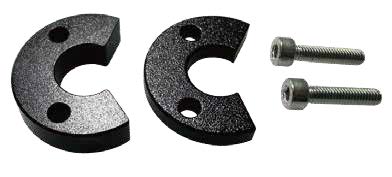

Sector magnet kit

Order No.：288502


288502


Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw: GB/T70.1, M4X18, Material 304

Spring gasket: GB/T 93, Ф4, Material 304

Includes: 1 Magnet, 1 gasket, 2 screws with

spring washer

Application：RP


211503

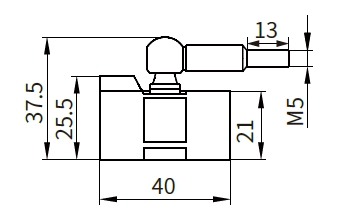

Slider Magnet

Order No.：211503


211503


Screw: M5X25, Material 304

Nut: GB/T6170, M5, Material 304

Includes: 1 slider, 1 screw, 2 nuts

Application：RP

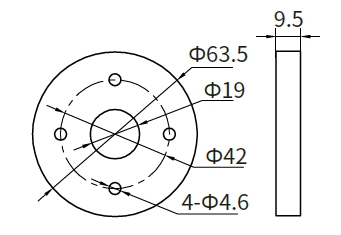

211504

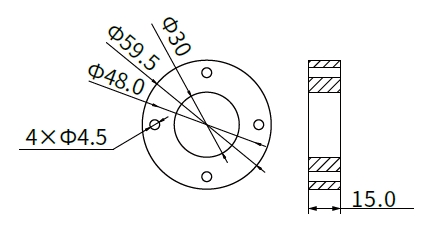

Enlarge magnet ring

Order No.：211504

211504

Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

288504

Enlarged magnet ring kit

Order No.：288504

288504

Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw： GB/T70.1，M4X20

Spring gasket: GB/T 93, Ф4, Material 304

Includes: 1 Magnet, 1 gasket, 2 screws with

spring washer

Application：RH/RF/FBGB/RS/RD/RB

211505

Enlarged sector magnet

Order No.：211505


211505


Includes: 1 Magnet

Application：RP


288505

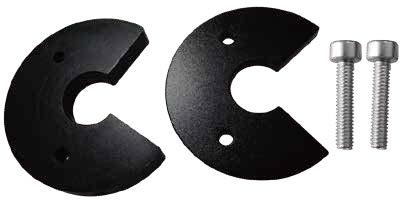

Enlarged sector magnet Kit

Order No.：288505


288505


Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw： GB/T70.1，M4X20 ，Material

304

Spring gasket: GB/T 93, Ф4, Material 304

Includes: 1 Magnet, 1 gasket, 2 screws

with spring washer

Application：RP


211506

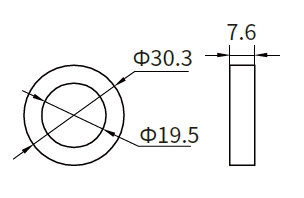

Magnet ring

Order No.：211506


211506


Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

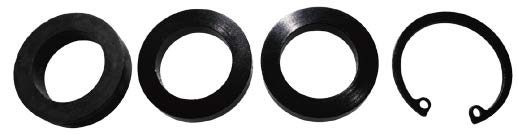

288506

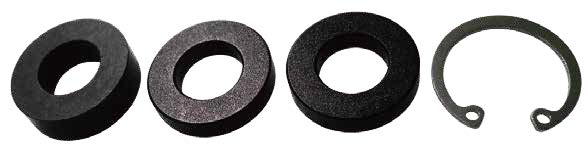

Magnet ring Kit

Order No.：288506

288506

Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Retaining ring： GB/T893 ，26

Includes: 1 Magnet, 2 gaskets and 1

retaining ring

Application：RH/RF/FBGB/RS/RD/RB

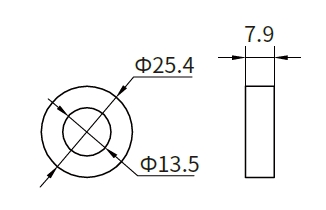

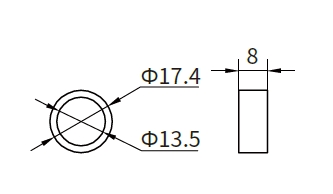

211507

Magnet

Order No.：211507

211507

Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

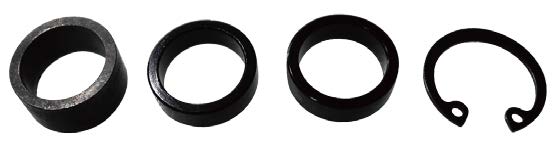

288507

Magnet ring Kit

Order No.：288507


288507

Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Retaining ring： GB/T893 ，18

Includes: 1 Magnet, 2 gaskets and 1

retaining ring

Application：RH/RF/FBGB/RS/RD/RB

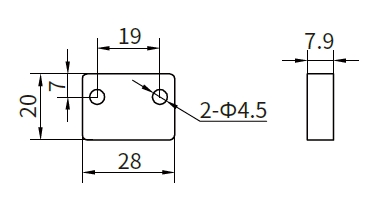

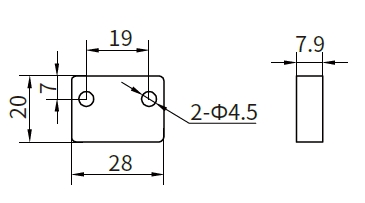

211508

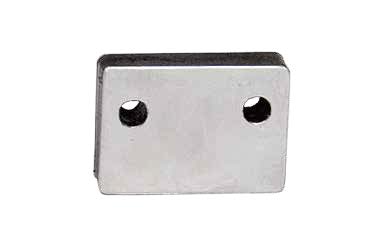

Square magnet

Order No.：211508

211508

Includes: 1 Magnet

Application：RP

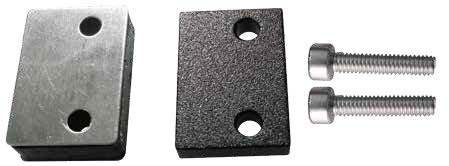

288508

Square magnet kit

Order No.：288508

288508

Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw: GB/T70.1, M4X20, Material 304

Spring gasket: GB/T 93, Ф 4, Material 304

Includes: 1 Magnet, 1 gasket, 2 screws with

spring washer

Application：RP

211509

Magnet ring

Order No.：211509

211509

Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

288509

Magnet ring Kit

Order No.：288509

288509

Magnetic insulation gasket: size same

as Magnet ring, thickness 5mm

Retaining ring: GB/T893, 18

Includes: 1 Magnet, 2 gaskets and 1

retaining ring

Application：RH/RF/FBGB/RS/RD/RB

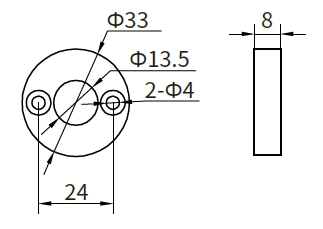

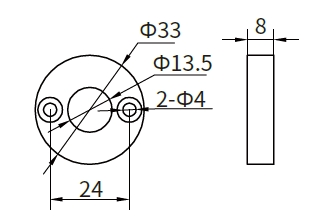

211511

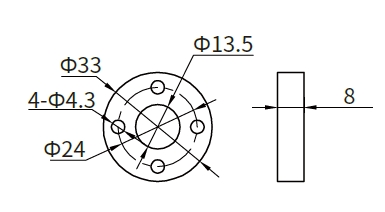

Magnet ring 33

Order No.：211511


211511

Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB


288511

Magnet ring 33 Kit

Order No.：288511


288511

Magnetic insulation gasket: size same as

Magnet ring, thickness 5mm

Screw： GB/T70.1，M4×20

Includes: 1 Magnet, 1 gasket, 2 screws

with spring washer

Application：RH/RF/FBGB/RS/RD/RB

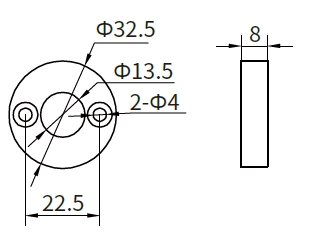

211519

Weak magnet Magnet ring 32

Order No.：211519

211519


Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

288519

Weak magnet Magnet ring 32 kit

Order No.：288519

288519

Magnetic insulation gasket: size same as

magnet ring, thickness 5mm

Screw: GB/T70.1, M4X20, Material 304

Spring gasket: GB/T93, Ф4, material 304

Includes: 1 Magnet, 1 gasket, 2 screws with

spring washer

Application：RH/RF/FBGB/RS/RD/RB

211514

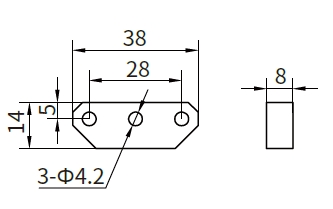

Trapezoidal magnet

Order No.：211514

211514

Includes: 1 Magnet

Application：RP

288514

Trapezoidal magnet kit

Order No.：288514


288514

Magnetic insulation gasket: size same as

Magnet ring, thickness 5mm

Screw: GB/T70.1, M4X20, Material 304

Spring gasket: GB/T93, Ф4, material 304

Includes: 1 Magnet, 1 gasket, 3 screws

with spring washer

Application：RP

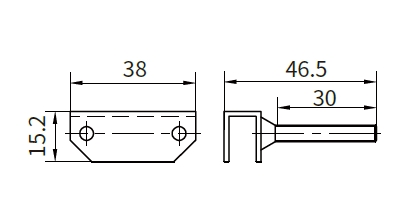

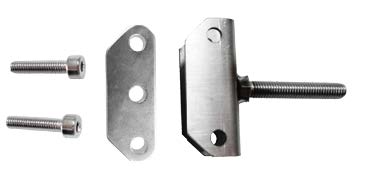

288514A

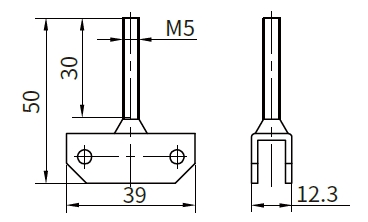

Trapezoidal Magnet (Straight) Kit

Order No.：288514A

288514A

Nut: GB/T6170, M5, Material 304

Includes: 1 Magnet, 1 Magnet holder, 2

screws

Application：RP

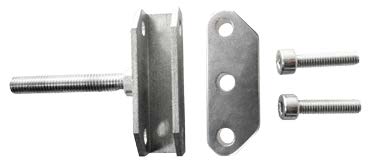

288514B

Trapezoidal Magnet (Bending) Kit

Order No.：288514B

288514B

Nut: GB/T6170, M5, Material 304

Includes: 1 Magnet, 1 Magnet

holder, 2 screws

Application：RP

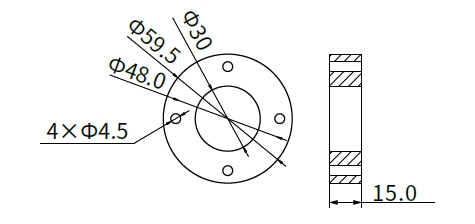

211573

Magnet ring

Order No.：211573

211573

Includes: 1 Magnet

Application：RH/RF/FBGB/RS/RD/RB

288573

Magnet ring Kit

Order No.：288573

288573

Nut: GB/T70.1, M4×25, Material 304

Includes: 1 Magnet, 4 screws

Application：RH/RF/FBGB/RS/RD/RB



Other Accessories

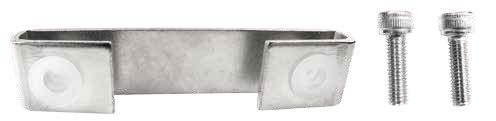

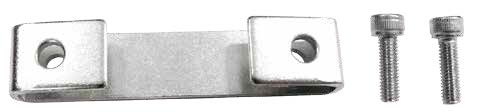

211561

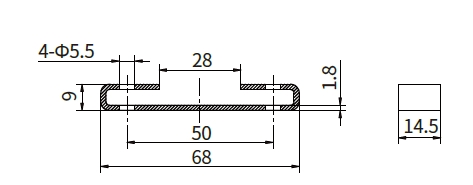

Mounting clamp kit

Order No.：211561


211561


Nut: GB/T70.1, M5×16, Material 304

Includes: 1 clip, 2 screws

Application：RP


211801

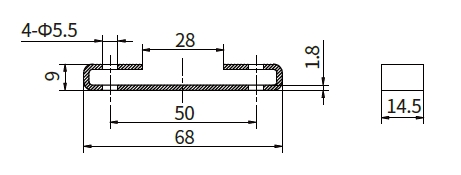

Mounting clamp Kit (Including

Insulation washer)

Order No.：211801


211801

Nut: GB/T70.1, M5×16, Material 304

Includes: 1 clip, 2 screws, 2 Insulation

washers

Application：RP

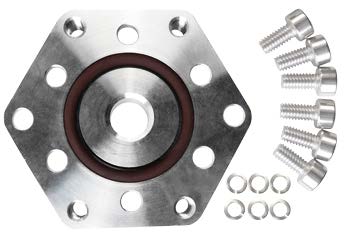

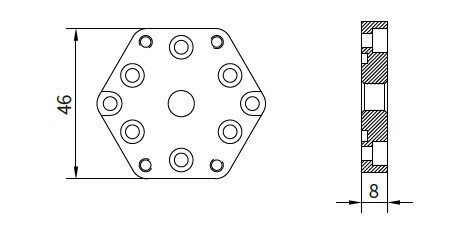

988003

Transfer flange kit

Order No.：988003


988003

Nut: GB/T70.1, M5×16, Material 304

Includes: 1 flange, 6 M4×8 screws with

spring washer, 1 sealing ring

Application：RF/RH



Ordering Information

All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
