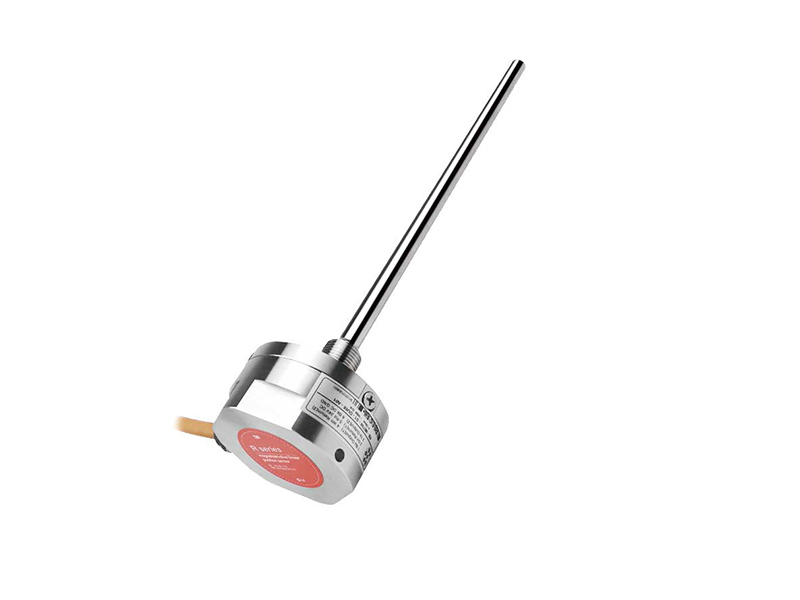

RB Flat Magnetostrictive Position Sensor

  • RB Flat Magnetostrictive Position Sensor
  • RB Flat Magnetostrictive Position Sensor
  • RB Flat Magnetostrictive Position Sensor
  • RB Flat Magnetostrictive Position Sensor

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Features

Non-contact, wear-free magnetostrictive technology delivers absolute linear position signals with minimal maintenance.

Ultra-compact and flat stainless steel design enables easy installation in cylinders and narrow spaces.

Rugged, fully enclosed IP67 protection and high pressure resistance (up to 35MPa continuous / 70MPa peak) ensure reliable operation in harsh environments.

Multiple output options—including analog, SSI, and CANopen—support versatile integration with industrial control systems.

High measurement precision (up to 16-bit D/A, <0.01% FS nonlinearity, <1µm repeatability) and fast update rates (up to 1kHz) provide real-time, accurate feedback for demanding applications.


RB Flat Magnetostrictive Position Sensor-Product Parameters


  • Input

Measurement dataPosition magnet ring
Stroke length50mm~5500mm， customized according to customer's needs
Number of measurements1




  • Output

  • Operating conditions

InterfaceAnalog、SSI、CANopenMagnet ring velocityArbitrary
Resolution

Analog： 16-bit D/A or 0.0015% of full scale (min. 1μm)

Digital quantity： 1 / 2 / 5 / 10 / 20 / 40 / 50 / 100 μm

Protection level

IP67

Nonlinearity< ± 0.01% of full scale, Min. ± 50μm

Operating

temperature

-40℃ ~ +85℃
Hysteresis＜10μmHumidity/dew point100%，relative humidity

Repetition

accuracy

< ± 0.001% of full scale, Min. ± 1μmShock indexGB/T2423.5 100g(6ms)

Update time

1KHz（range≤1m） 500Hz（1m＜range≤2m）

250Hz（2m＜range≤3m），customizable

Vibration indexGB/T2423.10 20g/10~2000Hz

Temperature

coefficient

<30ppm/℃EMC Test

GB/T17626.2/3/4/6/8，Grade 4/3/4/3/3，

Class A，CE Certification




  • Structure and Material

  • Electrical Connection

Electronic bin

304 stainless steelInput voltage+24Vdc±20%

Measuring rod

304 stainless steeloperating current＜100mA（ varying with range）

Outer tube pressure

35MPa (continuous )/70MPa (peak) or

350bar (continuous)/700bar (peak)

Polarity protectionMax.-30Vdc

Position magnet

Standard magnet ring and various ring magnets

Overvoltage protectionMax.36Vdc
Mounting thread

6 M6X16 screws，

M18×1.5、 M20×1.5（Customizable）

Insulation resistance＞10MΩ
Installation directionAny directionInsulation strength500V
Connection typeCable outlet or connector



Installation and Instructions for use


Output characteristic


RB series sensors have high-strength protective shell and high working temperature, and are durable, which can provide users with continuous, reliable and real-time displacement signals in harsh environment. The sensor has a completely stainless steel shell. It is suitable for installing in hydraulic cylinder and measuring the stroke of piston, and is widely used in energy and mining industries.

Thanks to its flat and compact design, the sensor is very suitable for cylinder installation in narrow space.


Installation dimensions

Tight pressure seal type


Tight pressure seal type Installation dimensions





Commonly used accessories


Commonly used accessories

Note: Please refer to "Magnet Ring Selection" for details of magnet ring kit and other models


Wiring Mode

When the sensor is a connector output, refer to the pin definition in the following table for wiring mode; when the sensor is cable outlet cable output, refer to the cable color definition in the following table for connection mode


Wiring Mode


Ordering Information

Ordering Information



Selection Guide-Analog Quantity


Selection Guide-SSI



Selection Guide-CAN Bus












Packaging Information


ItemDescriptionReel/Tray

Pcs/Roll

G.WN.W

QTY/Carton

Package Size
RB Flat Seris

RB Flat Magnetostrictive Position Sensor


50~5500 mm stroke

Analog、SSI、CANopen Interface

-40℃ ~ +85℃ Operating temperature

IP67







-kgs-kgs-pcs-mm



Discover all the technical specifications by downloading the datasheet today.
