Features

Wide 25–2500 mm stroke range with customizable lengths meets diverse measurement needs.

Ultra-high precision with 16-bit D/A conversion, <0.02% full-scale nonlinearity, and <±0.005% full-scale repeatability ensures accurate, reliable results.

Fast 1 ms update time (for range ≤1m) provides real-time position feedback for dynamic applications.

Robust IP65 protection, –40°C to +85°C operating temperature, and strong shock/vibration resistance guarantee performance in harsh industrial environments.

Non-contact, absolute linear measurement with analog output (4–20mA or 0–10V/0–5V) and flexible installation using aluminum profile and movable mounting clamps.

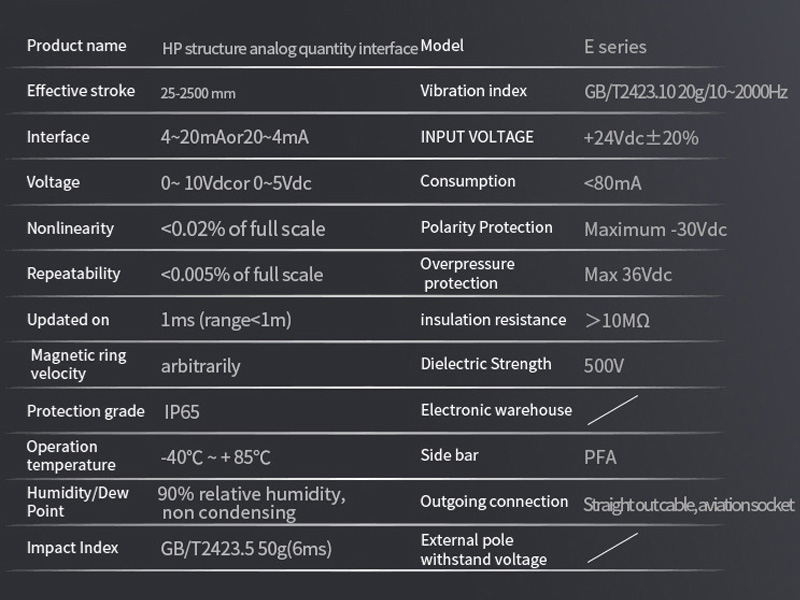

Technical Characteristics

Product Name	HP Analog Output Displacement Sensor	Model	HP Seris
Measuring Range	25–2500 mm	Vibration Index	GB/T2423.10 20g/10~2000Hz
Interface	4-20mA or 20-4mA	Input Voltage	+24Vdc±20%
Voltage	0~10Vdc or 0~5Vdc	Consumption	<80mA
Nonlinearity	<0.02% of full scale	Polarity Protection	Maximum -30Vdc
Repeatability	<0.005% of full scale	Overpressure Protection	Max 36Vdc
Updated on	lms ( range < lm )	Insulation Resistance	>10MΩ
Magnetic Ring Velocity	Arbitrarily	Dielectric Strength	500V
Protection Grade	IP65	Electronic Warehouse	/
Operation Temperature	-40°C ~ +85°C	Side Bar	PFA
Humidity/Dew Point	90% relative humidity, non condensing	Outgoing Connection	Straight outlet cable, aviation socket
Impact Index	GB/T2423.5 50g(6ms)	External Pole With Stand Voltage	/

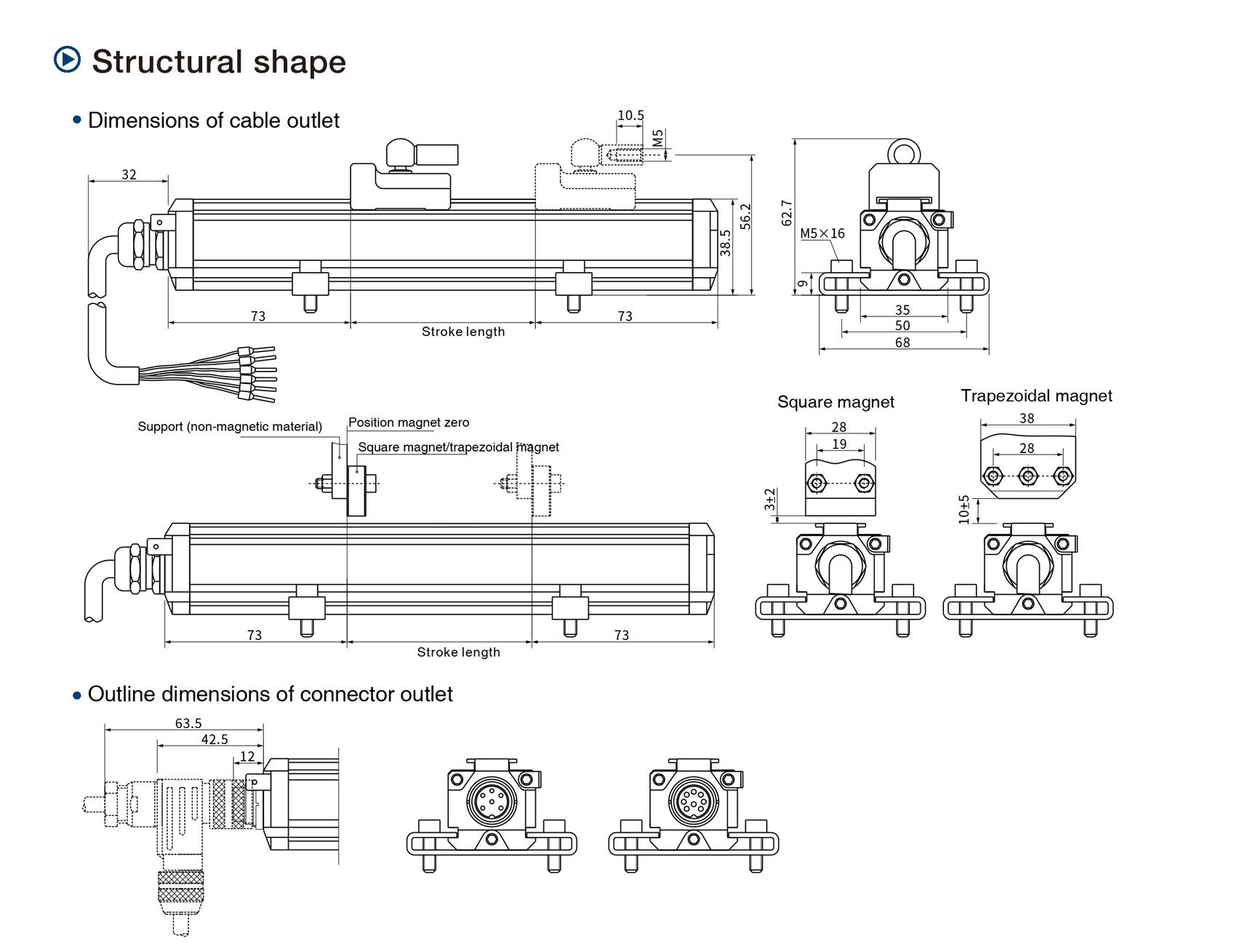

Structural Shape

HP Analog Output Displacement Sensor Structural Shape

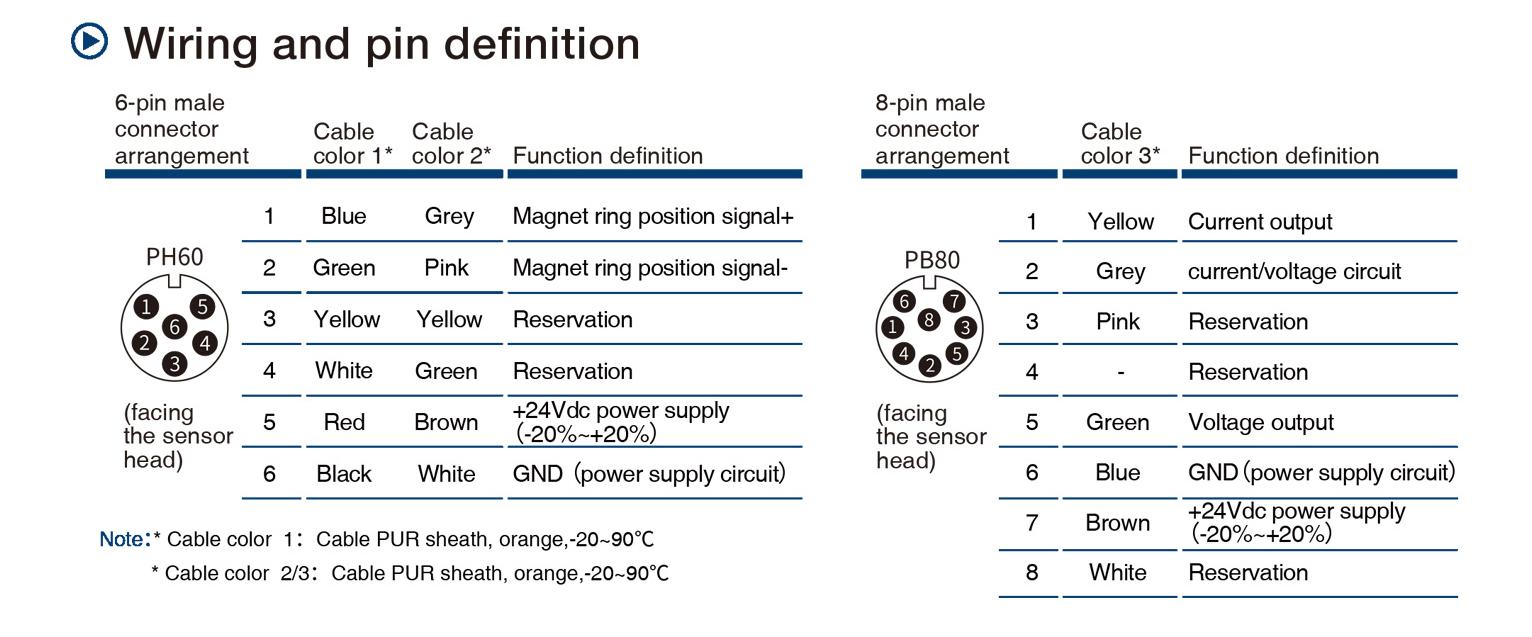

Wiring and Pin Definition

HP Analog Output Displacement Sensor Wiring and Pin Definition

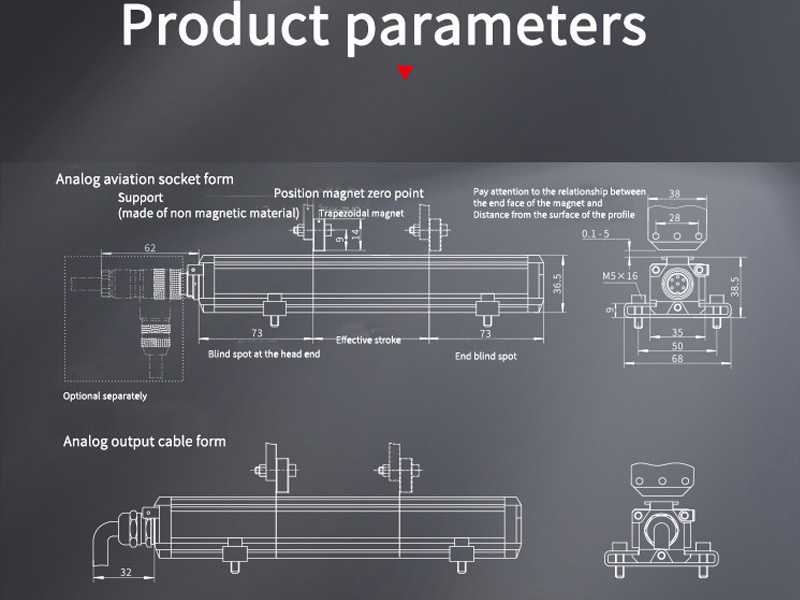

HP Analog Output Displacement Sensor -Product Parameters

Input
Measuring data		Position magnet ring
Stroke length		50~2500 mm（customized according to customer's needs）
Output
Current		4 ~ 20mA or 20~4mA(min/max load 0/500Ω)
Voltage		0 ~ 10Vdc or 0~5Vdc（minimum load resistance ≥10KΩ）
Resolution		16-bit D/A or 0.0015% of full scale (minimum 5μm)
Nonlinearity		< 0.02% of full scale
Repeatability		< ± 0.005% of full scale
Update time		1ms(range≤1m), 2ms(1m<range≤2m), 3ms(2m<range≤3m)
Hysteresis		<10μm
Operating conditions
Magnet velocity		Arbitrary
Protection class		IP65
Operating temperature		40℃ ~ +85℃
Humidity/dew point		Humidity 90%, no condensation
Temperature coefficient		<30ppm/℃
Shock index		GB/T2423.5 50g(6ms)
Vibration index		GB/T2423.10 20g/10~2000Hz
EMC test		GB/T17626.2 Anti-interference Degree of Electrostatic Discharge, Grade 3, Class A GB/T17626.3 Radiation Anti-interference Degree of Radio Frequency Electromagnetic Field, Grade 3, Class A GB/T17626.4 Anti-interference Degree of Electrical Fast Transient Train, Grade 3, Class A GB/T17626.6 RF Field Induced Conducted Disturbance Immunity, Grade 2, Class A GB/T17626.8 Power Frequency Magnetic Field Immunity, Grade 3, Class A CE certification

Electrical Connections		Construction and Materials
Input voltage	+24Vdc±20%	Measuring rod	Aluminum profile
Power consumption	<80mA	Installation	Movable mounting clamp
Polarity protection	Maximum -30Vdc	Position magnet	Slider magnet, trapezoidal magnet
Overvoltage protection	Maximum 36Vdc	Outgoing mode	Cable outlet or connector
Insulation resistance	＞10MΩ
Insulation strength	500V

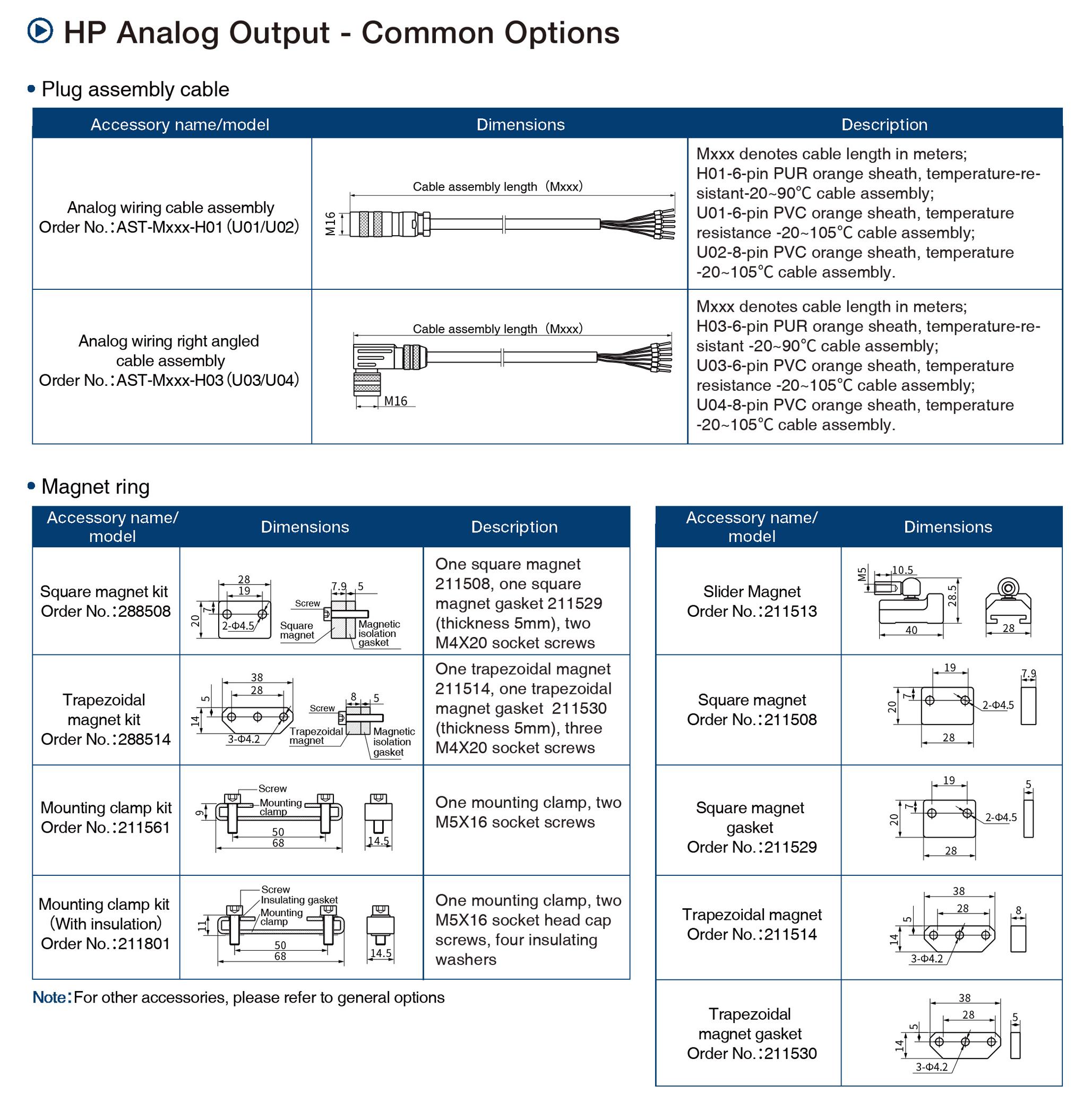

HP Analog Output Displacement Sensor-Common Options

Ordering Information

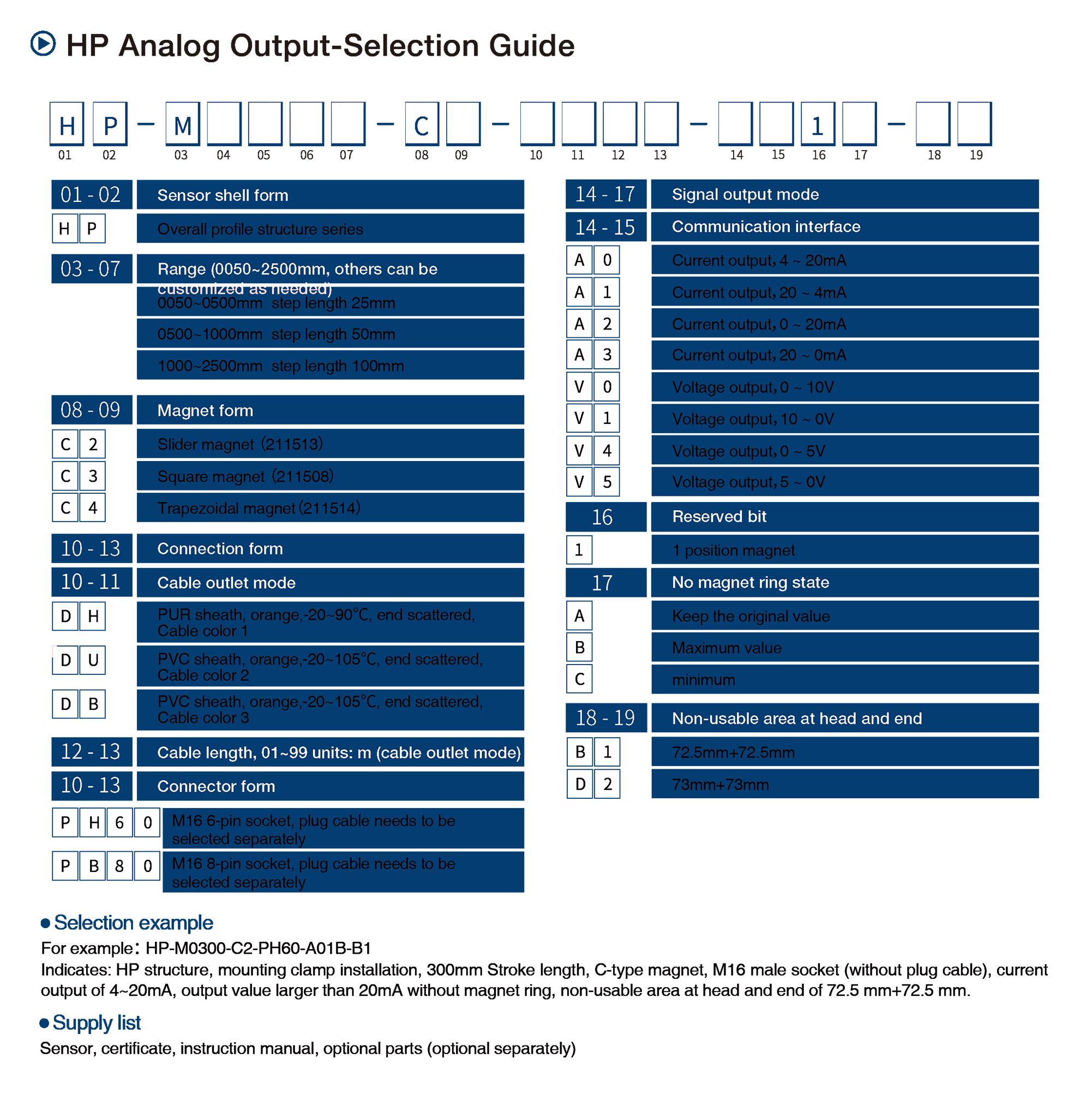

HP Analog Output-Selection Guide

Packaging Information

Item

Description

Reel/Tray

Pcs/Roll

G.W

N.W

QTY/Carton

Package Size

HP Analog Seris

EP Analog Magnetostrictive Displacement Sensor

50–2500 mm Stroke

Ultra-high precision: 16-bit D/A, <0.02% FS nonlinearity, <±0.005% FS repeatability.

Non-Contact

IP65

-kgs

-pcs

-mm

Discover all the technical specifications by downloading the datasheet today.

All Displacement Sensor

Model

Effective Stroke

Interface

Voltage

Nonlinearity

Repeatability

Updated on

Protection Grade

Operation
Temperature (℃)

Material

Shock| Pressure

Datasheet

Sample

RS Waterproof Seris

50mm~5500mm

Analog、SSI、CANopen、Start/Stop

+24Vdc±20%

< ± 0.01% of full scale, Min. ±50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP68

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

RF Flexible Seris

500~7620mm，Up to 23 meters

Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP65 / IP67

-40℃ ~ +85℃

Aluminum alloy

GB/T2423.5 100g(6ms)

RD Split Seris

25~5500 mm

Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP68

-40℃ ~ +125℃

304 stainless steel

GB/T2423.5 100g(6ms)

RB Flat Seris

50~5500 mm

Analog、SSI、CANopen

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

FBGB Explosion-Proof Seris

25~5500 mm

Analog、SSI、CANopen

+24Vdc±20%

< ± 0.01% of full scale, Min. ± 50μm

< ± 0.001% of full scale, Min. ± 1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) Start-Stop Output Seris

25~5500 mm

+24Vdc±20%

< 0.01% full-scale taxi, minimum 50μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +105℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) SSI Output Seris

25~5500 mm

SSI Synchronous Serial Interface

+24Vdc±20%

<±0.01% of full scale, minimum ±50μm

<±0.001% of full scale, minimum ±1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) Profinet Output Seris

25~5500 mm

Profinet IO RT

+24Vdc±20%

< ±0.01% of full scale, minimum ±50μm

< 0.001% for full-scale taxis, minimum ±1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH(P) Profibus-DP Seris

25~5500 mm

Profibus-DP System，ISO74498

+24Vdc±20%

<±0.01% of full scale, minimum ±50μm

<±0.001% of full scale, minimum ±1μm

1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH-P EtherCAT Seris

25~5500 mm

EhterCAT Ethernet Control Automation Technology

+24Vdc±20%

<±0.01% of full scale, minimum 50μm

<±0.001% of full scale, minimum ±1μm

≥0.25ms，depending on the measuring stroke

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH/RP CANBus Seris

25~5500 mm

CANBus System Protocol, IS0DIS11898

+24Vdc±20%

< 0 .01% full-scale taxi, minimum 50μm

<±0.001% of full scale, minimum ±1μm

1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable

IP67/ IP65

-40℃ ~ +85℃

304 stainless steel

GB/T2423.5 100g(6ms)

RH/RP Analog Seris

25~5500 mm

0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K）

<±0.01% of full scale, min±50um

<±0.001% of full scale, min ±1um

1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable

IP67

-40℃ ~ +85℃

304L stainless steel

GB/T2423.5 100g(6ms)

MT Analog Seris

50~2500 mm

CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1

8~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MI CANopen Seris

50~2500 mm

CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1

8~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MI Analog Seris

50~2500 mm

4 ~ 20mA（load resistance≤250Ω）

0.5 ~ 4.5Vdc or 0.25~4.75Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MHA CANopen Seris

50~2500 mm

CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MHA Analog Seris

50~2500 mm

4 ~ 20mA（load resistance≤250Ω）

0.5 ~ 4.5Vdc or 0.25~4.75Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L stainless steel

GB/T2423.5 100g（11ms）

MH CANopen Seris

50~2500 mm

CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1

9~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L

GB/T2423.5 100g（11ms）

MH Analog Seris

50~2500 mm

9~ 32Vdc

±0.1mm（≤250mm）or 0.04%F.S（＞250mm）

±0.1mm

2ms

IP67

-40℃ ~ +105℃

304L

GB/T2423.5 100g（11ms）

ES Modbus Seris

25–3500 mm

Modbus RTU protocol

9~ 30Vdc

Minimum ± 50um or <0.01%.F.S

Minimum ± 10um or <0.001%.F.S

Default 20ms

IP67

-40°C ~ +75°C

304L/316L

GB/T2423.5 50g(6ms)

ES Analog Seris

25–5500 mm

4-20mA or 0-20mA

0~10Vdc or 0~5Vdc

0.05% F.S

Same resolution

lms (four wire system)/ 100 ms (two wire system)

IP67

-40°C ~ +75°C

304L / 316L stainless steel

GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak

HP Analog Seris

25–2500 mm

4-20mA or 20-4mA

0~10Vdc or 0~5Vdc

<0.02% of full scale

<0.005% of full scale

lms ( range < lm )

IP65

-40°C ~ +85°C

PFA

GB/T2423.5 50g(6ms)

ESC Analog Seris

50–3000 mm

4-20mA or 20-4mA

0~10Vdc or 0~5Vdc

士0.1mm(25~400mm)

<±0.l mm

lms (four wire system)/ 100 ms (two wire system)

IP67

-40°C ~ +75°C

PFA

GB/T2423.5 50g(6ms)

EP Analog Seris

25-5500 mm

0-20mA or 4-20mA

0~10Vdc or 0~5Vdc

0.05% F.S

< 0.03% of full scale

< 0.005% of full scale

IP65

-40°C ~ +85°C

Aluminum formed shell

GB/T2423.5 50g(6ms)

ED Analog Seris

50–3000 mm

0–10V/10–0V, signal/ dual

<±0.05% of full scale

<± 0.01% of full scale

2MS

IP65

-40°C ~ +75°C

Aluminum Alloy

GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10

EJ SSI Output Seris

25-5500 mm

SSI Synchronous Serial Interface

+24Vdc±20%

<±0.01% of full scale, minimum±50μm

< ± 0.001% of full scale, minimum ± 5μm

Cable outlet mode IP68; socket way IP67

-40℃ ~ +85℃

304L

GB/T2423.5 100g(6ms)

EJ Modbus Seris

25-5500 mm

Modbus RTU protocol

0-10Vdc or 0-5Vdc

Minimum ±50um(or <±0.01%F.S.)

Minimum ±10um(or <±0.001%F.S.)

10ms

IP67

-40°C - +75°C

304L/316L stainless steel

GB/T2423.5 50g ( 6ms )

EJ Analog Seris

25-5500 mm

4-20mA or 0-20mA

0-10Vdc or 0-5Vdc

<+0.02% of full scale

<± 0.001% offull scale

lms

Outgoing line lP68, Socket LP67

-40°C - +75°C

304L/316L stainless steel

GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)

Less Space,More Possibilities

Easy Integration Of Encoders

HP Analog Output Displacement Sensor

Request Your Quote Today

Related Products

Features

Technical Characteristics

Ordering Information

Ordering Information

Packaging Information

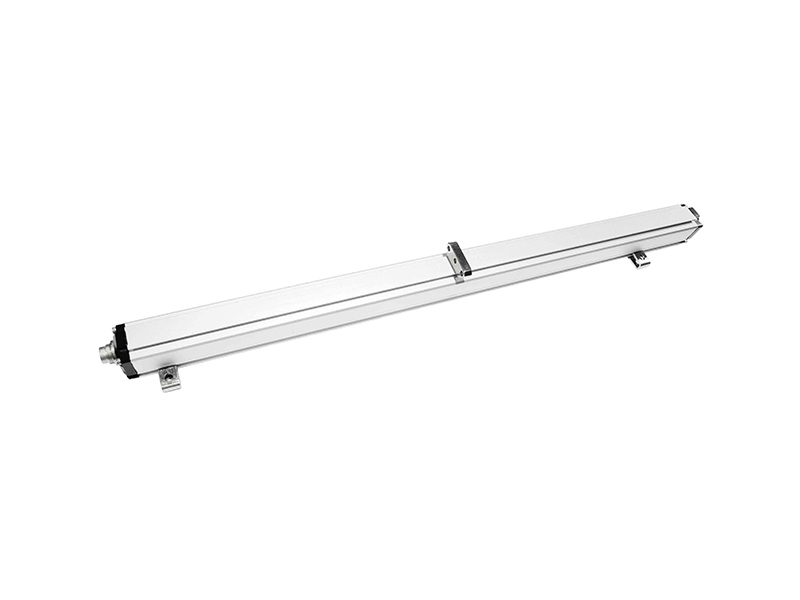

All Displacement Sensor

Application

Recommended News

Comparative analysis of incremental encoder and absolute encoder

Reliability verification and testing of absolute encoders in the aerospace field

Application practice of absolute encoder in precision measurement and positioning system
