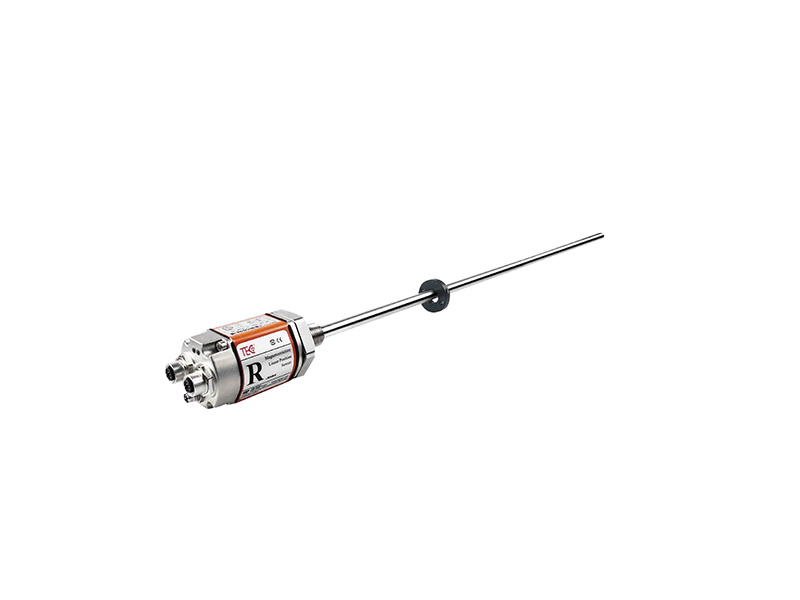

Customized DC-DC Converters Explore DC-DC ConvertersNon-contact, absolute linear measurement ensures long service life and maintenance-free operation.
Direct Profinet output supports high-speed, real-time digital communication and simultaneous multi-magnet position measurement (up to 9 magnets).
Exceptional precision with selectable resolution down to 1 µm, nonlinearity less than 0.01% full scale, and repeatability within 0.001% full scale.
Rugged IP67 (RH) and IP65 (RP) protection, 304 stainless steel rod, and pressure resistance up to 35 MPa continuous for harsh environments.
Integrated LED diagnostics provide real-time sensor status and troubleshooting for easy maintenance and monitoring.
| ||||
| Measurement data | Position magnet ring | |||
| Stroke length | 25~5500 mm，customized according to customer needs | |||
| Number of measurements | 1~9 | |||
|
| ||
| Interface | Profinet IO RT | Magnet velocity | Arbitrary |
| Data protocol | TEC Profile and Encoder Profile 4.1 | Protection level | IP67RH Stainless Stell Rod/IP65RP Aluminum profile |
Transmission speed | Maximum 100Mbit/s | Operating temperature | -40℃ ~ +85℃ |
| Resolution | 1 / 2 / 5 / 10 / 20 / 50 / 100 μm | Humidity/dew point | Humidity 90%, no condensation |
| Nonlinearity | < ±0.01% of full scale, minimum ±50μm | Shock index | GB/T2423.5 100g(6ms) |
Repetition accuracy | < 0.001% for full-scale taxis, minimum ±1μm | Vibration index | GB/T2423.10 20g/10~2000Hz |
| Update time | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | EMC Test | GB/T17626.2/3/4/6/8，Grade 4/3/4/3/3， Class A，CE Certification |
| Hysteresis | <10μm | ||
Temperature coefficient | <15ppm/℃ | ||
|
| |||
| Failure indication | Electronic bin cover with LEDs display | |||
RH Series | Input voltage | +24Vdc±20% | ||
Electronic bin | Aluminum alloy | operating current | ＜90mA（varying with range） | |
Measuring rod | 304 stainless steel | Polarity protection | Max.-30Vdc | |
Outer tube pressure | 35MPa (continuous )/70MPa (peak) or 350bar (continuous)/700bar (peak) | Overvoltage protection | Max.36Vdc | |
Position magnet | Standard magnet ring and various ring magnets | Insulation resistance | ＞10MΩ | |
RP Series | Electronic bin | Aluminum alloy | Insulation strength | 500V |
Measuring rod | Aluminum alloy | |||
Position magnet | Slider magnet, square magnet, sector magnet | |||
Mounting thread form | M18×1.5, M20×1.5, 3/4"-16UNF-3A （customizable） | |||
Installation direction | Any direction | |||
| Outgoing mode | Cable outlet or Connector | |||
Installation Instructions- RH(P) Profinet Output Magnetostrictive Displacement Sensor

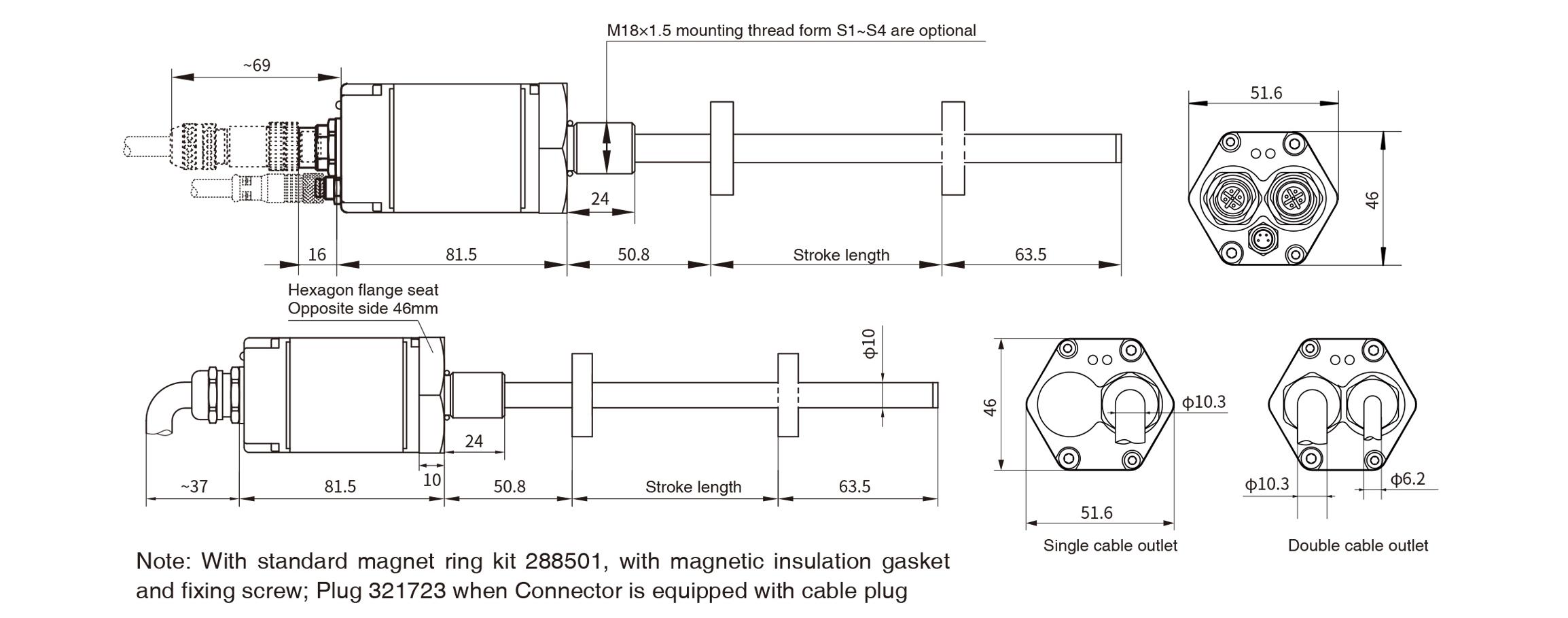

RH pressure-resistant rod mounting dimensions
RH series pressure-resistant rodshell, built-in installation design for hydraulic system, pressure-resistant 35MPa continuous, flexible and simple installation mode, mounting thread form M18×1.5 or M20×1.5 or 3/4"-16UNF-3A.
Note: The measurement Non-usable area shown in the figure indicates that the output value of the sensor in this area is zero or unreliable.
The values of the head and end Non-usable areas of this product are 50.8 m and 63.5 m respectively. The value of the measurement
Non-usable area can be appropriately modified according to the needs of customers, please pointed out when ordering.
Note: With standard magnet ring kit 288501, with magnetic insulation gasket and fixing screw; Plug 321723 when Connector is equipped with cable plug

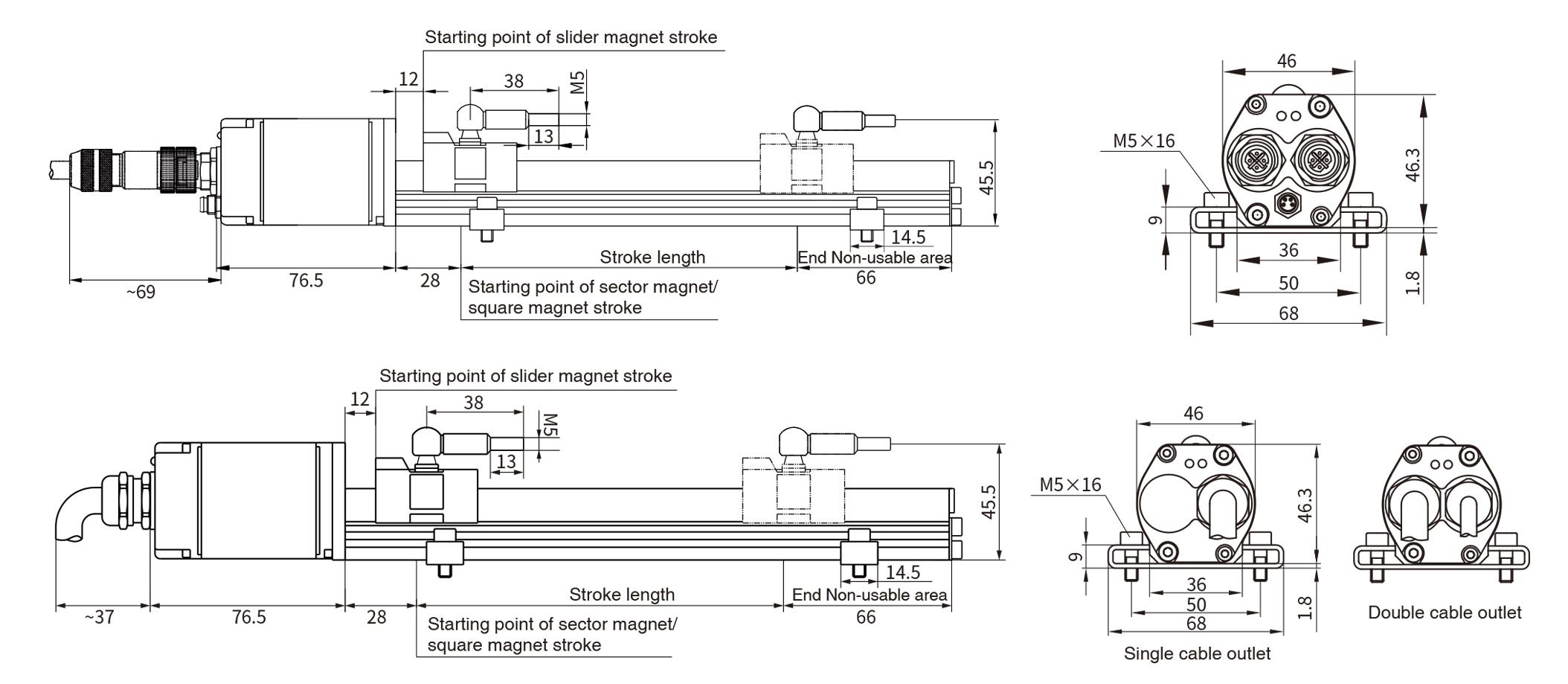

Dimensions and installation guidance of RP aluminum profile sensor
RP Series aluminum profile provides flexible and simple external installation mode, which is suitable for stroke or position detection of linear motion mechanism, and can also be used for external position detection of hydraulic cylinder.

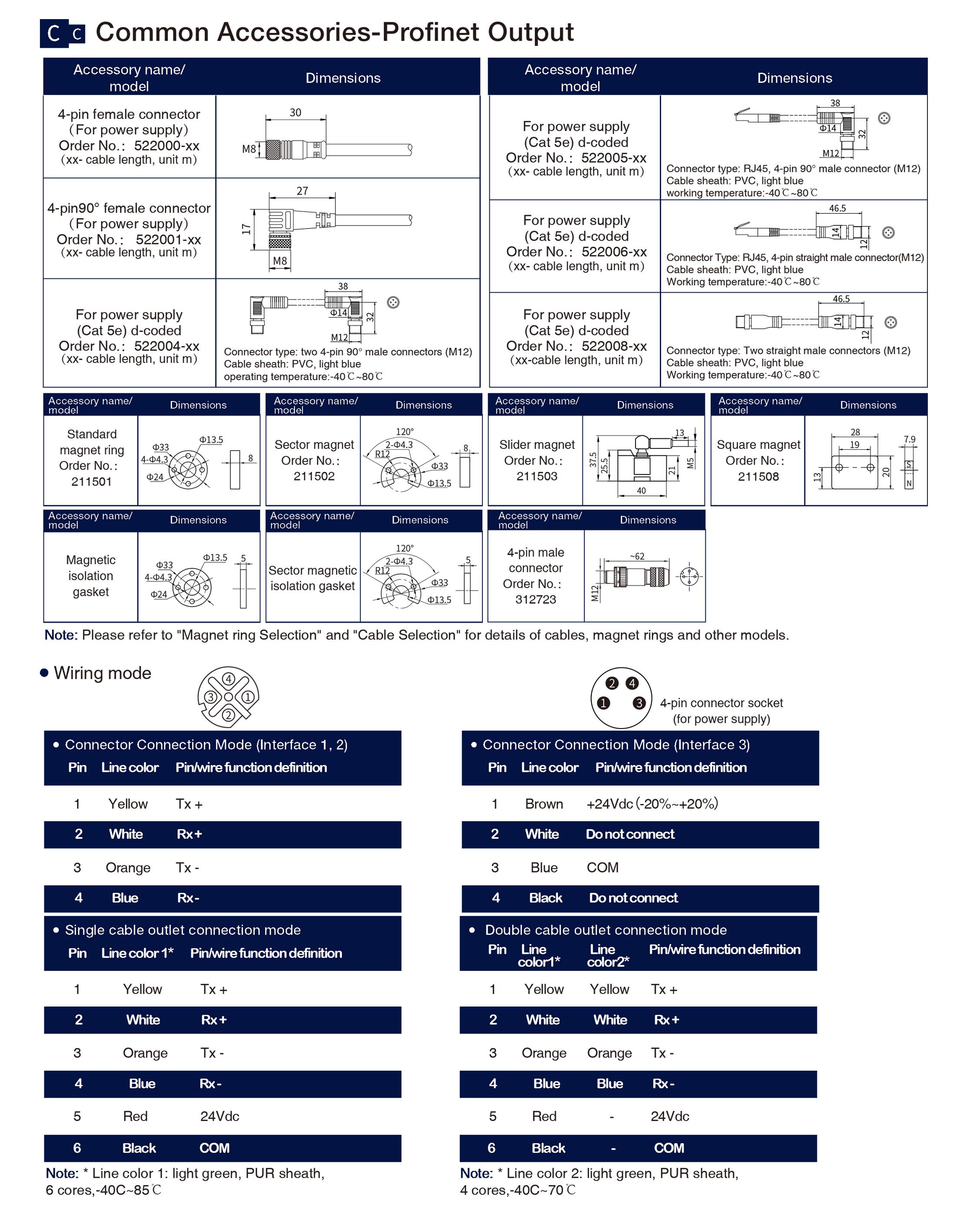

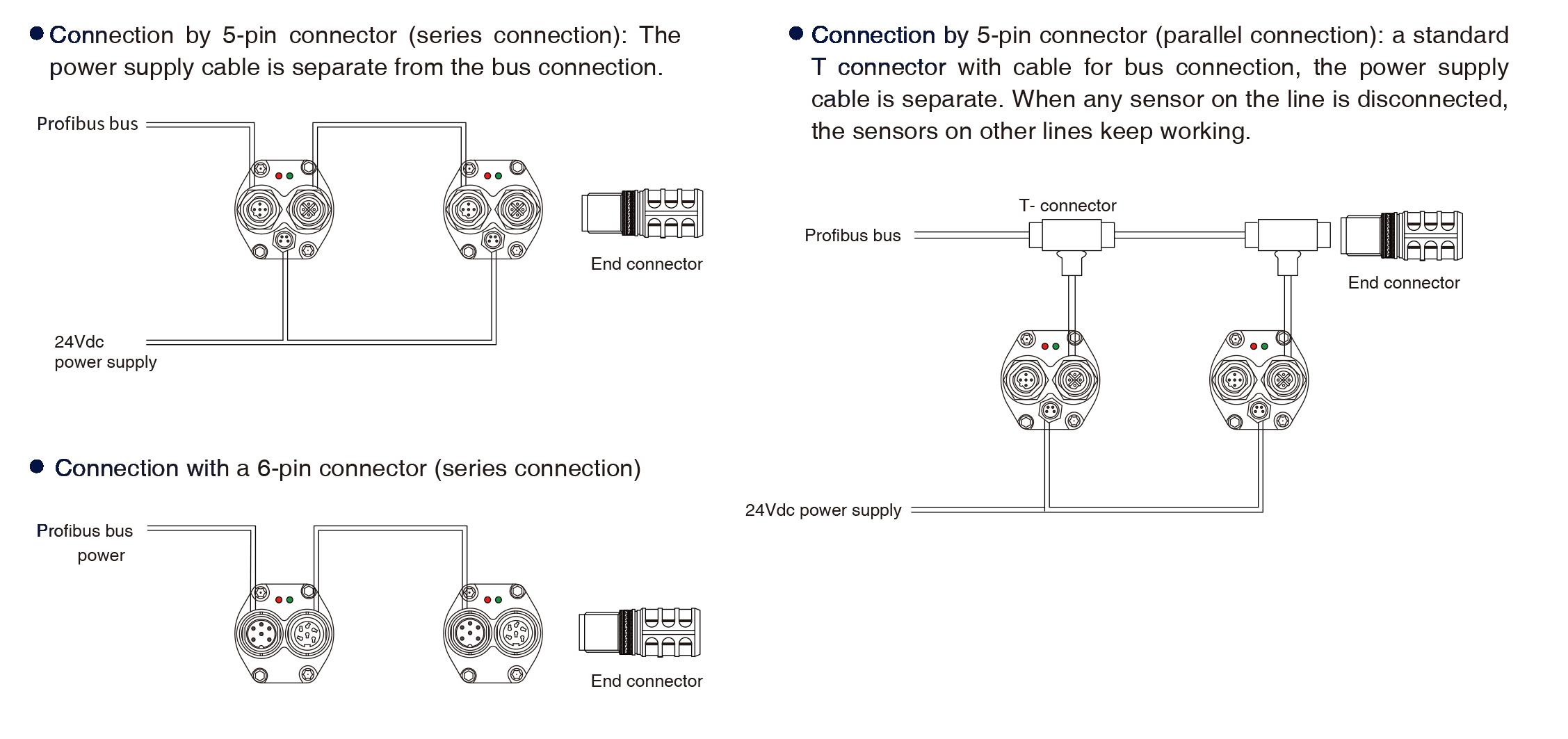

Common Accessories-Profibus- RH(P) Profinet Output Magnetostrictive Displacement Sensor
The integrated LEDs (red or green) provide the basic status feedback and troubleshooting function of the sensor.
| Green light | ON | ON | ON | Flash |
|

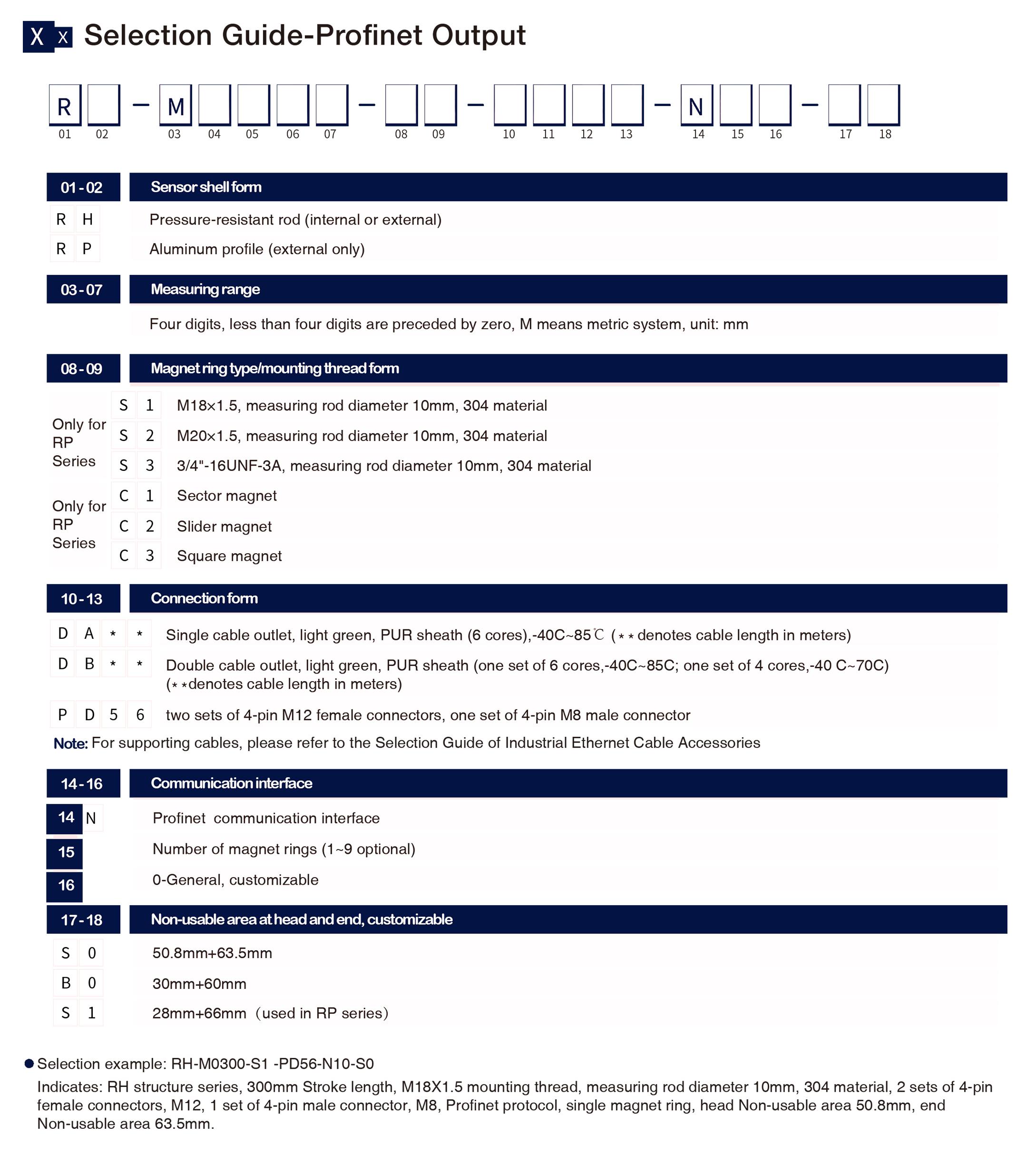

| Red light | OFF | ON | Flash | X | |
| Function | Normal work | The network cable is not connected | Configuring | Fault |
| Item | Description | Reel/Tray | Pcs/Roll | G.W | N.W | QTY/Carton | Package Size |
| RH(P) Profinet Output Seris | RH(P) Profinet Output Magnetostrictive Displacement Sensor 25~5500 mm stroke 1 / 2 / 5 / 10 / 20 / 50 / 100 μm Resolution -40℃ ~ +85℃ Operating temperature IP67 / IP65 | -kgs | -kgs | -pcs | -mm |
Discover all the technical specifications by downloading the datasheet today.
| Model | Effective Stroke | Interface | Voltage | Nonlinearity | Repeatability | Updated on | Protection Grade |
Operation Temperature (℃) |
Material | Shock| Pressure | Datasheet | Sample |
| FBGB Explosion-Proof Seris | 25~5500 mm | Analog、SSI、CANopen | +24Vdc±20% | < ± 0.01% of full scale, Min. ± 50μm | < ± 0.001% of full scale, Min. ± 1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) |  |
|
| RH(P) Start-Stop Output Seris | 25~5500 mm | / | +24Vdc±20% | < 0.01% full-scale taxi, minimum 50μm | / | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +105℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) SSI Output Seris | 25~5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum ±50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Profinet Output Seris | 25~5500 mm | Profinet IO RT | +24Vdc±20% | < ±0.01% of full scale, minimum ±50μm | < 0.001% for full-scale taxis, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH(P) Profibus-DP Seris | 25~5500 mm | Profibus-DP System，ISO74498 | +24Vdc±20% | <±0.01% of full scale, minimum ±50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH-P EtherCAT Seris | 25~5500 mm | EhterCAT Ethernet Control Automation Technology | +24Vdc±20% | <±0.01% of full scale, minimum 50μm | <±0.001% of full scale, minimum ±1μm | ≥0.25ms，depending on the measuring stroke | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH/RP CANBus Seris | 25~5500 mm | CANBus System Protocol, IS0DIS11898 | +24Vdc±20% | < 0 .01% full-scale taxi, minimum 50μm | <±0.001% of full scale, minimum ±1μm | 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable | IP67/ IP65 | -40℃ ~ +85℃ | 304 stainless steel | GB/T2423.5 100g(6ms) | |
|
| RH/RP Analog Seris | 25~5500 mm | / | 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） | <±0.01% of full scale, min±50um | <±0.001% of full scale, min ±1um | 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable | IP67 | -40℃ ~ +85℃ | 304L stainless steel | GB/T2423.5 100g(6ms) | |
|
| MT Analog Seris | 50~2500 mm | CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | 8~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MI CANopen Seris | 50~2500 mm | CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | 8~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MI Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA CANopen Seris | 50~2500 mm | CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 | / | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MHA Analog Seris | 50~2500 mm | 4 ~ 20mA（load resistance≤250Ω） | 0.5 ~ 4.5Vdc or 0.25~4.75Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L stainless steel | GB/T2423.5 100g（11ms） | |
|
| MH CANopen Seris | 50~2500 mm | CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| MH Analog Seris | 50~2500 mm | / | 9~ 32Vdc | ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） | ±0.1mm | 2ms | IP67 | -40℃ ~ +105℃ | 304L | GB/T2423.5 100g（11ms） | |
|
| ES Modbus Seris | 25–3500 mm | Modbus RTU protocol | 9~ 30Vdc | Minimum ± 50um or <0.01%.F.S | Minimum ± 10um or <0.001%.F.S | Default 20ms | IP67 | -40°C ~ +75°C | 304L/316L | GB/T2423.5 50g(6ms) | |
|
| ES Analog Seris | 25–5500 mm | 4-20mA or 0-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | Same resolution | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | 304L / 316L stainless steel | GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak | |
|
| HP Analog Seris | 25–2500 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | <0.02% of full scale | <0.005% of full scale | lms ( range < lm ) | IP65 | -40°C ~ +85°C | PFA | GB/T2423.5 50g(6ms) | |
|
| ESC Analog Seris | 50–3000 mm | 4-20mA or 20-4mA | 0~10Vdc or 0~5Vdc | 士0.1mm(25~400mm) | <±0.l mm | lms (four wire system)/ 100 ms (two wire system) | IP67 | -40°C ~ +75°C | PFA | GB/T2423.5 50g(6ms) | |
|
| EP Analog Seris | 25-5500 mm | 0-20mA or 4-20mA | 0~10Vdc or 0~5Vdc | 0.05% F.S | < 0.03% of full scale | < 0.005% of full scale | IP65 | -40°C ~ +85°C | Aluminum formed shell | GB/T2423.5 50g(6ms) | |
|
| ED Analog Seris | 50–3000 mm | / | 0–10V/10–0V, signal/ dual | <±0.05% of full scale | <± 0.01% of full scale | 2MS | IP65 | -40°C ~ +75°C | Aluminum Alloy | GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10 | |
|
|
||||||||||||
|
||||||||||||
|
||||||||||||
|
||||||||||||
| EJ SSI Output Seris | 25-5500 mm | SSI Synchronous Serial Interface | +24Vdc±20% | <±0.01% of full scale, minimum±50μm | < ± 0.001% of full scale, minimum ± 5μm | / | Cable outlet mode IP68; socket way IP67 | -40℃ ~ +85℃ | 304L | GB/T2423.5 100g(6ms) | |
|
| EJ Modbus Seris | 25-5500 mm | Modbus RTU protocol | 0-10Vdc or 0-5Vdc | Minimum ±50um(or <±0.01%F.S.) | Minimum ±10um(or <±0.001%F.S.) | 10ms | IP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g ( 6ms ) | |
|
| EJ Analog Seris | 25-5500 mm | 4-20mA or 0-20mA | 0-10Vdc or 0-5Vdc | <+0.02% of full scale | <± 0.001% offull scale | lms | Outgoing line lP68, Socket LP67 | -40°C - +75°C | 304L/316L stainless steel | GB/T2423.5 50g(6ms), 35MPA/70MPA(peak) | |
