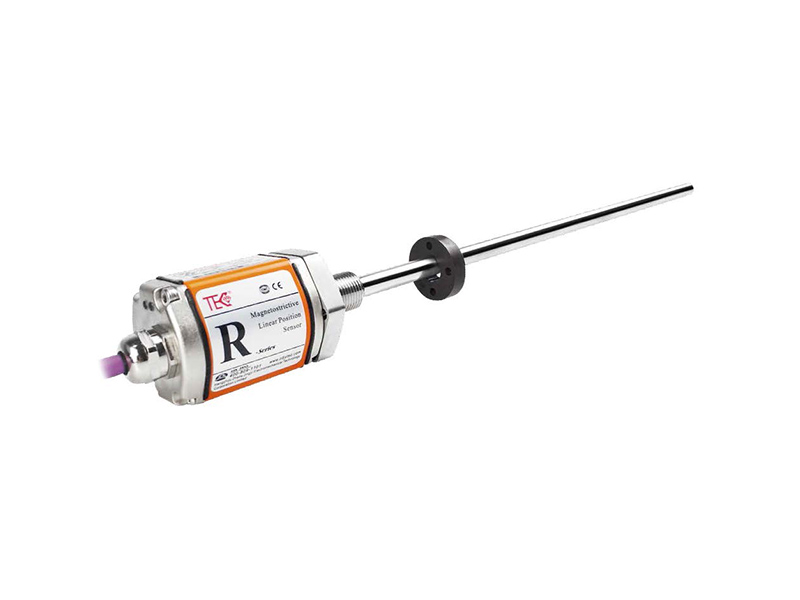

RH/RP CANBus Output Magnetostrictive Displacement Sensor

  • RH/RP CANBus Output Magnetostrictive Displacement Sensor
  • RH/RP CANBus Output Magnetostrictive Displacement Sensor
  • RH/RP CANBus Output Magnetostrictive Displacement Sensor
  • RH/RP CANBus Output Magnetostrictive Displacement Sensor

Datasheet

Footprint

RoHS

Catalogue

Request Your Quote Today

For your personalized quote, kindly fill out the form below. If you need immediate assistance, feel free to reach out to us: liya@epoch-electronic.com.

Technical Data Ordering Information All Moudles

DC-DC Power Modules

Customized DC-DC Converters Explore DC-DC Converters

Encoder Products

Explore Rotary Encoder

Sensor Products

Related Products

Features

Non-contact, wear-free magnetostrictive technology delivers absolute linear measurement and long service life.

CANBus (CANopen) digital output supports high-speed, real-time, multi-magnet position feedback and seamless industrial network integration.

Ultra-high precision with up to 1µm resolution, <0.01% full-scale nonlinearity, and repeat accuracy better than ±1µm.

Rugged IP67 (RH) and IP65 (RP) protection, 304 stainless steel rod, and pressure resistance up to 35 MPa (continuous) for harsh environments.

LED status monitoring, flexible mounting (threaded or profile), and multiple connector/cable options simplify installation and diagnostics.



RH/RP CANBus Output Magnetostrictive Displacement Sensor -Product Parameters


  • Input

Measurement dataPosition magnet ring
Stroke length25~5500 mm，customized according to customer needs
Number of measurements1~9




  • Output

  • Operating conditions

InterfaceCANBus System Protocol, IS0DIS11898Magnet velocityArbitrary
CANopen

CIA Standard DS-301V3.0 Encoder Profile

DS-406V3.1

Protection level

IP67RH Stainless Stell Rod/IP65RP

Aluminum profile

Transmission speed

Maximum 1Mbit/s

Operating

temperature

-40℃ ~ +85℃
Resolution1 / 2 / 5 / 10 / 20 / 50 / 100 μmHumidity/dew pointHumidity 90%, no condensation
Nonlinearity< 0 .01% full-scale taxi, minimum 50μmShock indexGB/T2423.5 100g(6ms)

Repetition

accuracy

<±0.001% of full scale, minimum ±1μmVibration indexGB/T2423.10 20g/10~2000Hz
Update time

1KHz（ range ≤1m）500Hz（1m＜ range ≤2m）

250Hz（2m＜ range ≤3m），customizable

EMC Test

GB/T17626.2/3/4/6/8，Grade4/3/4/3/3,

Class A, CE Certification

Hysteresis<10μm

Temperature coefficient

<15ppm/℃



  • Structure and Material

  • Electrical Connection

RH

Series

Failure indicationElectronic bin cover with LEDs displayInput voltage+24Vdc±20%

Electronic bin

Aluminum alloyoperating current<80mA（varying with range）

Measuring rod

304 stainless steelPolarity protectionMax.-30Vdc

Outer tube pressure

35MPa (continuous )/70MPa (peak) or 350bar

(continuous)/700bar (peak)

Overvoltage protectionMax.36Vdc

Position magnet

Standard magnet ring and various ring magnetsInsulation resistance＞10MΩ

RP

Series

Electronic bin

Aluminum alloyInsulation strength500V

Measuring rod

Aluminum alloy

Position magnet

Slider magnet, square magnet, sector magnet

Mounting thread

form


M18×1.5、 M20×1.5、3/4"-16UNF-3A

（customizable）

Installation

direction


Any direction
Outgoing mode
Cable outlet or Connector

Output Characteristics-RH/RP CANBus Output Magnetostrictive Displacement Sensor

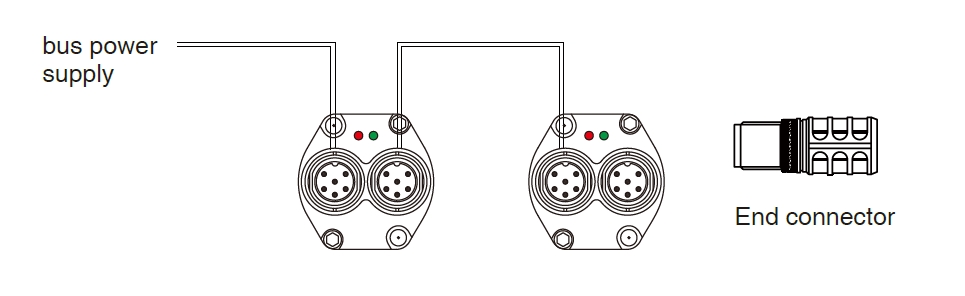

Connect by 6-pinconnector (series connection)

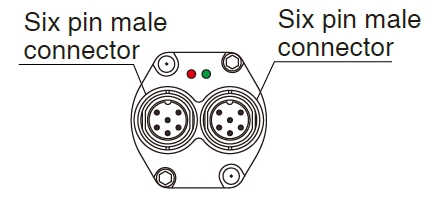

Connect by 6-pinconnector




LED Real-time State Monitoring and Diagnosis


As a slave station, CAN output magnetostrictive displacement sensor can upload the displacement information and velocity information of the vernier magnet to the controller in real time through bus. It conforms to CAN (ISO 11898) protocol standard, and the maximum transmission rate is 1Mbit/s.

The integrated LEDs (red or green) provide the basic status feedback and troubleshooting function of the sensor.


Green lightONONONFlash

LED Real-time State Monitoring and Diagnosis


Red lightOFFFlashONON
FunctionNormal work

The magnet leaves the

Stroke length range


Magnet not detectedProgramming status

Installation Instructions-RH/RP CANBus Output Magnetostrictive Displacement Sensor

Dimensions and installation guidance of RH pressure-resistant rod sensor


RH series pressure-resistant rodshell, built-in installation design for hydraulic system, pressure-resistant 35MPa continuous, flexible and simple installation mode, mounting thread form M18×1.5 or M20×1.5 or 3/4"-16UNF-3A.

Note: The measurement Non-usable area shown in the figure indicates that the output value of the sensor in this area is zero or unreliable.

The values of the head and end non-usable areas of this product are 50.8mm and 63.5mm respectively. The value of the measurement non-usable area can be appropriately modified according to the needs of customers, please pointed out when ordering.


Installation Instructions-RH/RP CANBus Output Magnetostrictive Displacement Sensor

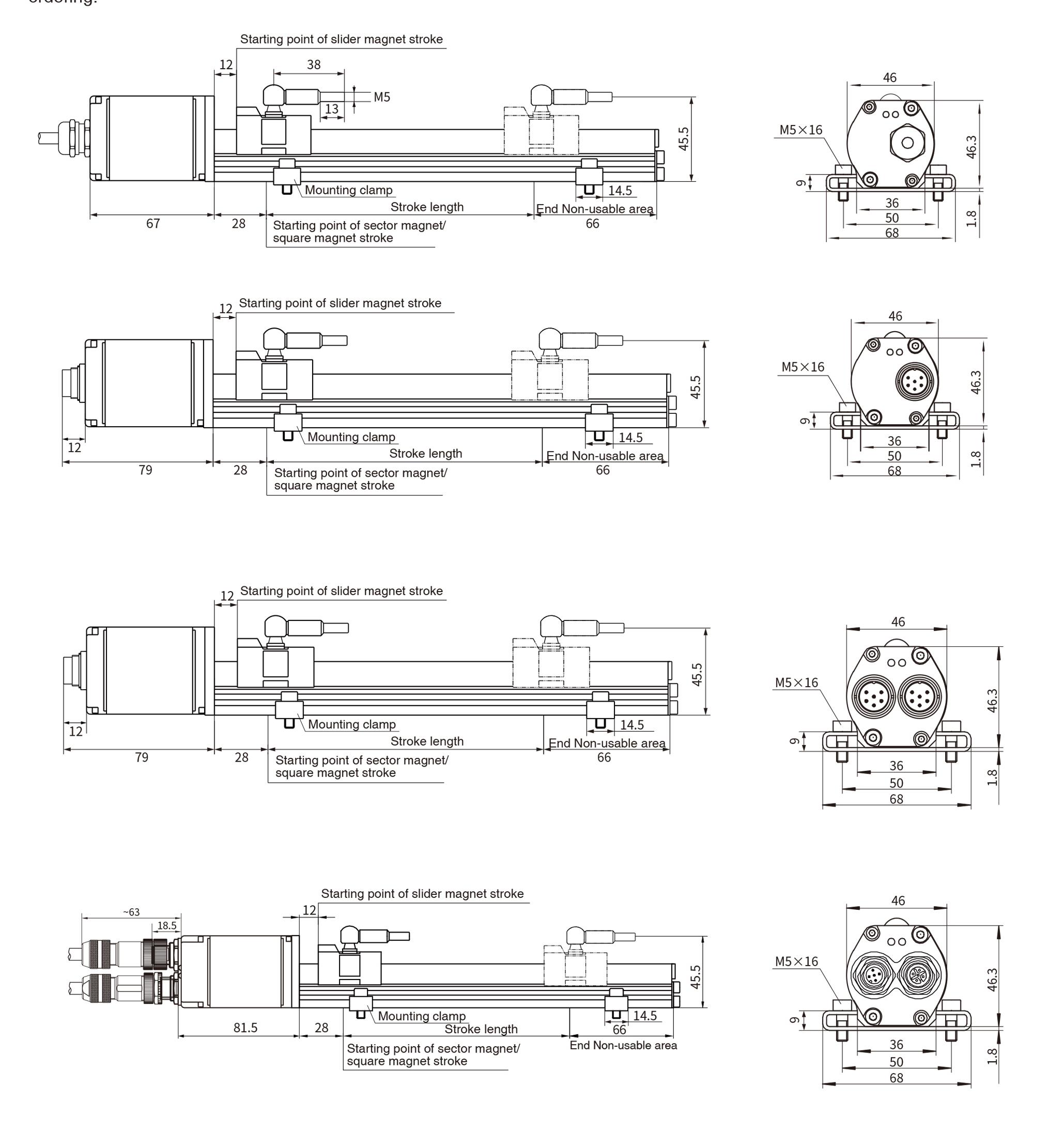

Dimensions and installation guidance of RP aluminum profile sensor


RP Series aluminum profile provides flexible and simple external installation mode, which is suitable for stroke or position detection of linear motion mechanism, and can also be used for external position detection of hydraulic cylinder.

Note: The measurement Non-usable area shown in the figure indicates that the output value of the sensor in this area is zero or unreliable.

The default value of the measurement Non-usable area at the head and end of this product is 28mm and 66mm respectively.

The value of the measurement Non-usable area can be modified appropriately according to the customer's needs, please pointed out when ordering.

Dimensions and installation guidance of RP aluminum profile sensor

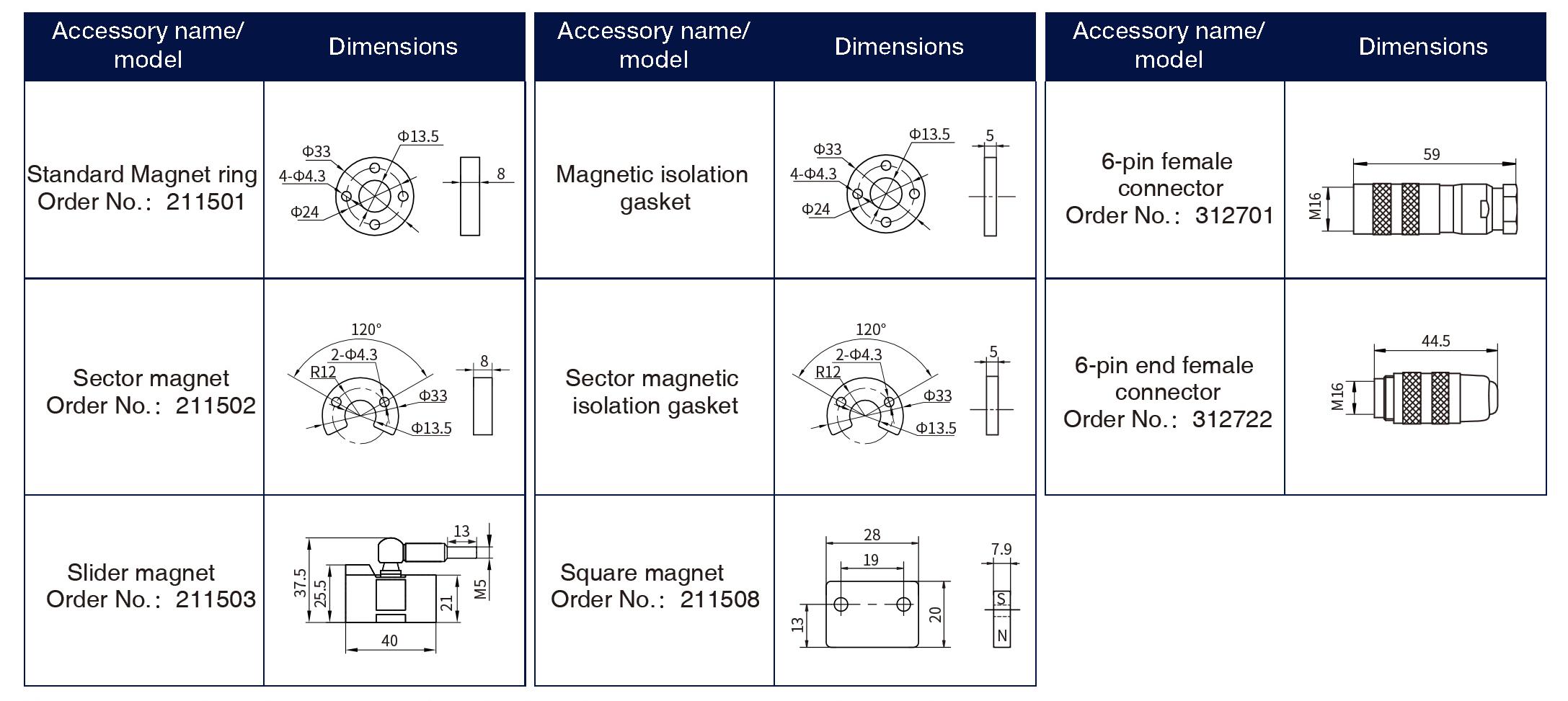

Common Accessories -RH/RP CANBus Output Magnetostrictive Displacement Sensor


Common Accessories -RH/RP CANBus Output Magnetostrictive Displacement Sensor

Note: Please refer to "Magnet ring Selection" for details of magnet ring kit and other models.

Wiring mode


When the sensor is connector output, refer to the pin definition in the following table for wiring mode; when the sensor is cable outlet output, refer to the line color definition in the following table for connection mode

Wiring mode


Ordering Information

Ordering Information

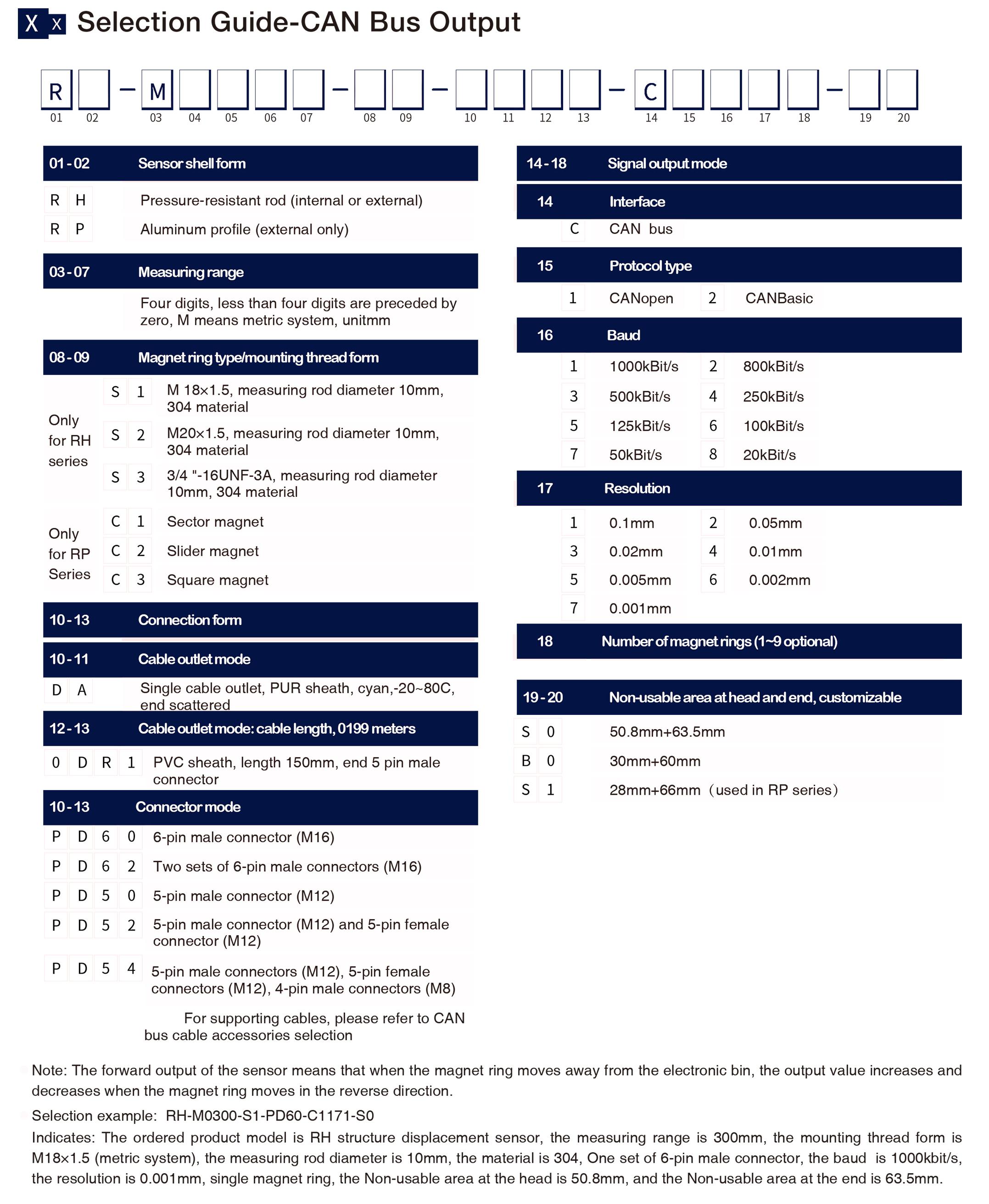

Selection Guide-CAN Bus Output

CAN Selection Guide-CAN Bus Output








Packaging Information


ItemDescriptionReel/Tray

Pcs/Roll

G.WN.W

QTY/Carton

Package Size
RH/RP CANBus Seris

RH/RP CANBus Output Magnetostrictive Displacement Sensor


25~5500 mm stroke

1 / 2 / 5 / 10 / 20 / 50 / 100 μm Resolution

-40℃ ~ +85℃ Operating temperature

IP67 / IP65







-kgs-kgs-pcs-mm



Discover all the technical specifications by downloading the datasheet today.




All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
