General Options - Programming Tools







Accessory name/modelDimensionsApplication

  • Handheld programmer

  • Order No.：TEC612801A/B

  • (A:Current B:Voltage）

TEC612801A/B

Applicable to analog signal output type sensor, can set

the start position and full-scale point of analog signal

output type displacement sensor

Includes: handheld programmer, 220V power supply,

sensor adapter×2


Interface converter

Order No.：TEC612802

TEC612802

Applicable to SSI signal output type sensor, bital tube

real-time display output vernier magnet ring displacement

value.

Includes: interface converter, 220V power supply, sensor

adapter×2

Address programmer

Order No.：TEC612803

TEC612803

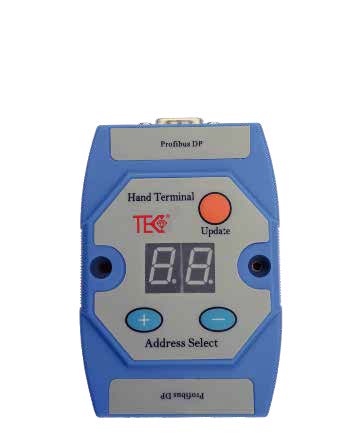

Applicable to Profibus-DP signal output sensor, and

provides the slave station address setting function of

Profibus-DP signal output displacement sensor.

Includes: address programmer, sensor adapter

Address programmer

Order No.：TEC612804

TEC612804

Applicable to CANopen signal output sensor, and

provides the slave station address setting function of

CANopen signal output displacement sensor. Includes:

address programmer, sensor adapter

USB converter

Order No.：TEC612811


TEC612811

Applicable to analog signal output senor, connect PC and

sensor via USB port, use TEC sensor configuration

software for programming: 1) setting sensor measurement

direction; 2) Setting sensor zero point and full-scale

point; 3) Graphical display of Magnet ring position value;

4) Diagnose sensor online through error code.

Includes: USB converter, USB data cable, sensor

adapter×2, software


USB converter

Order No.：TEC612812


TEC612812

Applicable to SSI signal output sensor, connect PC and

sensor via USB port, using TEC sensor configuration

software for programming: 1) Set sensor parameters

(data length, data format, measurement direction); 2)

Graphic display of Magnet ring position value; 3) Set

sensor zero point and measurement display value; 4)

Diagnosie sensor online through error code.

Includes: USB converter, USB data cable, sensor

adapter×2, software


USB converter

Order No.：TEC612813

TEC612813

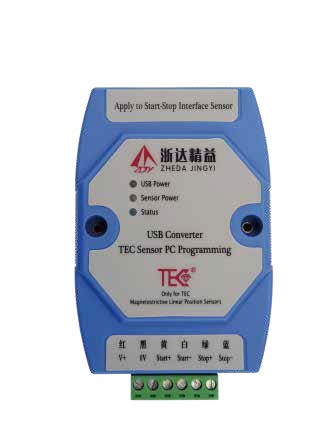

Applicable to start/stop signal output sensor, connect PC

and sensor via USB port, use TEC sensor configuration

software to program: 1) Graphic display of Magnet ring

position value; 2) Diagnose sensor online through error

code.

Includes: USB converter, USB data cable, sensor

adapter×2, software





Ordering Information

All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
