General Options-Cable







Accessory name/modelDimensionsApplication

511802

Standard Cable (H)

Order No.：511802


3P×0.25mm²；Ф7.2mm

Conductor: 6-core, red/black, blue/green,

yellow/white

Sheath: Orange，PUR

Shielding layer: tinned copper wire mesh +

aluminum foil

Application characteristics: soft, oil resistance

and bending resistance

Temperature：（-20~90℃）


Interface: Analog/SSI

Interface/Start/Stop

Structure：RH/RP/RF/FBGB/

RS/RB/RD


511803

Profibus 2-Core Special Cable (H)

Order No.：511803

2×0.2mm²；Ф8mm

Conductor: 2 cores, red/green

Sheath: Purple, PUR

Shielding layer: tinned copper wire mesh +

aluminum foil

Application characteristics: Hard, special

for DP

Temperature：（-20~80℃）


Interface: DP interface

Structure：Special for

RH/RP/RF/5-pin connector

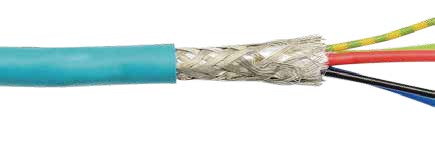

511804

Profibus 5-core Special Cable (Z)

Order No.：511804


1×2×0.65+3×0.75mm²；Ф8mm

Conductor: 5-core, red/green/blue/black/yellow/

green

Sheath: Cyan, PUR

Shielding layer: tinned copper wire mesh +

aluminum foil

Application characteristics: Linear and soft

Temperature：（-20~80℃）

Interface: DP interface

Structure：Special for

RH/RP/RF/6-pin connector

511807

Orange European Standard Cable (U)

Order No.：511807


7×0.25mm²；Ф7mm

Conductor:7-core,white/brown/green/yellow/

gray/pink/blue

Sheath: Orange, modified PVC

Shielding layer: tinned copper wire mesh +

aluminum foil

Application characteristics: Extremely soft, oil

resistance, bending resistance, high temperature

resistance compliant with European colour code

Temperature：（-20~105℃）


Interface: Analog/SSI

Interface/Start/Stop

Structure：RH/RP/RF/FBGB/

RS/RB/RD

511808

CAN Special Cable (C)

Order No.：511808


2×2×0.22mm²；Ф7.6mm

Conductor: 4-core, brown/white, yellow/green

Sheath: Purple, PVC

Shielding layer: braided with copper wire

Application characteristics: Hard, impedance

120 Ω, special for CAN

Temperature：（-40~75℃）


Interface: CAN interface

Structure：RH/RP/RF/FBGB/

RS/RB/RD

511814

Black European Standard Cable (U)

Order No.：511814


7×0.25mm²；Ф7mm

Conductor: 7-core, white/brown/green/yellow/gray/pink/blue

Sheath: Black, modified PVC

Shielding layer: tinned copper wire mesh +

aluminum foil

Application characteristics: Extremely soft, oil

resistance, bending resistance, high temperature

resistance compliant with European colour code

Temperature：（-20~105℃）

Interfaces: Analog, SSI, Start/Stop

Structure：RH/RP/RF/FBGB/

RS/RB/RD

522000-XX

Four-pin female connector

Order No.：522000-XX

522000-XX


Profibus-DP/Profinet(M8)

Optional：522000-02 — line length 2m

522000-05 — line length 5m

522000-10 — line length 10m

522000-15 — Line length 15m

xx- cable length unit: m

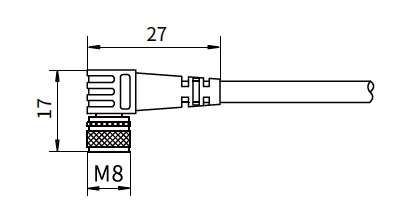

522001-XX

Four-pin90°female connector

Order No.：522001-XX

522001-XX

Profibus-DP/Profinet(M8)

Optional：522001-10 — Line length 10m

522001-15 — Line length 15m

xx- cable length unit: m

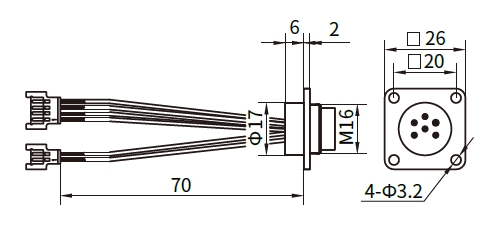

522003

Wire Harness

Order No.：522003

522003

Start/Stop

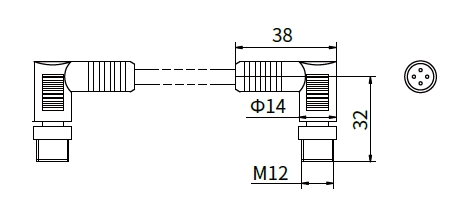

522004-XX

Industrial Ethernet Cable(Cat 5e) d-coded

Order No.：522004-XX

522004-XX

Industrial Ethernet interface

Optional：522004-08 — Line length 8m

xx- cable length unit: m

Connector Type: Two 4-pin 90 ° male

connectors (M12)

Cable sheath: PVC, light blue

Working temperature：-40℃ ~80℃

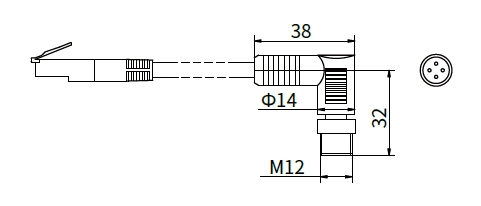

522005-XX

Industrial Ethernet Cable(Cat 5e) d-coded

Order No.：522005-XX

522005-XX

Industrial Ethernet interface

Optional：522005-08 — Line length 8m

xx- cable length unit: m

Connector type: RJ45, 4-pin 90 ° male connector( M12 )

Cable sheath: PVC, light blue

Working temperature：-40℃ ~80℃

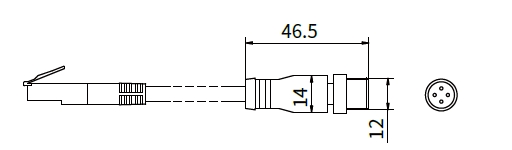

522006

Industrial Ethernet Cable(Cat 5e) d-coded

Order No.：522006-XX

522006-XX

Connector Type: RJ45, 4-pin male connector (M12)

Cable sheath: PVC, light blue

Working temperature：-40℃ ~80℃

Industrial Ethernet interface

Optional：522006-03 — Line length 3m

522006-05 — Line length 5m

522006-08 — Line length 8m

522006-10 — Line length 10m

522006-15 — Line length 15m

xx- cable length unit: m

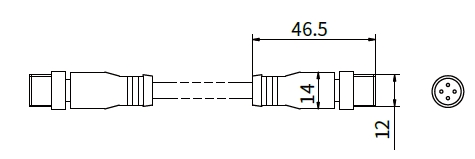

522008-XX

Industrial Ethernet Cable(Cat 5e) d-coded

Order No.：522008-XX

Order No.：522008-XX

Connector type: Two male connectors (M12)

Cable sheath: PVC, light blue

Working temperature：-40℃ ~80℃


Industrial Ethernet interface

Optional：522008-03 — Line length 3m

522008-05 — Line length 5m

522008-08 — Line length 8m

522008-10 — Line length 10m

Connector type: Two male connectors (M12) 522008-15 — Line length 15m

xx- cable length unit: m

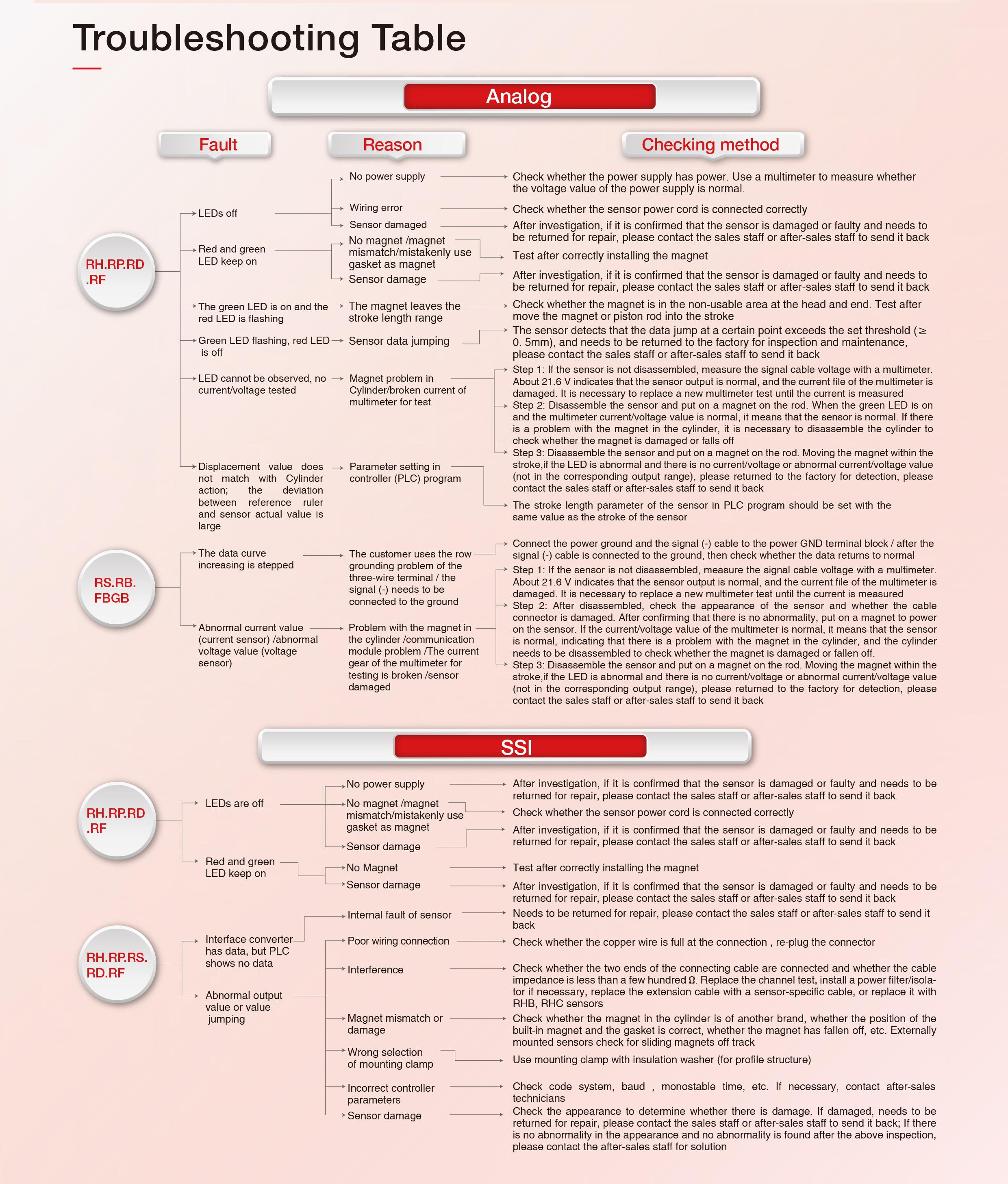

Troubleshooting Table

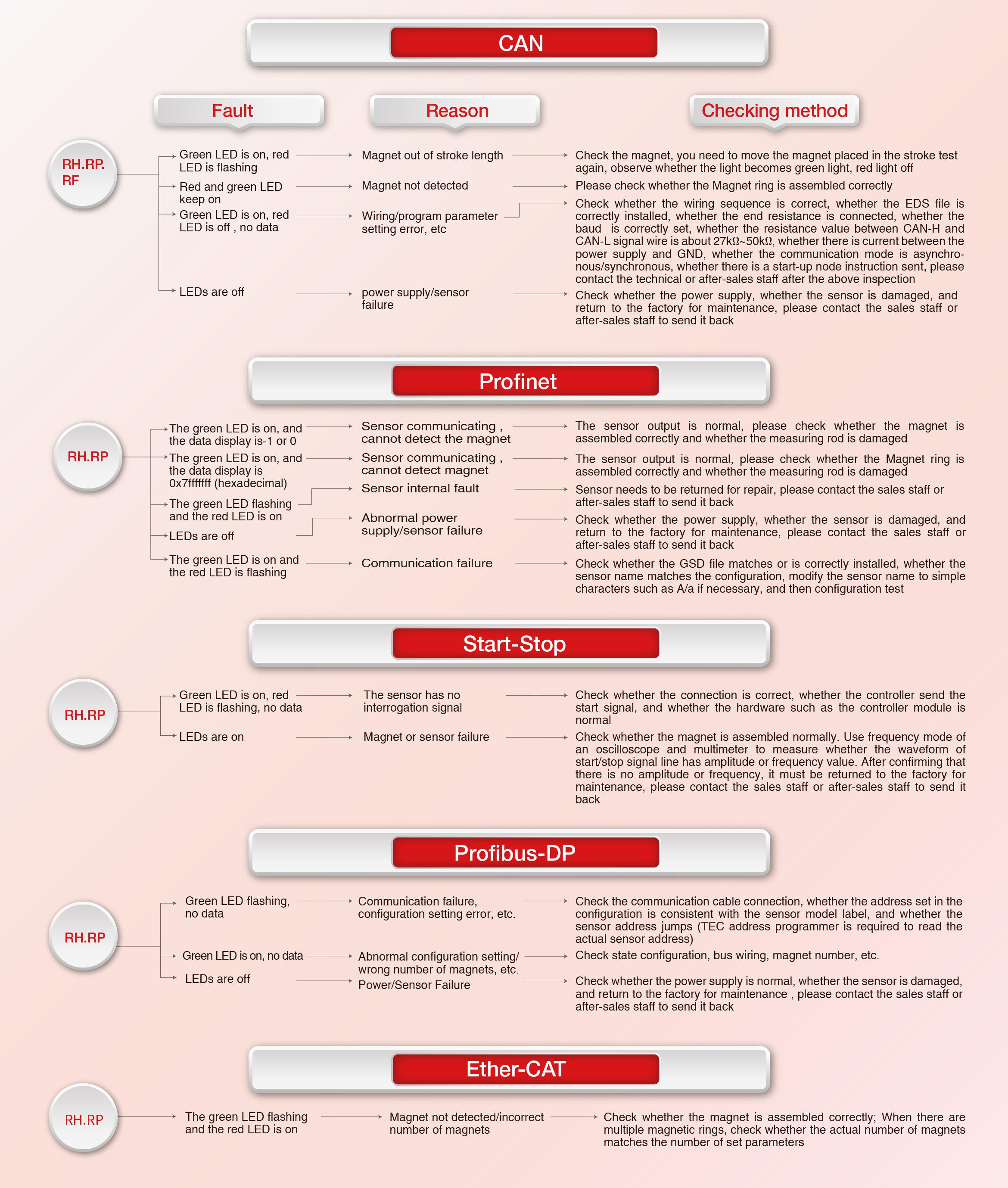

Troubleshooting Table



Troubleshooting Table



Ordering Information

All Displacement Sensor

Model Effective Stroke Interface Voltage Nonlinearity Repeatability Updated on Protection Grade Operation
Temperature (℃) 		Material Shock| Pressure Datasheet Sample
RS Waterproof Seris 50mm~5500mm Analog、SSI、CANopen、Start/Stop +24Vdc±20% < ± 0.01% of full scale, Min. ±50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RF Flexible Seris 500~7620mm，Up to 23 meters Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP65 / IP67 -40℃ ~ +85℃ Aluminum alloy GB/T2423.5 100g(6ms)
RD Split Seris 25~5500 mm Analog、SSI、CANopen、Profibus-DP、Start-Stop、Profinet、EtherCAT +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP68 -40℃ ~ +125℃ 304 stainless steel GB/T2423.5 100g(6ms)
RB Flat Seris 50~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
FBGB Explosion-Proof Seris 25~5500 mm Analog、SSI、CANopen +24Vdc±20% < ± 0.01% of full scale, Min. ± 50μm < ± 0.001% of full scale, Min. ± 1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Start-Stop Output Seris 25~5500 mm / +24Vdc±20% < 0.01% full-scale taxi, minimum 50μm / 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +105℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) SSI Output Seris 25~5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profinet Output Seris 25~5500 mm Profinet IO RT +24Vdc±20% < ±0.01% of full scale, minimum ±50μm < 0.001% for full-scale taxis, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH(P) Profibus-DP Seris 25~5500 mm Profibus-DP System，ISO74498 +24Vdc±20% <±0.01% of full scale, minimum ±50μm <±0.001% of full scale, minimum ±1μm 1KHz（range≤1m） 500Hz（1m＜range≤2m） 250Hz（2m＜range≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH-P EtherCAT Seris 25~5500 mm EhterCAT Ethernet Control Automation Technology +24Vdc±20% <±0.01% of full scale, minimum 50μm <±0.001% of full scale, minimum ±1μm ≥0.25ms，depending on the measuring stroke IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP CANBus Seris 25~5500 mm CANBus System Protocol, IS0DIS11898 +24Vdc±20% < 0 .01% full-scale taxi, minimum 50μm <±0.001% of full scale, minimum ±1μm 1KHz（ range ≤1m）500Hz（1m＜ range ≤2m） 250Hz（2m＜ range ≤3m），customizable IP67/ IP65 -40℃ ~ +85℃ 304 stainless steel GB/T2423.5 100g(6ms)
RH/RP Analog Seris 25~5500 mm / 0 ~ 10Vdc or 0~5Vdc（min load resistance ≥10K） <±0.01% of full scale, min±50um <±0.001% of full scale, min ±1um 1KHz (range ≤ 1m), 500Hz (1m < range ≤ 2m), 333Hz (2m < range ≤ 3m), customizable IP67 -40℃ ~ +85℃ 304L stainless steel GB/T2423.5 100g(6ms)
MT Analog Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI CANopen Seris 50~2500 mm CAN bus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 8~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MI Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA CANopen Seris 50~2500 mm CANbus ISO DIS 11898, CANopen complies with CIA DS-301V3.0, Sensor Specification DS-406V3.1 / ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MHA Analog Seris 50~2500 mm 4 ~ 20mA（load resistance≤250Ω） 0.5 ~ 4.5Vdc or 0.25~4.75Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L stainless steel GB/T2423.5 100g（11ms）
MH CANopen Seris 50~2500 mm CAN bus ISODIS11898, CANopen conforms to CIA DS-301V3.0, sensor specification DS-406V3.1 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
MH Analog Seris 50~2500 mm / 9~ 32Vdc ±0.1mm（≤250mm）or 0.04%F.S（＞250mm） ±0.1mm 2ms IP67 -40℃ ~ +105℃ 304L GB/T2423.5 100g（11ms）
ES Modbus Seris 25–3500 mm Modbus RTU protocol 9~ 30Vdc Minimum ± 50um or <0.01%.F.S Minimum ± 10um or <0.001%.F.S Default 20ms IP67 -40°C ~ +75°C 304L/316L GB/T2423.5 50g(6ms)
ES Analog Seris 25–5500 mm 4-20mA or 0-20mA 0~10Vdc or 0~5Vdc 0.05% F.S Same resolution lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C 304L / 316L stainless steel GB/T2423.5 50g(6ms)/ 35MPA / 70MPA ( peak
HP Analog Seris 25–2500 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc <0.02% of full scale <0.005% of full scale lms ( range < lm ) IP65 -40°C ~ +85°C PFA GB/T2423.5 50g(6ms)
ESC Analog Seris 50–3000 mm 4-20mA or 20-4mA 0~10Vdc or 0~5Vdc 士0.1mm(25~400mm) <±0.l mm lms (four wire system)/ 100 ms (two wire system) IP67 -40°C ~ +75°C PFA GB/T2423.5 50g(6ms)
EP Analog Seris 25-5500 mm 0-20mA or 4-20mA 0~10Vdc or 0~5Vdc 0.05% F.S < 0.03% of full scale < 0.005% of full scale IP65 -40°C ~ +85°C Aluminum formed shell GB/T2423.5 50g(6ms)
ED Analog Seris 50–3000 mm / 0–10V/10–0V, signal/ dual <±0.05% of full scale <± 0.01% of full scale 2MS IP65 -40°C ~ +75°C Aluminum Alloy GB/T2423.5 50g(11ms) , 5 g，10–2000 Hz GB/T2423.10
EJ SSI Output Seris 25-5500 mm SSI Synchronous Serial Interface +24Vdc±20% <±0.01% of full scale, minimum±50μm < ± 0.001% of full scale, minimum ± 5μm / Cable outlet mode IP68; socket way IP67 -40℃ ~ +85℃ 304L GB/T2423.5 100g(6ms)
EJ Modbus Seris 25-5500 mm Modbus RTU protocol 0-10Vdc or 0-5Vdc Minimum ±50um(or <±0.01%F.S.) Minimum ±10um(or <±0.001%F.S.) 10ms IP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g ( 6ms )
EJ Analog Seris 25-5500 mm 4-20mA or 0-20mA 0-10Vdc or 0-5Vdc <+0.02% of full scale <± 0.001% offull scale lms Outgoing line lP68, Socket LP67 -40°C - +75°C 304L/316L stainless steel GB/T2423.5 50g(6ms), 35MPA/70MPA(peak)
